Space Towel Rail

by MHS Radiators

Download Add to collection

Description

Features and Benefits

22mm mild steel tubes
Central heating, dual fuel & electric options
Range of electric element options
Guarantee
- 5 Years
- 2 Years on electric elements

Models: Straight & Bow Fronted

Finishes: White (RAL 9016) & Chrome

Heights: 800mm, 1000mm, 1200mm, 1600mm & 1800mm

Widths: 300mm, 400mm, 500mm & 600mm

Outputs: 222 - 1094 Watts

Object Data

1 Revision

Last Updated

05/02/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Literature

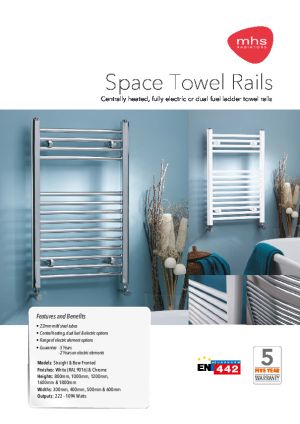

Technical Data Sheet

Product Data Sheet

Object metadata

Object

Parameter Type

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
_Object User Guidewww.bimstore.co/products/space-towel-rail/document/object-user-guide
6 Monthlyn/a
Access Clearance Zone Back0 mm
Access Clearance Zone Bottom0 mm
Access Clearance Zone Front0 mm
Access Clearance Zone Left0 mm
Access Clearance Zone Right0 mm
Access Clearance Zone Top0 mm
Accessibility Performancen/a
Air VentNo
Annuallyn/a
Arc Height30 mm
Array 1 Number17
Array 1 Offset23 mm
Array 2 Number4
Array 2 Offset841 mm
Array 3 Number4
Array 3 Offset1140 mm
Array 4 Number3
Array 4 Offset1439 mm
Array 5 Number3
Array 5 Offset1698 mm
Assembly CodeD3020
Asset TypeFixed
Bar Centres40 mm
Bar Length530 mm
Bar Offset Left Right35 mm
Bar Radius13 mm
Bespoke Timeframen/a
BIM Object NameMHSRadiators_MechanicalEquipment_Radiators_SpaceTowelRails
Casing Materialn/a
CE Approvaln/a
Classification NameUniclass 2015
Classification ValuePr_70_60_36_73
Code Performancen/a
ColorChrome
ColourChrome
Connector Offset40 mm
Constituentsn/a
Created Byenquiries@mhsradiators.co.uk
Created On2020-01-22T09:00:00
Curved BarYes
Dailyn/a
DescriptionSophisticated and stylish, the Space offers a touch of luxury at an everyday price - appealing to the builder, property developer and installer alike. The space range is available in White (RAL 9016) or high quality chrome plate finish. Both finishes are then available in either straight or bow fronted format.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturewww.bimstore.co/products/space-towel-rail/document/product-literature
Documentation Maintenancen/a
Documentation Technicaln/a
Drain TapNo
Duration UnitYears
Embodied Carbonn/a
Energy Technology Listn/a
Environmental Product Declarationn/a
Expected Life0
FeaturesThese rails are low maintenance and dry towels effectively - perfect for any size household. And for complete peace of mind, every towel rail is covered by a full 5-year guarantee.
FinishChrome
FinnedNo
Floor StandsNo
Graden/a
Green Guide For Specificationn/a
Gross Weight0.00 kg
Heat Emitter Materialn/a
Heat ReflectorNo
Heat Transfer Mediumn/a
Height1800 mm
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
Inlet GrilleNo
Integral Locksheild ValveNo
Integral Regulating ValveNo
Integral TRVNo
KeynoteT32
Life Cycle Analysisn/a
Location Of Manufacturern/a
Maintenance Required 0-300hrsn/a
Maintenance Required 1001-2000hrsn/a
Maintenance Required 2001-4000hrsn/a
Maintenance Required 301-600hrsn/a
Maintenance Required 4001-8000hrsn/a
Maintenance Required 601-1000hrsn/a
Maintenance Required 8001-12000hrsn/a
ManufacturerMHS Radiators
Manufacturer NameMHS Radiators
Manufacturer Websitewww.mhsradiators.co.uk/
MaterialMild steel
Material Ingredient Reportingn/a
Maximum Operating Pressure0.0 Pa
Maximum Operating Temperature0 °C
Maximum Test Pressure0.0 Pa
ModelSpace Towel Rails
Model Number***
Model ReferenceSpace Towel Rails
Monthlyn/a
Mounting TypeWall
NBS DescriptionRadiators
NBS Object NameMHS Radiators - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Height1800 mm
Nominal Length600 mm
Number Of Panels0
Number Of Sections0
O&M Manualn/a
Offset0 mm
Outlet GrilleNo
Overall Height1800 mm
Overall Width600 mm
Panel Depth40 mm
Pipe Connection Size25 mm
Possible Connections PositionsBottom
Production Year2020
Product Literaturewww.bimstore.co/products/space-towel-rail/document/product-literature
Product Model Number***
Product RangeSpace Towel Rails
Quaterlyn/a
Referenced Standardn/a
Reference Standardn/a
Replacement Costn/a
Responsible Extraction Of Materialsn/a
Responsible Sourcing Of Materialsn/a
Seam Typen/a
ShapeRectangular
Shipping Weight0.00 kg
Size***
Spare Partsn/a
Straight BarNo
Temperature Classificationn/a
Thermal Output0 W
Thickness Offset60 mm
Top Bottom Offset23 mm
Towel Rail MaterialChrome Plated Steel
Typen/a
Type Comments***
Type Name***
URLwww.mhsradiators.co.uk/
Wall Bracket Offset43 mm
Wall BracketsYes
Warranty Description5 year guarantee
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborenquiries@mhsradiators.co.uk
Warranty Guarantor Partsenquiries@mhsradiators.co.uk
Warranty IDn/a
Water Content0.0 L
Water Flow Raten/a
Weeklyn/a
Width600 mm
Zone Height179 mm
