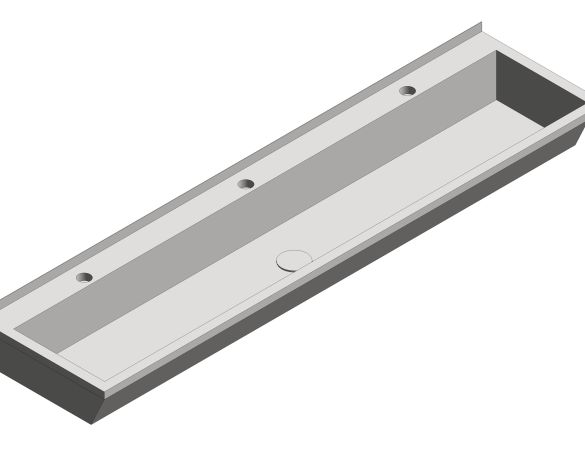

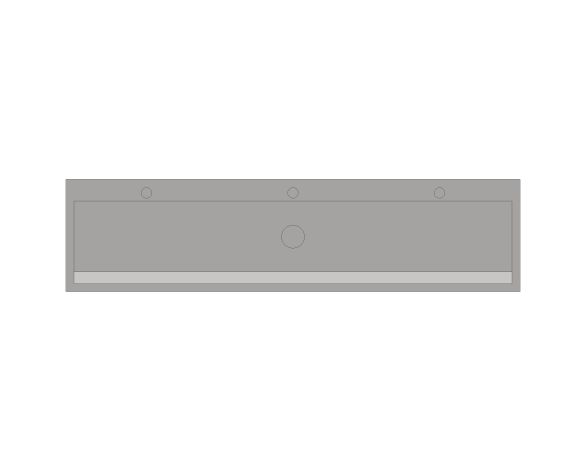

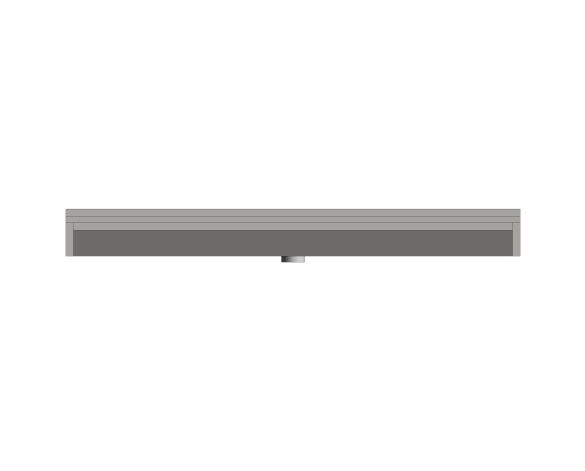

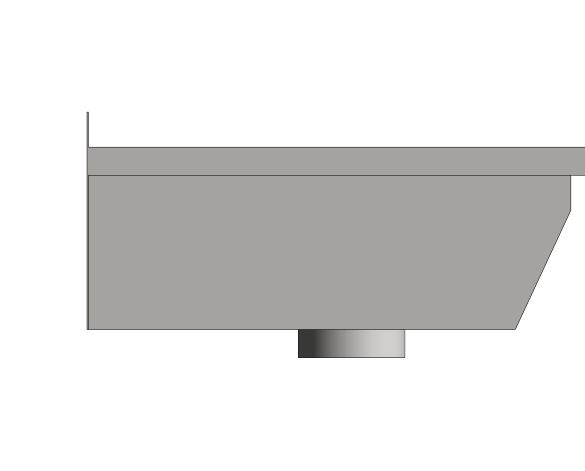

Stainless Steel Wash Trough

by Trade Washrooms

Download Add to collection

Description

Our hand wash troughs are manufactured from 1.2mm thick, 304 stainless steel with a satin polished finish. Wash troughs are supplied with pre-drilled 35mm⌀ tap holes and a 1 ½-inch waste.

600mm Wash Trough - 1 tap hole with centre waste
1200mm Wash Trough – 2 tap-holes with centre waste
1500mm Wash Trough – 3 tap-holes with centre waste
1800mm Wash Trough – 3 tap-holes with left-hand or right-hand waste
2400mm Wash Trough – 4 tap-holes with left-hand or right-hand waste

Object Data

1 Revision

Last Updated

07/12/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

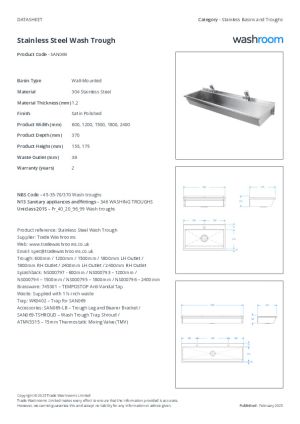

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD2010400
Asset TypeFixed
Basin MaterialTrade Washrooms - Stainless Steel - Satin
BIM Object NameTradeWashrooms_PlumbingFixture_WashTrough_StainlessSteel
CategoryPr_40_20_96_99:Wash troughs
Classification NameUniclass2015
Classification ValuePr_40_20_96_99
Code Performancen/a
ColorStainless Steel
ConstituentsWash trough and waste
Created Byspec@tradewashrooms.co.uk
Created On2020-12-03T09:00:00
CW ConnectionNo
CWFU0
DescriptionStainless steel hand wash trough in a satin polished finish. Supplied with pre-drilled tap holes and a 1 ½-inch waste.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturewww.tradewashrooms.co.uk/stainless-steel/stainless-basins-troughs/stainless-steel-wash-trough/
Documentation Maintenancen/a
Documentation Technicalwww.tradewashrooms.co.uk/stainless-steel/stainless-basins-troughs/stainless-steel-wash-trough/
Duration UnitYears
Expected Life10
Features2 tap-holes with centre waste
FinishSatin Polished
Grade304
HW ConnectionNo
HWFU0
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.SINK
KeynoteN13
Manufacturerspec@tradewashrooms.co.uk
Manufacturer Nameorders@tradewashrooms.co.uk
MaterialStainless Steel
Model1200mm Stainless Steel Wash Trough
Model NumberSAN069-1200-19
Model Reference1200mm Stainless Steel Wash Trough
NameStainless Steel Wash Trough
NBS DescriptionWash troughs
NBS Object NameTrade Washrooms - Wash troughs
NBS Office Master Tagn/a
NBS Reference45-35-70/370
Nominal Depth370 mm
Nominal Height155 mm
Nominal Length1200 mm
Outlet Offset600 mm
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1200 x 370 x 155mm
Spare Partsn/a
Sustainability Performancen/a
Tap Hole Array2
Tap Offset300 mm
Type CommentsSAN069-1200-19
Type Name1200mm Stainless Steel Wash Trough
URLwww.tradewashrooms.co.uk/
Vent ConnectionNo
Warranty Description2-year warranty on any manufacturing defect
Warranty Duration Labor0
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsorders@tradewashrooms.co.uk
Waste ConnectionYes
WFU0
