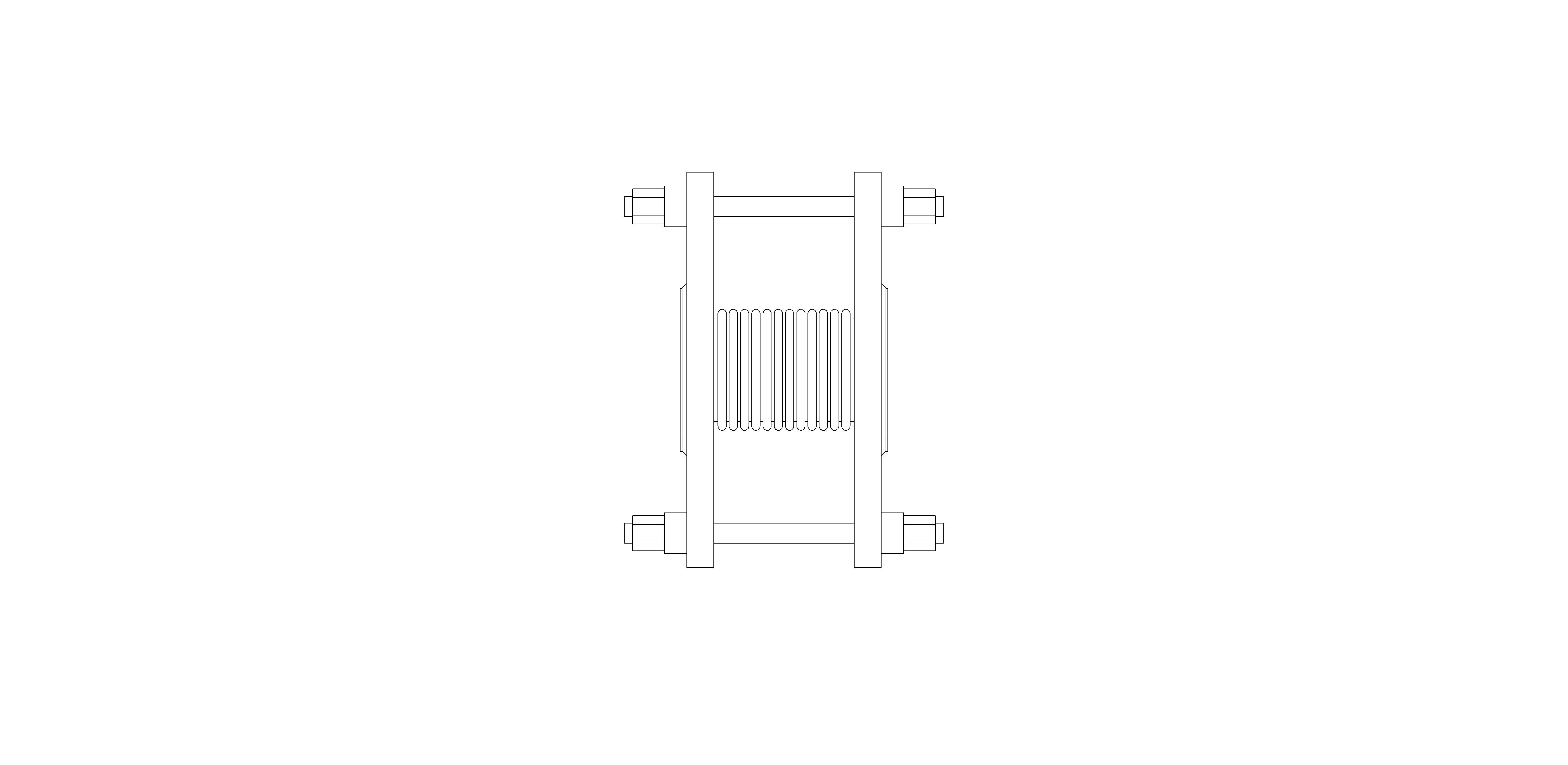

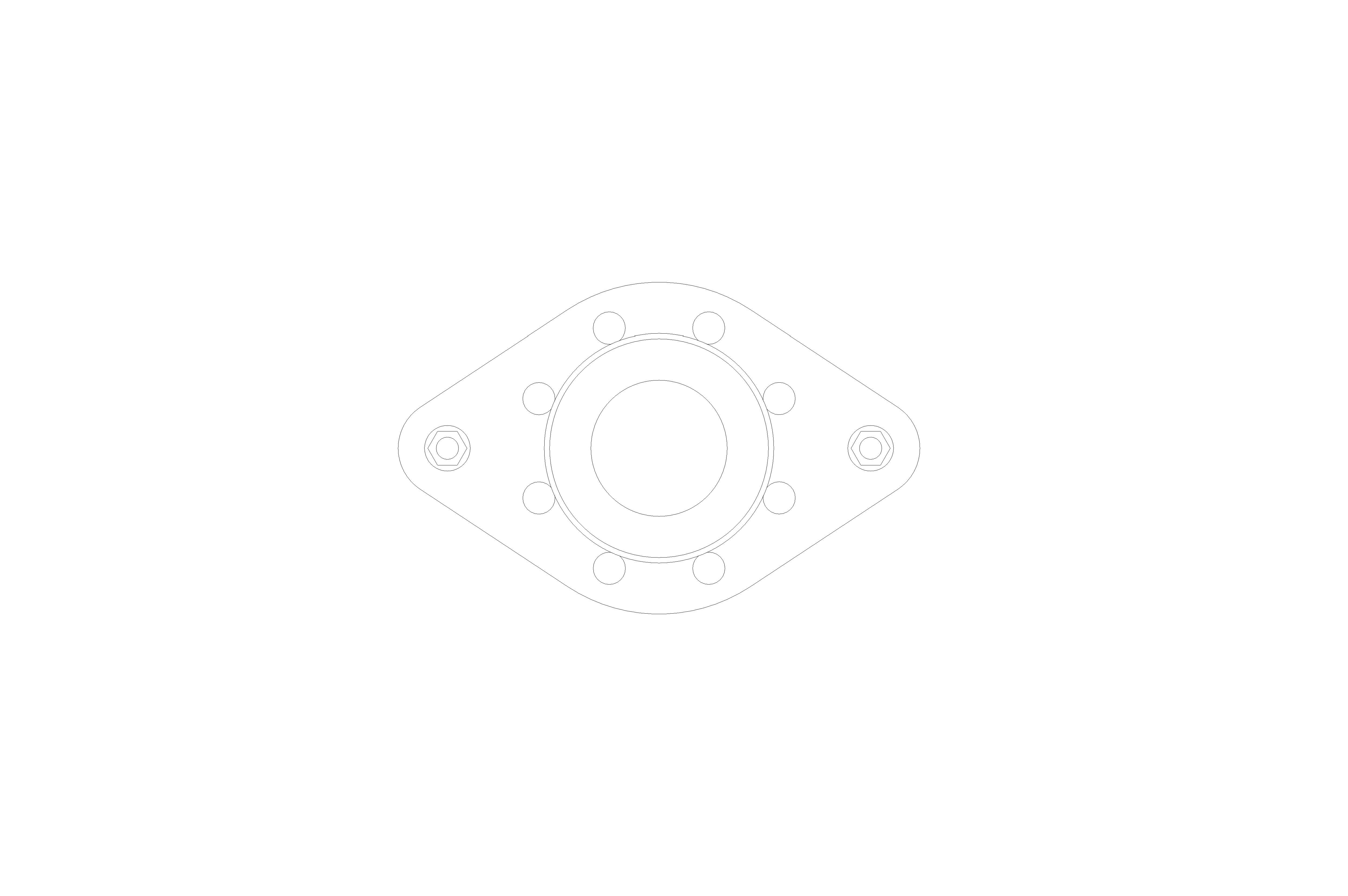

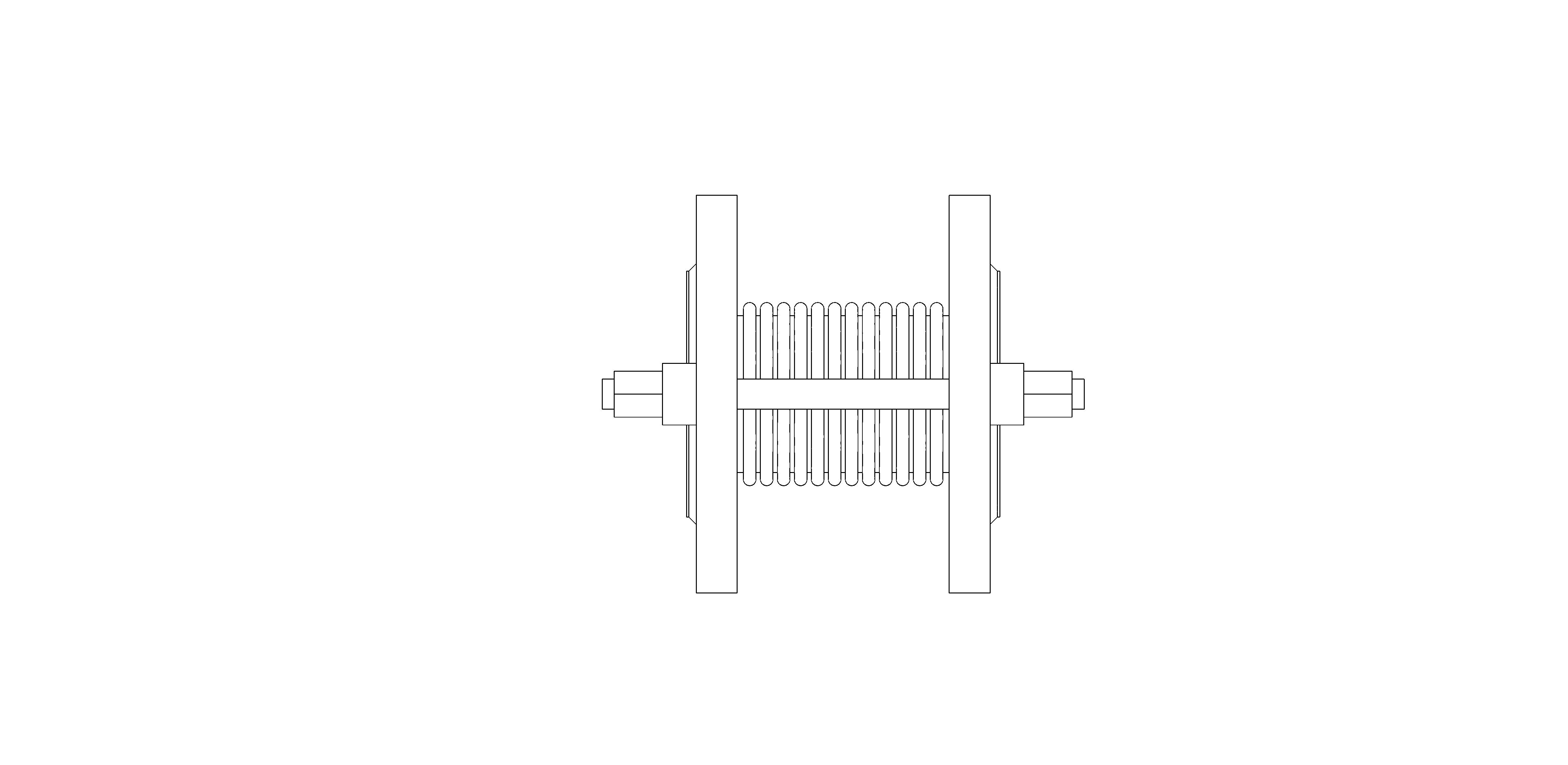

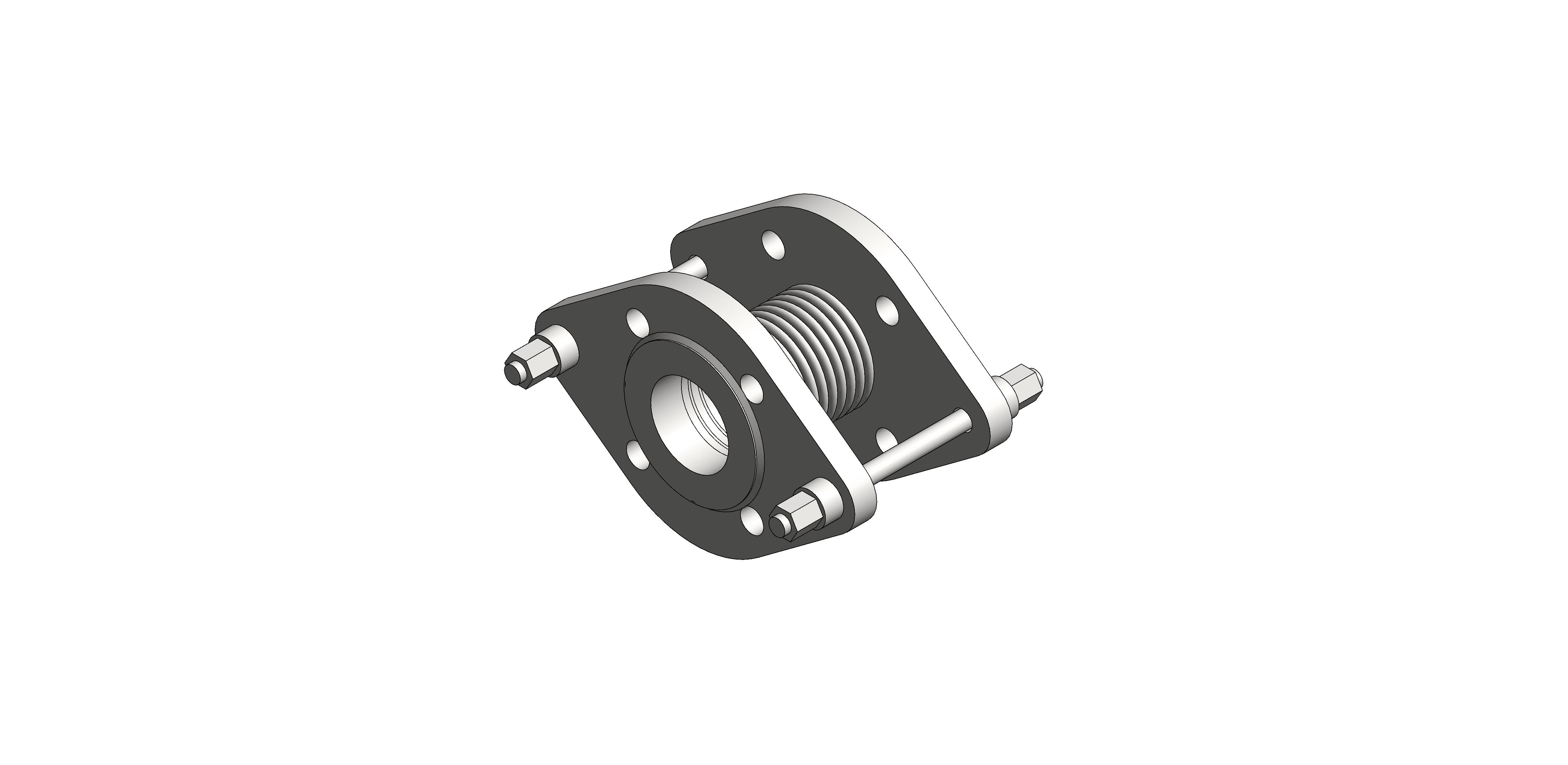

JP23VS Tied Stainless Steel Flanged Pump Connector (25 Bar Rated)

Specification

Tied stainless steel pump connector consisting of multy-ply stainless steel grade 321 bellows assembly and mating surfaces (stainless steel wetted parts) fitted with zinc plated carbon steel van stone oval flanges complete with conical steel washers. Drilled to BS4504 NP25.

Application

Tied Stourflex stainless steel pump connectors are designed to reduce noise and vibration from pumps and reciprocating machinery. They are suitable for use on HWS, L.T.H.W., M.T.H.W., Steam, Gasses and other non ferrous applications.

Maximum working temperature 300ºC.
Maximum working pressure 25 bar.
Stourflex tied stainless steel flanged pump connectors should not be used at both their maximum working temperature and pressure respectively.
Maximum test pressure = 1.5 x working pressure or 1.5 x flange rating, whichever the lower.

Lagging

Stourflex are now able to offer a tailor made flexible lagging jacket to help reduce heat losses on LTHW systems and heat gains & condensation on CHW systems.

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/stourflex-jp23vs-25-bar/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
Bellow Inside Diameter114 mm
Bellow Outside Diameter140 mm
Bellow Width7 mm
BIM Object NameStourflex_HosePumpConnectors_JP23VS_25Bar
Classification NameUniclass 2015
Classification ValuePr_70_55_98_37
Code Performancen/a
ColorGrey
Constituentsn/a
Created Byinfo@stourflex.co.uk
Created On2024-08-21T09:00:00
Default Elevation0 mm
DescriptionJP23VS Tied Stainless Steel Flanged Pump Connector (25 Bar Rated)
Distance Between Top Hat122 mm
DN100 mm
Documentation Certificateswww.bimstore.co/products/stourflex-jp23vs-25-bar/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/stourflex-jp23vs-25-bar/document/installation-guide
Documentation Literaturewww.bimstore.co/products/stourflex-jp23vs-25-bar/document/product-literature
Documentation Maintenancewww.bimstore.co/products/stourflex-jp23vs-25-bar/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/stourflex-jp23vs-25-bar/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Flange End Radius81 mm
Flange Length21 mm
Graden/a
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteS
L14 mm
Length130 mm
ManufacturerStourflex
Manufacturer NameStourflex
Materialn/a
ModelJP23VS Tied Stainless Steel Flanged Pump Connector (25 Bar Rated)
Model NumberJP23VS 25 Bar
Model ReferenceHose Pump Connectors
NBS DescriptionHigh-pressure water hose connectors
NBS Noten/a
NBS Object NameStourflex - High-pressure water hose connectors
NBS Office Master Tagn/a
NBS Referencen/a
No Bellow7
Nominal Depth345 mm
Nominal Height235 mm
Nominal Length130 mm
Outer Holes Centre Diameter286 mm
Pipe Inside Diameter114 mm
Pipe Inside Radius57 mm
Pipe Outside Diameter120 mm
Pipe Outside Radius60 mm
Primary MaterialStourflex - Stainless Steel Grade 321
Production Year2024
R30 mm
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100
Spare Partsinfo@stourflex.co.uk
Thread Tk10 mm
Type CommentsJP23VS Tied Stainless Steel Flanged Pump Connector (25 Bar Rated)
Type NameJP23VS Tied Stainless Steel Flanged Pump Connector (25 Bar Rated)
URLstourflex.co.uk/products/jp23vs-25-bar/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@stourflex.co.uk
Warranty Guarantor Partsinfo@stourflex.co.uk
Width345 mm
