JP603 Air and Dirt Separator Flanged
Specification

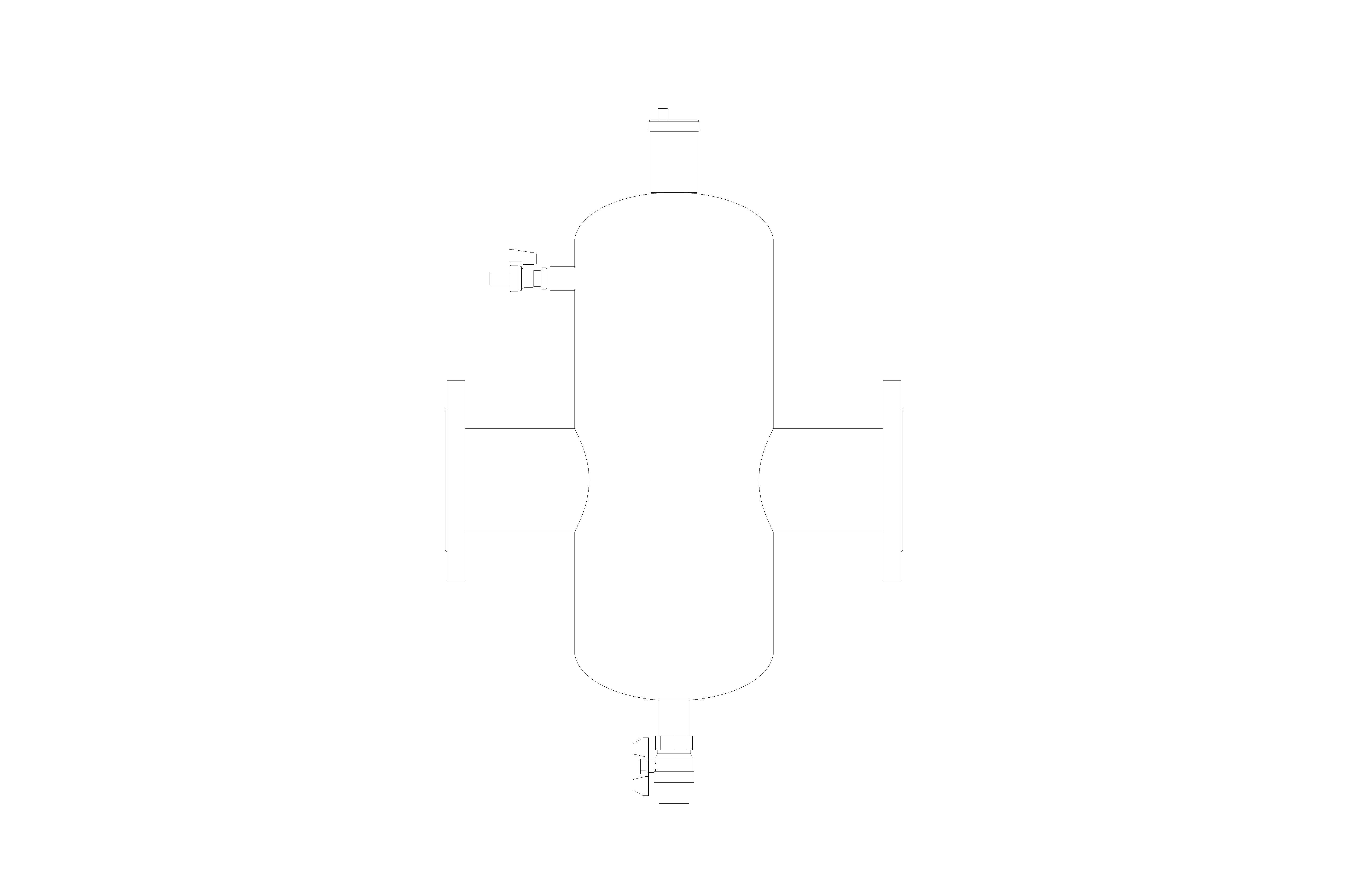

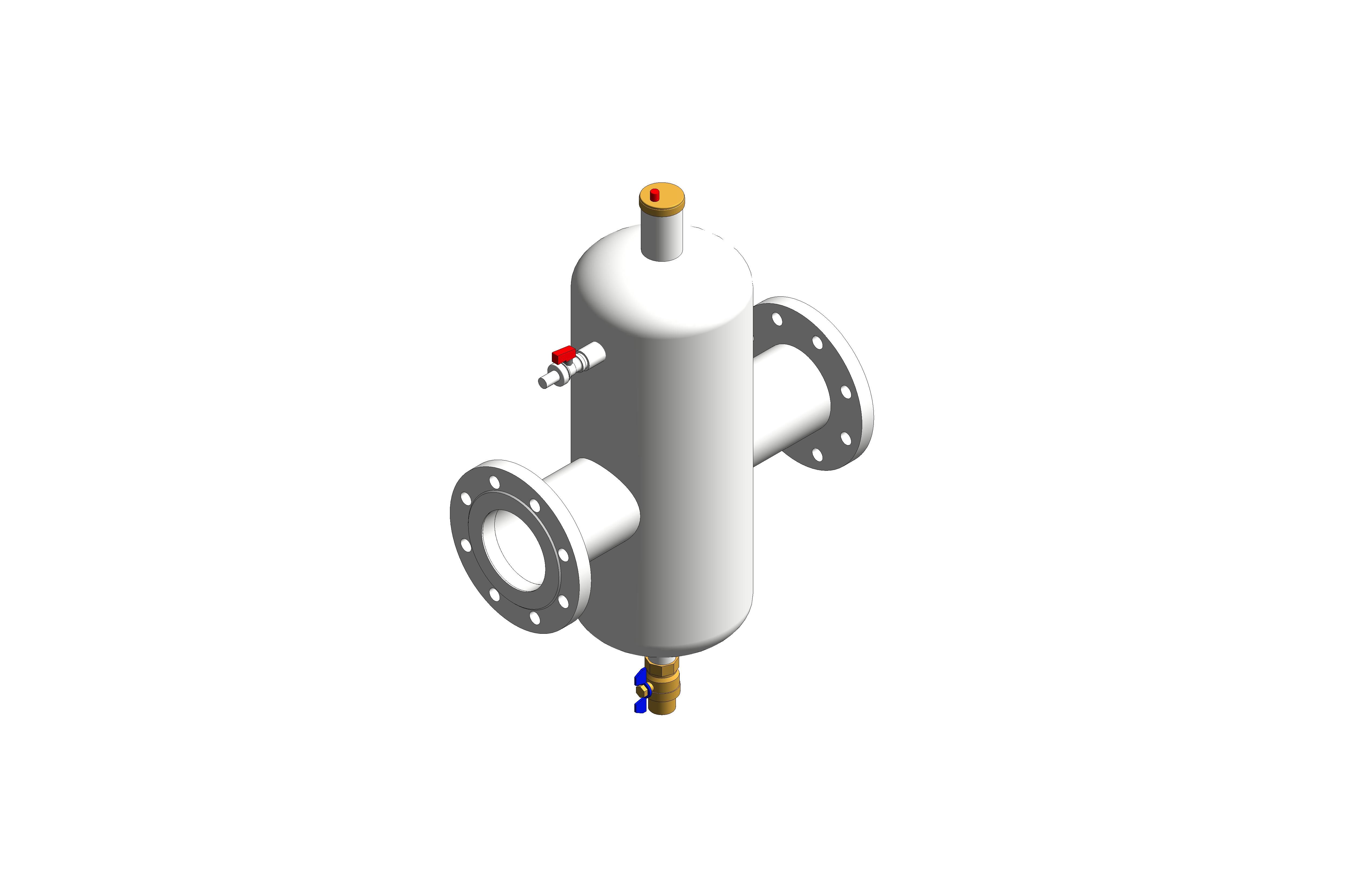

Micro Bubble Air and Dirt Separator consisting of carbon steel body with stainless steel diffuser screen. RAL 9006 white aluminium paint finish. Flanges drilled to BS4504 NP16.
Application
Stourflex air and dirt separators are designed to remove both air and dirt from circulating heating and chilled water systems. Air is vented automatically from the top of the unit. Dirt, sludge and solid particles are drained manually from the valve fitted on the base.
- Maximum working temperature 95ºC.
- Maximum working pressure 10 Bar. Maximum test pressure = 1.5 x working pressure.
- For efficient air and dirt removal separators should be line size.
Lagging
Stourflex are now able to offer a tailor made flexible lagging jacket to help reduce heat losses on LTHW systems and heat gains & condensation on CHW systems. Please ask for more information.
