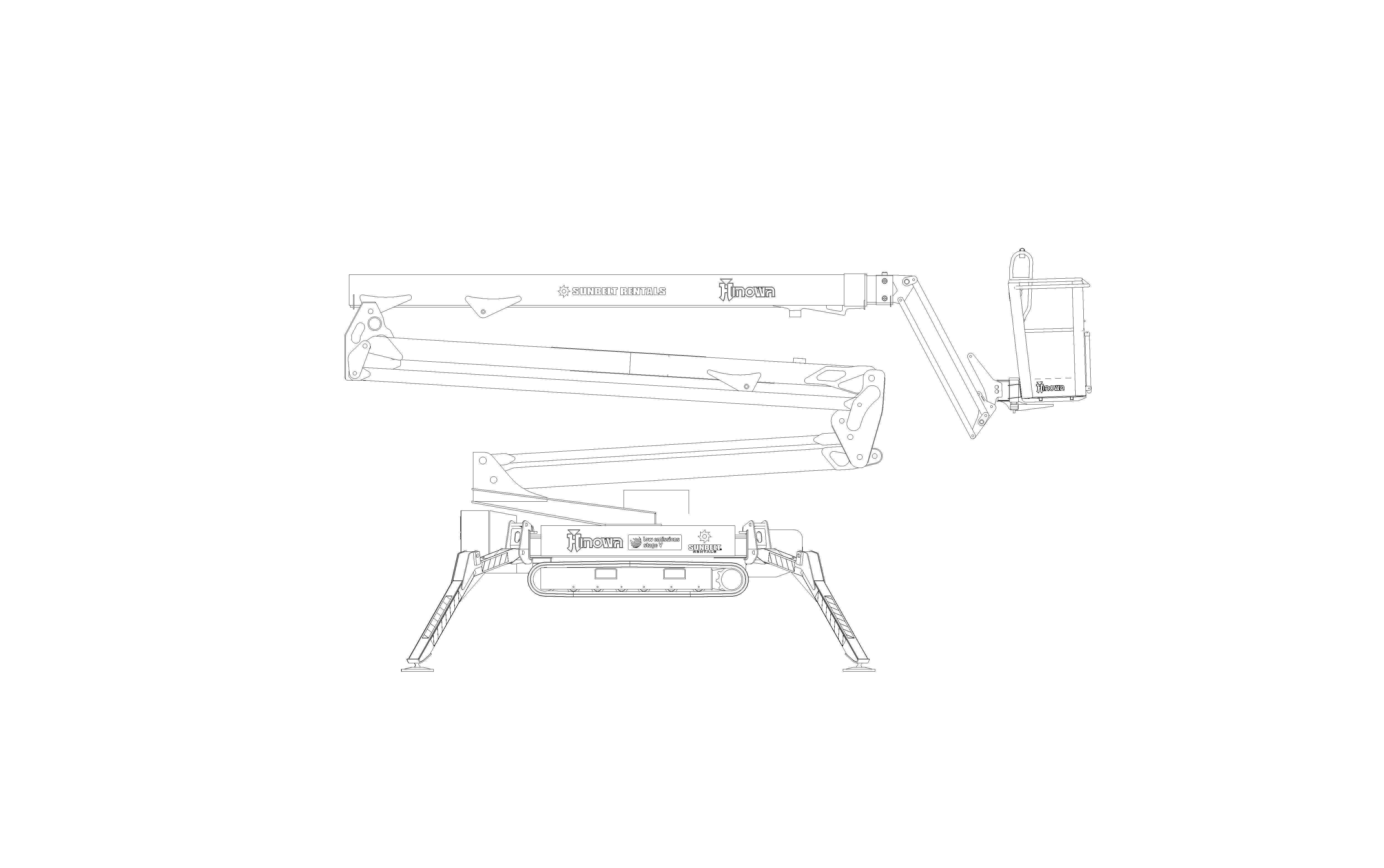

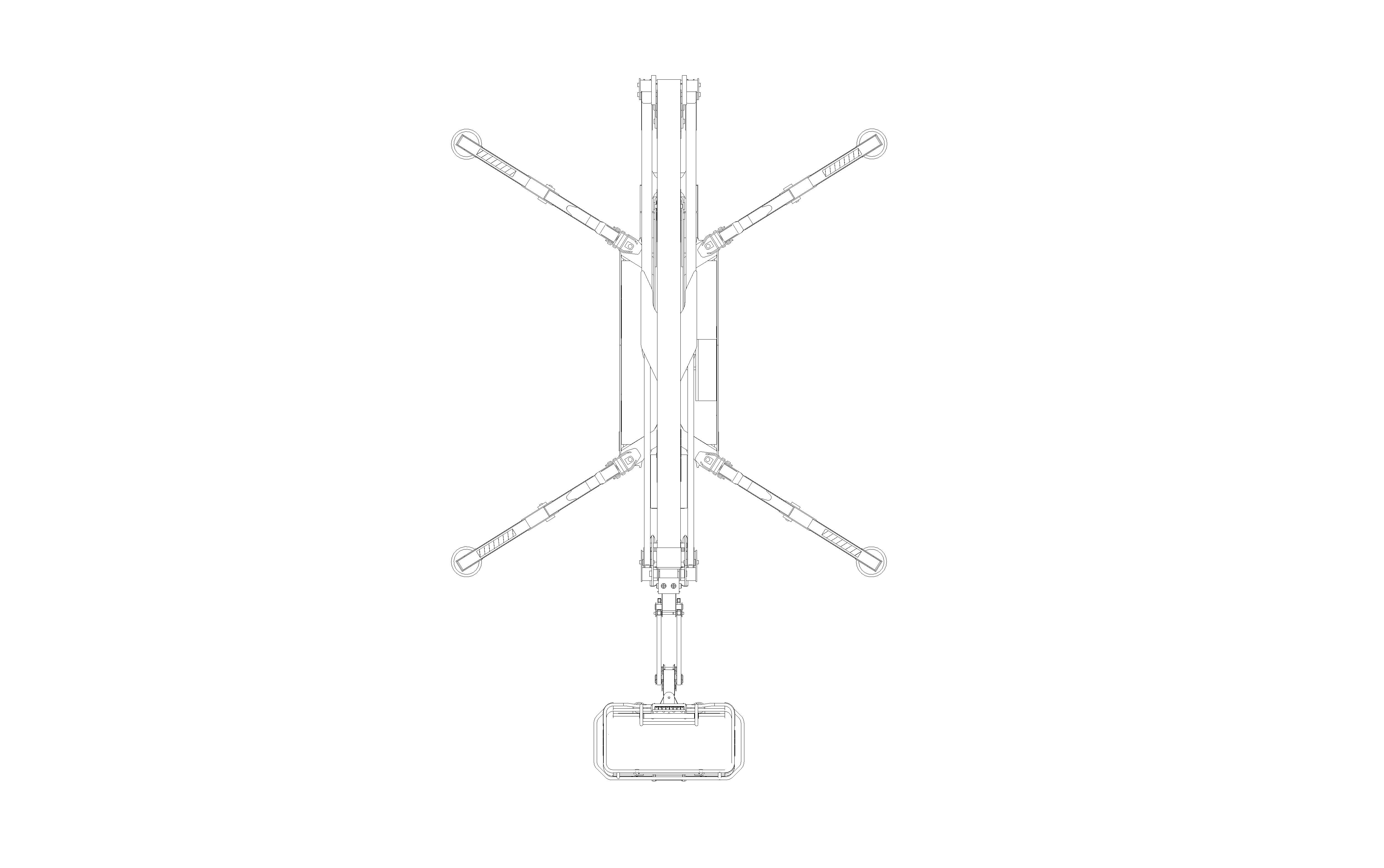

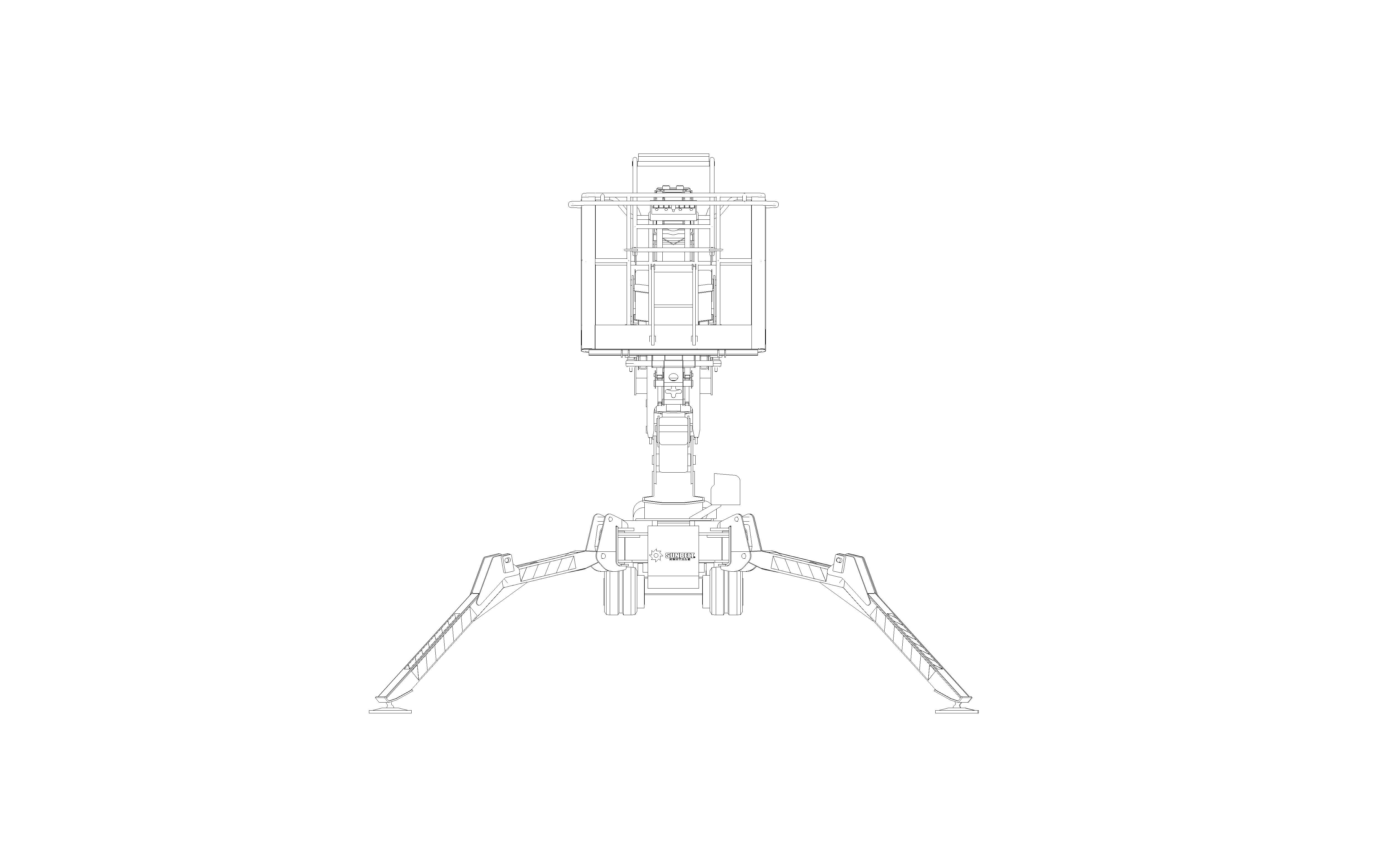

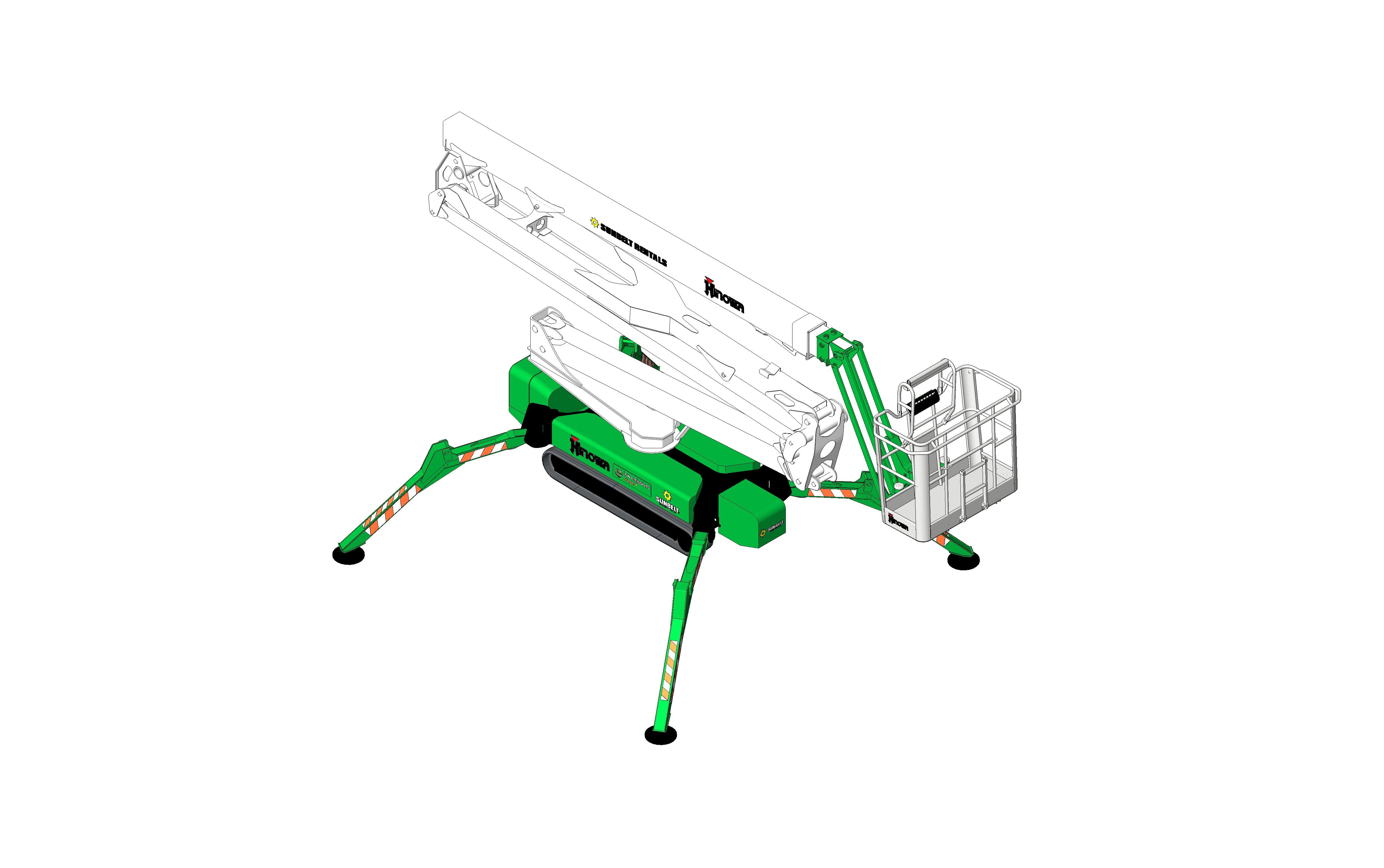

Sunbelt Rentals - Compact Crawler Boom - Hinowa Lightlift 26-14 (Diesel)

by Sunbelt Rentals

Download Add to collection

Description

The Hinowa LL 26.14 is part of the Lightlift range, providing a working height of up to 25.7m and maximum outreach of 13.6m. It can lift 230kg – enough for two people with tools – without restriction throughout its entire working envelope. The drive train has a three-speed system which ensures it reaches the work area quickly. Mounted on a crawler chassis, the LightLift 26.14 has very low ground pressure, making it ideal for working on soft ground, slopes or uneven terrain. The machine retracts to just 990mm wide for passing through doorways or in between buildings. It has a transport length of less than 6m thanks to the easily detachable basket.

Visit Sunbelt Rentals for more info!

This machine may also be known as: Aerial platform, Spider lift, Spider boom

Object Data

1 Revision

Last Updated

12/03/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorHinowa
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-26-14-diesel/document/object-user-guide
A1a12.69 °
A1a 1192.69 °
A2a12.69 °
A2a 1192.69 °
Accessibility Performancen/a
AE10 mm
A Ea58.35 °
A Ea 1238.35 °
AE Ha12.69 °
AE Ha 1192.69 °
Articulating Jib1.68 m (5 ft 6 in) Articulating Jib
Assembly CodeE1030100
Asset TypeMoveable
Base Height670 mm
BeigeSunbeltRentals_Primary_White
BIM Object NameSunbeltRentals_CompactCrawlerBoom_Hinowa_Lightlift26-14_Diesel
BlackSunbeltRentals_Primary_Black
Blue ClearanceSunbeltRentals_ClearanceBlue
Classification NameUniclass2015
Classification ValueTE_30_30_10_60
ClearanceSunbeltRentals_Clearance
CO2 Per Litre Of Diesel Consumedkg N/A
CO2 Per Litre Of HVO Consumedkg N/A
CO2 Per Litre Of Petrol Consumedkg N/A
Code Performancen/a
ColorGreen
Constituentsn/a
Created Bybim@sunbeltrentals.co.uk
Created On2024-01-01T09:00:00
DescriptionThe Hinowa LL 26.14 is part of the Lightlift range, providing a working height of up to 25.7m and maximum outreach of 13.6m. It can lift 230kg – enough for two people with tools – without restriction throughout its entire working envelope. The drive train has a three-speed system which ensures it reaches the work area quickly. Mounted on a crawler chassis, the LightLift 26.14 has very low ground pressure, making it ideal for working on soft ground, slopes or uneven terrain. The machine retracts to just 990mm wide for passing through doorways or in between buildings. It has a transport length of less than 6m thanks to the easily detachable basket.
Documentation Certificateswww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-26-14-diesel/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-26-14-diesel/document/installation-guide
Documentation Literaturewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-26-14-diesel/document/product-literature
Documentation Maintenancewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-26-14-diesel/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-26-14-diesel/document/technical-data-sheet
Drive MotorsKubota D902 16.1kW (21.6 bhp) Diesel)
Drive Speed1.10 - 2.00 kph (0.68 - 1.24 mph)
Duration UnitYears
Electrical System12v
Embodied Carbonkg N/A
Expected Life0
Featuresn/a
Finishn/a
Fuel Consumption Per Hour At Average Use 75 Percent Loadl/h N/A
Fuel Consumption Per Hour At Heavy Use 100 Percent Loadl/h N/A
Fuel Consumption Per Hour At Light Use 50 Percent Loadl/h N/A
Fuel Tank Capacity25 L (6.60 gal)
Graden/a
GreySunbeltRentals_Secondary_LightGrey
Ground Clearance0.69m (2 ft 3 in )
H1a12.69 °
H1a 1192.69 °
Horizontal Outreach13.10m (43 ft 0 in)
Hydraulic Platform Rotator124 Degrees +/- 62 Degrees
Hydraulic Reservoir60L (15.9 gal)
Ifc Export AsIfcTransportElement
Ifc Export TypeIfcTransportElementType
Ja0.00 °
Ja 1180.00 °
J Ha0.00 °
J Ha 1180.00 °
Jib Overall Length1.68 m ( 5 ft 6 in)
Jib Range Of Articulation89° (+0/- 89 Degrees)
KeynoteX
Leg Angle0.00 °
Leg Rotation0.00 °
Machine Weight ANSI9625 lbs
Machine Weight CE4365 kg
ManufacturerSunbelt Rentals (Hinowa)
Manufacturer NameSunbelt Rentals (Hinowa)
Materialn/a
Max Ground Pressure Of Tracks0.54 kg/cm²
Max Ground Pressure Per Stabiliser Leg4.51 kg/cm²
Max Working Gradient1 Degree
ModelCompact Crawler Boom - Lightlift 26-14 (Diesel)
Model NumberLightlift 26-14 (Diesel)
Model ReferenceCompact Crawler Boom
NBS DescriptionLift platforms
NBS Noten/a
NBS Object NameSunbelt Rentals - Lift platforms
NBS Office Master Tagn/a
NBS Referencen/a
Noise At 15mdB N/A
Noise At 1mdB N/A
Noise At 7mdB N/A
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
OrangeSunbeltRentals_Primary_Green
P Ha58.35 °
P Ha 1121.65 °
Platform Capacity Unrestricted ANSI507 lbs
Platform Capacity Unrestricted CE230 kg
Platform Height23.6m (77 ft 5 in)
Platform Rotator124 Degrees (+/-62 Degrees)
Platform Size0.69m x 1.34m (2 ft 3 in x 4 ft 5 in)
Production Year2023
Product Page LinkTBC
Reach46
RedSunbeltRentals_Tertiary_Red
Referenced Standardn/a
Replacement Costn/a
RubberSunbeltRentals_Tire
Shapen/a
Sizen/a
SKU008/024
Spare Partsbim@sunbeltrentals.co.uk
Tracks1.76m x 0.23m x 0.38m High profile non-marking tracks
Transportation ConditionNo
Turning Radius0m
Type CommentsCompact Crawler Boom - Lightlift 26-14 (Diesel)
Type NameCompact Crawler Boom - Lightlift 26-14 (Diesel)
Unique Model Reference FAPL1001230453
Up And Over Height10.10m (33 ft 2 in)
URLwww.sunbeltrentals.co.uk/
U Value Of External Wallsw/m°c N/A
U Value Of Roofw/m°c N/A
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborbim@sunbeltrentals.co.uk
Warranty Guarantor Partsbim@sunbeltrentals.co.uk
Watt Hours Per Day0 W
WhiteSunbeltRentals_Primary_White
Yellow ClearanceSunbeltRentals_ClearanceYellow
