Supreme Loft Ladder

by Premier Loft Ladders Ltd

Download Add to collection

Description

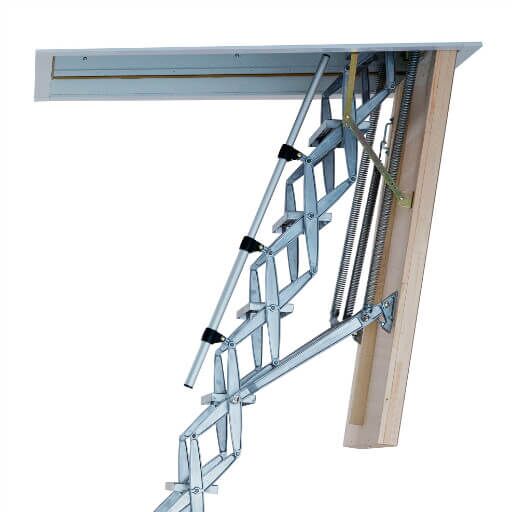

Supreme Loft Ladder

The Supreme retractable aluminium loft ladder…

…lightweight, strength and durability

KEY FEATURES

Material: Pressure die-cast aluminium
Operation: Spring-assisted retractable ladder
Load capacity: 200kg per step
U-value: 0.58 W/m2K
Max floor-to-ceiling height: 4.6m
Click here for full details and more images

This product is made-to-order

Delivery approx. 3 weeks

For other floor-to-ceiling heights and opening dimensions, please contact us for a quote.

Object Data

1 Revision

Last Updated

10/06/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

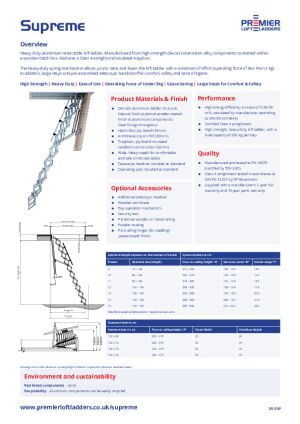

Product Data Sheet

Object metadata

Accessibility Performancen/a
AccessoriesInstallation assembly aid, security lock, 3-sided upper level guard rail, white wooden cover strip, additional telescopic handrail, top opening mechanism
Acoustic Ratingn/a
Air PermeabilityClass 4
Asset Typen/a
AuthorPremier Loft Ladders
BIM Object NamePremierLoftLadders_AluminiumLoftLadders_Supreme
Case Height240 mm
CategoryPr_25_30_85_03:Aluminium loft ladders
Clearance Zone MaterialClearanceZone
Code PerformanceEN 14975
Colorn/a
Constituentsn/a
Default Elevation0 mm
DescriptionHeavy duty and easy to operate retractable loft ladder with highly insulated airtight wooden hatch box
Durability Ratingn/a
Duration Unityear
Expected LifeIn excess of 20 years under normal use and maintenance
FeaturesHigh strength, ease of use, space saving retractability, snap lock closing mechanism, telescopic handrail, non-slip feet
FinishLadder - natural aluminium, hatch - white
Fire ExitNo
Fire Ratingn/a
Glazing Area Fraction0
Graden/a
Handicap AccessibleNo
Handrail MaterialAluminum
HandrailsSupplied with handrail as standard
Has DriveNo
Has Non Skid SurfaceYes
Hatchbox Height240 mm
Hatch Box MaterialWood
Hygrothermal Ratingn/a
Ifc Export AsIfcStairType
Ifc Export TypeSTRAIGHT_RUN_STAIR
Infiltration0
Is ExternalNo
Ladder MaterialAluminum
Ladder Offset71 mm
Ladder Recess174 mm
Load BearingYes
Load Capacity200 kg per step
Loft Trap Door Operating MechanismManual pull and push
Manufacturersales@premierloftladders.com
Manufacturer NamePremier Loft Ladders
Manufacturer URLwww.premierloftladders.co.uk
MaterialPressure die-cast aluminium
Max Floor To Ceiling Height2790
Mechanical Load Ratingn/a
Model Numbern/a
Model ReferenceSupreme Heavy Duty Loft Ladder
NameAluminiumLoftLadders_SUP-1200-600_PremierLoftLadders
NBS DescriptionAluminium loft ladders
NBS Reference45-30-75/400
Nominal Height240 mm
Nominal Length1200 mm
Nominal Width600 mm
Nosing Length0 mm
Number Of Riser0
OperationSpring-assisted retractable ladder
Overall Load Capacity500 kg/m²
Product Informationwww.premierloftladders.co.uk/product-range/aluminium-loft-ladders/supreme-loft-ladder/
Referencen/a
Replacement Costn/a
Required Headroom0 mm
Revisionn/a
Riser Height0 mm
Scissor Thickness20 mm
Security Ratingn/a
Self ClosingNo
Shapen/a
Size1200 x 600 mm
Smoke StopNo
StatusUNSET
Step Depth140 mm
Step Depth Range140 mm
Step MaterialAluminum
Step Width275 mm
Step Width Range250 mm
Structural Opening Length1200 mm
Structural Opening Width600 mm
Sustainability Performancen/a
Thermal Transmittance0
Trapdoor Length1128 mm
Trapdoor MaterialWood
Tread Length0 mm
Tread Length At Inner Side0 mm
Tread Length At Offset0 mm
Uniclass 2015 CodePr_25_30_85_03
Uniclass 2015 TitleAluminium loft ladders
Uniclass 2015 VersionProducts v1.14
U Value0.58 W/m²K
Version3
Waist Thickness0 mm
Walking Line Offset0 mm
Warranty Description2 year full manufacturers warranty
Warranty Duration Laborn/a
Warranty Duration Parts10 year
Warranty Duration Unityear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Water Tightness Ratingn/a
Wind Load Ratingn/a

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
