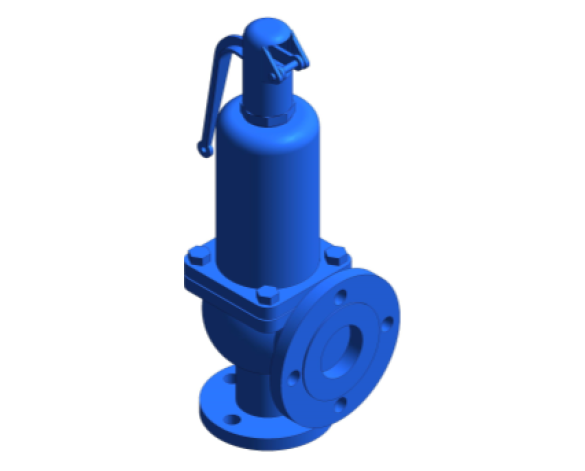

SV607 Safety Valve

by Spirax Sarco

Download Add to collection

Description

The SV60 is a range of full lift flanged safety valves suitable for use on steam, inert industrial gas and water services. Please contact Spirax Sarco for suitability of any other media.

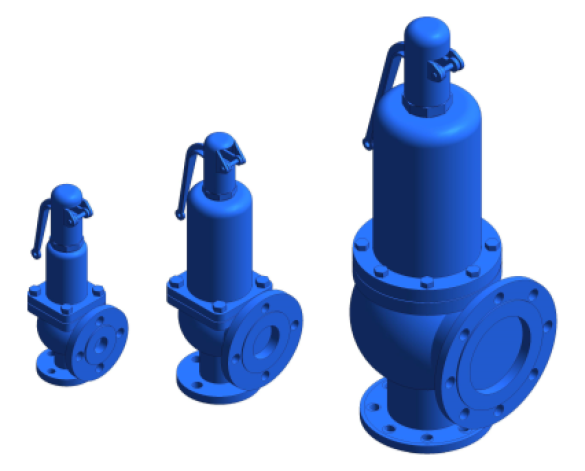

This download includes all available size variations for the Spirax SV607 Safety Valve.

Further information can be found on Spirax Sarco: Safety Valves for steam systems | UK | Spirax Sarco

Object Data

1 Revision

Last Updated

13/07/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

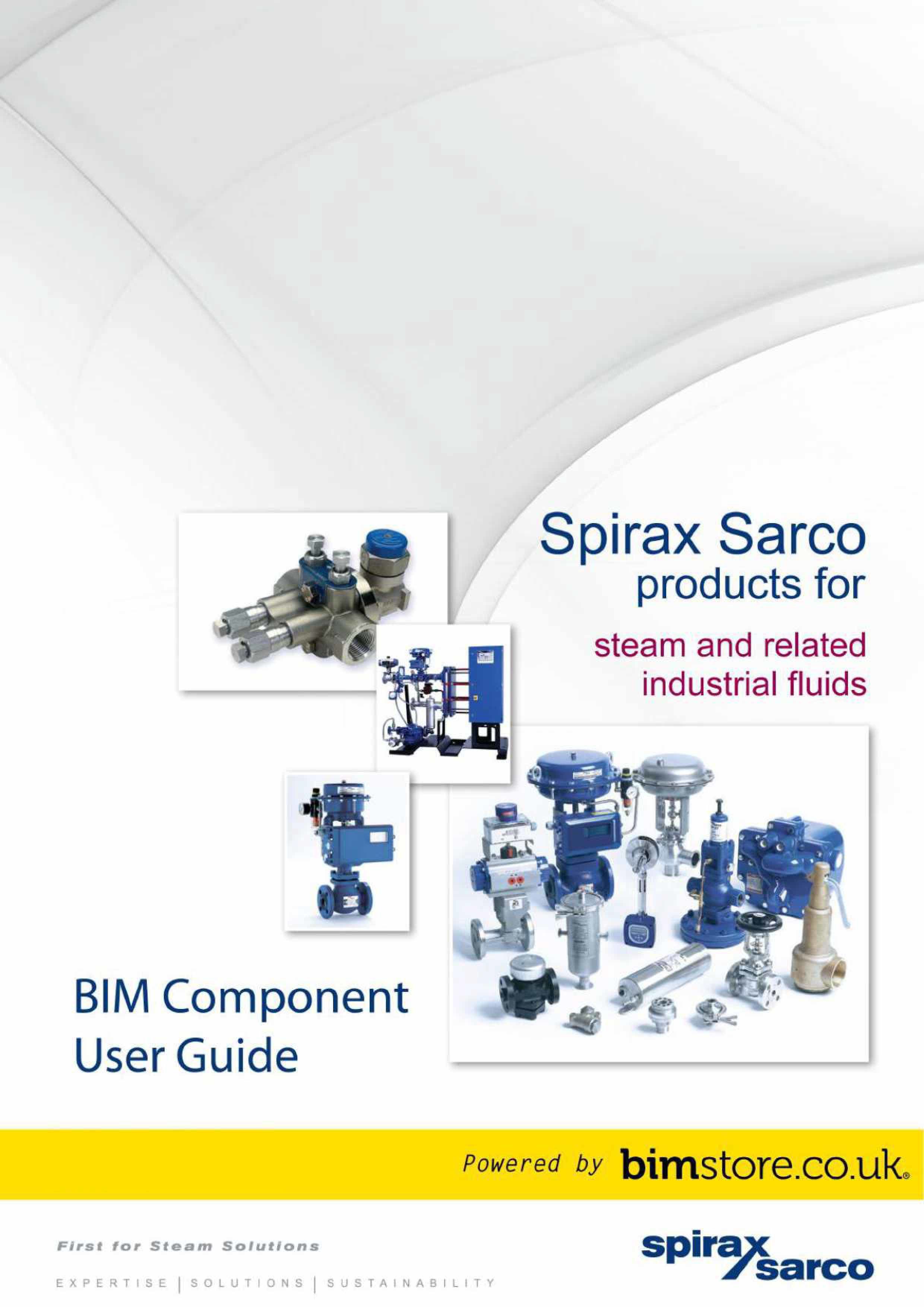

Object User Guide

Product Literature

Product Data Sheet

Object metadata

_authorized byKris Atkinson
_BIMspec_GUID0
_created byMark Thompson
_current revision1
_distributed bywww.bimstore.co.uk
A180.000000000000 mm
A Calc360.000000000000 mm
A Offset161.000000000000 mm
A Radius91.200000000000 mm
Assembly CodeD30
Asset TypeFixed
B220.000000000000 mm
B Radius69.500000000000 mm
Body Design ConditionsPN40, PN16, ASME 300, ASME 150
Body Offset4.000000000000 mm
Body Radius138.000000000000 mm
C835.000000000000 mm
CertificationA manufacturers' Typical Test Report is provided as standard for each valve which will include valve set and hydraulic test pressure. Also available on request is material certification in accordance with EN 10204 3.1.
Classification NameUniclass2015
Classification ValuePr_65_54_95_75
Created ByUKEnquiries@SpiraxSarco.com
Created OnAugust 2015
DescriptionThe SV60 is a range of full lift flanged safety valves suitable for use on steam, inert industrial gas and water services. Please contact Spirax Sarco for suitability of any other media.
Documentation Literaturewww.spiraxsarco.com/Documents/SV60_Safety_Valve-Technical_Information.pdf
Documentation Technicalwww.spiraxsarco.com/Documents/SV60_Safety_Valve-Technical_Information.pdf
Duration UnitYears
Expected Life0
Inlet100.000000000000 mm
Inlet Radius50.000000000000 mm
Installation NoteThe safety valve should always be fitted with the centre line ofthe spring housing vertically above the valve. Open bonnet valves are recommended for all steam boiler applications and for valves fitted with Tungsten alloy springs.
K Coefficient0
KeynoteS51/420
Loss Method2
ManufacturerSpirax Sarco Ltd
MaterialSG Iron
ModelSV607 - Safety Valve
Model NumberSV607 - Safety Valve
Outlet150.000000000000 mm
Outlet Radius75.000000000000 mm
Pipe Radius50.000000000000 mm
Pipe Size100.000000000000 mm
Product Documentation Linkwww.spiraxsarco.com/Documents/SV60_Safety_Valve-Technical_Information.pdf
Product Page Linkwww.spiraxsarco.com/Documents/SV60_Safety_Valve-Technical_Information.pdf
Production Year2015
ShapeSafety Valve
SizeDN100 - DN150
StandardsThe SV60 carries the mark and complies with the requirements of the European Pressure Equipment Directive 97/23 / EC falling withi Category 4 for Group 2 gases. Seat tightness to ASME / API Standard 527-1992.Lloyds Register (LR) type approval - Certificate number 01 / 00125 (E2). The SV604 (PN flanged) is approved by the TÜV to AD-Merkblatt A2, AD-Merkblatt A4, TRD 421, Vd TÜV 100, 100 / 4.
Type8
Type CommentsDN100 - DN150
Type NameDN100 - DN150
URLwww.spiraxsarco.com/uk/
Valve MaterialSpirax_Sarco-SG_Iron
Warranty Duration Parts10
Warranty Duration UnitYears
Weight75.000000000000 kg
