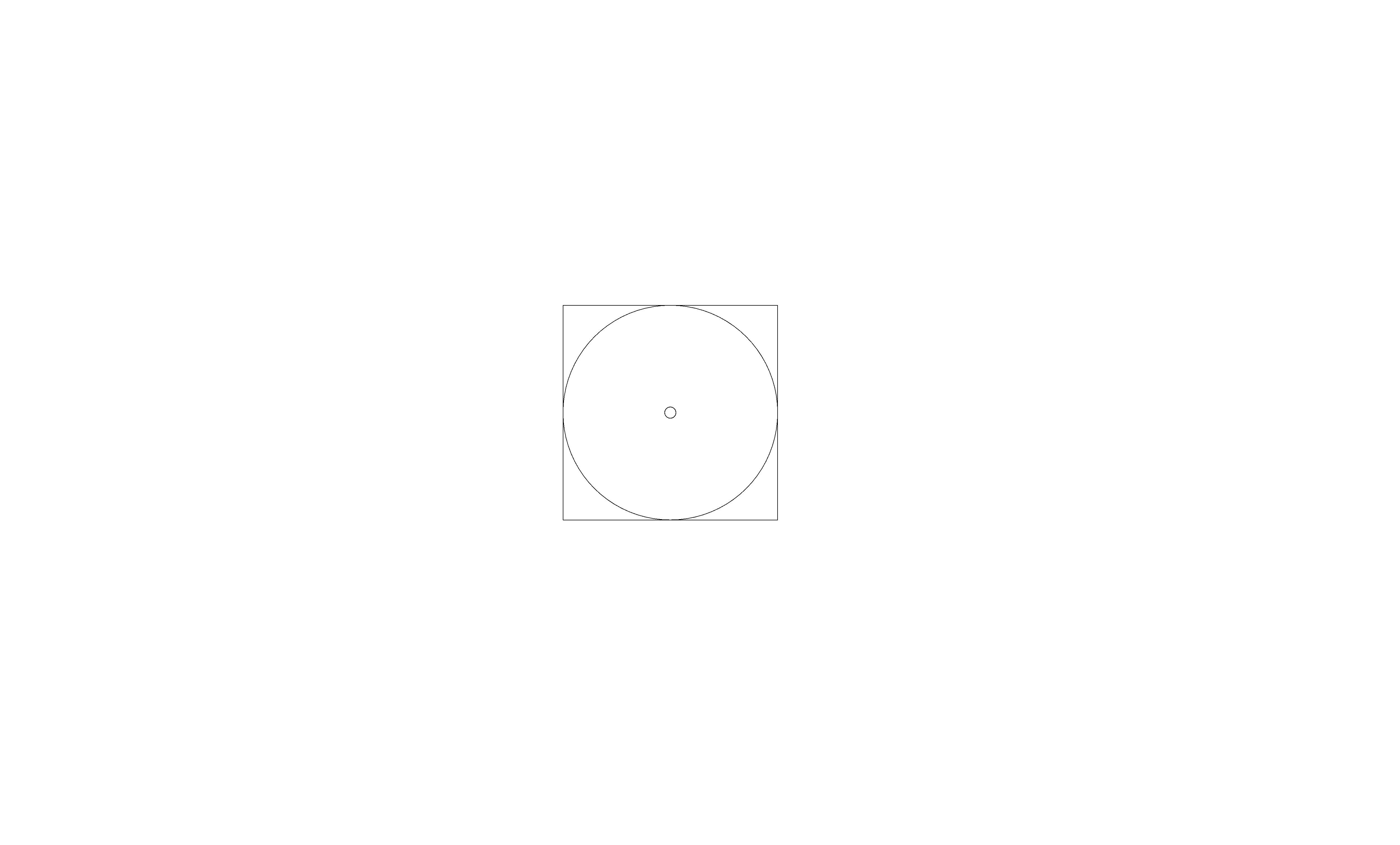

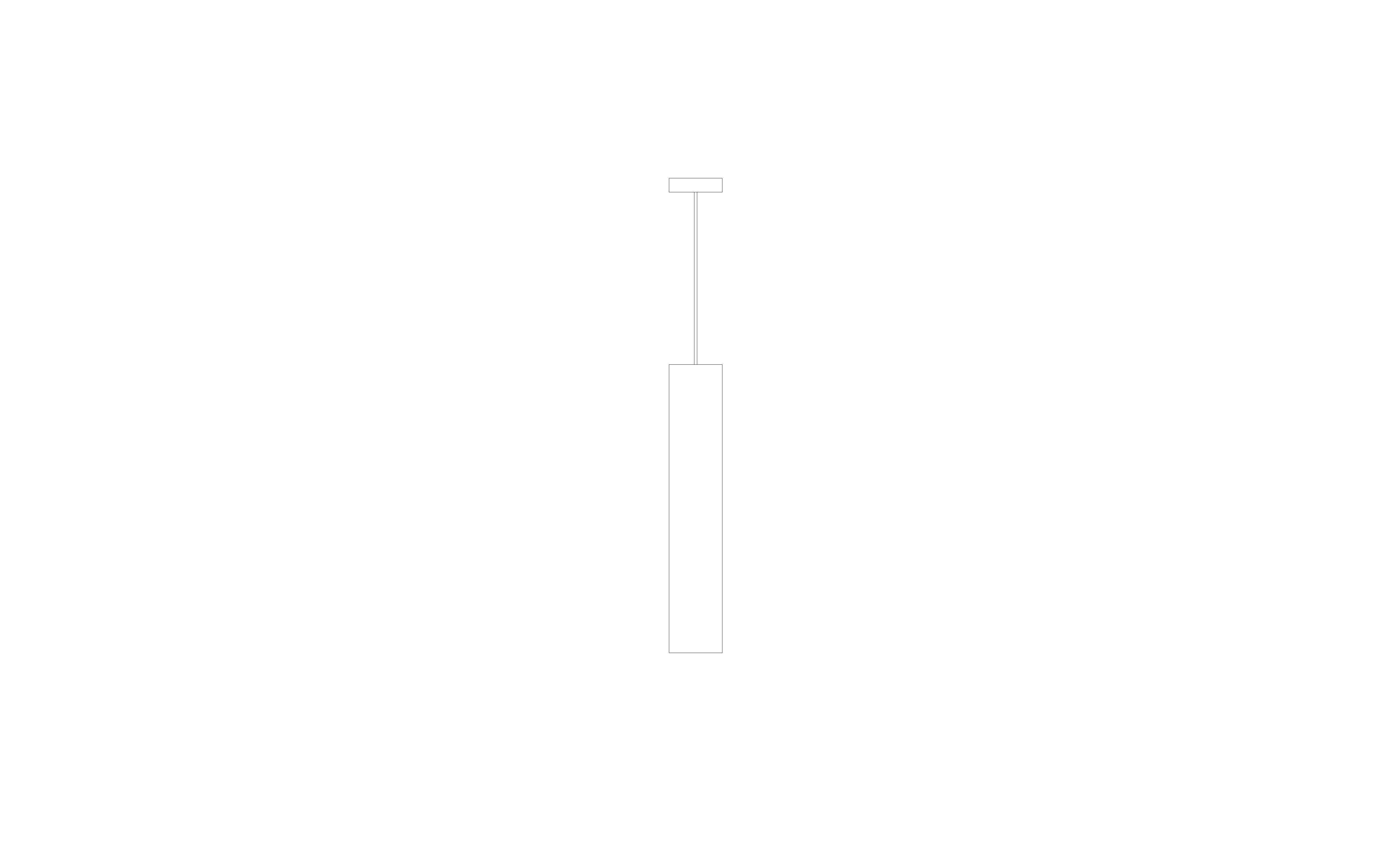

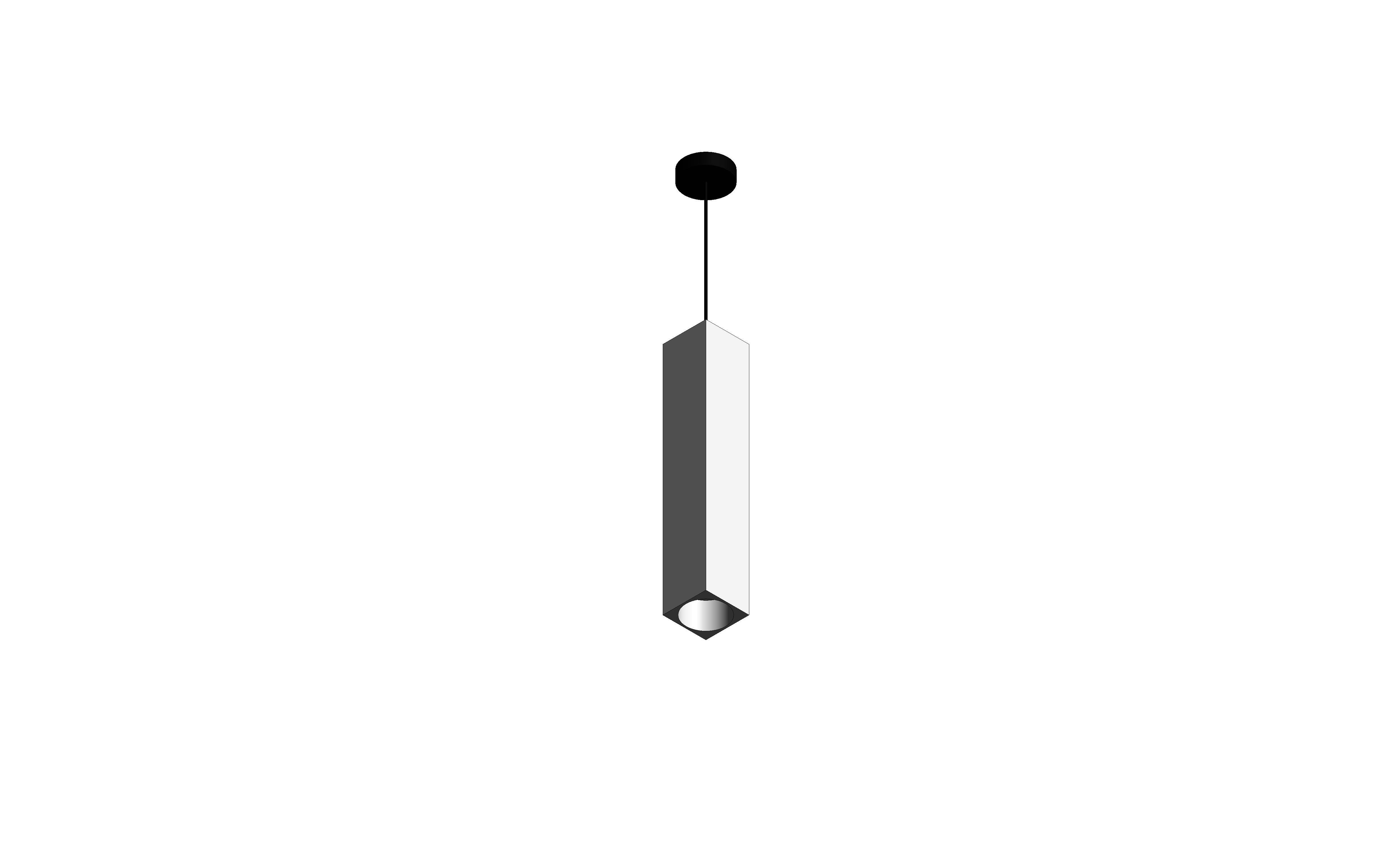

Chime 57 Slim Square Pendant Lighting

by Synergy Lighting

Download Add to collection

Description

Square Pendant with a super slim profile ideal for trendy offices. These slim square pendants are very on trend at the moment and can be used effectively in Breakout spaces, reception areas, meeting rooms, and kitchen areas. Best when grouped together in a line over a reception desk or kitchen island the Chime slim square pendant make a stunning feature. These slim square pendants are available in black, grey or white.

Object Data

1 Revision

Last Updated

13/08/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/chime-57/document/object-user-guide
Accessibility Performancen/a
Apparent Load0.000000000000 VA
Assembly CodeD5020200
Asset TypeFixed
BIM Object NameSynergy_LightingFixtures_Pendant_Chime57
Classification NameUniclass2015
Classification ValuePr_70_70_48_86
Code Performancen/a
ColorBlack
Color Filter16777215
Constituentsn/a
Created Bysales@synergy.gb.net
Created On2020-08-10T09:00:00
Default Elevation1219.200000000000 mm
Depth57.000000000000 mm
DescriptionSquare Pendant with a super slim profile ideal for trendy offices. These slim square pendants are very on trend at the moment and can be used effectively in Breakout spaces, reception areas, meeting rooms, and kitchen areas. Best when grouped together in a line over a reception desk or kitchen island the Chime slim square pendant make a stunning feature. These slim square pendants are available in black, grey or white.
Diffuser MaterialSynergy - Glass - Luminous
Dimming Lamp Color Temperature Shift0
Documentation Certificateswww.bimstore.co/products/chime-57/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/chime-57/document/installation-guide
Documentation Literaturewww.bimstore.co/products/chime-57/document/product-literature
Documentation Maintenancewww.bimstore.co/products/chime-57/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/chime-57/document/technical-data-sheet
Duration UnitYear
Emit from Circle Diameter63.000000000000 mm
Emit Shape Visible in RenderingYes
Expected Life0
Featuresn/a
FinishBlack
Fixing MaterialSynergy - Plastic - Black
Graden/a
Height310.000000000000 mm
Ifc Export AsIfcLamp
Ifc Export TypeIfcLampTypeEnum.LED
Inrush Currentn/a
IP RatingIP20 / IP20
KeynoteV90/510
LampLED
Length57.000000000000 mm
Light Source Symbol Length3048.000000000000 mm
Mac Adamn/a
Mains Frequency0.000000000000 Hz
Mains Voltage0.000000000000 V
ManufacturerSynergy
Manufacturer NameSynergy
MaterialAluminium
ModelChime 57
Model NumberChime 57
Model ReferenceSuspended Pendant Luminaire
NBS DescriptionSuspended luminaries
NBS Object NameSynergy - Suspended luminaries
NBS Office Master Tagn/a
NBS Reference90-60-50/392
Nominal Depth57.000000000000 mm
Nominal Height310.000000000000 mm
Nominal Length57.000000000000 mm
Nominal Weight0.440000000000 kg
Number Of Drivers0
Part NumberCHMB/57
Pendant MaterialSynergy - Aluminium - Pressed - Black
Power Factorn/a
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size57x57x310mm
Spare Partsn/a
Spot Beam Angle74.000000000000 °
Spot Field Angle74.000000000000 °
Tilt Angle90.000000000000 °
Type CommentsSuspended Pendant Luminaire
Type NameSuspended Pendant Luminaire
URLsynergy.gb.net/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborsales@synergy.gb.net
Warranty Guarantor Partssales@synergy.gb.net
Wattage Comments50W
Wire MaterialSynergy - Plastic - Black
