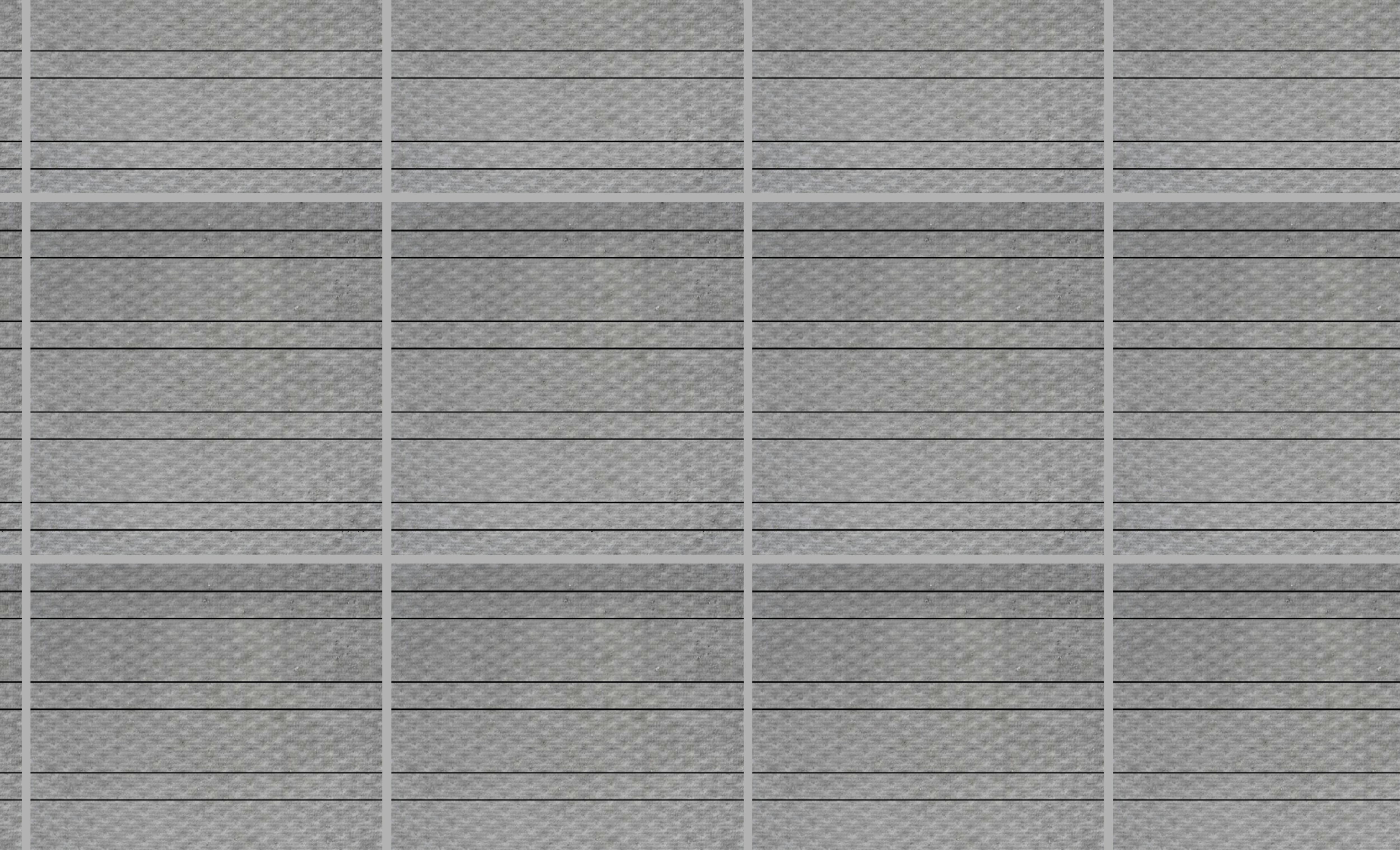

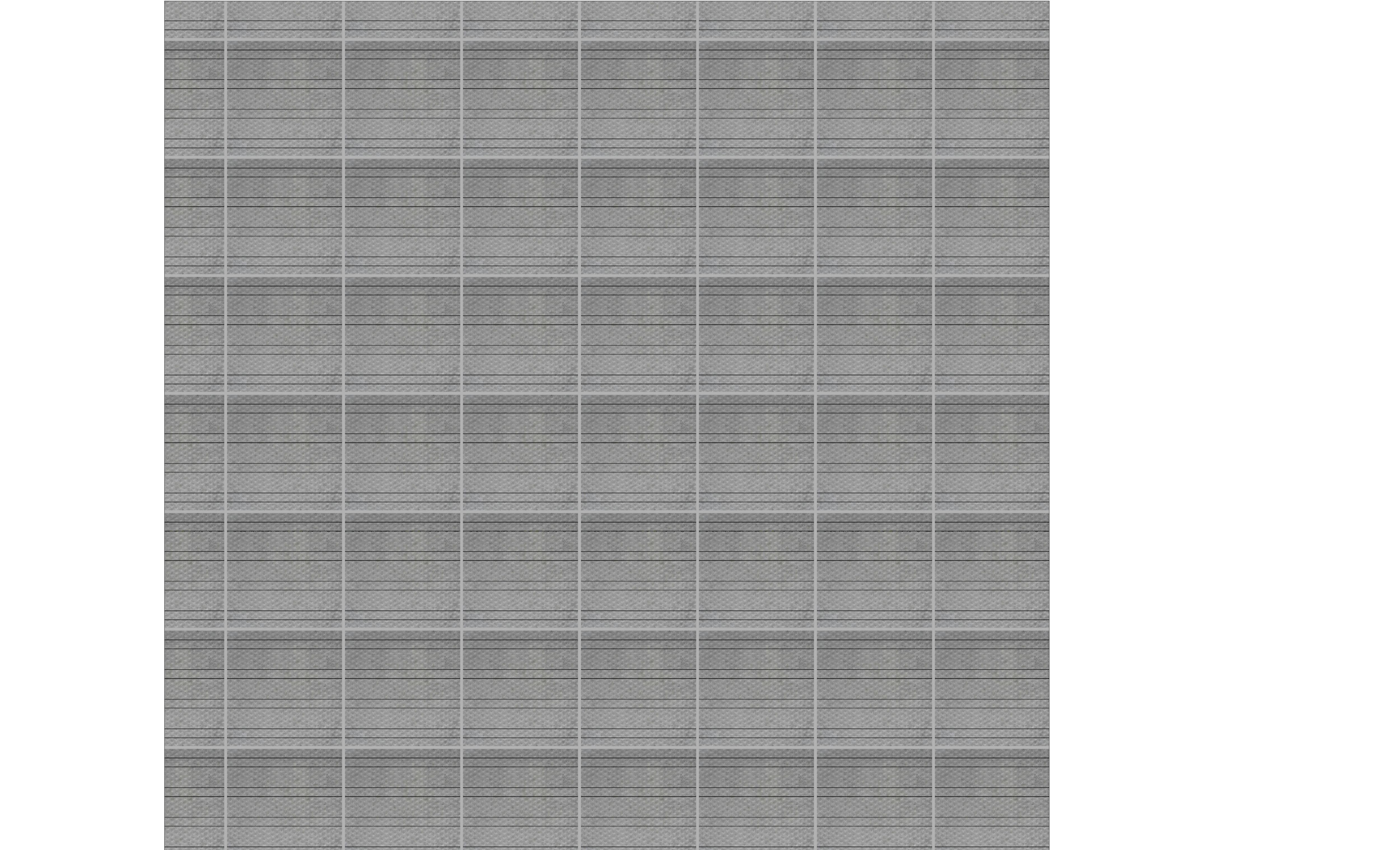

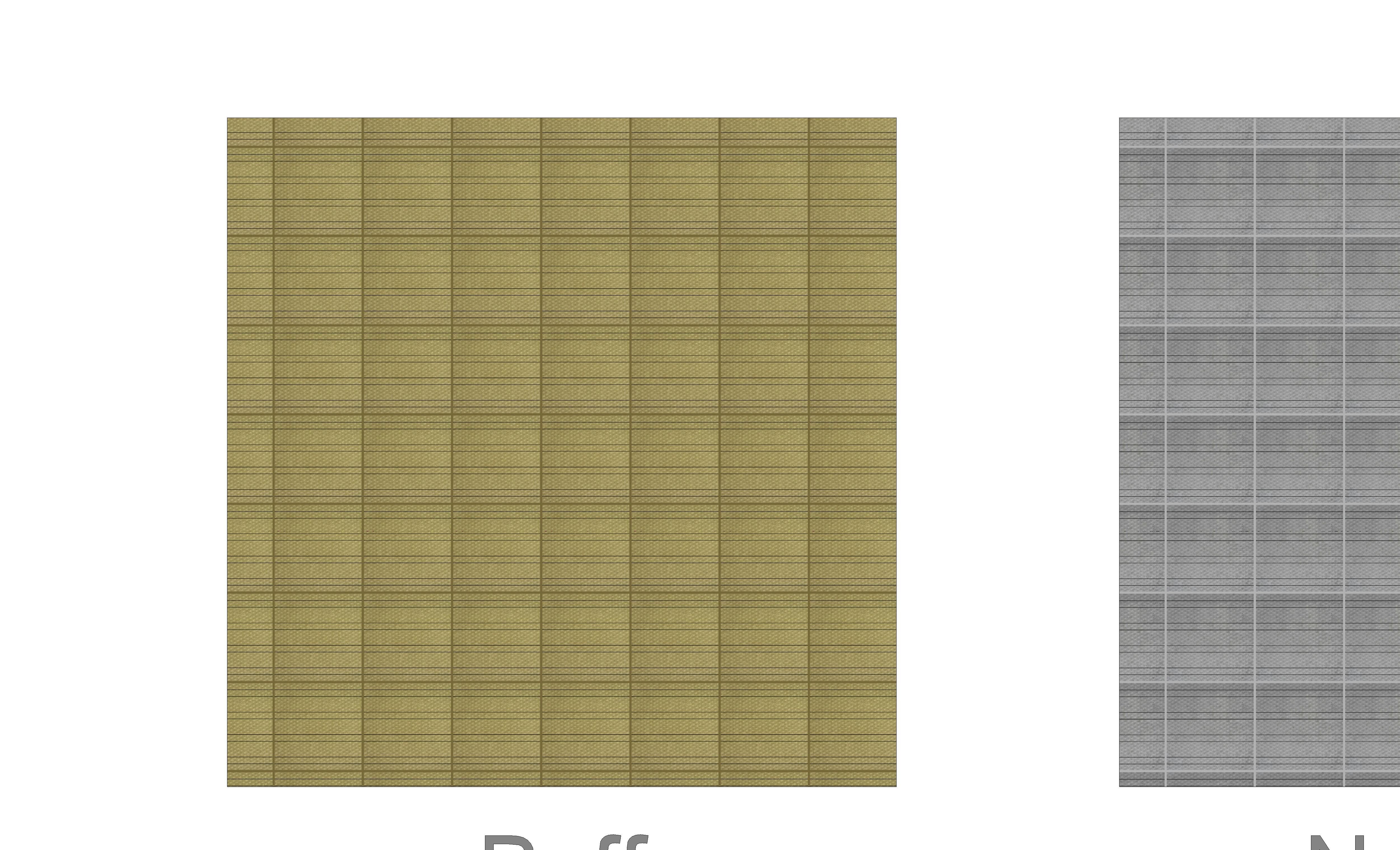

A durable, wet-pressed paving flag, the Brett Tactile paving range has been designed specifically to meet the requirements of The Department for Transport publication ‘Guidance on the use of Tactile Paving Surfaces’ to help demarcate the start and finish of the lanes for each user of a cycleway. For pedestrians, the ribs of the paving are orientated horizontally across the direction of travel, and for cyclists, the ribs are vertically in line with the direction of travel. Available in buff for cycleway paving.

Manufacturing StandardBS EN 1339: 2003
Product TypePrecast Concrete Paving Flags Incorporates 50mm Cycleway Tactile Paving Slabs
ApplicationCommercial use; in accordance with Department of the Environment, Transport & the Regions 'Guidance on the use of Tactile Paving Surfaces' April 2000. Indicates the beginning of shared cycle and pedestrian routes and denotes the route cyclists should foll
StrengthCharacteristic bending strength ≥ 5.0 Mpa / Characteristic breaking load > 4.5 KN
Abrasion Resistance≤ 20mm - Determined by Wide Wheel Abrasion Test
DurabilityClass 3 ≤ 1,0kg/m² with no individual result ≤ 1,5kg/m²
Slip / Skid ResistanceDeemed to satisfy - (Products are of a tactile finish)
Reaction to fireClass A1 when used for internal flooring
External Fire PerformanceDeemed to satisfy
Emission of asbestosNo content
Thermal Conductivity1.2 W/(mK)
