TD120T | 12.2m Track Drive

by Niftylift

Download Add to collection

Description

The TD120T TrackDrive access platform offers an impressive working envelope from a compact base with outstanding traction.

The TD120T delivers 60% gradeability with excellent traction on steep or rough terrain.

Weight-saving design means that site-to-site transportation is more economical and the TD120T is also more efficient, allowing it to work for longer while using less fuel.

Also available are rubber-free urethane tracks, the TD120T is ideal for internal or clean applications, increasing the number of locations that the TD120T can work, greatly improving its utilisation.

For more information regarding the TD120T or any other TrackDrive access platform, including the TD150T, please contact us.

TD120T Features

Superb Gradeability

Will climb very steep inclines as high as 60% (31°)

Weight Saving Design

Lower cost transportation & better fuel economy on site

Excellent Traction

Better grip on uneven terrain

Non-Marking Tracks

Optional rubber-free tracks available for indoor usage

Fully Proportional Hydraulic Controls

Simple, reliable & easy to maintain

TD120T Specifications

Working Height (A)

12.2m (40ft)

Working Outreach (C)

6.1m (20ft)

Platform Height (B)

10.2m (33ft 6in)

Machine Width (F)

1.1m (3ft 7in)

Machine Height (D)

1.9m (6ft 3in)

Machine Length (J)

3.95m (13ft)

Working Width (G)

3.55m (11ft 8in)

Travel Speed

1.6km/h (1mph)

Gradeability

60%

Gradeability

31°

Minimum Weight

1890kg (4170lbs)

Safe Working Load

200kg (440lbs)

Cage Width

1.1m (3ft 7in)

Cage Depth

0.65m (2ft 2in)

Power Options

Diesel & Mains

Keywords: MEWP, Mobile Elevating Work Platform, Cherry Picker, Boom Lift, Work Platform, Aerial Work Platform

Object Data

1 Revision

Last Updated

27/10/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_Authormarketing@niftylift.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.niftylift.com/uk
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/td120t-12-2m-track-drive/document/object-user-guide
Accessibility Performancen/a
Assembly CodeE1030100
Asset TypeMovable
BIM Object NameNiftylift_Site_TrackDriveAccessPlatform_TD120T
Cage Size1100 x 650 mm
Classification NameUniclass2015
Classification ValueTE_30_30_10_60
Code Performancen/a
ColorGreen, Black & Grey
Constituentsn/a
Created Bymarketing@niftylift.com
Created On2020-10-26T09:00:00
DescriptionThe TD120T TrackDrive access platform offers an impressive working envelope from a compact base with outstanding traction. The TD120T delivers 60% gradeability with excellent traction on steep or rough terrain. Weight-saving design means that site-to-site transportation is more economical and the TD120T is also more efficient, allowing it to work for longer while using less fuel. Also available are rubber-free urethane tracks, the TD120T is ideal for internal or clean applications, increasing the number of locations that the TD120T can work, greatly improving its utilisation.
Documentation Certificateswww.bimstore.co/products/td120t-12-2m-track-drive/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/td120t-12-2m-track-drive/document/installation-guide

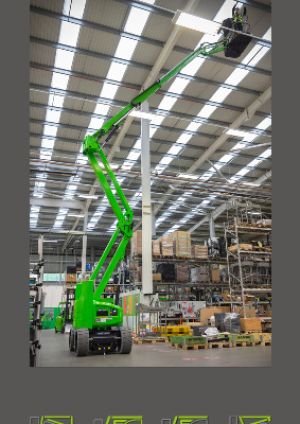

Documentation Literaturewww.bimstore.co/products/td120t-12-2m-track-drive/document/product-literature
Documentation Maintenancewww.bimstore.co/products/td120t-12-2m-track-drive/document/maintenance-information

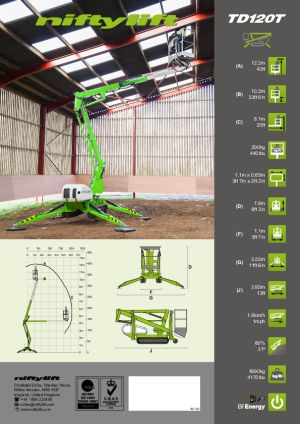

Documentation Technicalwww.bimstore.co/products/td120t-12-2m-track-drive/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesSuperb Gradeability - Will climb very steep inclines as high as 60% (31°) Excellent Traction - Better grip on uneven terrain Fully Proportional Hydraulic Controls - Simple, reliable & easy to maintain Weight Saving Design - Lower cost transportation & better fuel economy on site Non-Marking Tracks - Optional rubber-free tracks available for indoor usage
FinishPainted Steel
Graden/a
Gradeability60% (31°)
Ifc Export AsIfcTransportElement
Ifc Export TypeIfcTransportElementType
KeynoteX
ManufacturerNiftylift
Manufacturer NameNiftylift
MaterialSteel
Minimum Weight1850 kg
ModelTrack Drive Access Platform
Model NumberTD120T
Model ReferenceTrack Drive Access Platform
NBS DescriptionLift platforms
NBS Object NameNiftylift - Lift platforms
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth1100.00 mm
Nominal Height1900.00 mm
Nominal Length3950.00 mm
Platform Height10200.00 mm
Power OptionsDiesel and mains
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Safe Working Load200 kg
Shapen/a
Size1.1m (3ft 7in) [W] x 1.9m (6ft 3in) [H] x 3.95m (13ft) [L]
Spare Partsn/a
Travel Speed1.6 km/h
Type CommentsTD120T
Type NameTrack Drive Access Platform
URLwww.niftylift.com/uk
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Labormarketing@niftylift.com
Warranty Guarantor Partsmarketing@niftylift.com
Working Outreach6100.00 mm
Working Width3550.00 mm
