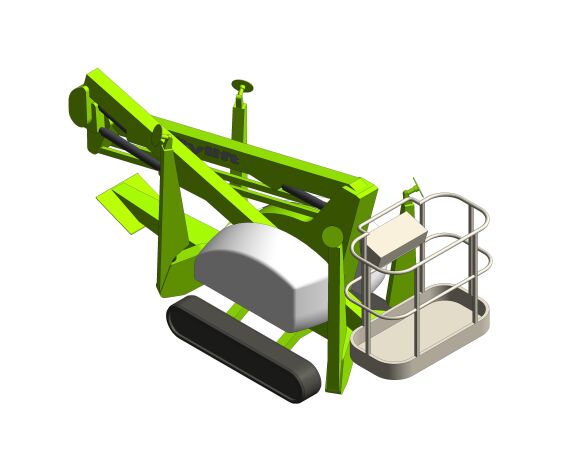

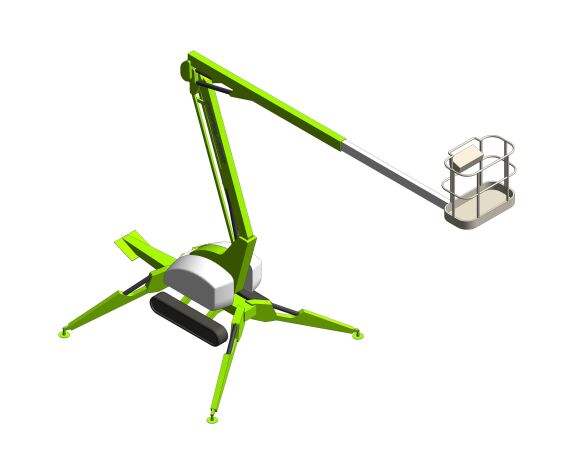

TD150T | 14.7m Track Drive

by Niftylift

Download Add to collection

Description

The TD150T TrackDrive access platform offers exceptional all-around performance from such a compact and low weight base, and with a 225kg safe-working-load, plenty of capacity for tools as well.

Weight-saving design means that site-to-site transportation is more economical and the TD150T is also more efficient, allowing it to work for longer while using less fuel.

The TD150T is also available with rubber-free urethane tracks. Ideal for internal or clean applications, these tracks will increase the number of locations that the TD150T can work, greatly improving its utilisation.

For more information regarding the TD150T or any other TrackDrive access platform, including the TD120T, please contact us.

TD150T Features

Superb Gradeability

Will climb very steep inclines as high as 45% (24°)

Weight Saving Design

Lower cost transportation & better fuel economy on site

Excellent Traction

Better grip on uneven terrain

Non-Marking Tracks

Optional rubber-free tracks available for indoor usage

Fully Proportional Hydraulic Controls

Simple, reliable & easy to maintain

TD150T Specifications

Working Height (A)

14.7m (48ft 6in)

Working Outreach (C)

7.55m (25ft)

Platform Height (B)

12.7m (42ft)

Machine Width (F)

1.4m (4ft 7in)

Machine Height (D)

2m (6ft 7in)

Machine Length (J)

4.7m (15ft 5in)

Working Width (G)

3.8m (12ft 6in)

Travel Speed

2.1km/h (1.3mph)

Gradeability

45%

Gradeability

24°

Minimum Weight

2025kg (4500lbs)

Safe Working Load

225kg (500lbs)

Cage Width

1.4m (4ft 7in)

Cage Depth

0.7m (2ft 4in)

Power Options

Diesel & Mains

Keywords: MEWP, Mobile Elevating Work Platform, Cherry Picker, Boom Lift, Work Platform, Aerial Work Platform

Object Data

1 Revision

Last Updated

27/10/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_Authormarketing@niftylift.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.niftylift.com/uk
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/td150t-14-7m-track-drive/document/object-user-guide
Accessibility Performancen/a
Assembly CodeE1030100
Asset TypeMovable
BIM Object NameNiftylift_Site_TrackDriveAccessPlatform_TD150T
Cage Size1400 x 700 mm
Classification NameUniclass2015
Classification ValueTE_30_30_10_60
Code Performancen/a
ColorGreen, Black & Grey
Constituentsn/a
Created Bymarketing@niftylift.com
Created On2020-10-26T09:00:00
DescriptionThe TD150T TrackDrive access platform offers exceptional all-around performance from such a compact and low weight base, and with a 225kg safe-working-load, plenty of capacity for tools as well. Weight-saving design means that site-to-site transportation is more economical and the TD150T is also more efficient, allowing it to work for longer while using less fuel. The TD150T is also available with rubber-free urethane tracks. Ideal for internal or clean applications, these tracks will increase the number of locations that the TD150T can work, greatly improving its utilisation.
Documentation Certificateswww.bimstore.co/products/td150t-14-7m-track-drive/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/td150t-14-7m-track-drive/document/installation-guide

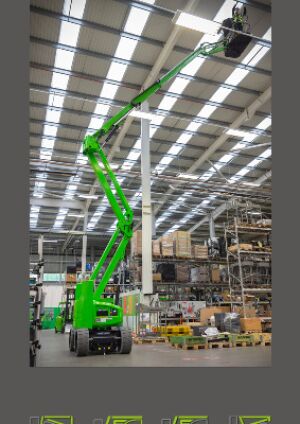

Documentation Literaturewww.bimstore.co/products/td150t-14-7m-track-drive/document/product-literature
Documentation Maintenancewww.bimstore.co/products/td150t-14-7m-track-drive/document/maintenance-information

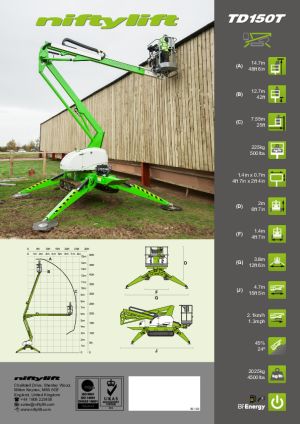

Documentation Technicalwww.bimstore.co/products/td150t-14-7m-track-drive/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesSuperb Gradeability - Will climb very steep inclines as high as 45% (24°) Excellent Traction - Better grip on uneven terrain Fully Proportional Hydraulic Controls - Simple, reliable & easy to maintain Weight Saving Design - Lower cost transportation & better fuel economy on site Non-Marking Tracks - Optional rubber-free tracks available for indoor usage
FinishPainted Steel
Graden/a
Gradeability45% (24°)
Ifc Export AsIfcTransportElement
Ifc Export TypeIfcTransportElementType
KeynoteX
ManufacturerNiftylift
Manufacturer NameNiftylift
MaterialSteel
Minimum Weight2025 kg
ModelTrack Drive Access Platform
Model NumberTD150T
Model ReferenceTrack Drive Access Platform
NBS DescriptionLift platforms
NBS Object NameNiftylift - Lift platforms
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth1400.00 mm
Nominal Height2000.00 mm
Nominal Length4700.00 mm
Platform Height12700.00 mm
Power OptionsDiesel and mains
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Safe Working Load225 kg
Shapen/a
Size1.4m (4ft 7in) [W] x 2m (6ft 7in) [H] x 4.7m (15ft 5in) [L]
Spare Partsn/a
Travel Speed2.1 km/h
Type CommentsTD150T
Type NameTrack Drive Access Platform
URLwww.niftylift.com/uk
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Labormarketing@niftylift.com
Warranty Guarantor Partsmarketing@niftylift.com
Working Outreach7550.00 mm
Working Width3800.00 mm
