Thermino ePlus Heat Batteries

776
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

22/07/2024

Download BIM

Add to collection

Available for:

Thermino ePlus

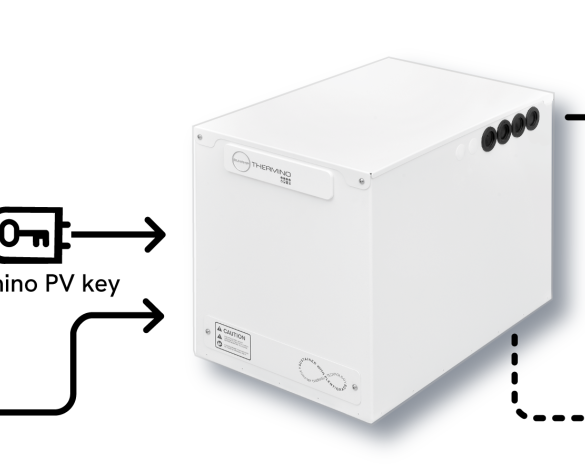

Thermino ePlus is a smart alternative to direct hot water cylinders with the functionality to maximise off-peak/variable tariffs and drive savings. Plus, it is future-proofed for solar PV with an Optimino PV key.

Features

Modular and scalable, our thermal batteries can be connected in series or in parallel to increase heat storage capacity.

Flexible orientation with plumbing exits on three sides
Market-leading 10-year warranty on the heating element
Protected against legionella risk
No mandatory annual maintenance
High flow rate mains pressure hot water

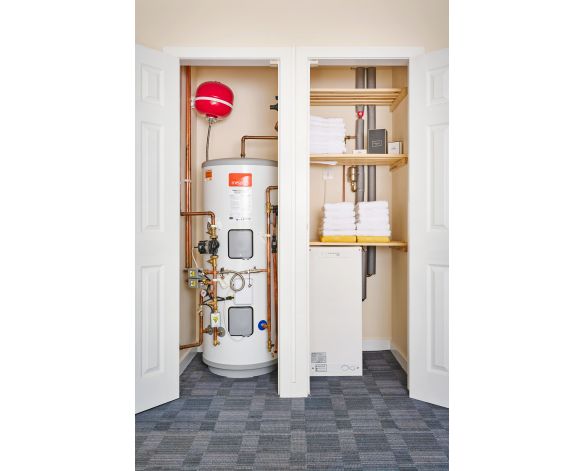

Ultra low heat losses – up to 4x lower than a conventional cylinder

Dimensions

There are four different models: the Thermino ePlus 70, ePlus 150, ePlus 210 and ePlus 300. They are in litre-equivalent sizes for easy comparison with traditional hot water cylinders.

Click here to visit Sunamp for more information.

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid1
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/thermino-eplus-heat-batteries/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD3040400
Asset TypeFixed
BIM Object NameSunamp_HeatBattery_Thermino_ePlus
CasingSunamp - Casing - White
Classification NameUniclass 2015
Classification ValuePr_60_50_20_21
Code Performancen/a
ColorWhite
Connection Diameter22 mm
Constituentsn/a
Created Byinfo@sunamp.com
Created On2024-07-01T09:00:00
Default Elevation0 mm
DescriptionThermino ePlus is the small and smart alternative to direct hot water cylinders.

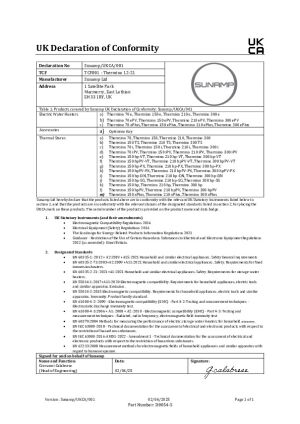

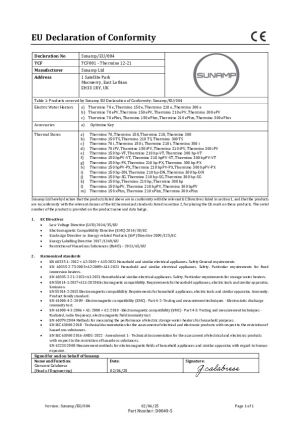

Documentation Certificateswww.bimstore.co/products/thermino-eplus-heat-batteries/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/thermino-eplus-heat-batteries/document/installation-guide
Documentation Literaturewww.bimstore.co/products/thermino-eplus-heat-batteries/document/product-literature
Documentation Maintenancewww.bimstore.co/products/thermino-eplus-heat-batteries/document/maintenance-information

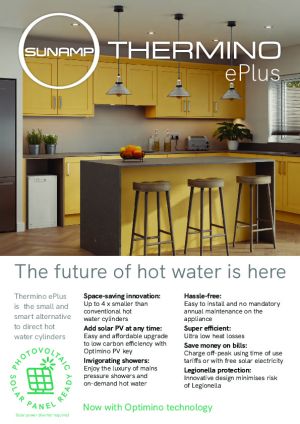

Documentation Technicalwww.bimstore.co/products/thermino-eplus-heat-batteries/document/technical-data-sheet
Dual PortNo
Duration UnitYears
Expected Life0
FeaturesModular and scalable, our thermal batteries can be connected in series or in parallel to increase heat storage capacity; Space saving - up to 4 times smaller than a conventional cylinder Flexible orientation with plumbing exits on three sides Market-leading 10-year warranty Protected against legionella risk No mandatory annual maintenance High flow rate mains pressure hot water Ultra low heat losses – up to 4x lower than a conventional cylinder
Finishn/a
Graden/a
Height640 mm
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcElectricApplianceType.WATERHEATER
KeynoteT32
Length575 mm
ManufacturerSunamp
Manufacturer NameSunamp
Materialn/a
ModelThermino ePlus
Model NumberThermino ePlus
Model Reference150 ePlus
NBS DescriptionDirect hot water storage cylinders
NBS Noten/a
NBS Object NameSunamp - Direct hot water storage cylinders
NBS Office Master Tagn/a
NBS Reference90-15-35/310
Nominal Depth365 mm
Nominal Height640 mm
Nominal Length575 mm
Offset0 mm
Production Year2024
Referenced StandardEnergy efficiency rating class C
Replacement Costn/a
ShapeRectangular
Size575x365x640mm
Spare Partsinfo@sunamp.com
Type Comments150 ePlus
Type Name150 ePlus
URLsunamp.com/
Warranty DescriptionMarket-leading 10-year warranty
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@sunamp.com
Warranty Guarantor Partsinfo@sunamp.com
Width365 mm
