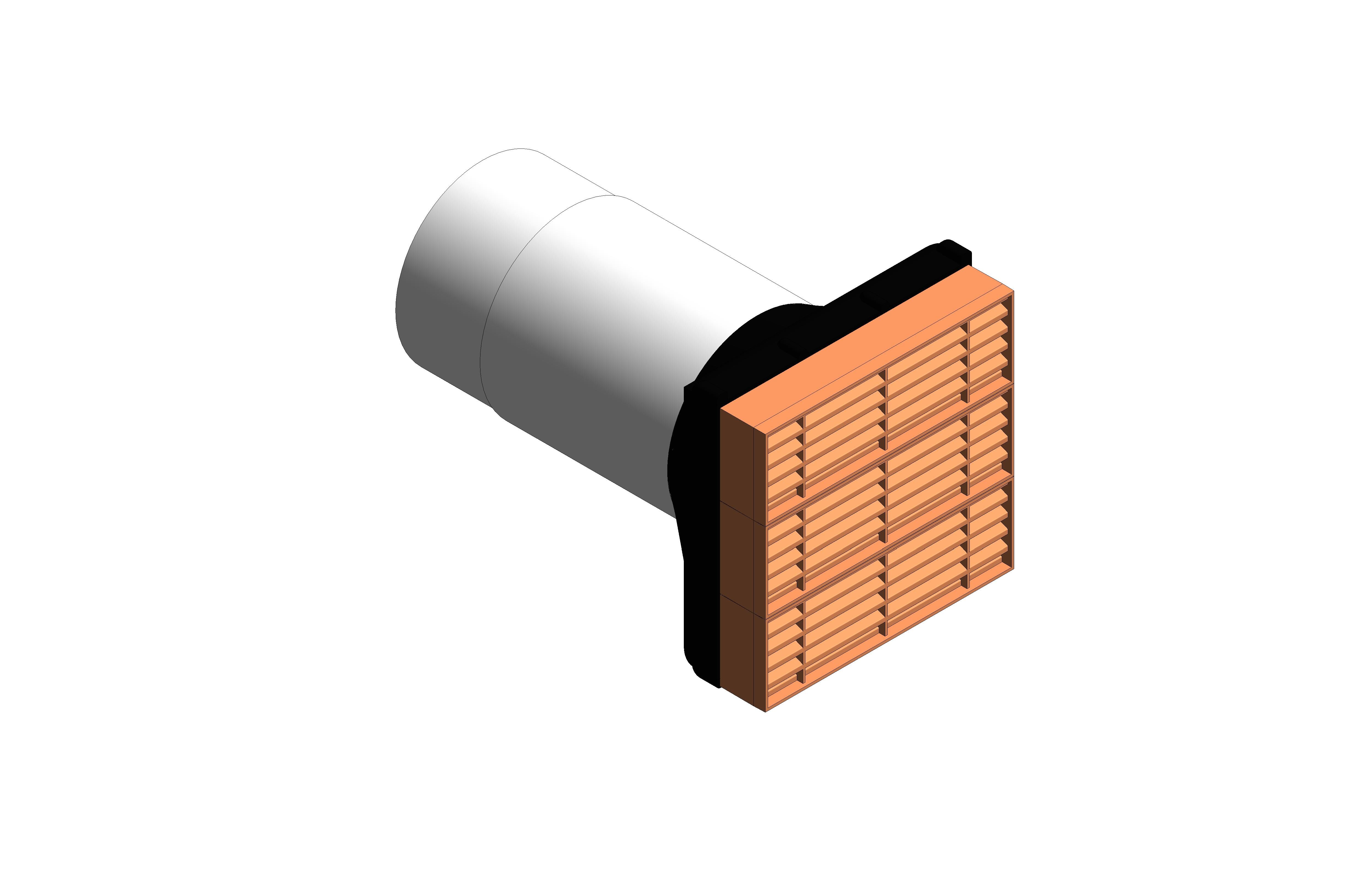

Thru...air is designed to provide a ventilation outlet/inlet using a 4/5/6 inch telescopic pipe to a Manthorpe single/double/triple Airbrick. The product allows for an extraction system to be conveniently built into the brickwork, eliminating the need for retrospective core drilling. The telescopic element allows for the installer to extend or reduce the length of the pipe to suit the thickness of the wall and ducting connection.

Unique, extendable telescopic pipe to suit the thickness of the wall and ducting connection
Product supplied finished therefore no assembly requirement.
Product available in four different sizes.
Eliminates the need for retrospective core drilling
Build thru…air into the masonry as it proceeds
Provides easier and quicker installation to match the demands of on-site construction

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co
3 Part VisNo
Accessibility Performancen/a
Assembly CodeD2030200
Asset TypeFixed
BIM Object NameManthorpe_SpecialityEquipment_Ventilation_ThruAir
Classification NameUniclass2015
Classification ValuePr_35_90_50_03
Code Performancen/a
ColorTerracotta
Constituentsn/a
Created Bymbp.care@manthorpebp.co.uk
Created On2020-03-19T09:00:00
Default Elevation0 mm
Depth150 mm
DescriptionThru...air is designed to provide a ventilation outlet/inlet using a 4/5/6 inch telescopic pipe to a Manthorpe single/double/triple Airbrick. The product allows for an extraction system to be conveniently built into the brickwork, eliminating the need for retrospective core drilling. The telescopic element allows for the installer to extend or reduce the length of the pipe to suit the thickness of the wall and ducting connection.
Documentation Certificatesmanthorpebp.co.uk/

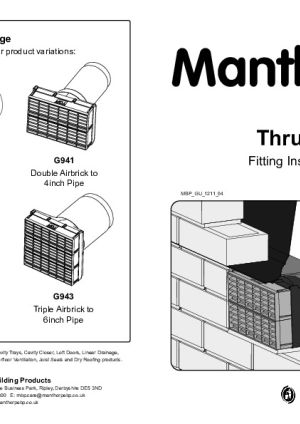

Documentation Installation Guidewww.bimstore.co/products/thru-air/document/installation-guide

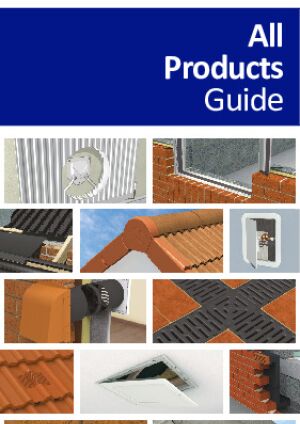

Documentation Literaturewww.bimstore.co/products/thru-air/document/product-literature
Documentation Maintenancemanthorpebp.co.uk/

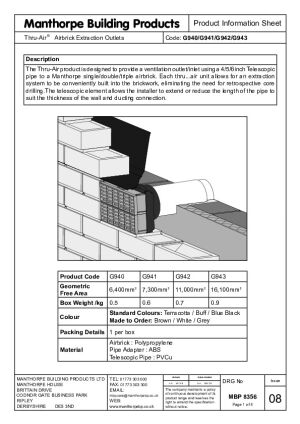

Documentation Technicalmanthorpebp.co.uk/
Duration UnitYears
Expected Life0
FeaturesUnique, extendable telescopic pipe to suit the thickness of the wall and ducting connection. Product supplied finished therefore no assembly requirement. Product available in four different sizes. Eliminates the need for retrospective core drilling. Build thru…air into the masonry as it proceeds. Provides easier and quicker installation to match the demands of on-site construction.
Finishn/a
Graden/a
Ifc Export AsIfcWall
Ifc Export TypeIfcWallTypeEnum.STANDARD
KeynoteF30/160
ManufacturerManthorpe building products
Manufacturer NameManthorpe building products
MaterialPVC (Hood), Polypropylene (Base), Polymer Rubber (Flashing)
ModelThru...air
Model NumberG941
Model ReferenceThru...air
NBS DescriptionAirbricks
NBS Object NameManthorpe building products - Airbricks
NBS Office Master Tagn/a
NBS Reference45-80-50/370
Nominal Depth219 mm
Nominal Height150 mm
Production Year2020
Rad53 mm
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
TubeTube : S
Type CommentsG941
Type NameThru...air
URLmanthorpebp.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Width219 mm
