bimstore - Keylite - Timber Top-Hung Window

5.6k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

2 Revision

Last Updated

18/03/2024

Download BIM

Add to collection

Available for:

The Keylite Fire Escape Roof Window opens to 45°, suitable for single or multiple applications in any roof with a pitch of 15°-75°. This is ideal in low pitch roofs as the window opens outward, maximising the daylight that enters the room without the sash encroaching on your valuable internal space.

Click here to visit Keylite Roof Windows for more information.

Object metadata

_Authorinfo@keyliteuk.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Byinfo@keyliteuk.com
_Current Revision13
_Distributed Bywww.bimstore.co/

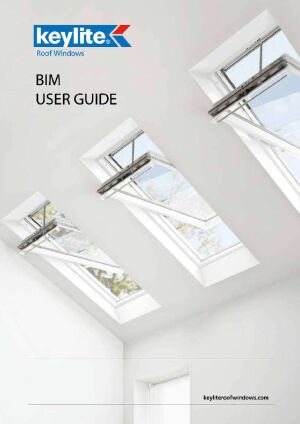

_Object User Guidewww.bimstore.co/products/timber-top-hung/document/object-user-guide

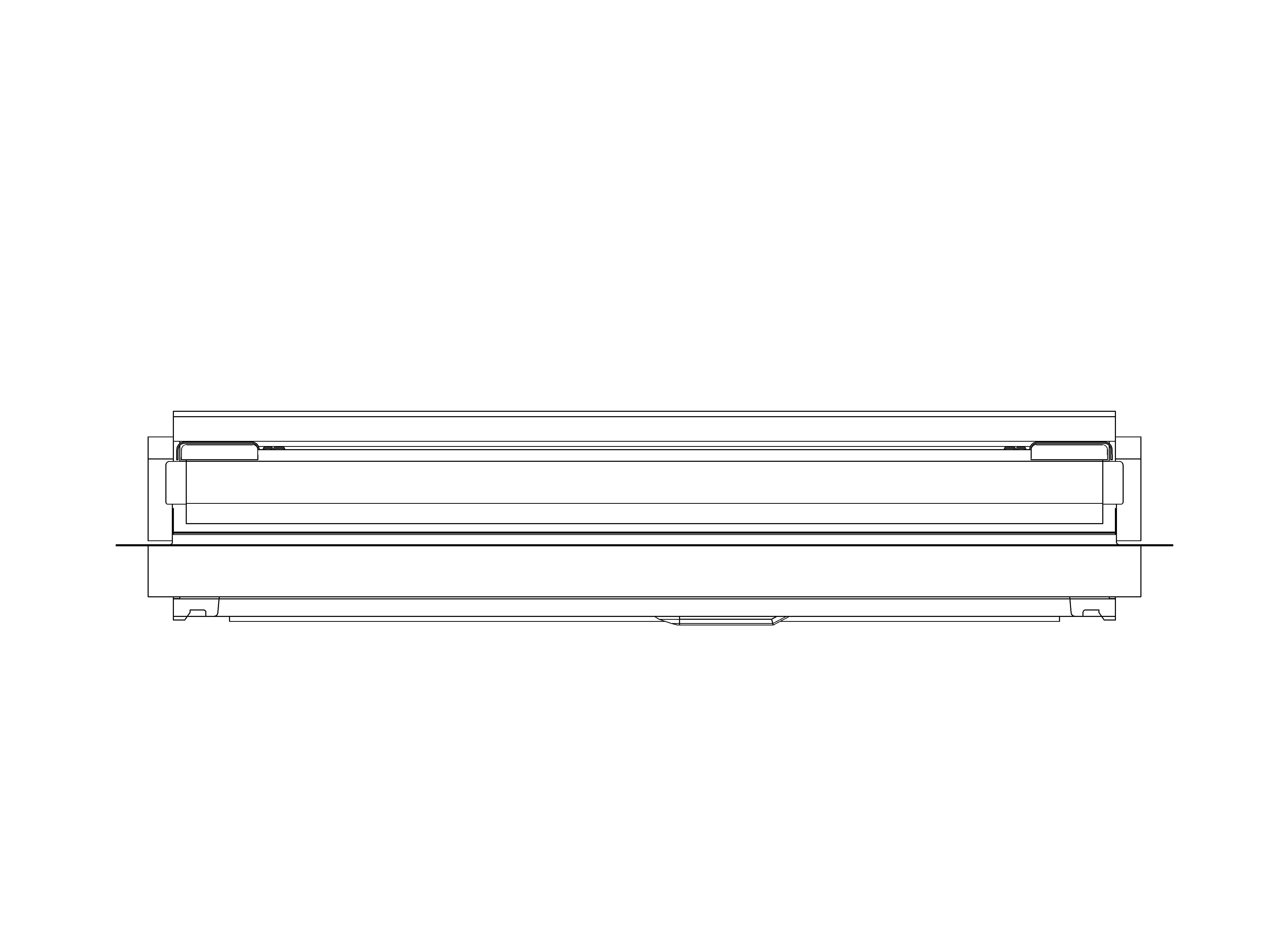

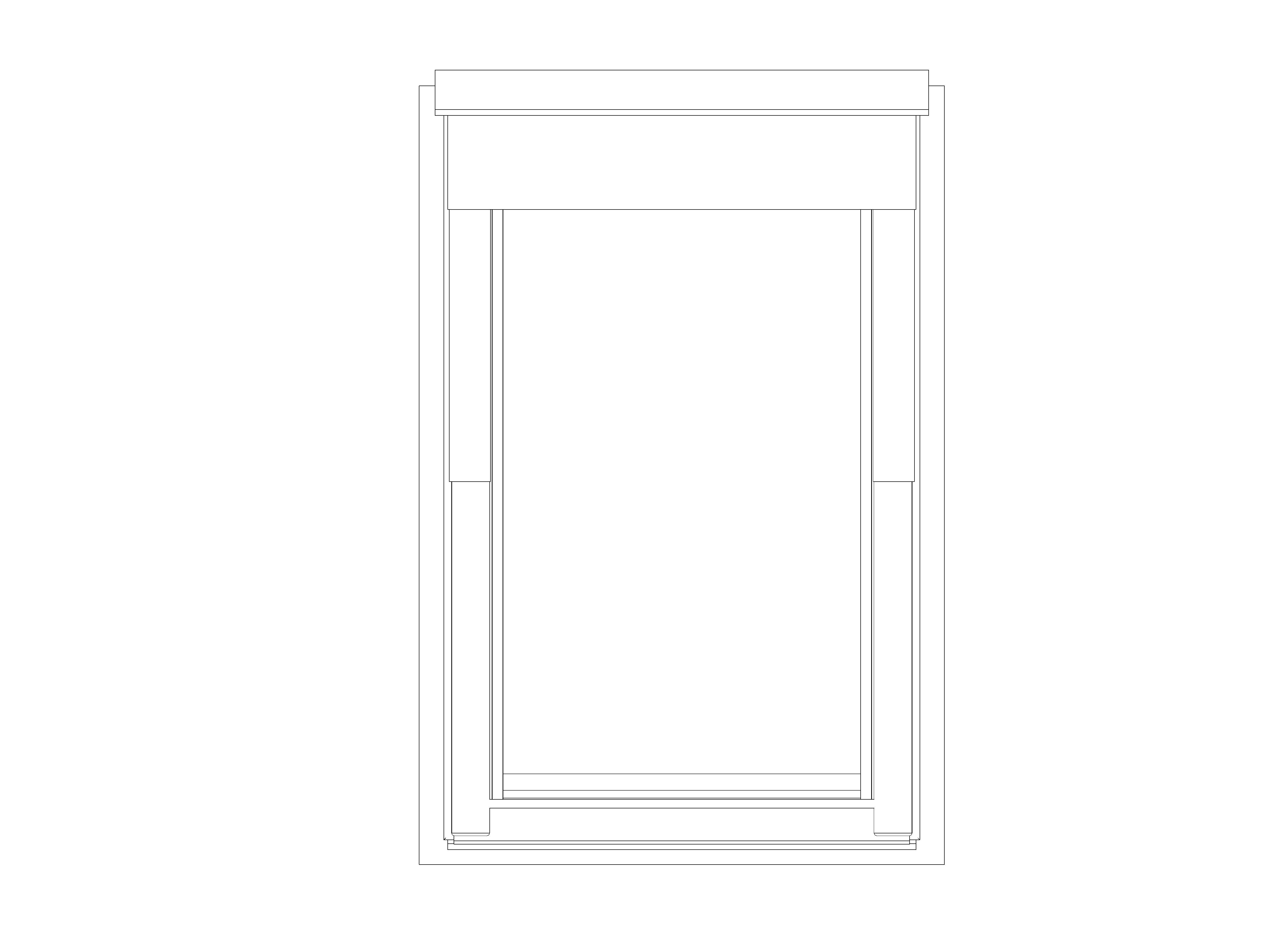

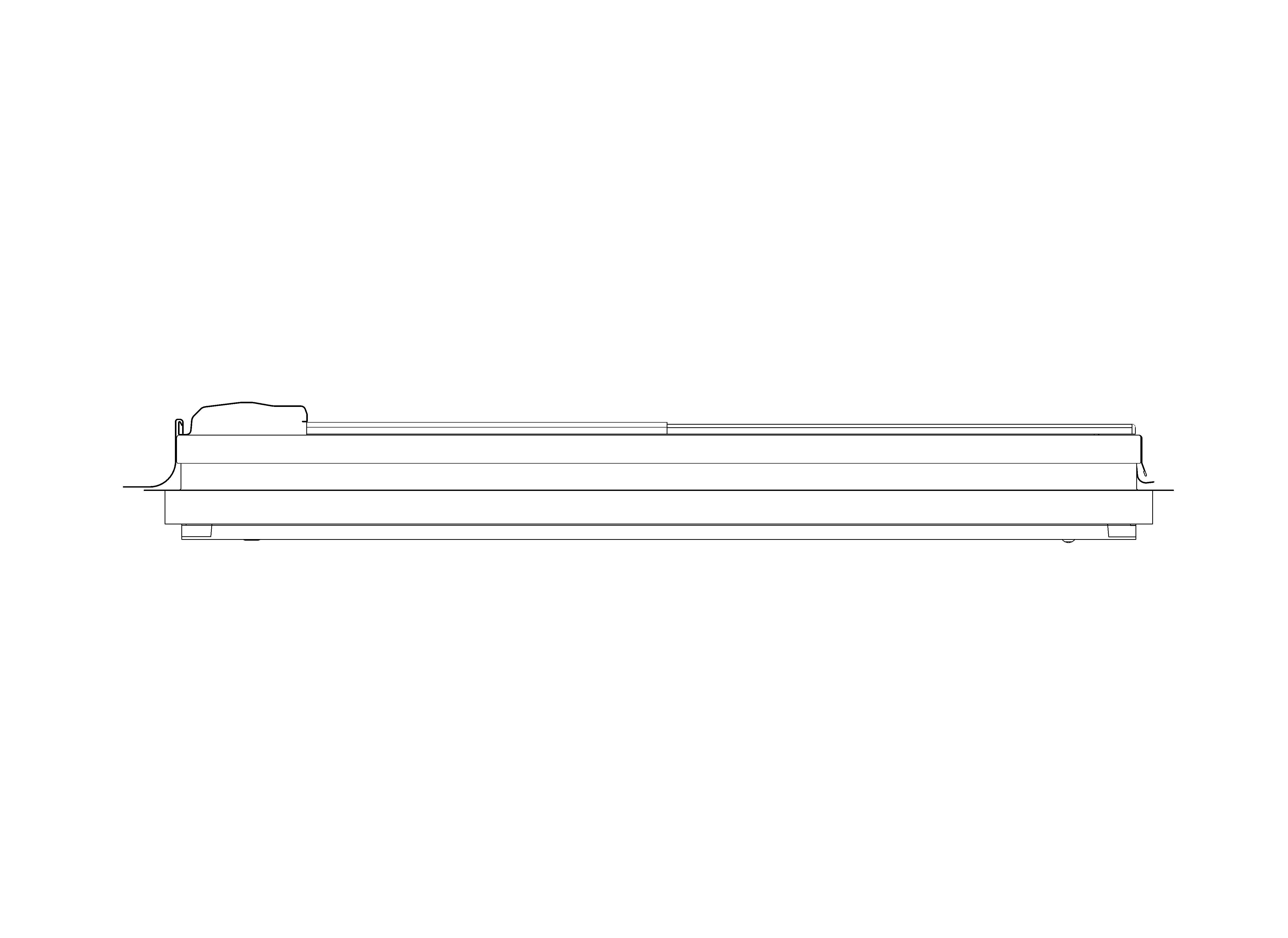

2D Detailwww.keyliteroofwindows.com/architects/cad-drawings/
Accessibility Performancen/a
Acoustic Performance32
Air PermeabilityClass 3
Analytic Construction<None>
Assembly CodeB3020100
Asset TypeFixed
BIM Object NameKeylite_Window_TimberTopHung
Classification NameUniclass2015
Classification ValuePr_30_59_98_97
Code Performancen/a
Colorn/a
Constituentsn/a
Created Byinfo@keylite.co.uk
Created On03-08-2020T09:00:00
Define Thermal Properties bySchematic Type
DescriptionTop Hung Roof Window
Documentation Certificateswww.bimstore.co/products/timber-top-hung/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/timber-top-hung/document/installation-guide
Documentation Literaturewww.bimstore.co/products/timber-top-hung/document/product-literature
Documentation Maintenancewww.bimstore.co/products/timber-top-hung/document/maintenance-information

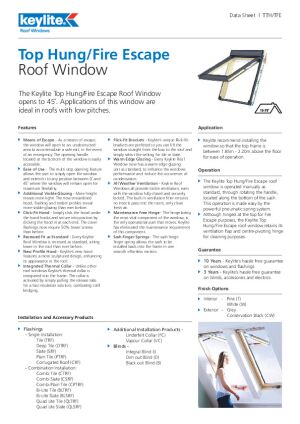

Documentation Technicalwww.bimstore.co/products/timber-top-hung/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesSingle Window Installation
FinishInterior: Laquered Pine Exterior: Powder Coated Aluminium
Graden/a
Height780 mm
Ifc Export AsIfcWindow
Ifc Export TypeIfcWindowTypeEnum.WINDOW
Impact ResistanceClass 2
Keylite AccessoriesAluminium
Keylite Construction WoodPine
Keylite External PartsAluminium
Keylite Internal PartsPine
Keylite Thermal CollarPine
KeynoteL10
Light Transmittance0.85
ManufacturerKeylite
Manufacturer NameKeylite
MaterialLaminate, Pine, Aluminum
ModelTimber Top-Hung
Model NumberTTH 01
Model ReferenceTimber Top-Hung
NBS DescriptionWood frame roof window units
NBS Object NameKeylite - Wood frame roof window units
NBS Office Master Tagn/a
NBS Reference45-25-99/390
Nominal Depth780 mm
Nominal Height0 mm
Nominal Length550 mm
Offset From Roof0 mm
Picture Typehhttps://www.keyliteroofwindows.com/products/roof-windows/combination-window-options/
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Resistance To Snow Load4H-20, Ar-4TM
Resistance To Wind LoadClass C4
Rough Height780 mm
Rough Width550 mm
ShapeRectangle
Size550(W) x 780(H)
Solar Factor G0.65
Spare Partsn/a
Thermal Transmittance Of Glass1.1
Thermal Transmittance Of Window1.3
Type CommentsTTH 01
Type NameTTH 01
URLwww.keyliteroofwindows.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@keyliteuk.com
Warranty Guarantor Partsinfo@keylite.co.uk
Water TightnessE1050
Width550 mm
