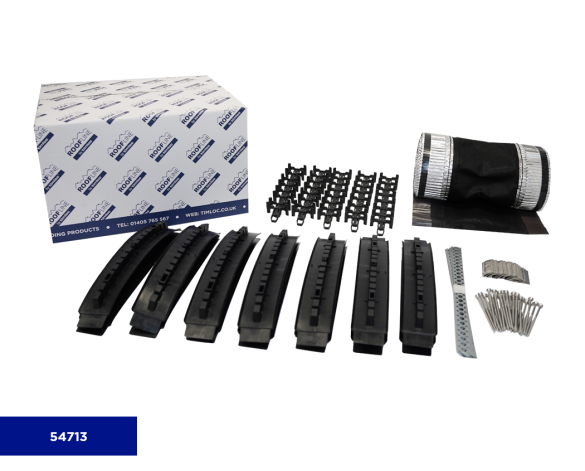

Convenient ‘one pack’ mechanical fix solution for roof ridge installations.

Uses:

Most types of slate, concrete or clay roof tiles
Round or angled ridge tiles
Most pitched roof types from 15-55°
New build and retro-fit projects

Product Description	Colour	Product Code
6m roll out dry fix clay ridge kit	Black	54713
20x ridge unions & 40x ridge clips	Black	54715
20x fixing screws & clamping plates	Silver	54716

Click here to visit the product page on Timloc

_AuthorRW
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/15b28b78-936e-4479-adfe-25151e72938d/document/object-user-guide
Accessibility Performancen/a
Assembly CodeB1020
Asset TypeFixed
BIM Object NameTimloc_6mClayDryFixRidgeKit
Classification NameUniclass2015
Classification ValuePr_35_90_93_29
Code Performancen/a
ColorBlack
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2024-12-18T09:00:00
Default Elevation0 mm
DescriptionConvenient mechanical fix solution for clay roof ridge installations.
Documentation Certificateswww.bimstore.co/products/15b28b78-936e-4479-adfe-25151e72938d/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/15b28b78-936e-4479-adfe-25151e72938d/document/installation-guide
Documentation Literaturewww.bimstore.co/products/15b28b78-936e-4479-adfe-25151e72938d/document/product-literature
Documentation Maintenancewww.bimstore.co/products/15b28b78-936e-4479-adfe-25151e72938d/document/maintenance-information

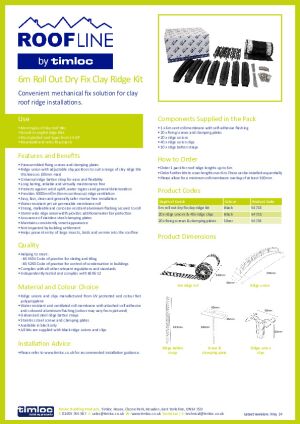

Documentation Technicalwww.bimstore.co/products/15b28b78-936e-4479-adfe-25151e72938d/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
KeynoteH65/750
L160 mm
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
Materialn/a
Model6m Clay Dry Fix Ridge Kit
Model Number6m Clay Dry Fix Ridge Kit
Model Reference6m Clay Dry Fix Ridge Kit
NBS DescriptionDry fixing ridges
NBS Object NameTimloc - Dry fixing ridges
NBS Office Master Tagn/a
NBS Reference45-80-90/376
Nominal Depth320 mm
Nominal Height0 mm
Primary MaterialTimloc_Black
Production Year2024
Referenced StandardBS EN ISO 9001 and BS EN ISO 14001
Replacement Costn/a
Ridge Union Depth55 mm
Shapen/a
Sizen/a
Spare Partsn/a
T2 mm
Type Comments6m Clay Dry Fix Ridge Kit
Type Name6m Clay Dry Fix Ridge Kit
Union Depth55 mm
Union Radius150 mm
Union Start Offset28 mm
Union Width270 mm
URLtimloc.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk
Width320 mm
