Aero Core

6
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

19/12/2024

Download BIM

Add to collection

Available for:

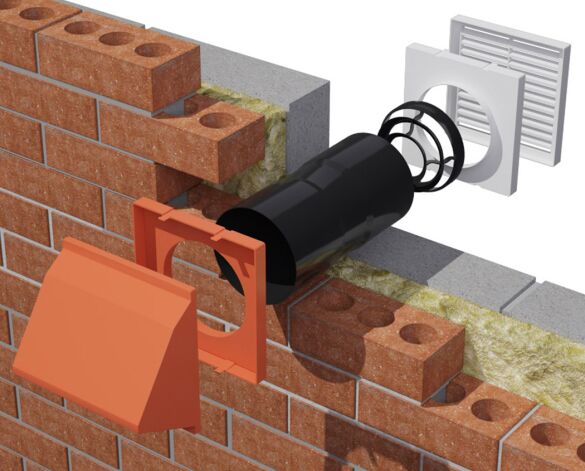

Combination ventilator sets for background venting and heat producing appliances. Aesthetically pleasing and simple to install system that is ideal for refurbishment, remedial work, and new build projects.

Compliant with Building Regulation Approved Documents F and J (2010 editions).

Use:

To provide ventilation for heat producing appliances
To provide background room ventilation
Individual ventilation sets can supply up to maximum appliance rated input of 24.8kW (84,600 Btu/h)
Ideal solution for refurbishment, remedial work and new build

Description	Colour	Equivalent Area	Size	Appliance rated input	Product Code
5" (127mm) aero core with baffle	Terracotta	8000mm²	127mm (D) x 350mm	23kW (78,500Btu)	ACV7TE
5" (127mm) aero core with baffle	Brown	8000mm²	127mm (D) x 350mm	23kW (78,500Btu)	ACV7BR
5" (127mm) aero core with cowl & baffle	Terracotta	8900mm²	127mm (D) x 350mm	24.8kW (84,600Btu)	ACV7CTE
5" (127mm) aero core with cowl & baffle	Brown	8900mm²	127mm (D) x 350mm	24.8kW (84,600Btu)	ACV7CBR
5" (127mm) aero core high rise	Terracotta	5000mm²	127mm (D) x 350mm	17kW (58,000Btu)	ACV7HRTE

Click here to visit the product page on Timloc

_AuthorRW
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/timloc-aero-core/document/object-user-guide
Accessibility Performancen/a
Airbrick MaterialTimloc_Brown
Assembly CodeB2010
Asset TypeFixed
BIM Object NameTimloc_AeroCore_Ventilator
Circular DuctYes
Classification NameUniclass2015
Classification ValuePr_35_90_50_03
Code Performancen/a
ColorBrown
Constituentsn/a
CowlNo
Created Bysales@timloc.co.uk
Created On2024-11-18T09:00:00
Default Elevation0 mm
Depth350 mm
DescriptionCombination ventilator sets for background venting and heat producing appliances
Documentation Certificateswww.bimstore.co/products/timloc-aero-core/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/timloc-aero-core/document/installation-guide
Documentation Literaturewww.bimstore.co/products/timloc-aero-core/document/product-literature
Documentation Maintenancewww.bimstore.co/products/timloc-aero-core/document/maintenance-information

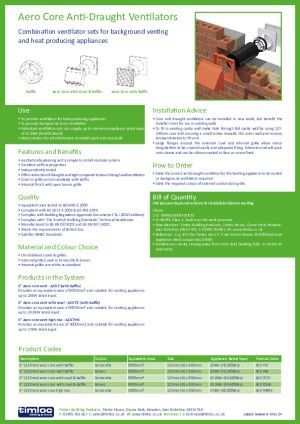

Documentation Technicalwww.bimstore.co/products/timloc-aero-core/document/technical-data-sheet
