FRstop 1-hour fire-rated cavity stop sock. Designed to restrict the spread of flames within external masonry and to further minimise the effect of flanking noise pollution at wall junctions. Independently tested by Warrington Fire.

Available in smaller quantities for convenience.

Object metadata

_AuthorRW
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/timloc-frstop/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD4030900
Asset TypeFixed
BIM Object NameTimloc_FireRatedCavityStopSock_FRSTOP
Cavity Width100 mm
Classification NameUniclass2015
Classification ValuePr_25_80_81_51
Code Performancen/a
ColorBlue
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2023-07-25T09:00:00
Default Elevation0 mm
DescriptionFire-rated thermal and acoustic cavity stop sock
Documentation Certificateswww.bimstore.co/products/timloc-frstop/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/timloc-frstop/document/installation-guide
Documentation Literaturewww.bimstore.co/products/timloc-frstop/document/product-literature
Documentation Maintenancewww.bimstore.co/products/timloc-frstop/document/maintenance-information

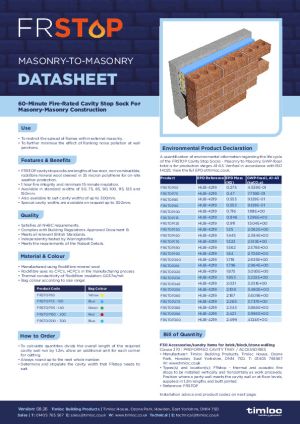

Documentation Technicalwww.bimstore.co/products/timloc-frstop/document/technical-data-sheet
Duration UnitYear
Expected Life0
FeaturesFRstop cavity stop socks are lengths of low resin, non-combustible, rockfibre mineral wool sleeved in 35 micron polythene for on-site weather protection. 1 hour fire integrity and minimum 15 minute insulation
FinishPolythene encapsulated cavity stop sock
Fire Sock MaterialTimloc_FireSock_Blue
Graden/a
Height100 mm
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
KeynoteK30/475
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
MaterialRockfibre mineral wool
ModelFRSTOP
Model NumberFRSTOP100
Model ReferenceFRSTOP
NBS DescriptionMineral wool fire stopping
NBS Object NameTimloc - Mineral wool fire stopping
NBS Office Master Tagn/a
NBS Reference45-45-70/427
Nominal Depth110 mm
Nominal Height100 mm
Production Year2023
Referenced StandardRobust Detail, Approved Document B and NHBC Standards
Replacement Costn/a
ShapeRectangular
Size110 x 100 x 1200mm
Spare Partsn/a
Type CommentsFRSTOP100
Type NameFRSTOP100
URLtimloc.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk
Width110 mm
