Predominantly used in refurbishment, push-in soffit vents provide a convenient method of providing ventilation through an existing soffit board. Barbed ridges on the sides of each vent grip the soffit board and hold them securely in place.

Use:

For roof eaves ventilation
For remedial work on existing roofs
On roofs where ventilation equivalent to a continuous 10mm opening is required
On roofs where the eaves incorporate a soffit board

Description	Colour	Product Code

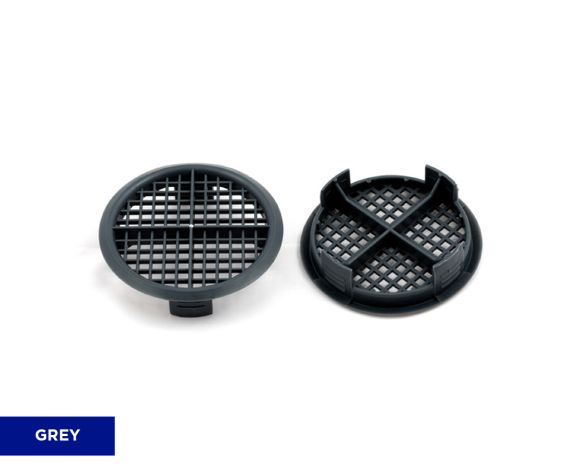

Push-in soffit vent	Grey	1139

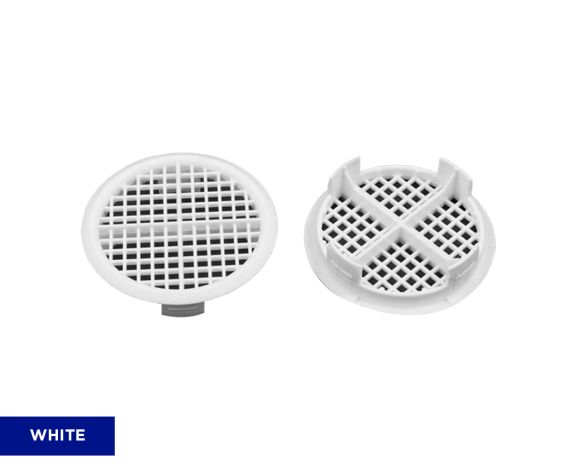

Push-in soffit vent	White	1140

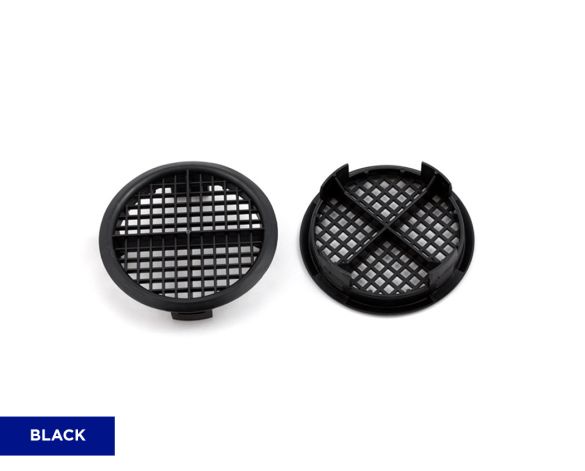

Push-in soffit vent	Black	1141

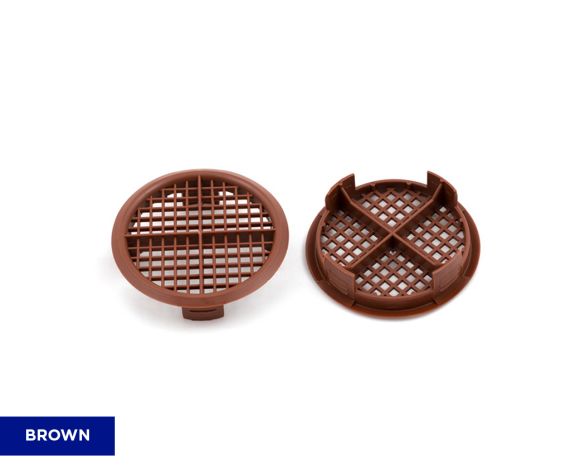

Push-in soffit vent	Brown	1142

Click here to visit the product page on Timloc

_AuthorAG
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/timloc-push-in-soffit-vent/document/object-user-guide
Accessibility Performancen/a
Asset TypeFixed
BIM Object NameTimloc_PushinSoffitVent
Classification NameUniclass2015
Classification ValuePr_30_59_94_78
Code Performancen/a
ColorBlack
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2024-12-10T09:00:00
Default Elevation1219 mm
DescriptionPredominantly used in refurbishment, push-in soffit vents provide a convenient method of providing ventilation through an existing soffit board. Barbed ridges on the sides of each vent grip the soffit board and hold them securely in place.
Documentation Certificateswww.bimstore.co/products/timloc-push-in-soffit-vent/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/timloc-push-in-soffit-vent/document/installation-guide
Documentation Literaturewww.bimstore.co/products/timloc-push-in-soffit-vent/document/product-literature
Documentation Maintenancewww.bimstore.co/products/timloc-push-in-soffit-vent/document/maintenance-information

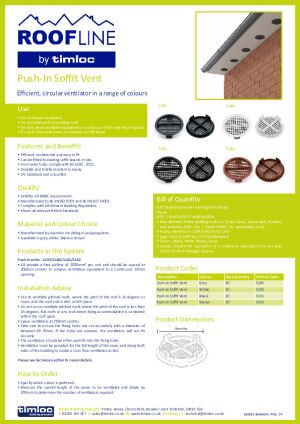

Documentation Technicalwww.bimstore.co/products/timloc-push-in-soffit-vent/document/technical-data-sheet
Duration UnitYear
Expected Life0
FeaturesEfficient, unobtrusive and easy to fit, Can be fitted to existing soffit boards in situ, 4mm wide holes comply with BS 5250 : 2021, Durable and totally resistant to decay, UV stabilised and colourfast
Finishn/a
Graden/a
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
MaterialPolypropylene
ModelPush-in Soffit Vent
Model Number1140
Model ReferencePush-in Soffit Vent
NBS DescriptionSoffit grilles
NBS Noten/a
NBS Object NameTimloc - Soffit grilles
NBS Office Master Tagn/a
NBS Reference45-20-75/400
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Primary MaterialTimloc_Black
Production Year2024
Referenced StandardBS EN ISO 9001 and BS EN ISO 14001
Replacement Costn/a
ShapeCircle
Size70mm Dia
Spare Partssales@timloc.co.uk
Type CommentsPush-in Soffit Vent
Type NamePush-in Soffit Vent
URLtimloc.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk
