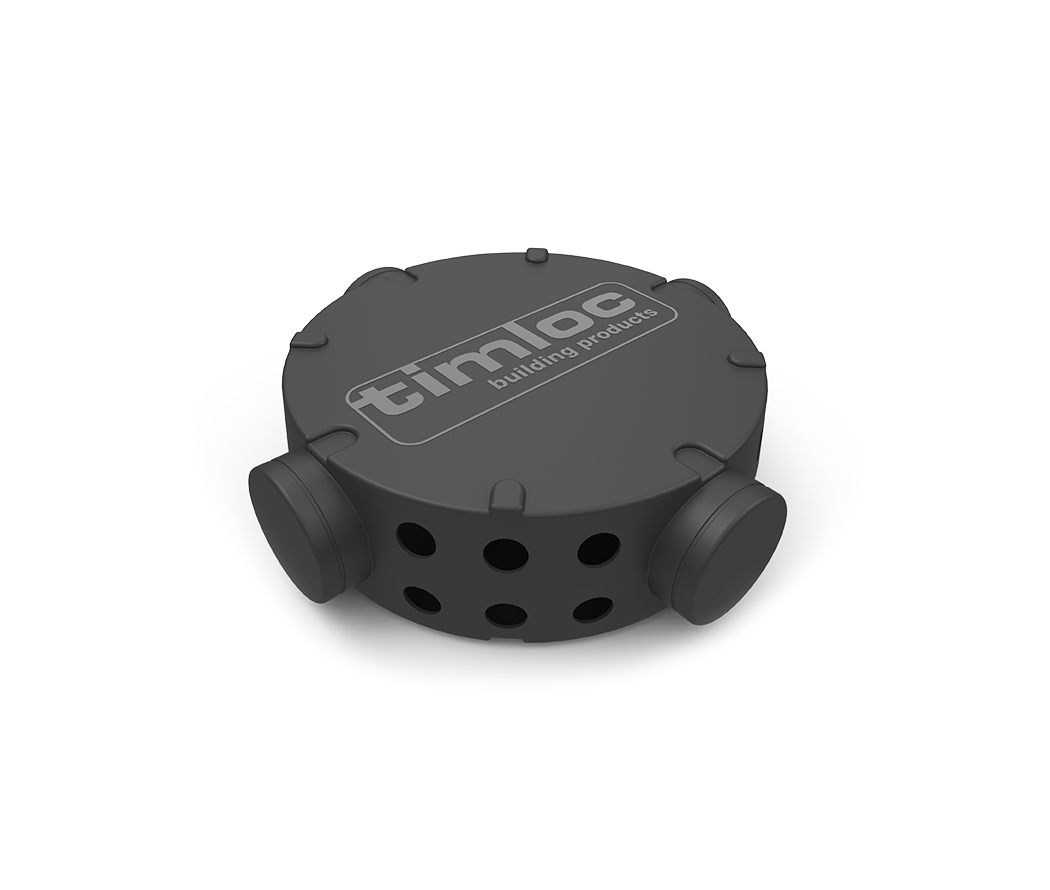

Prefabricated plastic sump for use where sub floor depressurisation is required under full radon protection.

The sump is installed beneath the floor slab in non suspended floor applications and vented to atmosphere via a connecting 110mm drainage pipe to an external source and capped off with proprietary products i.e. air bricks & telescopic under floor vents or roof vents.

Description	Pack Quantity	Lead Time	Product Code
Radon Sump	1	Next Working Day	RSUMP01

Click here to visit the product page on Timloc

_AuthorRW
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/timloc-radon-sump/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD3060400
Asset TypeFixed
BIM Object NameTimloc_RadonSump
Classification NameUniclass2015
Classification ValuePr_65_52_25_23
Code Performancen/a
ColorBlack
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2024-11-18T09:00:00
Default Elevation0 mm
Depth460 mm
DescriptionPrefabricated plastic sump for use where sub floor depressurisation is required.
Documentation Certificateswww.bimstore.co/products/timloc-radon-sump/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/timloc-radon-sump/document/installation-guide
Documentation Literaturewww.bimstore.co/products/timloc-radon-sump/document/product-literature
Documentation Maintenancewww.bimstore.co/products/timloc-radon-sump/document/maintenance-information

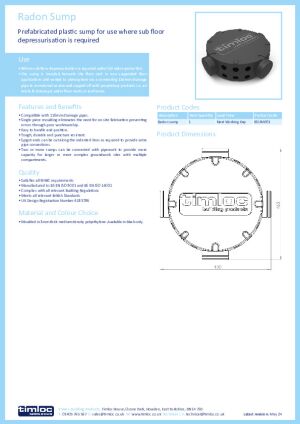

Documentation Technicalwww.bimstore.co/products/timloc-radon-sump/document/technical-data-sheet
Duration UnitYear
Expected Life0
FeaturesCompatible with 110mm drainage pipes. Single piece moulding eliminates the need for on-site fabrication preventing errors through poor workmanship.
FinishMedium density polyethylene
Graden/a
Height120 mm
Ifc Export AsIfcFlowTerminal
Ifc Export TypeIfcWasteTerminalTypeEnum.FLOORWASTE
KeynoteP30/525
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
Material3mm thick medium density polyethylene
ModelRadon Sump
Model NumberRadon Sump
Model ReferenceRSUMP01
NBS DescriptionDepressurization sumps
NBS Object NameTimloc - Depressurization sumps
NBS Office Master Tagn/a
NBS Reference90-05-20-448
Nominal Depth460 mm
Nominal Height120 mm
Nominal Length460 mm
Production Year2024
Referenced StandardBS EN ISO 9001 and BS EN ISO 14001
Replacement Costn/a
ShapeCircular
Size460x460mm
Spare Partsn/a
Sump MaterialTimloc_Black
Type CommentsRSUMP01
Type NameRSUMP01
URLtimloc.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk
Width460 mm
