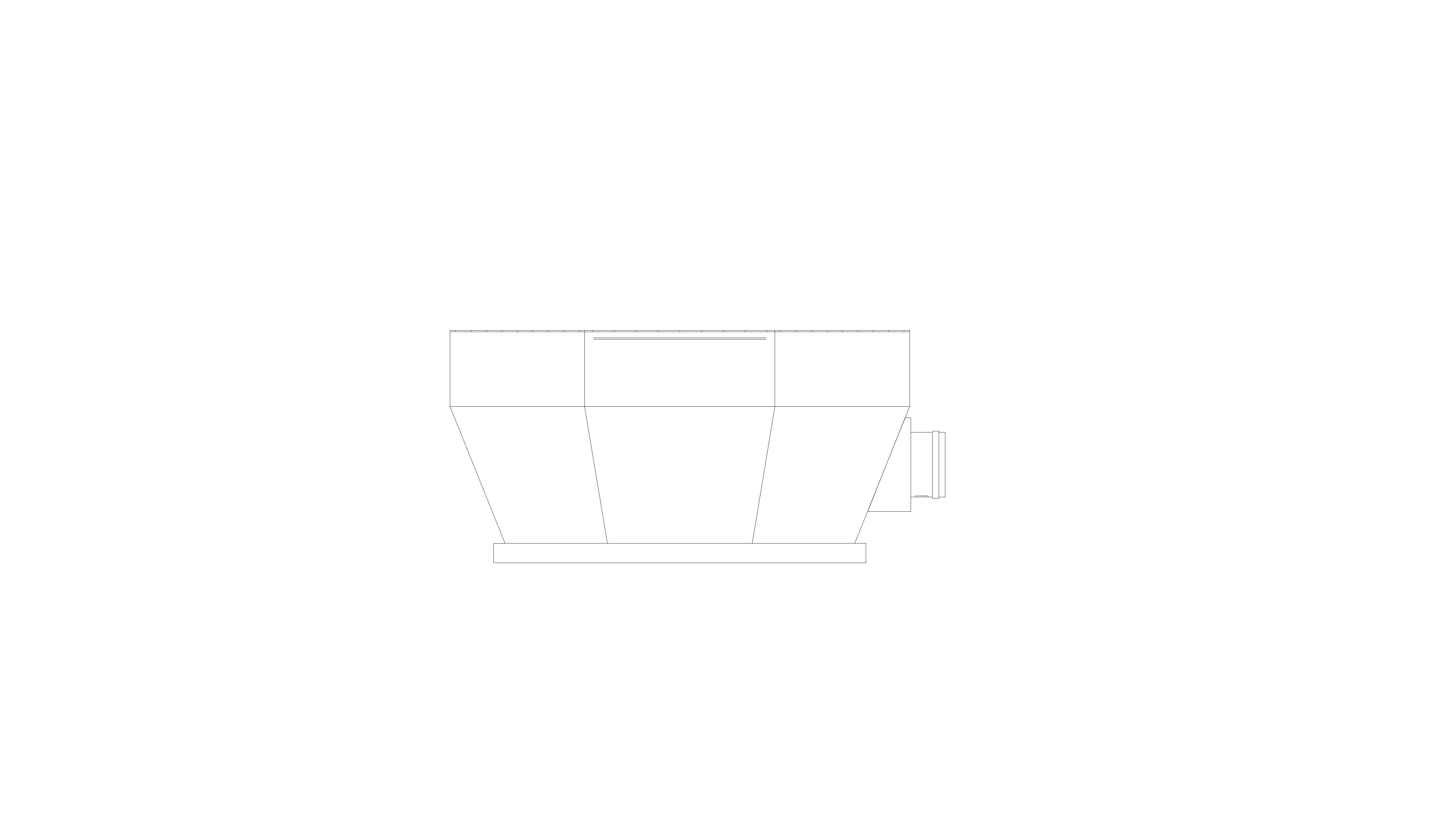

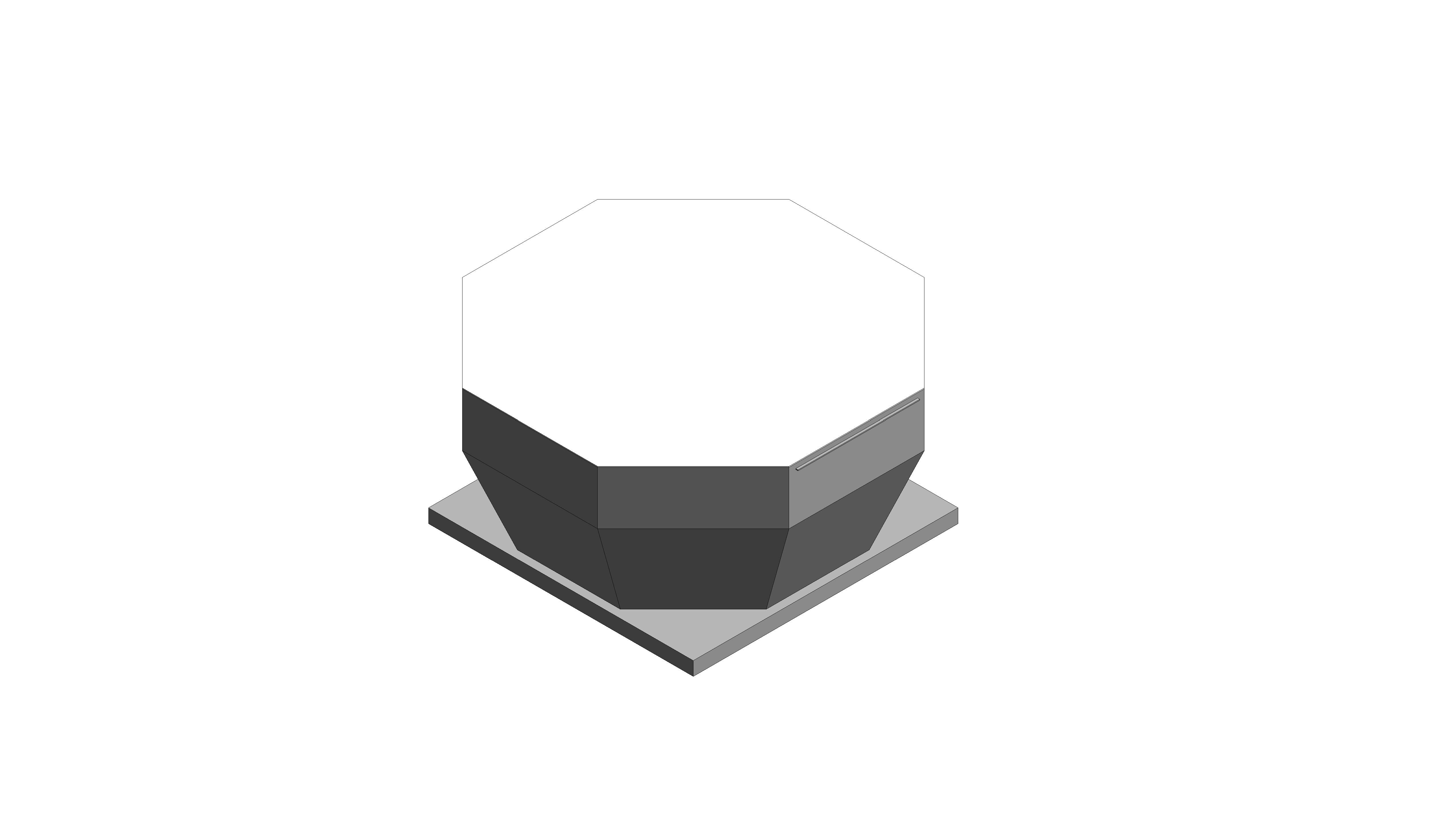

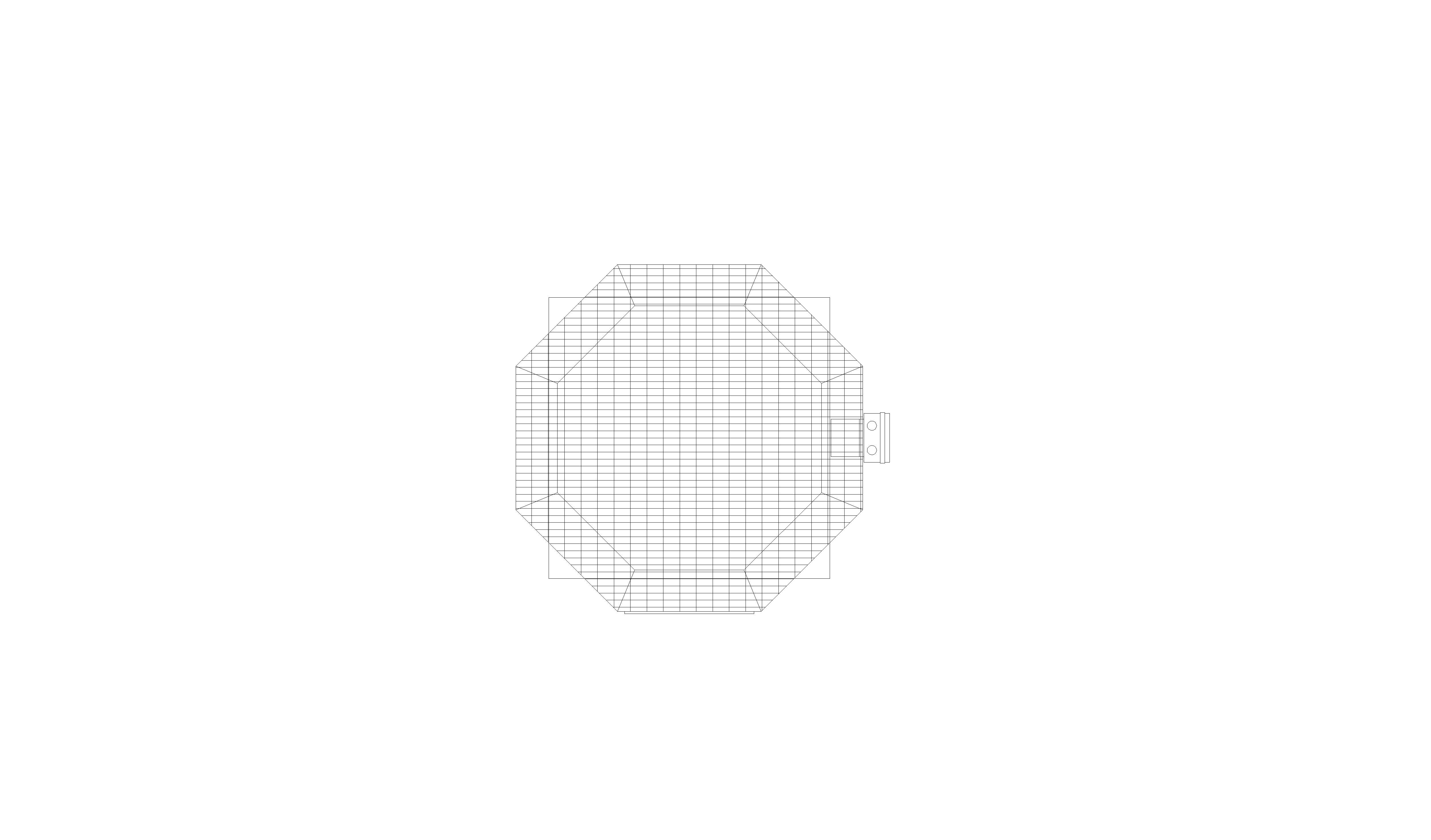

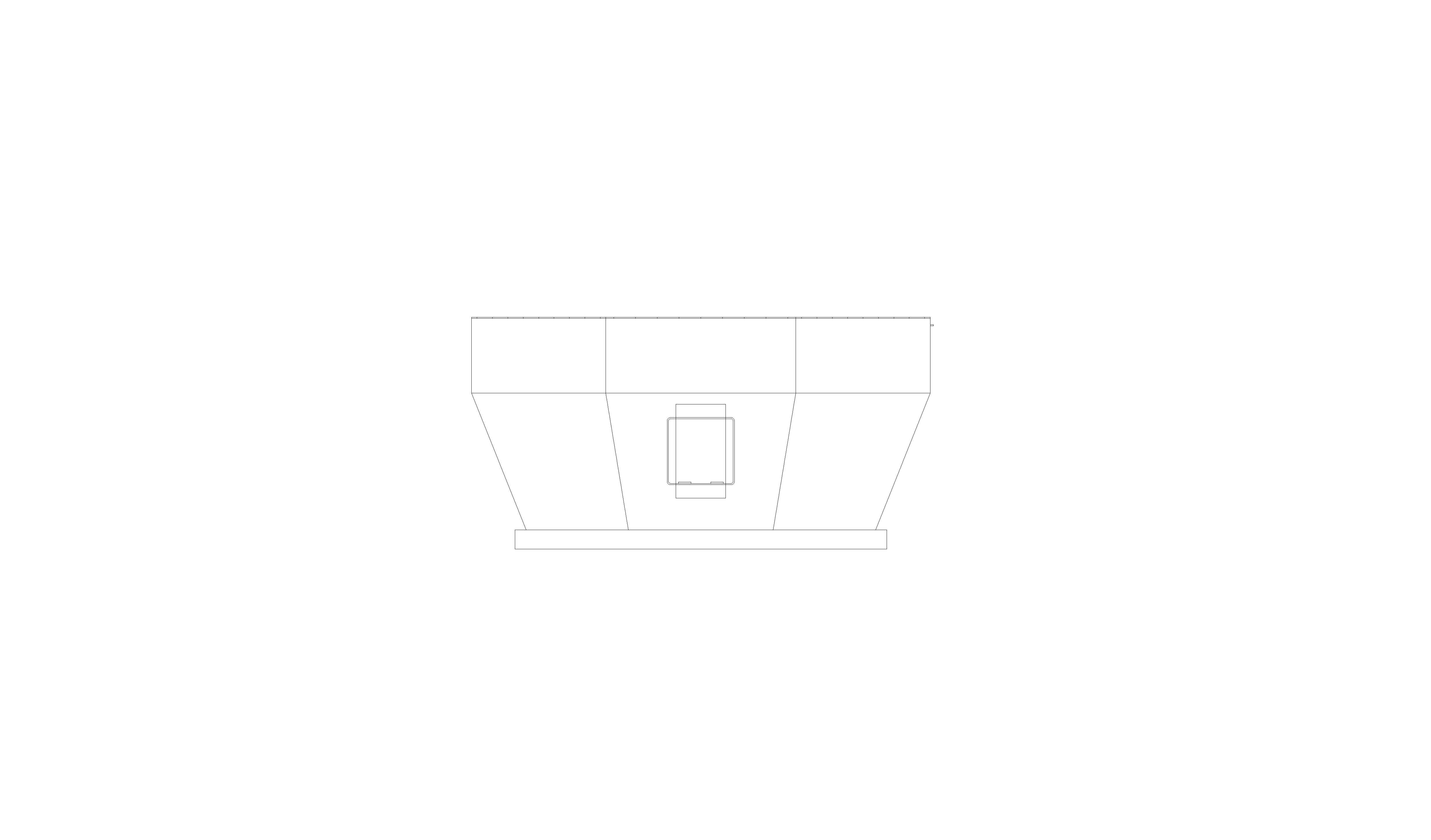

Tower-V EC - Roof Mounted Fan

by Blauberg UK Limited

Download Add to collection

Description

Powerful range of vertical discharge centrifugal roof mounted extract fans.
Vertical air exhaust
Efficient EC Motor

Object Types Included:

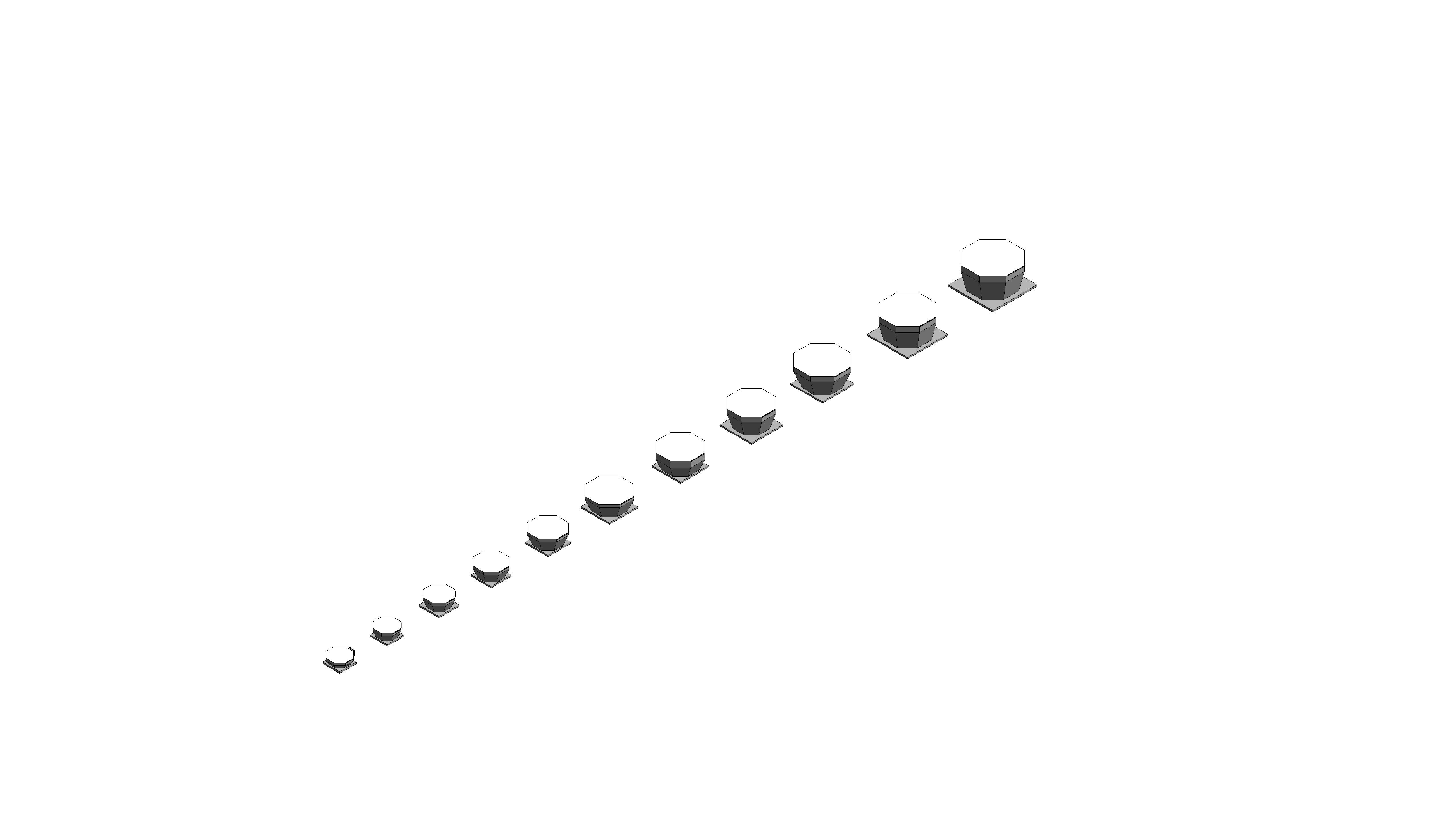

Tower-V 630 EC, Tower-V 560 EC, Tower-V 500 EC, Tower-V 450 EC, Tower-V 400 EC, Tower-V 355 EC, Tower-V 310 EC, Tower-V 280 EC, Tower-V 250 EC, Tower-V 225 EC, Tower-V 190 EC

Object Data

1 Revision

Last Updated

30/09/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

Technical Data Sheet

Product Data Sheet

Object metadata

_Authortechnicalsupport@blauberg.co.uk
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.Blauberg.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/tower-v/document/object-user-guide
A417 mm
Accessibility Performancen/a
Af155 mm
Asset TypeFixed
Asw Bottom320 mm
BIM Object NameBlauberg_MechanicalEquipment_Tower-V-EC
Casing MaterialFan Zinc
Classification NameUniclass2015
Classification ValuePr_30_59_96
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bytechnicalsupport@blauberg.co.uk
Created On2021-09-22T09:00:00
Current1 A
D213 mm
Dbox Fix Bottom H40 mm
Dbox Fix Depth2 mm
Dbox Fix H112 mm
Dbox Fix W80 mm
DescriptionCentrifugal roof fan with vertical air discharge
Documentation Certificateswww.bimstore.co/products/tower-v/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/tower-v/document/installation-guide
Documentation Literaturewww.bimstore.co/products/tower-v/document/product-literature
Documentation Maintenancewww.bimstore.co/products/tower-v/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/tower-v/document/technical-data-sheet
Duct Connection Size180 mm
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Grid MaterialCover Grid Cross
gs A334 mm
H166 mm
Hb36 mm
Hc78 mm
Ht52 mm
Ifc Export AsIfcEnergyConversionDeviceType
Ifc Export TypeIfcUnitaryEquipmentTypeEnum.AIRHANDLER
L355 mm
L2470 mm
Load ClassificationHVAC
Maintenance Zone Front Depth400 mm
Maintenance Zone MaterialMaintenance Zone
Maintenance Zone Side Depth400 mm
ManufacturerBlauberg UK
Manufacturer NameBlauberg UK
Materialn/a
Maximum Air Flow670 m³/h
ModelTower-V 190 EC
Model Number190EC
Model Reference190EC
NBS DescriptionWall Venting Products
NBS Object NameBlauberg UK - Wall Venting Products
NBS Office Master Tagn/a
NBS Reference90-45-30/320
Noise Level At 3m D Ba52
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Number Of Poles1
Power Factor1
Production Year2021
Protection RatingIP X4
Referenced Standardn/a
Replacement Costn/a
RP Mmin 13520
Shapen/a
Sizen/a
Sound Pressure Levelat 1m DBA0
Sound Pressure Levelat 3m DBA0
Spare Partsn/a
Transported Air Temperature Degrees C-25...+60
Type CommentsCentrifugal roof fan
Type NameTower-V 190 EC
URLwww.blauberg.co.uk/catalogsearch/result/?q=Tower+V+EC
Voltage230 V
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partstechnicalsupport@blauberg.co.uk
Weight7 kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
