Wall Fixed Bench Seating

by Toilet Partitions Industries

Download Add to collection

Description

Bracket Mounted Wall Fixed Bench Seating

Amazon Series brackets come in a galvanised steel finish or sable black powder coating. With optional apron.

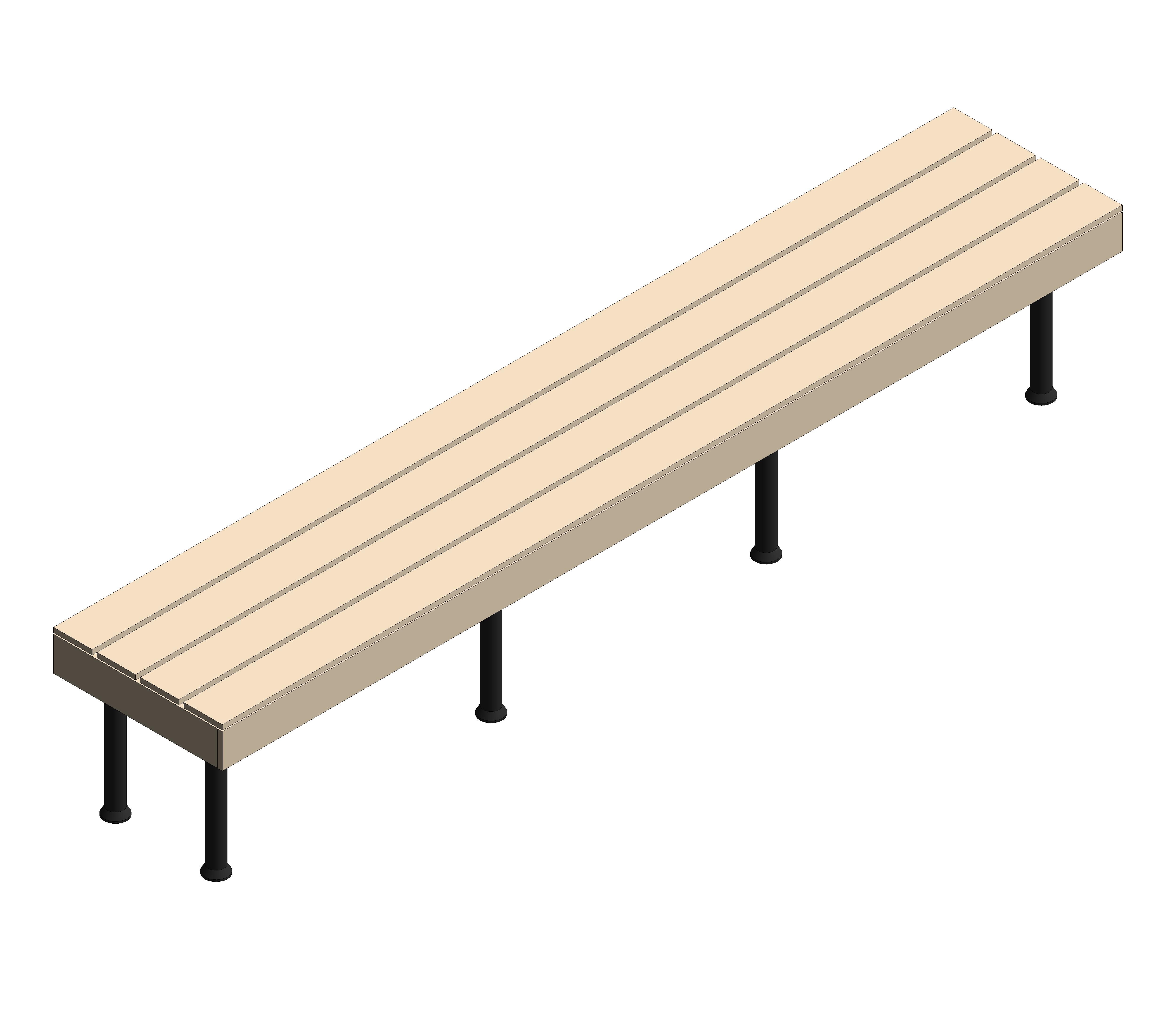

Pedestal Mounted Wall Fixed Bench Seating

Yarra Series brackets come in a galvanised steel finish or sable black powder coating, with optional apron. With adjustable feet, with up to 25mm adjustment.

Object Data

1 Revision

Last Updated

07/01/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/
Accessibility Performancen/a
Apron Height91 mm
Apron Thickness13 mm
Assembly CodeE2010500
Asset TypeFixed
Bench Depth450 mm
Bench Height450 mm
BIM Object NameTPI_BenchSeating_ClassicRange
Bracket Centres455 mm
Bracket MountedYes
Bracket Starting Point50 mm
Classification NameUniclass2015
Classification ValuePr_40_50_12_15
Code Performancen/a
Colorn/a
Constituentsn/a
Created Byinfo@tpi.net.au
Created On2024-12-01T09:00:00
Default Elevation0 mm
Documentation Certificateswww.bimstore.co/products/tpi-wall-fixed-bench-seating/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/tpi-wall-fixed-bench-seating/document/installation-guide
Documentation Literaturewww.bimstore.co/products/tpi-wall-fixed-bench-seating/document/product-literature
Documentation Maintenancewww.bimstore.co/products/tpi-wall-fixed-bench-seating/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/tpi-wall-fixed-bench-seating/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Height0 mm
Ifc Export AsIfcFurnitureType
Ifc Export TypeIfcFurnitureType.USERDEFINED
KeynoteQ50/220
ManufacturerToilet Partition Industries (TPI)
Manufacturer NameToilet Partition Industries (TPI)
Material13mm Compact Laminate
ModelBench Seating - Bracket Mounted
Model NumberBracket Mounted - Slats Seat Style
Model ReferenceBench Seating - Bracket Mounted
NBS DescriptionChanging benches
NBS Noten/a
NBS Object NameTPI - Changing benches
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth450 mm
Nominal Height450 mm
Pedestal MountedNo
Production Year2024
Referenced Standardn/a
Replacement Costn/a
ShapeRectangular
Size450 mm(D) x 450 mm(H) x 2400 mm(L)
Slat Depth103 mm
Slat Number4
SlatsYes
Slat Thickness13 mm
Slotted Groove Offset25 mm
Slotted GroovesNo
SolidNo
Spare Partsn/a
Type NameBracket Mounted - Slats Seat Style
URLtpi.net.au/product/bracket-mounted-wall-fixed-bench-seating/
Warranty DescriptionMaterial 10 years.
Warranty Duration Labor5
Warranty Duration Parts7
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@tpi.net.au
Warranty Guarantor Partsinfo@tpi.net.au
