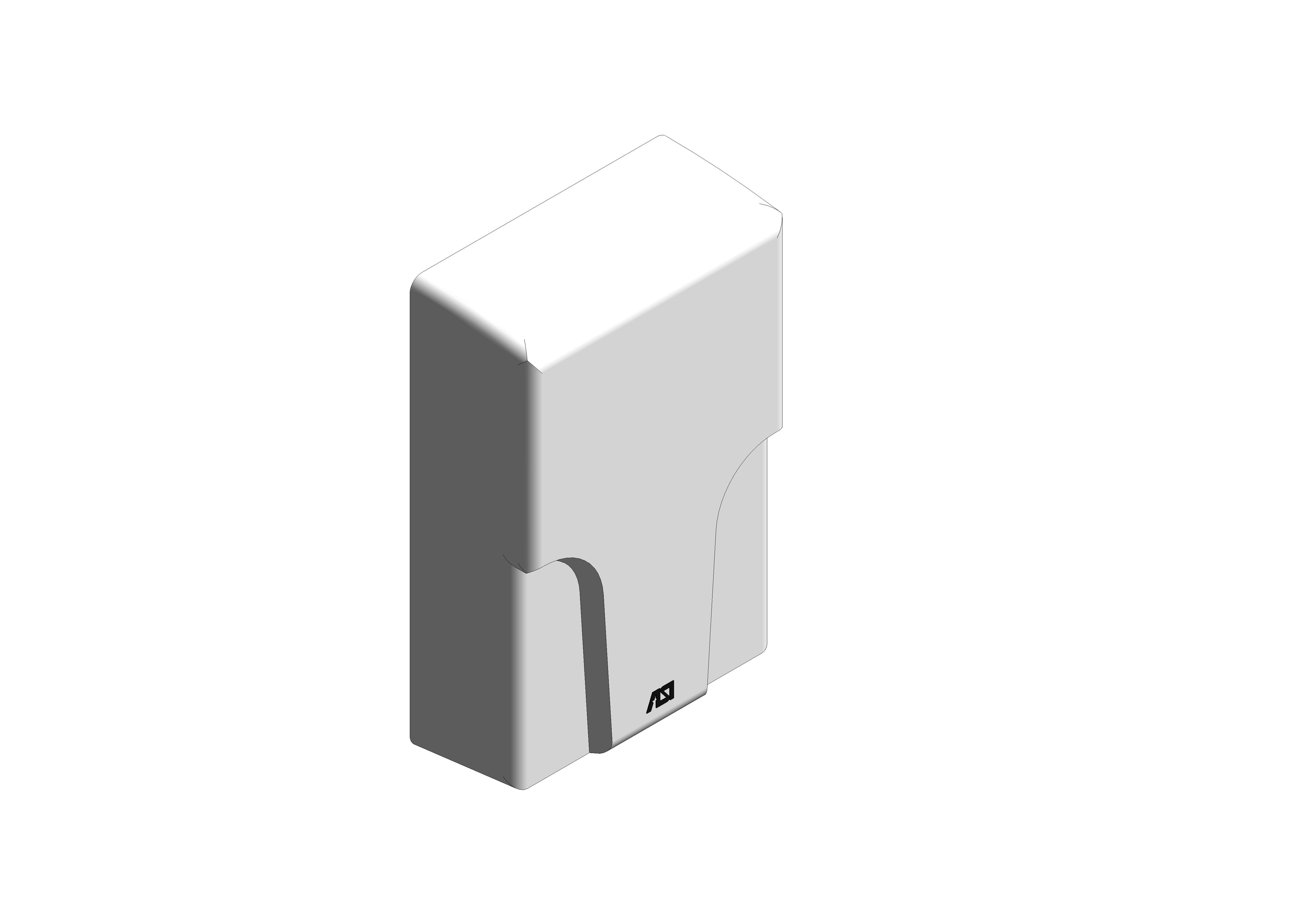

TURBO-Pro™ Hand Dryer (0196)

Object metadata

• _AuthorRobert S. Weygant
• _Authorized ByN/A
• _Bim Spec Guid0
• _BS Bible Version0
• _Created Byamericanspecialties.com/
• _Current Revision0
• _Distributed Bywww.bimstore.co
• _Object User GuideN/A
• Accent MaterialASI - ABS - Black
• Accessibility PerformanceWhen Installed at appropriate height AFF
• Air Output32-42 CFM
• Air Temperature131°F (55°C) at ambient
• Assembly CodeC1030210
• Asset IdentifierN/A
• Asset TypeN/A
• Bar CodeN/A
• BIM Object NameASI_SpecialtyEquipment_HandDryerTURBOPRO0196
• Classification NameN/A
• Classification ValueN/A
• Code PerformanceN/A
• ColorN/A
• ConstituentsN/A
• Cover MaterialASI - ABS - White
• Created ByN/A
• Created On6/4/2019 12:00:00 AM
• Default Elevation0 mm
• DescriptionFinish Specified by 00, 93, or 41
• Documentation Certificatesamericanspecialties.com/

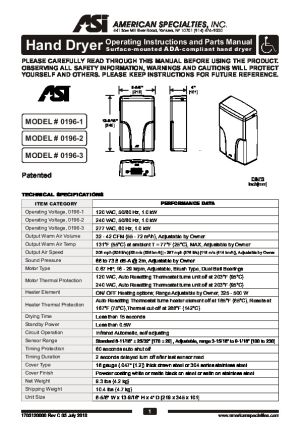

• Documentation Installation Guideamericanspecialties.com/
• Documentation Literatureamericanspecialties.com/
• Documentation Maintenanceamericanspecialties.com/
• Documentation Technicalamericanspecialties.com/
• Dry Time15 seconds max
• Duration UnitN/A
• Electrical Amperage10 A
• Electrical Frequency60 Hz
• Electrical Phase1
• Electrical Voltage120 V
• Electrical Wattage1248 W
• Expected Life0
• FeaturesN/A
• FinishN/A
• GradeN/A
• Ifc Export AsN/A
• Ifc Export TypeN/A
• Installation DateN/A
• Keynote10 28 00
• ManufacturerAmerican Specialties, Inc.
• Manufacturer NameASI
• MaterialN/A
• ModelTURBO-PRO 0196
• Model Number0196
• Model ReferenceN/A
• NBS DescriptionN/A
• NBS NoteN/A
• NBS Object NameN/A
• NBS Office Master TagN/A
• NBS ReferenceN/A
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• Production YearN/A
• Referenced StandardN/A
• Replacement CostN/A
• Serial NumberN/A
• ShapeRectangular
• SizeN/A
• Sound Pressure68 to 73.8 dB
• Spare PartsN/A
• Standards Conformanceas Specified
• Type Name0196-1-00
• Unit Depth102 mm
• Unit Height344 mm
• Unit Weight9.3
• Unit Width219 mm
• URLwww.americanspecialties.com/viewCategories.cfm
• Voltage Range110 to 130 Hz
• Warranty DescriptionN/A
• Warranty Duration LaborN/A
• Warranty Duration PartsN/A
• Warranty Duration UnitN/A
• Warranty Guarantor LaborN/A
• Warranty Guarantor PartsN/A
• Warranty Start DateN/A
