Using R290 natural refrigerant, the Tyneham 290HT achieves higher flow temperatures, improved efficiencies and low carbon heating.

Available in 5 models with outputs of 15, 18, 27, 40 and 50kW. Cascade to achieve higher outputs.

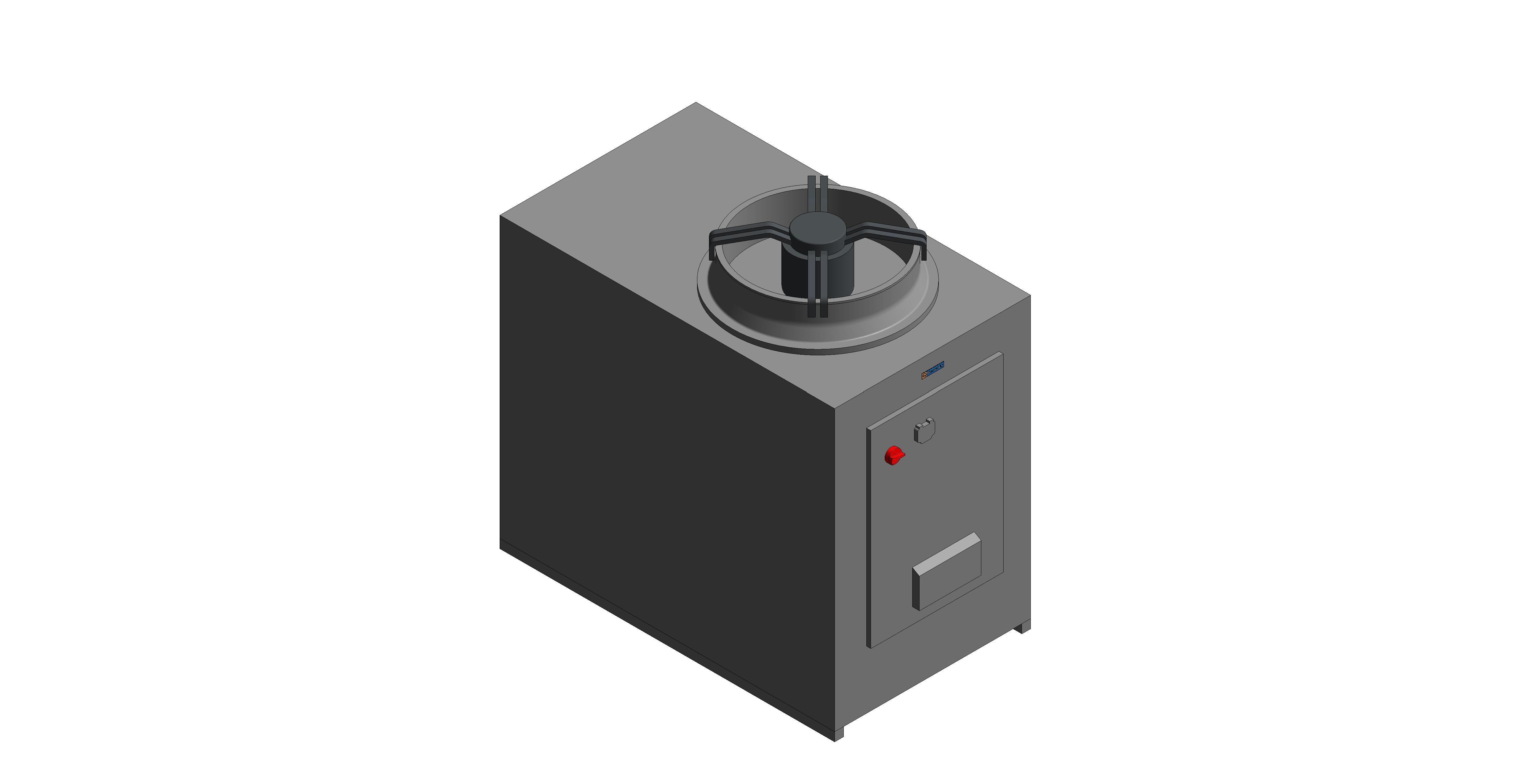

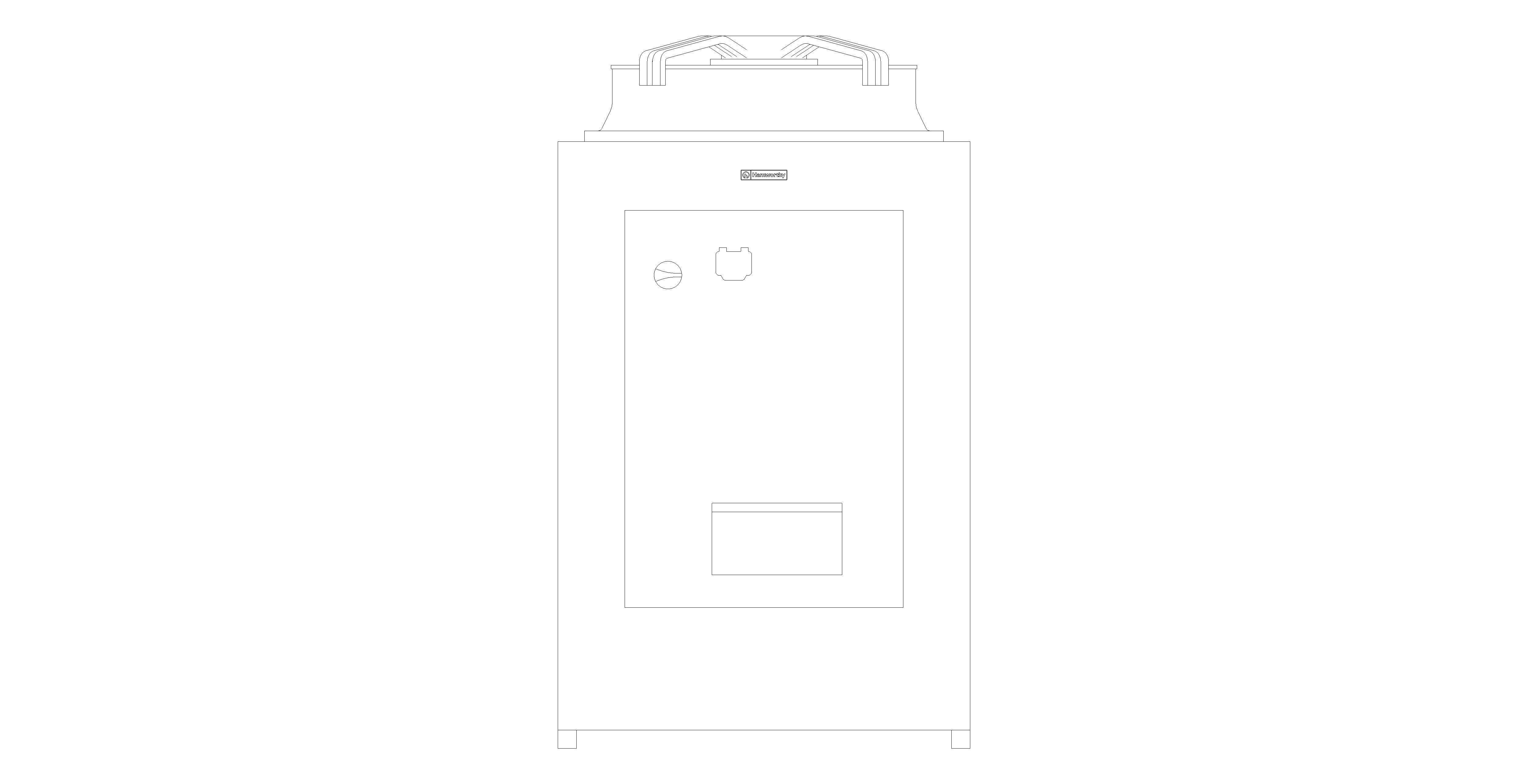

This download is for the 40kW & 50kW versions.

For more product information on the Tyneham 290HT - Natural Refrigerant Heat Pump visit Hamworthy Heating HERE

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid1
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/tyneham-290ht-natural-refrigerant-heat-pump/document/object-user-guide
27k WNo
40_50k WNo
Accessibility Performancen/a
Assembly CodeD3020100
Asset TypeFixed
Base25 mm
BIM Object NameHamworthyHeating_HeatPump_Tyneham_290HT
BodyYes
Casing MaterialIdeal Heating - Grey
Classification NameUniclass 2015
Classification ValuePr_60_60_96_37
Clearance ZoneIdeal Heating - Clearance Zone
Code Performancen/a
ColorGrey
Conn Diameter33 mm
Conn Offset 170 mm
Conn Offset 277 mm
Conn Offset 374 mm
Conn Offset 474 mm
Constituentsn/a
Cover MaterialIdeal Heating - Dark Grey
Created Bytechnical@hamworthy-heating.com
Created On2024-04-11T09:00:00
Default Elevation0 mm
Depth510 mm
DescriptionTYNEHAM 290HT NATURAL REFRIGERANT HEAT PUMP
Documentation Certificateswww.bimstore.co/products/tyneham-290ht-natural-refrigerant-heat-pump/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/tyneham-290ht-natural-refrigerant-heat-pump/document/installation-guide
Documentation Literaturewww.bimstore.co/products/tyneham-290ht-natural-refrigerant-heat-pump/document/product-literature
Documentation Maintenancewww.bimstore.co/products/tyneham-290ht-natural-refrigerant-heat-pump/document/maintenance-information

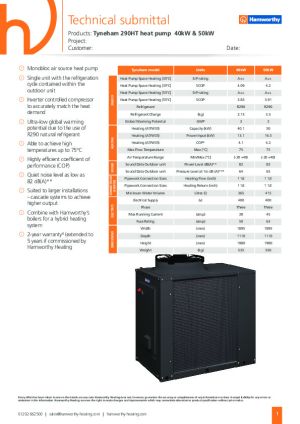

Documentation Technicalwww.bimstore.co/products/tyneham-290ht-natural-refrigerant-heat-pump/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesSuitable for commercial properties. Monobloc air source heat pump.
Finishn/a
Graden/a
Grille MaterialIdeal Heating - Grille Grey
Height1447 mm
Ifc Export AsIfcPump
Ifc Export TypeIfcPumpTypeEnum.CIRCULATOR
KeynoteT32
Logo Offset150 mm
ManufacturerHamworthy Heating
Manufacturer NameHamworthy Heating
Materialn/a
ModelTYNEHAM 290HT
Model NumberTYNEHAM 290HT
Model Reference15kW
NBS DescriptionHeat pump water heaters
NBS Noten/a
NBS Object NameHamworthy Heating - Heat pump water heaters
NBS Office Master Tagn/a
NBS Reference90-15-35/315
Nominal Depth510 mm
Nominal Height1447 mm
Nominal Length1100 mm
Not 27k WYes
Not 40_50k WYes
Offset0 mm
Production Year2024
Referenced Standardn/a
Replacement Costn/a
ShapeRectangle
Size510x1447x1100mm
Spare Partstechnical@hamworthy-heating.com
Type Comments15kW
Type Name15kW
URLwww.hamworthy-heating.com/
Warranty Description2 year warranty (extended to 5 years if commissioned by Hamworthy Heating)
Warranty Duration Labor0
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Labortechnical@hamworthy-heating.com
Warranty Guarantor Partstechnical@hamworthy-heating.com
Width1100 mm
