Type G Cavitrays

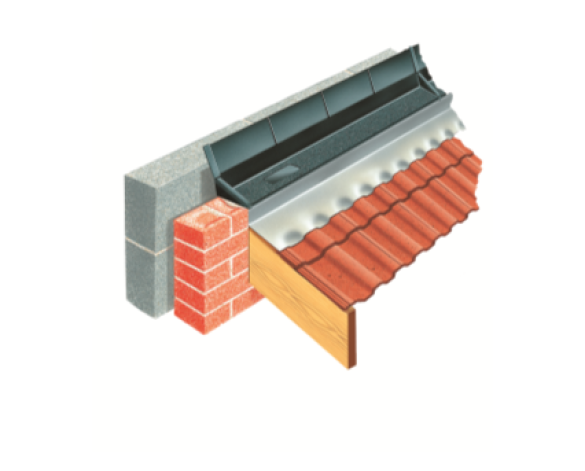

Type G Cavitray is available with an attached lead flashing (example 300mm.) In this example the flashing is sufficient to dress directly over the abutting roof tiles.

This download is a 2D detail component created by bimstore.co.uk for Cavity Trays.

This component is created in Revit 2014 and is in line with 2015 industry standards.
