The Uni range of high performance stainless steel condensing boilers deliver maximum efficiency levels, very low emissions and real cost savings. Boilers in the range require minimal floor space and benefit from the very latest in heating technology.

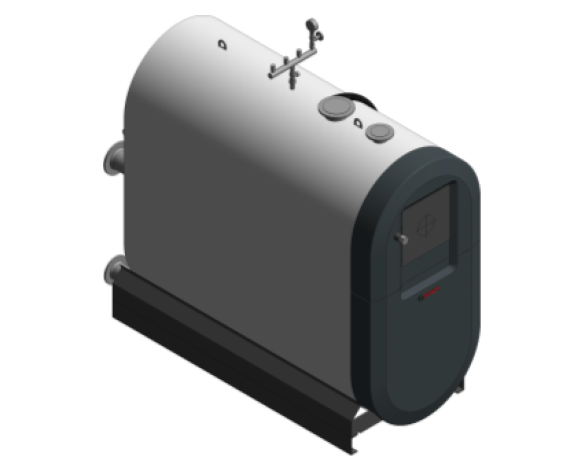

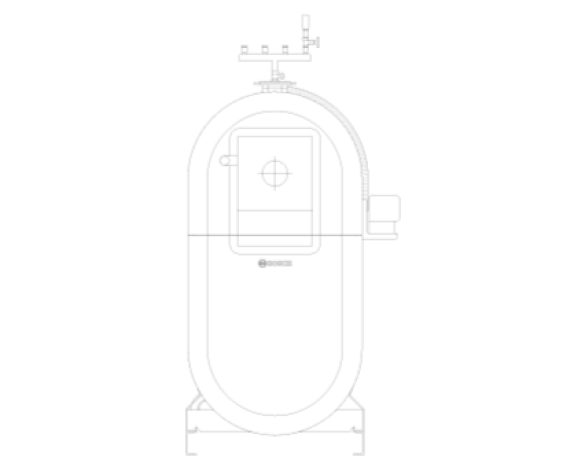

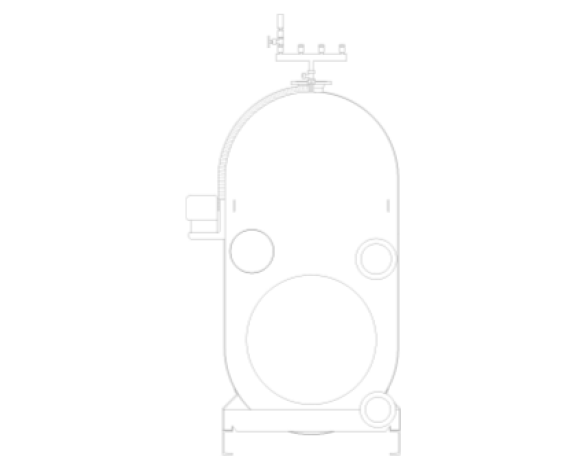

This download contains Revit components for the Bosch Uni Condens 8000F Floor Standing Condensing Boiler from 800kW up to 1200kW.

Components include user selectable features and guidance regarding optional safety manifold, control unit position, burner and manufacturer recommend clearance zones.

rev2 - product rebranded under Bosch.

_authorized byKris Atkinson
_BIMspec_GUID0
_created byKris Atkinson
_current revision2
_distributed bywww.bimstore.co.uk
6 MonthlyNo
A4348 mm
A5348 mm
Access Clearance Bottom0
Access Clearance Front1800 (900 with shorter cleaning rods)
Access Clearance Left400 (min 100) (depending on door handing)
Access Clearance Rear800
Access Clearance RightBurner length + 200
Access Clearance Top0
Accessibility Performancen/a
Air Inlet Connection Sizen/a
AnnuallyAnnual Service
Assembly CodeD3020100
Asset TypeFixed
B1040 mm
Bespoke TimeframeNo
BMS LinksYes
Building Regulations Seasonal Efficiency96.2
Burner A553 mm
Burner ConfigurationSeparate
Burner D555 mm
Burner E840 mm
CE ApprovalCE-0085CM0479
Centre Square Size220 mm
Classification NameUniclass2015
Classification ValuePr_60_60_08_34
Code Performancen/a
ColorAnthracite RAL 7016
ColourAnthracite RAL 7016
Condensate Drain Size40
Condensate Drain TypeThreaded
ConfigurationSingle Boiler
ConstituentsStainless steel, steel, polymers
Control OptionsUnset
Control TypeExternal
Created Bycommercial.industrial@uk.bosch.com
Created OnOct 15
DailyNo
DescriptionThe Uni Condens range of high performance stainless steel condensing boilers deliver maximum efficiency levels, very low emissions and real cost savings. Boilers in the range require minimal floor space and benefit from the very latest in heating technology.
Documentation Certificatesn/a
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/1044
Documentation Literaturen/a
Documentation Maintenancespecifi.bimstore.co.uk/document/share/1042
Documentation Technicalspecifi.bimstore.co.uk/document/share/1041
Drain Connection SizeR1"
Drain Connection TypeThreaded
Duration UnitYears
Energy Technology listNA
ErP Energy LabelN
ErP Rated Efficiency at Full Loadn/a
ErP Rated Efficiency at Part Loadn/a
Erp Seasonal Efficiencyn/a
Expected Life20 - 30
Expected Life25
External MaterialSteel
FeaturesHigh Efficiency Condensing Boiler
FinishPaint
Flow and Return Connection SizeDN125
Flow and Return Connection TypeFlanged
Flow Connection LargeNo
Flow Connection SmallYes
Flue Connection Size303
Flue or Air Intake ClassificationB23
Frequency50
Fuel Connection Sizedependent on burner
Fuel Connection TypeUnset
Full Load Current3.4 (dependent on burner used)
Fuse Rating10
Gas Consumption rate117
Graden/a
Gross Weight2992
H (k)2192 mm
HAA1193 mm
Heat Exchanger MaterialStainless Steel
HRK2263 mm
IK Ratingn/a
InterlocksYes
IP Ratingdependent on burner used
KeynoteT20/320
L2580 mm
L (RG)975 mm
LK2395 mm
Maintenance Required 0-300hrsNo
Maintenance Required 1001-2000hrsNo
Maintenance Required 2001-4000hrsNo
Maintenance Required 301-600hrsNo
Maintenance Required 4001-8000hrsNo
Maintenance Required 601-1000hrsNo
Maintenance Required 8001-12000hrsNo
ManufacturerBosch Thermotechnology
MaterialSteel
Maximum Gas Inlet Pressure100 (dependent on gas train used)
Maximum Oil Inlet Pressure400
Maximum Operating Pressure6
Maximum Power Consumption1800 (dependent on burner used)
Minimum Gas Inlet Pressure38.1(dependent on gas train used)
Minimum Oil Inlet Pressure-0.40 (for twin pipe circuits)
Minimum Operating Pressure0.8
Minimum Power Consumptiondependent on burner used
ModelUni Condens 8000 F - Floor Standing Gas Condensing Boiler
Model NumberUni Condens 8000 F - Floor Standing Gas Condensing Boiler
MonthlyNo
MountingFloor Standing
NBS Object NameGas fired condensing boilers
NBS Reference90-40-05/340
Nominal Gas Inlet Pressure40
Nominal Oil Inlet Pressure50
NOx Emissions125 (dependent on burner used)
O&M Manualwww.buderus.co.uk/products/floor-standing-condensing-boilers/sb745.html
Oil Consumption rate109.5
Overall Height2192
Overall Length2580
Overall Width1330
Primary FuelGas - NG
Product Literaturewww.bosch-industrial.co.uk/products/commercial-range
Product Model Number1000kW
Product RangeUni Condens 8000 F
Production Year2017
QuaterlyNo
Rated Criteria50/30
Rated Efficiency at Full Load97.5
Rated Efficiency at Part Load109
Rated Output303 - 1000
Rear Round Dia380 mm
Referenced StandardBS EN
Replacement Costn/a
Right Hand Access1040 mm
Safety Valve Connection SizeDN65
Safety Valve Connection TypeFlanged
Secondary FuelNo Secondary Fuel
ShapeCylindrical (Horizontal)
Shipping Weight1792
Size2580x1330x2192mm
Sound Pressure Level77 (dependent on burner)
Spare Partsn/a
Starting Current5.9 (dependent on burner used)
Supply Phase1ph - controls 3ph - burner
Tag Numbern/a
Turndown Ratiodependent on burner used
TypeSpace Heating
Type CommentsUni Condens 8000 F - 1000kW
Type NameUni Condens 8000 F - 1000kW
Unit Round Calc510 mm
Unit Round Calc Body507 mm
URLwww.bosch-industrial.co.uk/
Voltage230 - controls 400 - burner
Warranty IDSerial number and end user registration
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partscommercial.industrial@uk.bosch.com
Water Content1200
WeeklySystem pressure check
