Upton Boilers

by Hamworthy Heating

Download Add to collection

Description

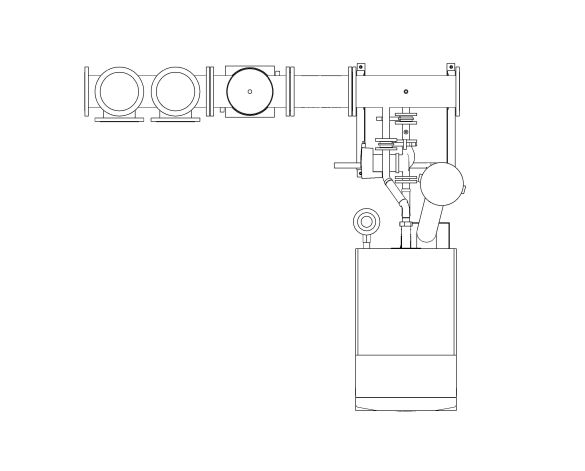

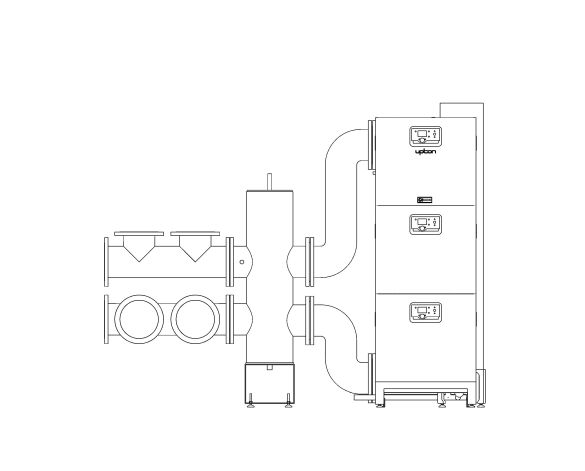

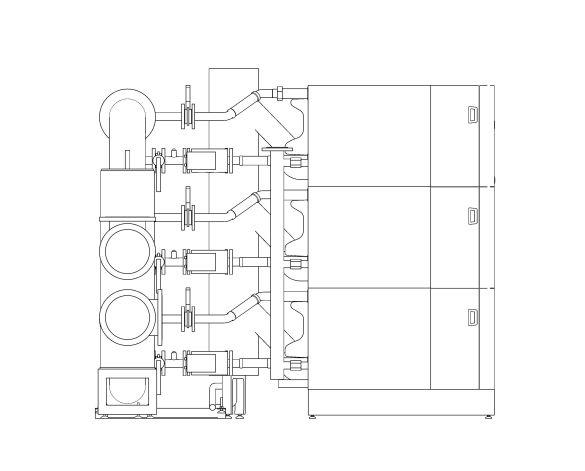

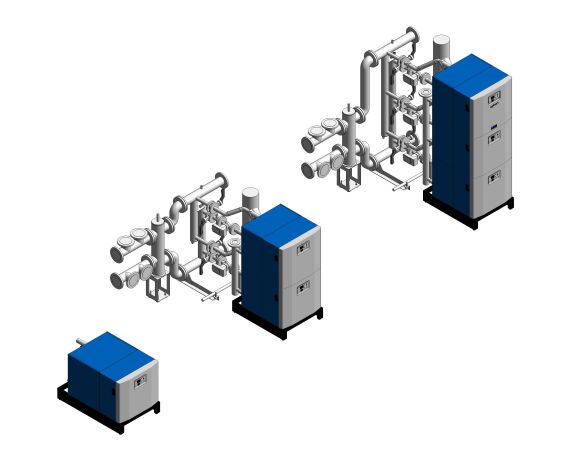

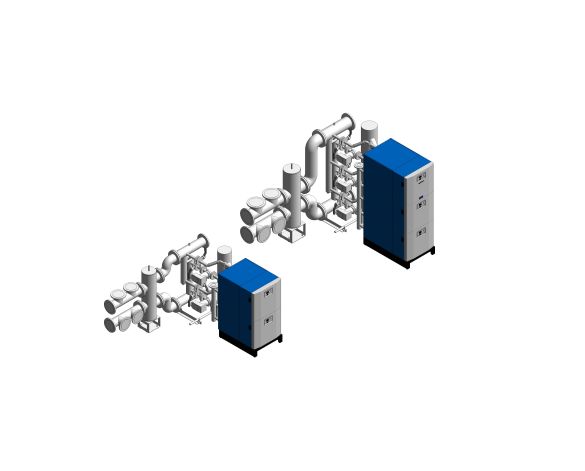

The Upton floor standing modular boiler from Hamworthy builds on a long and successful heritage in modular boilers. Designed and manufactured in the UK, the Upton is a space saving, vertically stacking condensing modular boiler.

Choose from single module boilers and preassembled two or three high modules, in up to 18 combinations with output power options from 100kW to 1,050kW. The largest 3-high boiler can output 1,050kW from less than a square metre footprint, overcoming space restrictions and access issues in limited space, city centre, packaged, and rooftop plantrooms.

This download is for the Hamworthy Heating Upton boiler range of commercial boilers.

Object Data

2 Revision

Last Updated

18/08/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co.uk
_Current Revision2
_Distributed Bywww.bimstore.co.uk

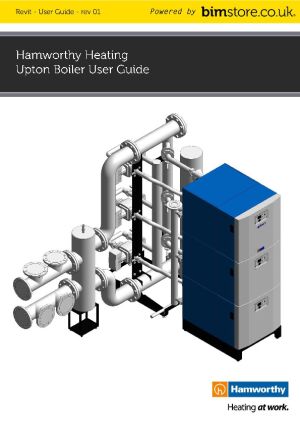

_Object User Guidewww.bimstore.co/products/upton-boilers/document/object-user-guide
1 HYes
2 HNo
3 HNo
3 Port Extension Height 1610 mm
3 Port Extension Height 21010 mm
A573 mm
Access Clearance Bottom0 mm
Access Clearance Front1300 mm
Access Clearance Left400 mm
Access Clearance Rear1800 mm
Access Clearance Right400 mm
Access Clearance Top0 mm
Accessibility Performancen/a
Additional Technical Detailsn/a
Air Inlet Connection Size0 mm
Assembly CodeD3020100
Asset TypeFixed
B175 mm
Back Box554 mm
BIM Object NameHamworthy_MechanicalFixturers_Boiler_Upton
BMS LinksNo
Building Regulations Seasonal Efficiency0.974
Burner Control TypeModulating
C990 mm
CE ApprovalYes
Classification NameUniclass2015
Classification ValuePr_60_60_08_34
Code Performancen/a
ColorBlue
ColourBlue/Grey
Condensate Drain Size75 mm
Condensate Drain TypeP trap with float
ConfigurationSingle Boiler
Constituentsn/a
Control Typen/a
Created Bymarketing@hamworhty-heating.com
Created On2017-03-13T09:00:00
DescriptionChoose from single module boilers and preassembled two or three high modules, in up to 18 combinations with output power options from 100kW to 1,050kW.
DN100 mm
DN3 Port Extension4
Documentation Certificateswww.bimstore.co/products/upton-boilers/document/product-certificates

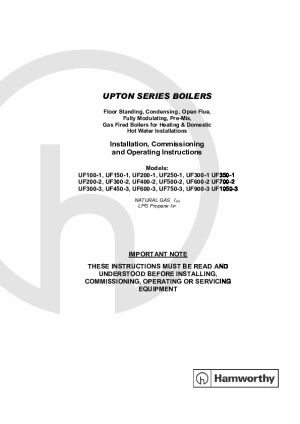

Documentation Installation Guidewww.bimstore.co/products/upton-boilers/document/installation-guide

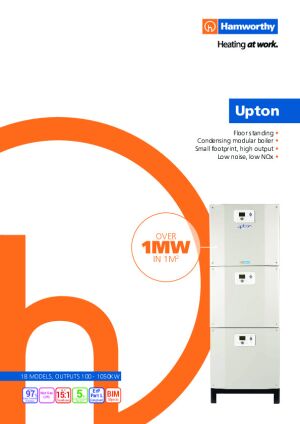

Documentation Literaturewww.bimstore.co/products/upton-boilers/document/product-literature
Documentation Maintenancewww.bimstore.co/products/upton-boilers/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/upton-boilers/document/technical-data-sheet
Drain Connection Size0 mm
Drain Connection TypePush fitting
Duration UnitYears
E610 mm
ErP Rated Efficiency At Full Load0.865
ErP Rated Efficiency At Part Load0.993
ErP Seasonal Efficiency94.0%
Expected Life0
External MaterialAluminium
Extidentifiern/a
FeaturesSingle Boiler with support frame
Finishn/a
Flow And Return Connection Size0 mm
Flow And Return Connection TypeFace seal
Flue Angle10.00 °
Flue Connection Size130 mm
Flue Drain Offset From Boiler544 mm
Flue External Diameter135 mm
Flue Height2118 mm
Flue Offset From Boiler380 mm
Flue Offset Left Right155 mm
Flue Or Air Intake ClassificationB23P
Flue VisNo
Frame MaterialHamworthy, Pipes
Frame Offset1259 mm
Frequency50Hz
Front MaterialUHMW, White
Fuel Connection Size0 mm
Fuel Connection TypeThread seal
Full Load CurrentAmp
Fuse RatingAmp
Gas Consumption Rate9.8 m3/hr
Graden/a
Gross Weight152.00 kg
Heater Operationn/a
Heat Exchanger MaterialAluminium
Hydraulic Resistanceat 11 C Temperature Differentialn/a
Hydraulic Resistanceat 20 C Temperature Differentialn/a
Ifc Export AsIfcBoilerType
Ifc Export TypePset_BoilerTypeCommon
IK Ratingn/a
InterlocksNo
IP Ratingnone
KeynoteT32
k W100
LLH Offset708 mm
Low Loss Header Length750 mm
ManufacturerHamworthy Heating
Manufacturer NameHamworthy Heating
MaterialStainless Steel
Maximum Gas Inlet Pressure25 mbar
Maximum Oil Inlet Pressuren/a
Maximum Operating Pressure5.3 barg
Maximum Power ConsumptionWatts
Mid MaterialSteel, Paint Finish, Blue
Minimum Flow Rate At 11 C Temperature Differential2.2 l/s
Minimum Flow Rate At 20 C Temperature Differential1.2 l/s
Minimum Gas Inlet Pressure17.5 mbar
Minimum Oil Inlet Pressuren/a
Minimum Operating Pressure0.5 barg
Minimum Power Consumptionn/a
ModelUpton Boiler
Model NumberUF100-1
Model ReferenceUpton Boiler
MountingFloor
NBS DescriptionGas fired condensing boilers
NBS Object NameHamworthy Heating - Gas fired condensing boilers
NBS Office Master Tagn/a
NBS Reference90-40-05/340
No Boiler High2
Nominal Depth0 mm
Nominal Gas Inlet Pressure20 mbar
Nominal Height0 mm
Nominal Length0 mm
Nominal Oil Inlet Pressuren/a
NOx Emissions33 mg/kWh
Offset175 mm
Oil Consumption Raten/a
Optional Fueln/a
Overall Length0 mm
Overall Height0 mm
Overall Width0 mm
Pipe Kit Depth1059 mm
Pipe Kit Height1625 mm
Pipe MaterialHamworthy, Pipes
Primary FuelGas
Production Year2017
Product Literaturewww.bimstore.co/products/upton-boilers/document/product-literature
Product Model NumberUF100-1
Product RangeUpton Boiler
Rated Criterian/a
Rated Outputn/a
Rear MaterialSteel, Paint Finish, Blue
Referenced Standardn/a
Replacement Costn/a
Safety Valve Connection Size0 mm
Safety Valve Connection TypeThread seal
Second Boiler VisNo
ShapeRectangular
Shipping Weight152.00 kg
Single Unit Height615 mm
Sizen/a
Sound Pressure Level55.8 LAeq
Spare Partsn/a
Stand Depth1127 mm
Stand MaterialUHMW, Black
Starting Current0.6Amps
Supply Phase230V ~ 50Hz
Tag Numbern/a
Turndown Ratio5:1
Type CommentsUF100-1
Type NameUF100-1
URLwww.hamworthy-heating.com/Products/Commercial-boilers/Upton-modular-boiler
Voltage230V
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Water Content9
Water Treatment RequiredAs Per BS 7593
ZoneClearanceZone
