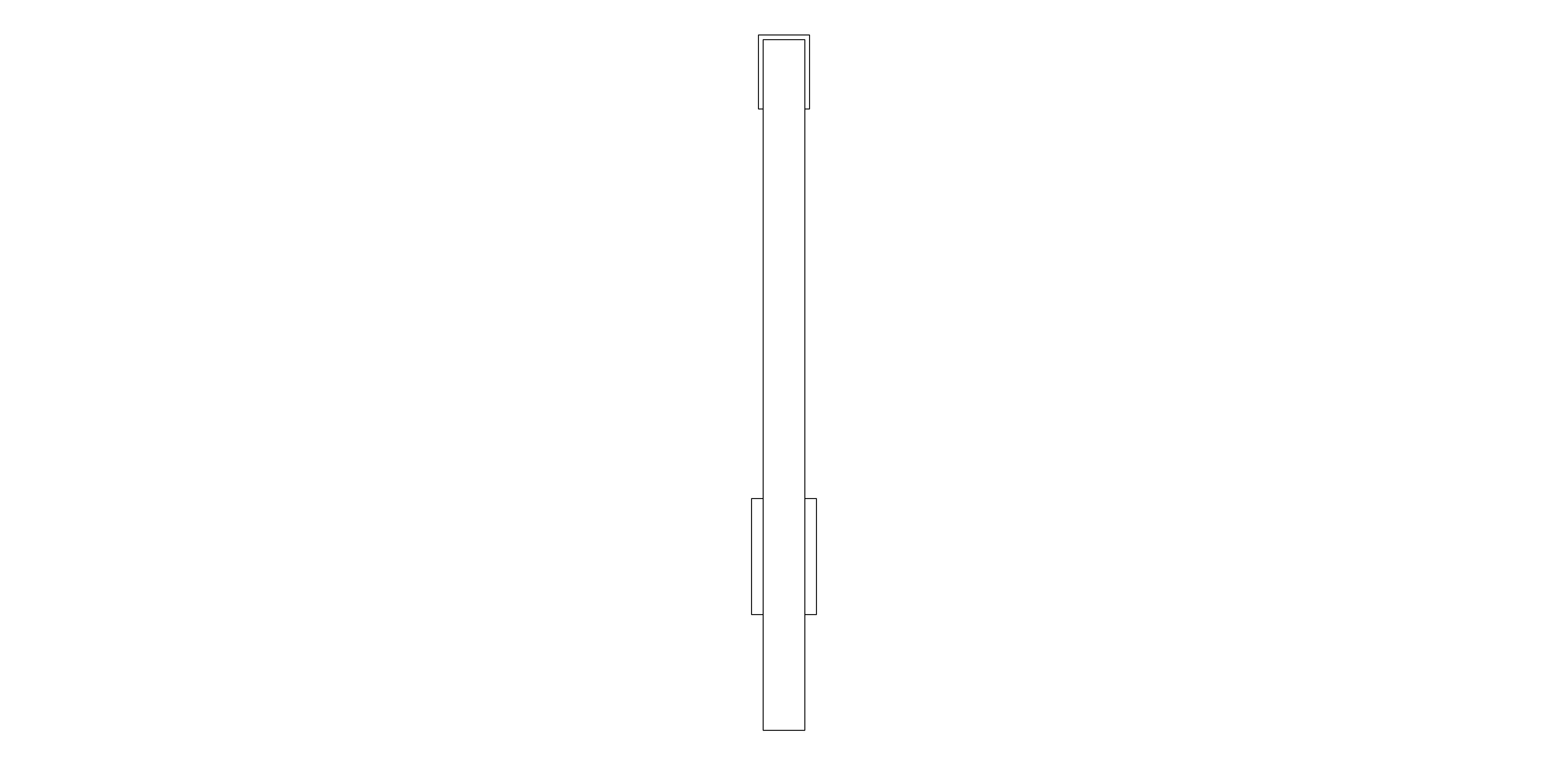

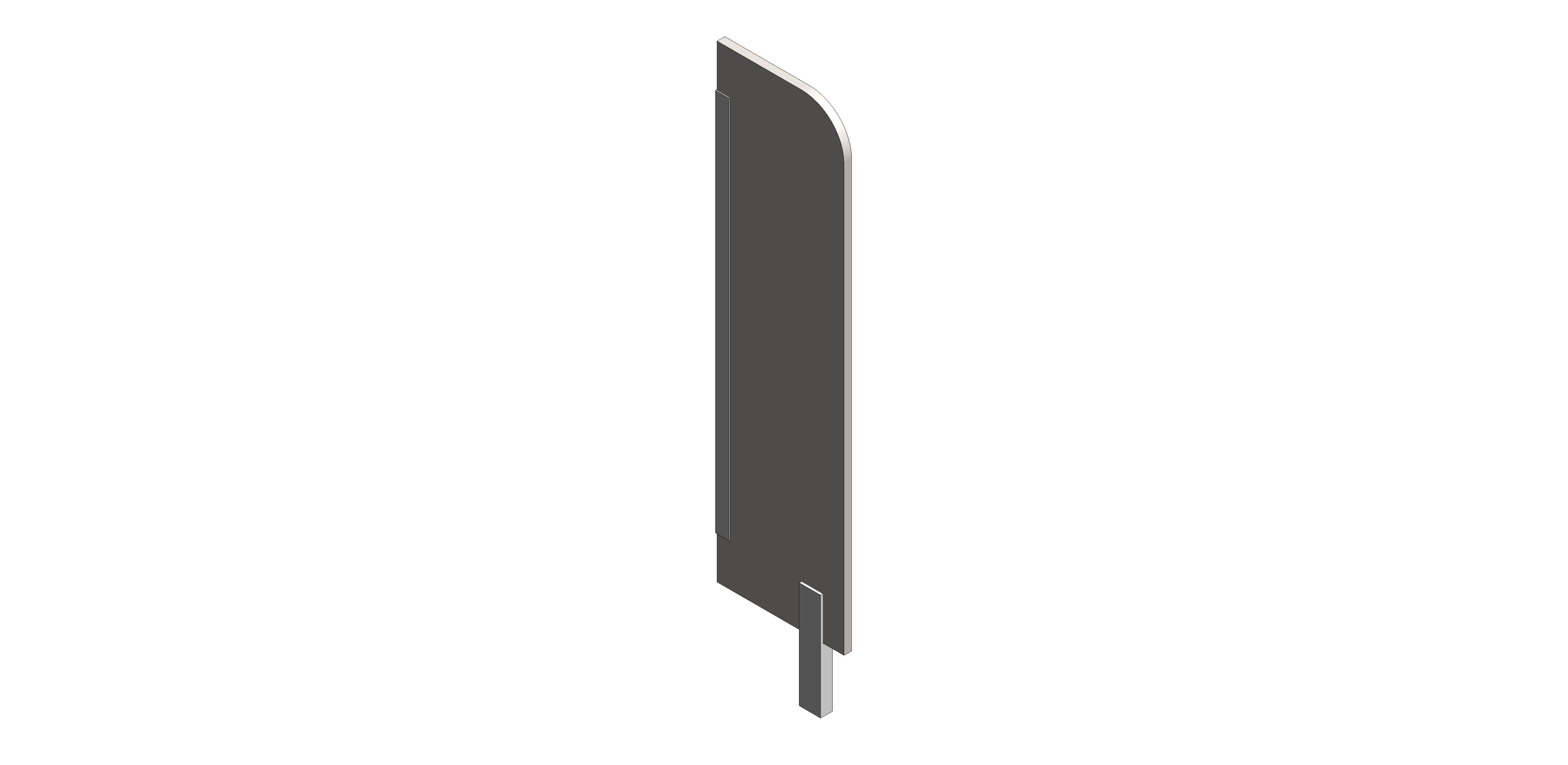

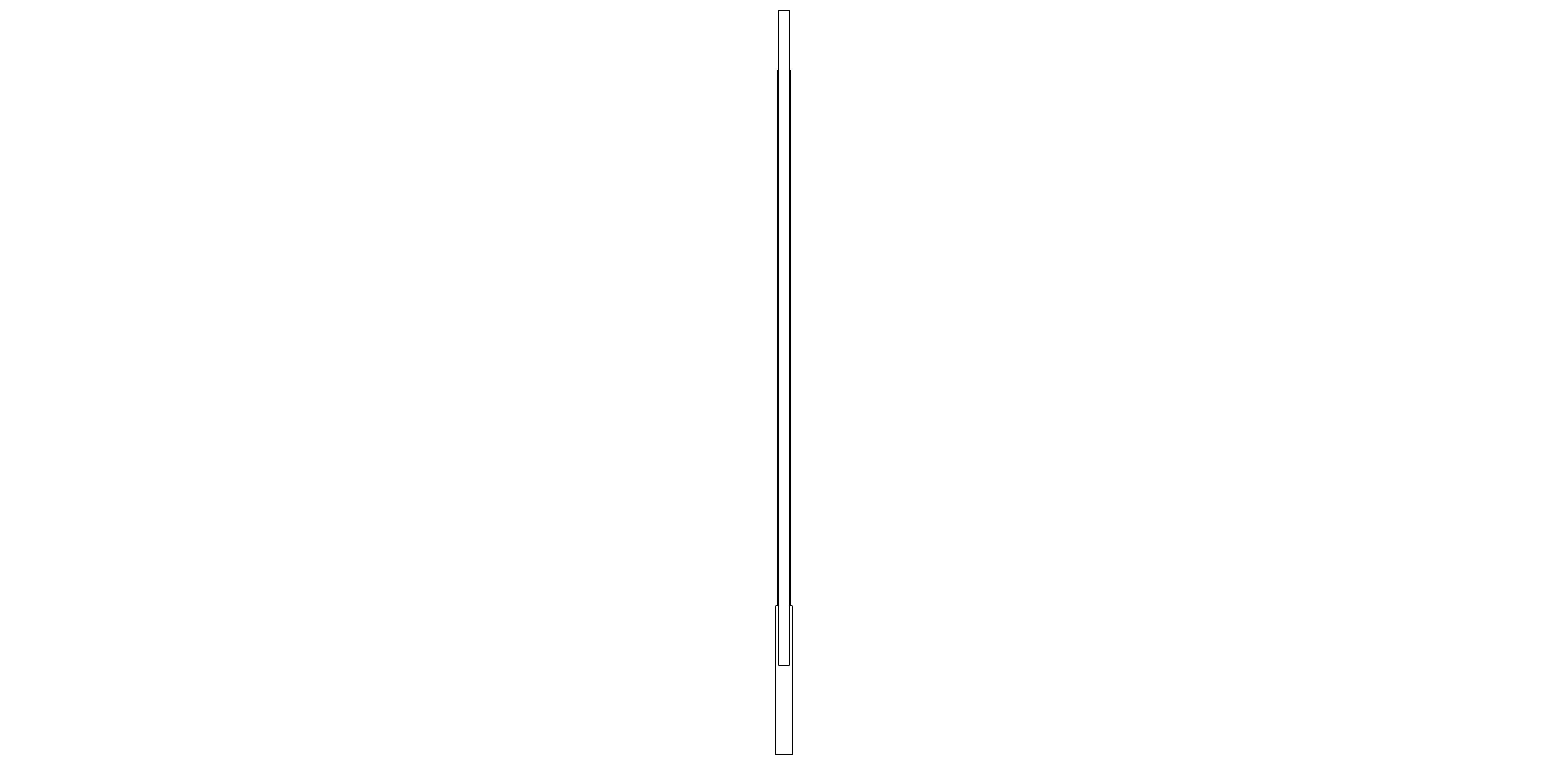

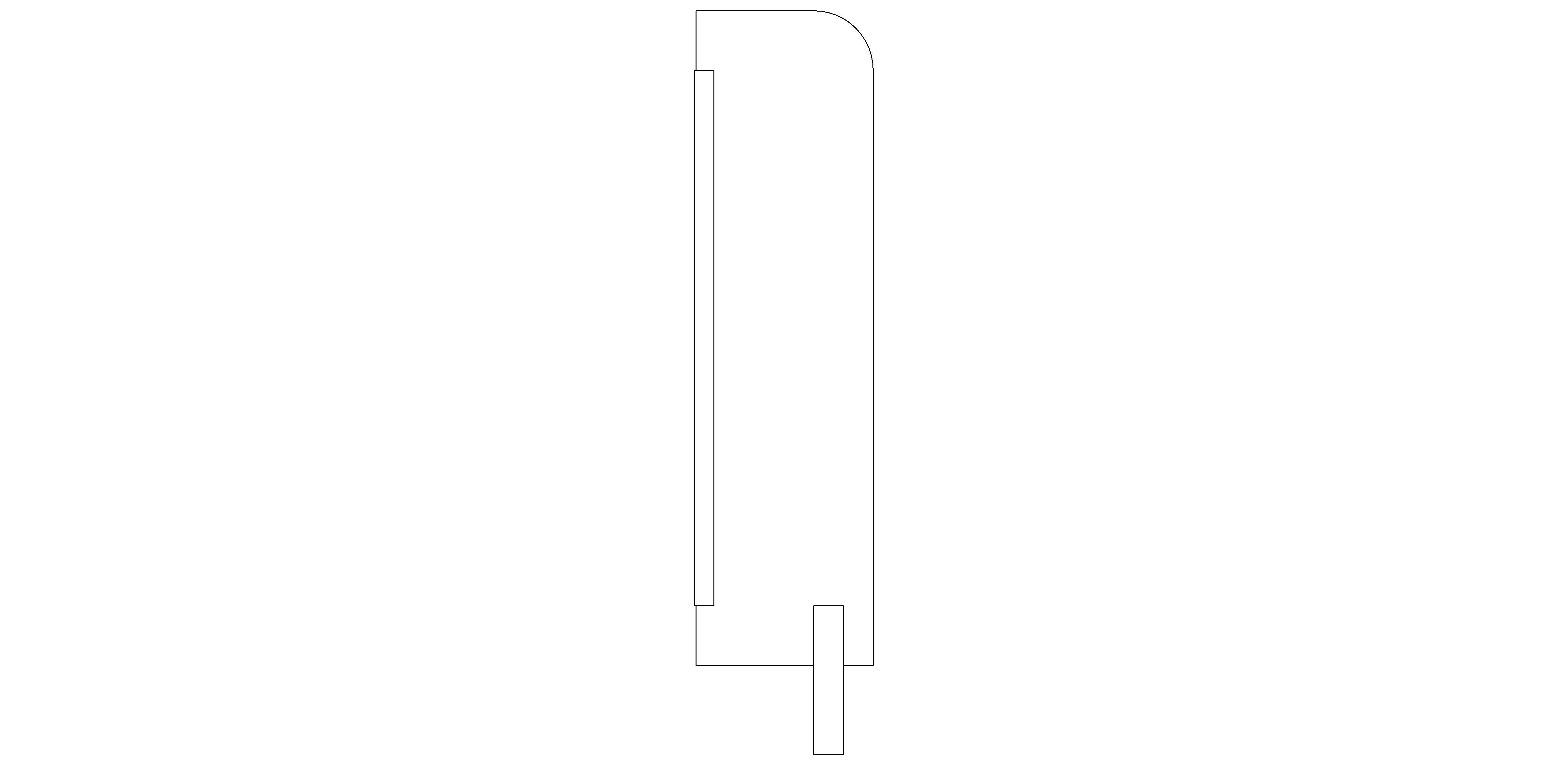

Urinal Privacy Screen

by Trade Washrooms

Download Add to collection

Description

A urinal privacy screen in Light Grey to match toilet cubicle and IPS panel packs by Cubicle Store. The panel is 18mm thick with 2.0mm edging.

Our Melamine Faced Chipboard (MFC) panels are supplied by Egger, one of the leading international wood-based materials manufacturers. Swatches and further information on this colour is provided on the Egger website (link below).

Light Grey – Egger U708

Product Code: CSPRIVLG

Object Data

1 Revision

Last Updated

02/08/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD2010900
Asset TypeFixed
BIM Object NameTradeWashrooms_ModularShowerCubiclePack
CategorySs_25_12_60_65 Privacy screen systems
Classification NameUniclass2015
Classification ValueSs_25_12_60_65
Code Performancen/a
ColorGrey
ConstituentsPanel Systems, Modesty Screen
Created Byspec@tradewashrooms.co.uk
Created On2024-07-22T09:00:00
CW ConnectionNo
CWFU0
Default Elevation0 mm
Depth300 mm
DescriptionCommercial Shower Modesty Screen
Duration UnitYears
Expected Life0
FinishCompact Laminate
Graden/a
Height1250 mm
HW ConnectionNo
HWFU0
Ifc Export AsIfcWall
Ifc Export TypeIfcWallTypeEnum.PARTITIONING
KeynoteN13
Manufacturerspec@tradewashrooms.co.uk
Manufacturer Nameorders@tradewashrooms.co.uk
MaterialCompact Grade Laminate
Material Thickness18 mm
ModelCommercial Shower Modesty Screen
Model NumberSGMODEST
Model ReferenceCommercial Shower Modesty Screen
NameCommercial Shower Modesty Screen
NBS DescriptionPrivacy screen systems
NBS Object NameTrade Washrooms - Privacy screen systems
NBS Office Master Tagn/a
NBS Reference25-05-60/165
Nominal Depth300 mm
Nominal Height3000 mm
Nominal Length18 mm
Post Depth50 mm
Post Width28 mm
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size3000mm (H) x 900mm (D) x 18mm (W)
Spare Partsn/a
Sustainability Performancen/a
Type CommentsSGMODEST
Type NameCommercial Shower Modesty Screen
URLwww.tradewashrooms.co.uk/panel-systems/ips-panels/hospital-disposal-unit-ips-panel-assembly-hbn-du/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsorders@tradewashrooms.co.uk
Waste ConnectionNo
WFU0
