Omnis M6 Keypad with reader

by ACRE International

Download Add to collection

Description

The M6 Keypad provides a simple and intuitive interface to the Omnis system. With its navigation keys it allows easy operation with a minimum number of steps. Support for EM card technology is provided by integrated reader allowing for quick user authentication.

Object Data

2 Revision

Last Updated

03/10/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

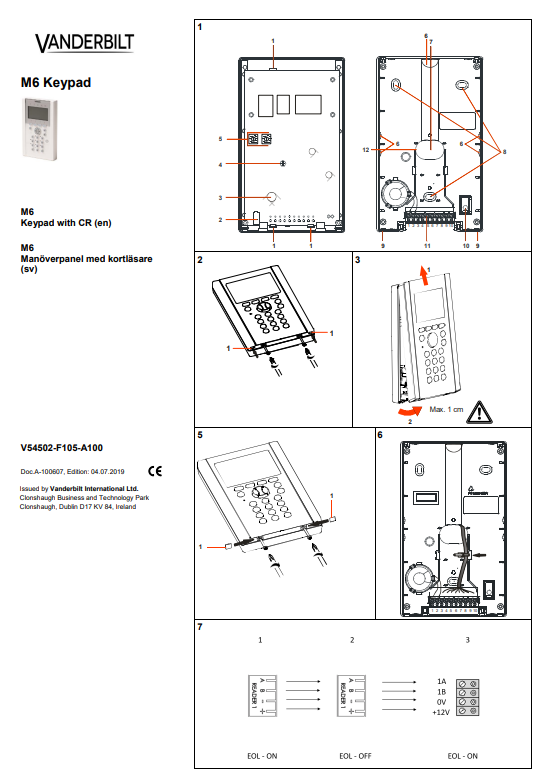

Installation Guide

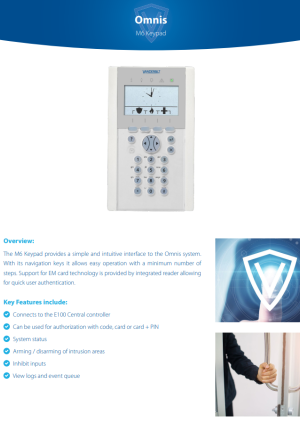

Product Literature

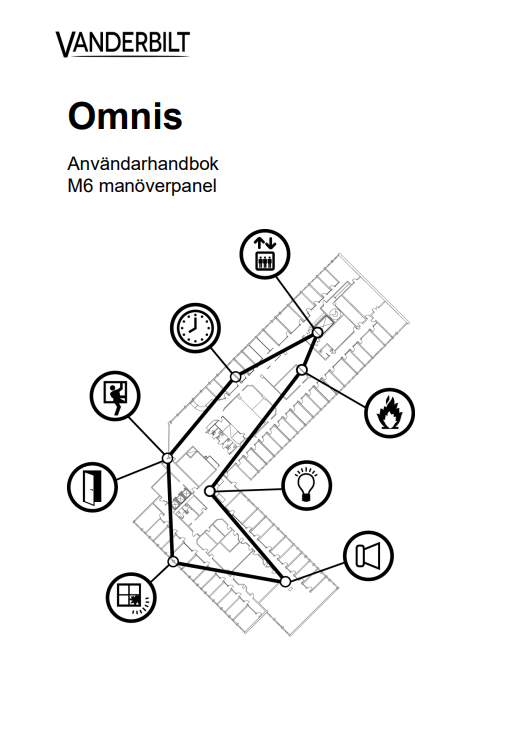

Operator Manual

Product Data Sheet

Object metadata

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/vanderbilt-m6/document/object-user-guide
Accessibility Performancen/a
Accessoriesn/a
Additionaln/a
Air Humidityn/a
Anti Maskn/a
Assembly CodeD5030800
Asset TypeFixed
Audion/a
BIM Object NameVanderbilt_AccessControl_M6
Button MaterialPlastic, Opaque Black
Card Capacityn/a
Card Compatibilityn/a
Card Read Distancen/a
Card Technologyn/a
Case MaterialPlastic, Opaque White
CategoryAccess Keypad
Classification NameUniclass2015
Classification ValuePr_75_30_30_01
Code Performancen/a
Collision Spacen/a
ColorRAL 9003 (signal white)
Constituentsn/a
Created Bysupport.uk@vanderbiltindustries.com
Created On2022-07-28T09:00:00
Default Elevation0 mm
DescriptionThe M6 Keypad provides a simple and intuitive interface to the Omnis system. With its navigation keys it allows easy operation with a minimum number of steps. Support for EM card technology is provided by integrated reader allowing for quick user authentication.
Detection Characteristics Rangen/a
DisplayYes
Documentation Certificateswww.bimstore.co/products/vanderbilt-m6/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/vanderbilt-m6/document/installation-guide
Documentation Literaturewww.bimstore.co/products/vanderbilt-m6/document/product-literature
Documentation Maintenancewww.bimstore.co/products/vanderbilt-m6/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/vanderbilt-m6/document/technical-data-sheet
Door Capacityn/a
Duration UnitYears
Ean Upc Code7330082005314
Ecology CertificatesRoHS, REACH http://intranet.vanderbiltindustries.com/publish/Environmental_Compliance_Statement/Vanderbilt%20International%20-%20Environmental%20Compliance%20Statement%20-%2024-07-20.pdf
EnvironmentIndoor
EOL Resistorn/a
Expected Life0
Features- Connects to the E100 Central controller - Can be used for authorization with code, card or card + PIN - System status - Arming / disarming of intrusion areas - Inhibit inputs - View logs and event queue
Finishn/a
Graden/a
Housing Protectionn/a
Ifc Export AsIfcAlarm
Ifc Export TypeIfcAlarmType
IndicatorsYes
InterfaceRS485 / OSDP
KeynoteW
Languagesn/a
ManufacturerVanderbilt
Manufacturer NameVanderbilt
MaterialPlastic Housing (Polycarbonate)
Metadatan/a
Microwaven/a
ModelM6
Model NumberV54502-F105-A100
Model ReferenceM6
MountingWall
NBS DescriptionKeypads
NBS Noten/a
NBS Object NameVanderbilt - Keypads
NBS Office Master Tagn/a
NBS Reference90-75-05/365
Nominal Depth28 mm
Nominal Height185 mm
Nominal Length112 mm
Number Of On Board Relaysn/a
Number Of On Board Zonesn/a
Operating Current110mA, max 230mA @12VDC
Operating Temperature+ 5° ... + 40°C
Outputsn/a
Pet Immunityn/a
Production Year2022
Rangen/a
Referenced StandardCE (EU), SBSC (SE), (FI) Refer to: https://vanderbiltindustries.com/compliance-documents
RegionsWorldwide
Relay Outputsn/a
Replacement Costn/a
Screen MaterialGlass, Green
Sensitivity Evaluation Moden/a
ShapeRectangle
Size112mm(W) x 185mm(H) x 28mm(D)
Spare Partssupport.uk@vanderbiltindustries.com
Supply Voltage12 VDC
Tamper ProtectionYes
TitleOmnis M6 Keypad with reader
Type CommentsV54502-F105-A100
Type NameV54502-F105-A100
URLvanderbiltindustries.com/
Verificationn/a
Videon/a
Walking Speedn/a
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborsupport.uk@vanderbiltindustries.com
Warranty Guarantor Partssupport.uk@vanderbiltindustries.com
Weight0.380 kg
