bimstore - Vanderbilt - SPCA210.100 Intrusion Door Access

780
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

2 Revision

Last Updated

03/10/2022

Download BIM

Add to collection

Available for:

The SPCA210.100 2-door expander extends the SPC controller with advanced door control functionality for 2 entry doors or 1 entry/exit door. The device features 2 Wiegand/Clock&Data interfaces, 4 LED control outputs (1 void / valid per reader), 4 zones (1 position- and 1 opening switch per door), 2 relay outputs (1 lock per door) and an on-board buzzer to signal "door open too long" events.To allow greatest flexibility, the zones and outputs are freely programmable for other purposes if not used for door control. Up to 512 priority card holders can be stored on the expander for standalone operation in case of communication loss to the control panel. The expander comes in a plastic housing with front tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/vanderbilt-spca210-100/document/object-user-guide
Accessibility Performancen/a
Accessoriesn/a
Additionaln/a
Air Humidityn/a
Anti Maskn/a
Assembly CodeD5030800
Asset TypeFixed
Audion/a
BIM Object NameVanderbilt_IntrusionDoorAccess_SPCA210100
Card Capacityn/a
Card Compatibilityn/a
Card Read Distancen/a
Card Technologyn/a
Case MaterialPlastic, Opaque White
CategoryIntrusion Expander
Classification NameUniclass2015
Classification ValuePr_75_30_30_03
Code Performancen/a
Collision Spacen/a
ColorRAL 9003 (signal white)
Constituentsn/a
Created Bysupport.uk@vanderbiltindustries.com
Created On2022-07-28T09:00:00
Default Elevation0 mm
DescriptionThe SPCA210.100 2-door expander extends the SPC controller with advanced door control functionality for 2 entry doors or 1 entry/exit door. The device features 2 Wiegand/Clock&Data interfaces, 4 LED control outputs (1 void / valid per reader), 4 zones (1 position- and 1 opening switch per door), 2 relay outputs (1 lock per door) and an on-board buzzer to signal "door open too long" events.To allow greatest flexibility, the zones and outputs are freely programmable for other purposes if not used for door control. Up to 512 priority card holders can be stored on the expander for standalone operation in case of communication loss to the control panel. The expander comes in a plastic housing with front tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Detection Characteristics Rangen/a
DisplayNo
Documentation Certificateswww.bimstore.co/products/vanderbilt-spca210-100/document/product-certificates

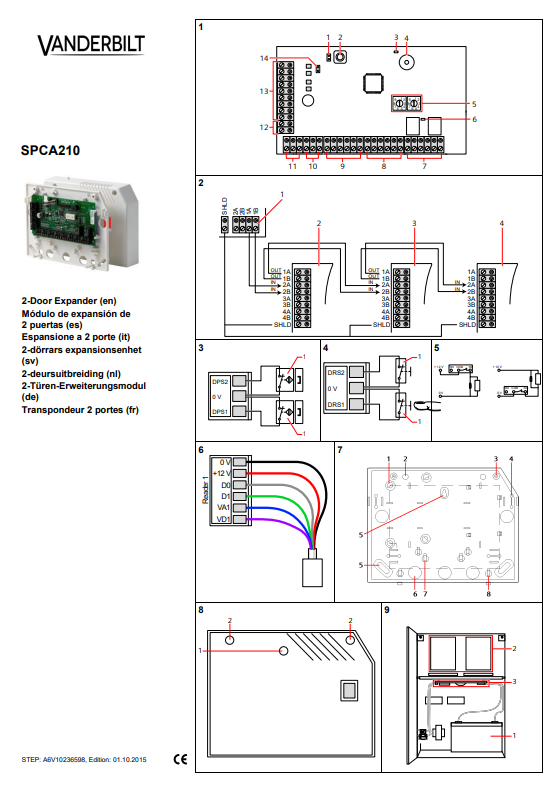

Documentation Installation Guidewww.bimstore.co/products/vanderbilt-spca210-100/document/installation-guide
Documentation Literaturewww.bimstore.co/products/vanderbilt-spca210-100/document/product-literature
Documentation Maintenancewww.bimstore.co/products/vanderbilt-spca210-100/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/vanderbilt-spca210-100/document/technical-data-sheet
Door Capacityn/a
Duration UnitYears
Ean Upc Code4025515471189
Ecology CertificatesRoHS, REACH http://intranet.vanderbiltindustries.com/publish/Environmental_Compliance_Statement/Vanderbilt%20International%20-%20Environmental%20Compliance%20Statement%20-%2024-07-20.pdf
EnvironmentIndoor
EOL Resistorn/a
Expected Life0
Features- Easy configuration - Cause and effect intergration - Configurable Inputs type (22+ types) - Configurable Input EOL (24+ types) - Individual name per input - Individual log per input - Configurable Outputs - Individual test function per output - 3 Selectable modes of operation per output (Continious, Pulse, Momentary) - Log option per output - Each output can be restricted by calendars
Finishn/a
Graden/a
Housing Protectionn/a
Ifc Export AsIfcAlarm
Ifc Export TypeIfcAlarmType
IndicatorsLED
InterfaceX-BUS (in, out, branch), Reader 1, Reader 2
KeynoteW
LanguagesEnglish German French Spanish Swedish Italian Dutch
ManufacturerVanderbilt
Manufacturer NameVanderbilt
MaterialPlastic housing (ABS)
Metadatan/a
Microwaven/a
ModelSPCA210.100
Model NumberV54547-A101-A100
Model ReferenceSPCA210.100
MountingWall
NBS DescriptionAccess control units
NBS Noten/a
NBS Object NameVanderbilt - Access control units
NBS Office Master Tagn/a
NBS Reference90-75-05/430
Nominal Depth41 mm
Nominal Height150 mm
Nominal Length198 mm
Number Of On Board Relaysn/a
Number Of On Board Zonesn/a
Operating CurrentMax. 80 mA at 12 VDC (all relays activated)
Operating Temperature-10 ~ +50 °C
Outputsn/a
Pet Immunityn/a
Production Year2022
Rangen/a
Referenced StandardCE (EU), EN (EU), VDS B/C (DE), INCERT (BE / NR), RCM (Aus), F&P (DK), (FI), EAR (Ru)
RegionsWorldwide
Relay Outputsn/a
Replacement Costn/a
Sensitivity Evaluation Moden/a
Sensor MaterialPlastic, Opaque Red
ShapeRectangle
Size198mm(W) x 150mm(H) x 41mm(D)
Spare Partssupport.uk@vanderbiltindustries.com
Supply Voltage9.5 ~ 14 VDC
Tamper ProtectionYes
TitleSPCA210.100 2-Door expander
Type CommentsV54547-A101-A100
Type NameV54547-A101-A100
URLvanderbiltindustries.com/
Verificationn/a
Videon/a
Walking Speedn/a
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborsupport.uk@vanderbiltindustries.com
Warranty Guarantor Partssupport.uk@vanderbiltindustries.com
Weight0.360 kg
