bimstore - Vanderbilt - SPCK420.100 Intrusion Keypad

635
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

2 Revision

Last Updated

03/10/2022

Download BIM

Add to collection

Available for:

The SPCK420.100 LCD keypad provides the user with an iconic interface to control the security system. Its 32 character blue backlight display and keyboard allows control under all lighting conditions. Navigation of the intuitive menu system is achieved using the central navigation key. The keypad features soft keys and alphanumeric keys that allow contextual key operation and data input directly from the keypad.

Object metadata

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/vanderbilt-spck420-100/document/object-user-guide
Accessibility Performancen/a
Accessoriesn/a
Additionaln/a
Air Humidityn/a
Anti Maskn/a
Assembly CodeD5030800
Asset TypeFixed
Audion/a
BIM Object NameVanderbilt_IntrusionKeypad_SPCK420100
Button MaterialPlastic, Opaque Black
Card Capacityn/a
Card Compatibilityn/a
Card Read Distancen/a
Card Technologyn/a
Case MaterialPlastic, Opaque White
CategoryIntrusion Keypad
Classification NameUniclass2015
Classification ValuePr_75_30_30_01
Code Performancen/a
Collision Spacen/a
ColorRAL 9003 (signal white)
Constituentsn/a
Created Bysupport.uk@vanderbiltindustries.com
Created On2022-07-28T09:00:00
Default Elevation0 mm
DescriptionThe SPCK420.100 LCD keypad provides the user with an iconic interface to control the security system. Its 32 character blue backlight display and keyboard allows control under all lighting conditions. Navigation of the intuitive menu system is achieved using the central navigation key. The keypad features soft keys and alphanumeric keys that allow contextual key operation and data input directly from the keypad.
Detection Characteristics Rangen/a
DisplayNo
Documentation Certificateswww.bimstore.co/products/vanderbilt-spck420-100/document/product-certificates

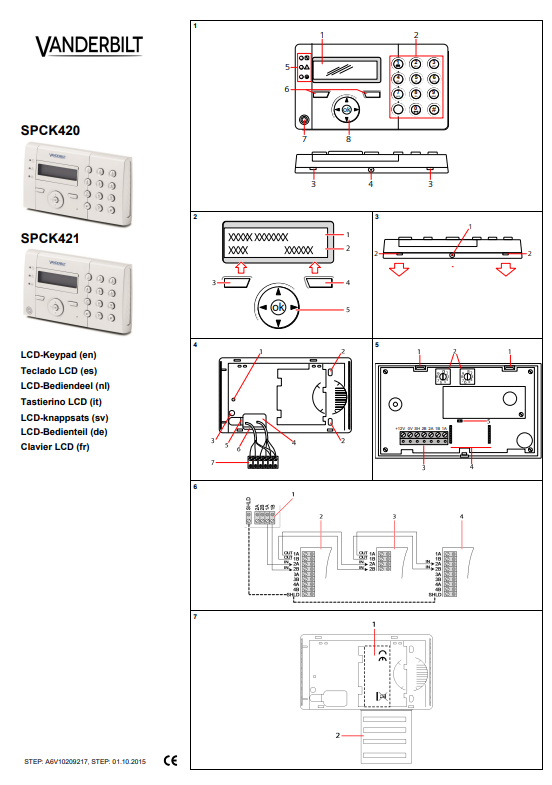

Documentation Installation Guidewww.bimstore.co/products/vanderbilt-spck420-100/document/installation-guide

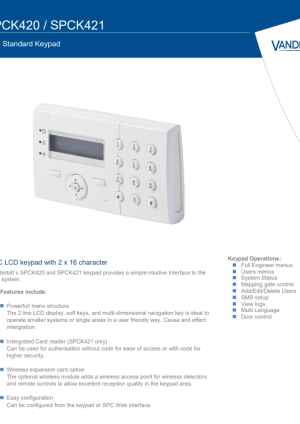

Documentation Literaturewww.bimstore.co/products/vanderbilt-spck420-100/document/product-literature
Documentation Maintenancewww.bimstore.co/products/vanderbilt-spck420-100/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/vanderbilt-spck420-100/document/technical-data-sheet
Door Capacityn/a
Duration UnitYears
Ean Upc Code4025515470939
Ecology CertificatesRoHS, REACH http://intranet.vanderbiltindustries.com/publish/Environmental_Compliance_Statement/Vanderbilt%20International%20-%20Environmental%20Compliance%20Statement%20-%2024-07-20.pdf
EnvironmentIndoor
EOL Resistorn/a
Expected Life0
Features- Powerfull menu structure - Intergrated Card reader (SPCK421 only) - Wireless expansion card option - Easy configuration
Finishn/a
Graden/a
Housing Protectionn/a
Ifc Export AsIfcAlarm
Ifc Export TypeIfcAlarmType
IndicatorsLED/LCD
InterfaceX-BUS (in, out)
KeynoteW
LanguagesEnglish German French Spanish Swedish Italian Dutch
ManufacturerVanderbilt
Manufacturer NameVanderbilt
MaterialPlastic housing (ABS)
Metadatan/a
Microwaven/a
ModelSPCK420.100
Model NumberV54543-F101-A100
Model ReferenceSPCK420.100
MountingWall
NBS DescriptionKeypads
NBS Noten/a
NBS Object NameVanderbilt - Keypads
NBS Office Master Tagn/a
NBS Reference90-75-05/365
Nominal Depth30 mm
Nominal Height144 mm
Nominal Length80 mm
Number Of On Board Relaysn/a
Number Of On Board Zonesn/a
Operating CurrentMax. 90 mA at 12 VDC (backlight, LEDs, sounder operated)
Operating Temperature5° ~ +40 °C
Outputsn/a
Pet Immunityn/a
Production Year2022
Rangen/a
Referenced StandardCE (EU), EN (EU), INCERT (BE / NR), RCM (Aus), F&P (DK), (FI), VSO (AT), SES (CH), EAR (Ru)
RegionsWorldwide
Relay Outputsn/a
Replacement Costn/a
Screen MaterialGlass, Green
Sensitivity Evaluation Moden/a
ShapeRectangle
Size80mm(W) x 144mm(H) x 30mm(D)
Spare Partssupport.uk@vanderbiltindustries.com
Supply Voltage9.5 ~ 14 VDC
Tamper ProtectionYes
TitleSPCK420.100 LCD keypad.2x16 Char.
Type CommentsV54543-F101-A100
Type NameV54543-F101-A100
URLvanderbiltindustries.com/
Verificationn/a
Videon/a
Walking Speedn/a
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborsupport.uk@vanderbiltindustries.com
Warranty Guarantor Partssupport.uk@vanderbiltindustries.com
Weight0.20 kg
