bimstore - Vanderbilt - SPCK520.100-N Intrusion Keypad

580
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

2 Revision

Last Updated

03/10/2022

Download BIM

Add to collection

Available for:

The SPCK520.100-N Compact Keypad is slim, stylish and feature packed. With touch key technology, the 4 soft keys and navigation keys allow easy operation with a minimum number of steps. Status information and ‘next step’ prompts are clearly displayed on the large LCD. The integrated speaker enhances the user experience with audio annunciation. Customer logo, emergency or quick set functions can be displayed in idle state. Various mounting options and accessories provide a complete keypad interface.

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/vanderbilt-spck520-100-n/document/object-user-guide
Accessibility Performancen/a
Accessoriesn/a
Additionaln/a
Air Humidityn/a
Anti Maskn/a
Assembly CodeD5030800
Asset TypeFixed
AudioSupported via integrated speaker
BIM Object NameVanderbilt_IntrusionKeypad_SPCK520100N
Card Capacityn/a
Card Compatibilityn/a
Card Read Distancen/a
Card Technologyn/a
Case MaterialPlastic, Opaque White
CategoryIntrusion Keypad
Classification NameUniclass2015
Classification ValuePr_75_30_30_01
Code Performancen/a
Collision Spacen/a
ColorRAL 9003 (signal white)
Constituentsn/a
Created Bysupport.uk@vanderbiltindustries.com
Created On2022-07-28T09:00:00
Default Elevation0 mm
DescriptionThe SPCK520.100-N Compact Keypad is slim, stylish and feature packed. With touch key technology, the 4 soft keys and navigation keys allow easy operation with a minimum number of steps. Status information and ‘next step’ prompts are clearly displayed on the large LCD. The integrated speaker enhances the user experience with audio annunciation. Customer logo, emergency or quick set functions can be displayed in idle state. Various mounting options and accessories provide a complete keypad interface.
Detection Characteristics Rangen/a
DisplayNo
Documentation Certificateswww.bimstore.co/products/vanderbilt-spck520-100-n/document/product-certificates

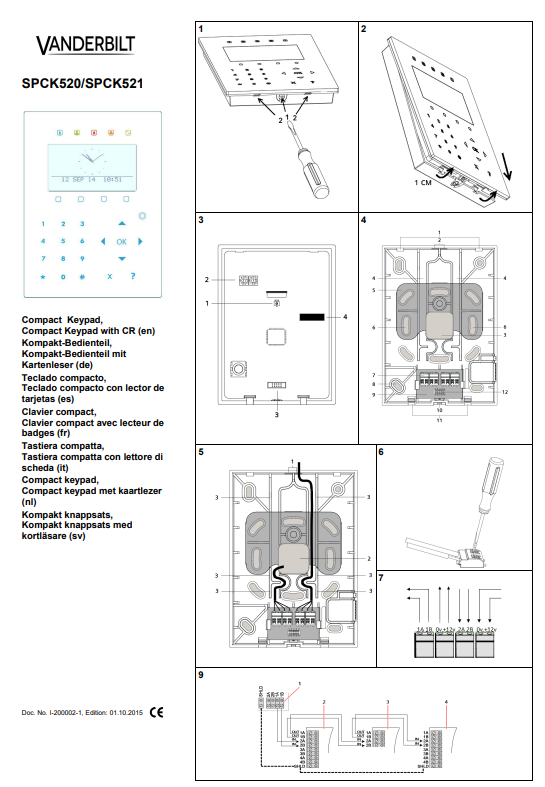

Documentation Installation Guidewww.bimstore.co/products/vanderbilt-spck520-100-n/document/installation-guide

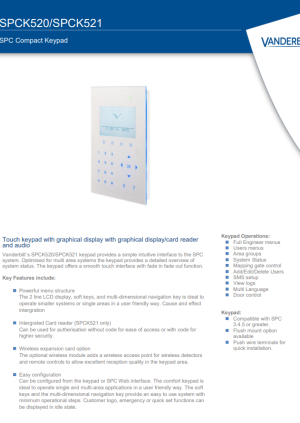

Documentation Literaturewww.bimstore.co/products/vanderbilt-spck520-100-n/document/product-literature
Documentation Maintenancewww.bimstore.co/products/vanderbilt-spck520-100-n/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/vanderbilt-spck520-100-n/document/technical-data-sheet
Door Capacityn/a
Duration UnitYears
Ean Upc Code4025515470984
Ecology CertificatesRoHS, REACH http://intranet.vanderbiltindustries.com/publish/Environmental_Compliance_Statement/Vanderbilt%20International%20-%20Environmental%20Compliance%20Statement%20-%2024-07-20.pdf
EnvironmentIndoor
EOL Resistorn/a
Expected Life0
Features- Powerful menu structure - Intergrated Card reader (SPCK521 only) - Wireless expansion card option - Easy configuration
Finishn/a
Graden/a
Housing Protectionn/a
Ifc Export AsIfcAlarm
Ifc Export TypeIfcAlarmType
Indicators5 status LEDs
InterfaceX-BUS (in, out)
KeynoteW
LanguagesEnglish German French Spanish Swedish Italian Dutch
ManufacturerVanderbilt
Manufacturer NameVanderbilt
MaterialPlastic housing (PMMA, PC ABS, ABS)
Metadatan/a
Microwaven/a
ModelSPCK520.100-N
Model NumberV54543-F115-A100
Model ReferenceSPCK520.100-N
MountingWall
NBS DescriptionKeypads
NBS Noten/a
NBS Object NameVanderbilt - Keypads
NBS Office Master Tagn/a
NBS Reference90-75-05/365
Nominal Depth18 mm
Nominal Height150 mm
Nominal Length110 mm
Number Of On Board Relaysn/a
Number Of On Board Zonesn/a
Operating CurrentMax. 210 mA at 12 VDC (backlight, LEDs, voice annunciation operated)
Operating Temperature5 ~ +40 °C
Outputsn/a
Pet Immunityn/a
Production Year2022
Rangen/a
Referenced StandardCE (EU), EN (EU), VDS B/C (DE), INCERT (BE / NR), RCM (Aus), F&P (DK), (FI), VSO (AT), SES (CH), EAR (Ru)
RegionsWorldwide
Relay Outputsn/a
Replacement Costn/a
Screen MaterialGlass, Green
Sensitivity Evaluation Moden/a
ShapeRectangle
Size110mm(W) x 150mm(H) x 17.5mm(D)
Spare Partssupport.uk@vanderbiltindustries.com
Supply Voltage9.5 ~ 14 VDC
Tamper ProtectionYes
TitleSPCK520.100-N Compact Keypad Neu.
Type CommentsV54543-F115-A100
Type NameV54543-F115-A100
URLvanderbiltindustries.com/
Verificationn/a
Videon/a
Walking Speedn/a
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborsupport.uk@vanderbiltindustries.com
Warranty Guarantor Partssupport.uk@vanderbiltindustries.com
Weight0.250 kg
