The SPCK620.100 comfort keypad is ideal to operate single area and multi area applications in a user friendly way. The 4 soft keys and the multi dimensional navigation key allow an easy operation with a minimum of operation steps. Status information and ‘next step’ prompts are clearly displayed on the large LCD. Customer logo, emergency or quick set functions can be displayed in idle state. The functionality can be enhanced with the SPCE110 key switch expander or the SPCE120 indication expander.

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/vanderbilt-spck620-100/document/object-user-guide
Accessibility Performancen/a
Accessoriesn/a
Additionaln/a
Air Humidityn/a
Anti Maskn/a
Assembly CodeD5030800
Asset TypeFixed
Audion/a
BIM Object NameVanderbilt_IntrusionKeypad_SPCK620100
Button MaterialPlastic, Opaque Black
Card Capacityn/a
Card Compatibilityn/a
Card Read Distancen/a
Card Technologyn/a
Case MaterialPlastic, Opaque White
CategoryIntrusion Keypad
Classification NameUniclass2015
Classification ValuePr_75_30_30_01
Code Performancen/a
Collision Spacen/a
ColorRAL 9003 (signal white)
Constituentsn/a
Created Bysupport.uk@vanderbiltindustries.com
Created On2022-07-28T09:00:00
Default Elevation0 mm
DescriptionThe SPCK620.100 comfort keypad is ideal to operate single area and multi area applications in a user friendly way. The 4 soft keys and the multi dimensional navigation key allow an easy operation with a minimum of operation steps. Status information and ‘next step’ prompts are clearly displayed on the large LCD. Customer logo, emergency or quick set functions can be displayed in idle state. The functionality can be enhanced with the SPCE110 key switch expander or the SPCE120 indication expander.
Detection Characteristics Rangen/a
DisplayNo
Documentation Certificateswww.bimstore.co/products/vanderbilt-spck620-100/document/product-certificates

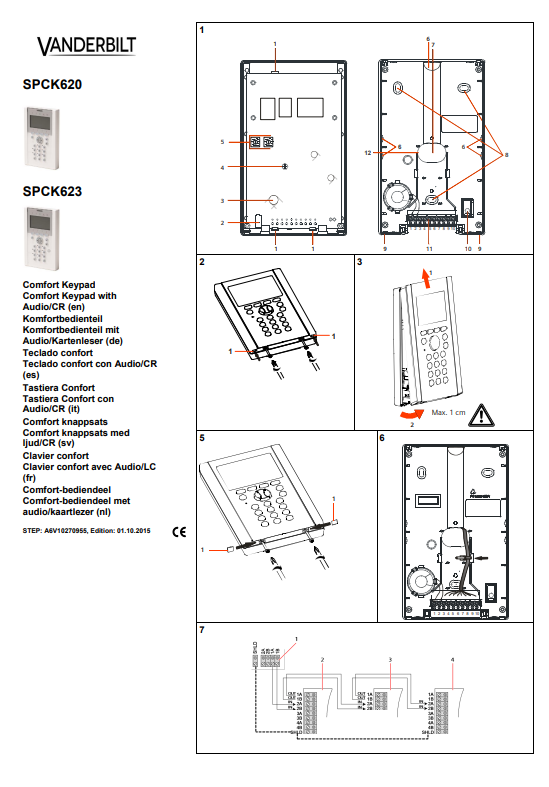

Documentation Installation Guidewww.bimstore.co/products/vanderbilt-spck620-100/document/installation-guide

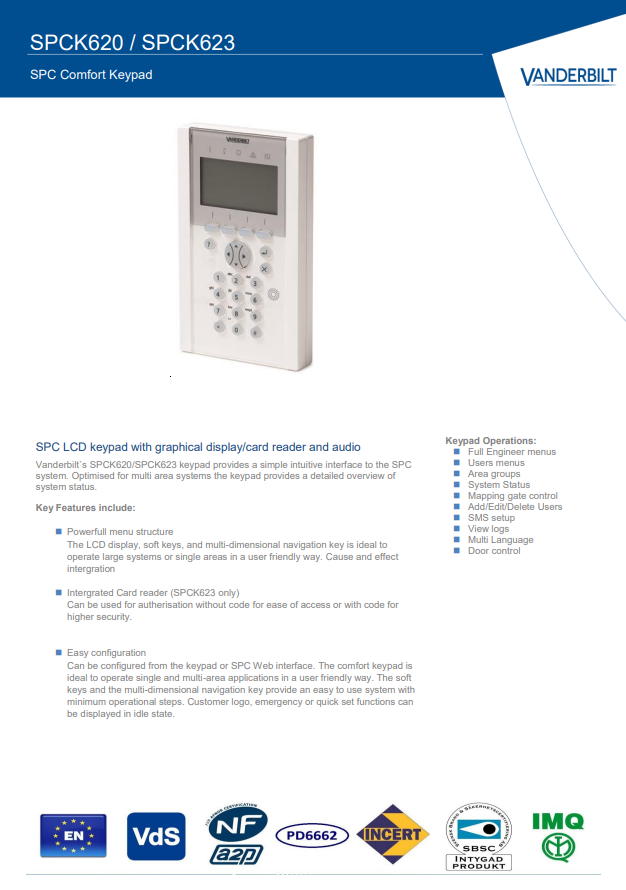

Documentation Literaturewww.bimstore.co/products/vanderbilt-spck620-100/document/product-literature
Documentation Maintenancewww.bimstore.co/products/vanderbilt-spck620-100/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/vanderbilt-spck620-100/document/technical-data-sheet
Door Capacityn/a
Duration UnitYears
Ean Upc Code4025515470960
Ecology CertificatesRoHS, REACH http://intranet.vanderbiltindustries.com/publish/Environmental_Compliance_Statement/Vanderbilt%20International%20-%20Environmental%20Compliance%20Statement%20-%2024-07-20.pdf
EnvironmentIndoor
EOL Resistorn/a
Expected Life0
Features- Powerfull menu structure - Intergrated Card reader (SPCK623 only) - Easy configuration
Finishn/a
Graden/a
Housing Protectionn/a
Ifc Export AsIfcAlarm
Ifc Export TypeIfcAlarmType
IndicatorsN/A
InterfaceX-BUS (in, out)
KeynoteW
LanguagesEnglish German French Spanish Swedish Italian Dutch
ManufacturerVanderbilt
Manufacturer NameVanderbilt
MaterialPlastic housing (Polycarbonate)
Metadatan/a
Microwaven/a
ModelSPCK620.100
Model NumberV54543-F110-A100
Model ReferenceSPCK620.100
MountingWall
NBS DescriptionKeypads
NBS Noten/a
NBS Object NameVanderbilt - Keypads
NBS Office Master Tagn/a
NBS Reference90-75-05/365
Nominal Depth28 mm
Nominal Height185 mm
Nominal Length112 mm
Number Of On Board Relaysn/a
Number Of On Board Zonesn/a
Operating CurrentMax. 155 mA at 12 VDC (backlight, LEDs, sounder operated)
Operating Temperature-5 ~ +40 °C
Outputsn/a
Pet Immunityn/a
Production Year2022
Rangen/a
Referenced StandardCE (EU), EN (EU), VDS B/C (DE), INCERT (BE / NR), RCM (Aus), F&P (DK), (FI), SES (CH), EAR (Ru)
RegionsWorldwide
Relay Outputsn/a
Replacement Costn/a
Screen MaterialGlass, Green
Sensitivity Evaluation Moden/a
ShapeRectangle
Size112mm(W) x 185mm(H) x 28mm(D)
Spare Partssupport.uk@vanderbiltindustries.com
Supply Voltage9.5 ~ 14 VDC
Tamper ProtectionYes
TitleSPCK620.100 Comfort Keypad
Type CommentsV54543-F110-A100
Type NameV54543-F110-A100
URLvanderbiltindustries.com/
Verificationn/a
Videon/a
Walking Speedn/a
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborsupport.uk@vanderbiltindustries.com
Warranty Guarantor Partssupport.uk@vanderbiltindustries.com
Weight0.380 kg
