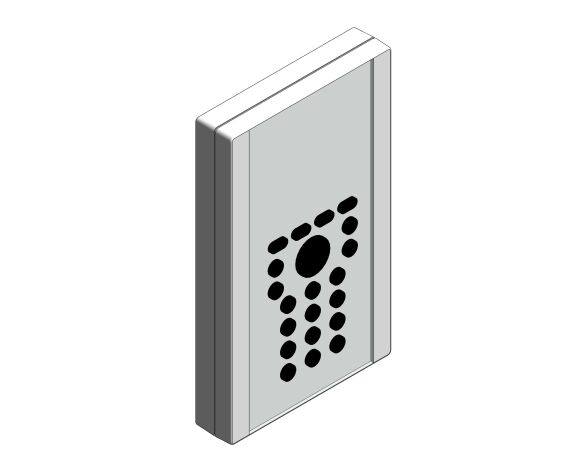

bimstore - Vanderbilt - SPCK623.100 Intrusion Keypad

627
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

2 Revision

Last Updated

03/10/2022

Download BIM

Add to collection

Available for:

The SPCK623.100 comfort keypad is ideal to operate single area and multi area applications in a user friendly way. The 4 soft keys and the multi dimensional navigation key allow an easy operation with a minimum of operation steps. Status information and ‘next step’ prompts are clearly displayed on the large LCD. Customer logo, emergency or quick set functions can be displayed in idle state. The integrated card reader enables quick setting / unsetting of areas by use of a proximity card only or in combination with a valid user PIN. The built in speaker and sensitive microphone support audio features such as alarm verification or voice annunciation. The functionality can be enhanced with the SPCE110 key switch expander or the SPCE120 indication expander.

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/vanderbilt-spck623-100/document/object-user-guide
Accessibility Performancen/a
Accessoriesn/a
Additionaln/a
Air Humidityn/a
Anti Maskn/a
Assembly CodeD5030800
Asset TypeFixed
AudioSupported via integrated speaker and microphone
BIM Object NameVanderbilt_IntrusionKeypad_SPCK623100
Button MaterialPlastic, Opaque Black
Card Capacityn/a
Card Compatibilityn/a
Card Read Distancen/a
Card Technologyn/a
Case MaterialPlastic, Opaque White
CategoryIntrusion Keypad
Classification NameUniclass2015
Classification ValuePr_75_30_30_01
Code Performancen/a
Collision Spacen/a
ColorRAL 9003 (signal white)
Constituentsn/a
Created Bysupport.uk@vanderbiltindustries.com
Created On2022-07-28T09:00:00
Default Elevation0 mm
DescriptionThe SPCK623.100 comfort keypad is ideal to operate single area and multi area applications in a user friendly way. The 4 soft keys and the multi dimensional navigation key allow an easy operation with a minimum of operation steps. Status information and ‘next step’ prompts are clearly displayed on the large LCD. Customer logo, emergency or quick set functions can be displayed in idle state. The integrated card reader enables quick setting / unsetting of areas by use of a proximity card only or in combination with a valid user PIN. The built in speaker and sensitive microphone support audio features such as alarm verification or voice annunciation. The functionality can be enhanced with the SPCE110 key switch expander or the SPCE120 indication expander.
Detection Characteristics Rangen/a
DisplayYes
Documentation Certificateswww.bimstore.co/products/vanderbilt-spck623-100/document/product-certificates

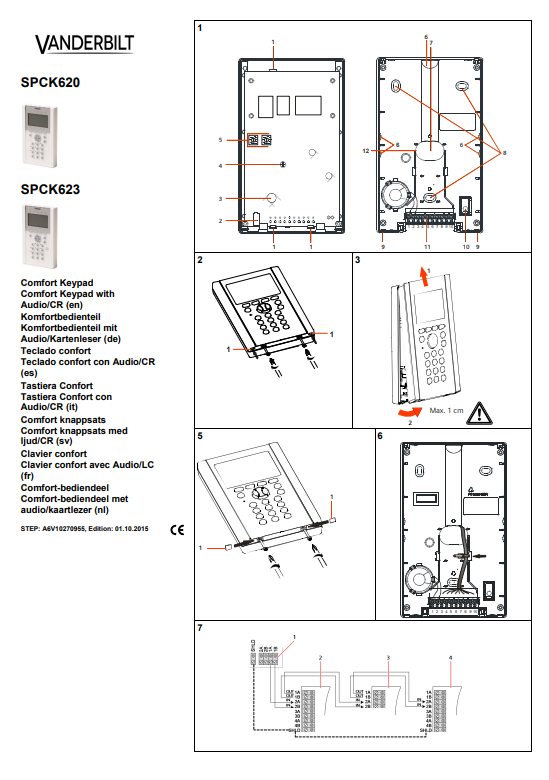

Documentation Installation Guidewww.bimstore.co/products/vanderbilt-spck623-100/document/installation-guide

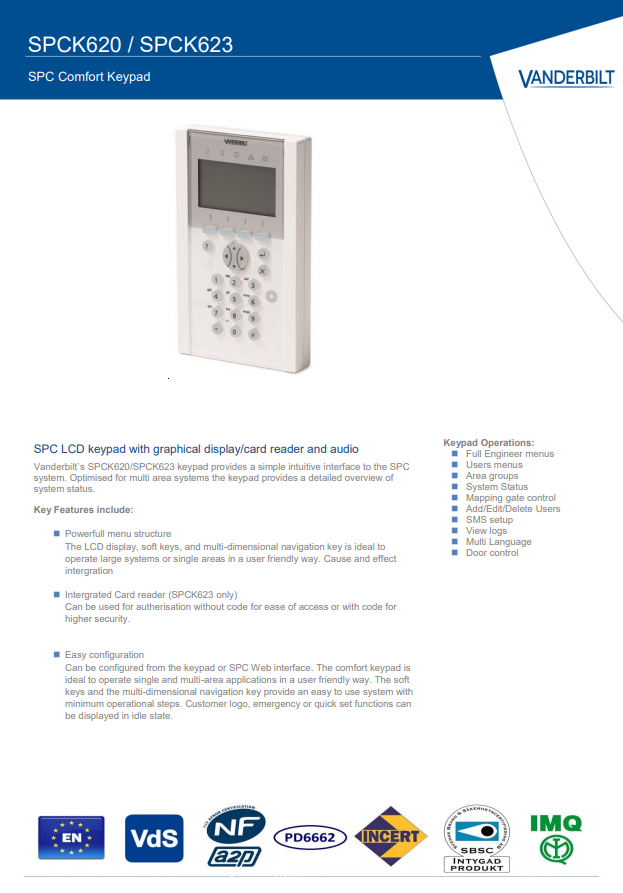

Documentation Literaturewww.bimstore.co/products/vanderbilt-spck623-100/document/product-literature
Documentation Maintenancewww.bimstore.co/products/vanderbilt-spck623-100/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/vanderbilt-spck623-100/document/technical-data-sheet
Door Capacityn/a
Duration UnitYears
Ean Upc Code4025515470977
Ecology CertificatesRoHS, REACH http://intranet.vanderbiltindustries.com/publish/Environmental_Compliance_Statement/Vanderbilt%20International%20-%20Environmental%20Compliance%20Statement%20-%2024-07-20.pdf
EnvironmentIndoor
EOL Resistorn/a
Expected Life0
Features- Powerful menu structure - Integrated Card reader - Easy configuration
Finishn/a
Graden/a
Housing Protectionn/a
Ifc Export AsIfcAlarm
Ifc Export TypeIfcAlarmType
Indicators5 status LEDs
InterfaceX-BUS (in, out)
KeynoteW
LanguagesEnglish German French Spanish Swedish Italian Dutch
ManufacturerVanderbilt
Manufacturer NameVanderbilt
MaterialPlastic housing (Polycarbonate)
Metadatan/a
Microwaven/a
ModelSPCK623.100
Model NumberV54543-F111-A100
Model ReferenceSPCK623.100
MountingWall
NBS DescriptionKeypads
NBS Noten/a
NBS Object NameVanderbilt - Keypads
NBS Office Master Tagn/a
NBS Reference90-75-05/365
Nominal Depth28 mm
Nominal Height185 mm
Nominal Length112 mm
Number Of On Board Relaysn/a
Number Of On Board Zonesn/a
Operating CurrentMax. 230 mA at 12 VDC (backlight, LEDs, audio, reader operated)
Operating Temperature5 ~ +40 °C
Outputsn/a
Pet Immunityn/a
Production Year2022
Rangen/a
Referenced StandardCE (EU), EN (EU), VDS B/C (DE), INCERT (BE / NR), SES (CH), F&P (DK), (FI), EAR (Ru)
RegionsWorldwide
Relay Outputsn/a
Replacement Costn/a
Screen MaterialGlass, Green
Sensitivity Evaluation Moden/a
ShapeRectangle
Size112mm(W) x 185mm(H) x 28mm(D)
Spare Partssupport.uk@vanderbiltindustries.com
Supply Voltage9.5 ~ 14 VDC
Tamper ProtectionYes
TitleSPCK623.100 Comfort Keypad w. Audio/CR
Type CommentsV54543-F111-A100
Type NameV54543-F111-A100
URLvanderbiltindustries.com/
VerificationSupported via integrated speaker and microphone
VideoSupported via integrated speaker and microphone
Walking Speedn/a
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborsupport.uk@vanderbiltindustries.com
Warranty Guarantor Partssupport.uk@vanderbiltindustries.com
Weight0.380 kg
