bimstore - Vanderbilt - SPCP333.300 Intrusion Power Supply

Object metadata

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/vanderbilt-spcp333-300/document/object-user-guide
Accessibility Performancen/a
Accessoriesn/a
Additionaln/a
Air Humidityn/a
Anti Maskn/a
Assembly CodeD5030800
Asset TypeFixed
Audion/a
BIM Object NameVanderbilt_IntrusionPowerSupply_SPCP333300
Card Capacityn/a
Card Compatibilityn/a
Card Read Distancen/a
Card Technologyn/a
Case MaterialMetal, Paint Finish, White, Matte
CategoryIntrusion Power Supply
Classification NameUniclass2015
Classification ValuePr_60_70
Code Performancen/a
Collision Spacen/a
ColorRAL 9003 (signal white)
Constituentsn/a
Created Bysupport.uk@vanderbiltindustries.com
Created On2022-07-28T09:00:00
Default Elevation0 mm
DescriptionThe SPCP333.300 smart power supply expander (PSU) extends the SPC system via X-BUS with a monitored 12 VDC local power source for battery management and connected security devices (e.g. expanders), 8 wired zones and 2 fully programmable relay outputs. The PSU comes in a tamper protected hinged metal housing with space for an optional 17 Ah battery and 3 expanders.
Detection Characteristics Rangen/a
DisplayNo
Documentation Certificateswww.bimstore.co/products/vanderbilt-spcp333-300/document/product-certificates

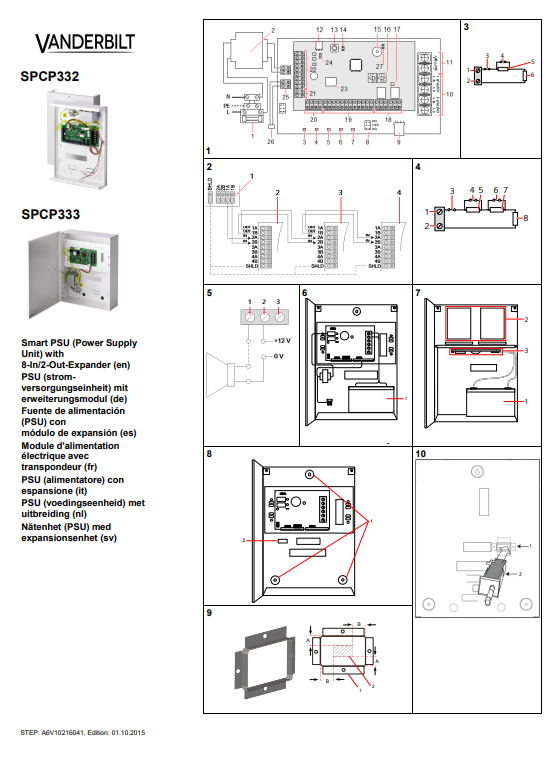

Documentation Installation Guidewww.bimstore.co/products/vanderbilt-spcp333-300/document/installation-guide
Documentation Literaturewww.bimstore.co/products/vanderbilt-spcp333-300/document/product-literature
Documentation Maintenancewww.bimstore.co/products/vanderbilt-spcp333-300/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/vanderbilt-spcp333-300/document/technical-data-sheet
Door Capacityn/a
Duration UnitYears
Ean Upc Code4025515471011
Ecology CertificatesRoHS, REACH http://intranet.vanderbiltindustries.com/publish/Environmental_Compliance_Statement/Vanderbilt%20International%20-%20Environmental%20Compliance%20Statement%20-%2024-07-20.pdf
EnvironmentIndoor
EOL Resistorn/a
Expected Life0
Features- Easy configuration - Cause and effect intergration - Configurable Inputs type (22+ types) - Configurable Input EOL (24+ types) - Individual name per input - Individual log per input - Configurable Outputs - Individual test function per output - 3 Selectable modes of operation per output (Continious, Pulse, Momentary) - Log option per output - Each output can be restricted by calendars
Finishn/a
Graden/a
Housing Protectionn/a
Ifc Export AsIfcAlarm
Ifc Export TypeIfcAlarmType
IndicatorsN/A
InterfaceX-BUS (in, out, branch)
KeynoteW
LanguagesEnglish German French Spanish Swedish Italian Dutch
ManufacturerVanderbilt
Manufacturer NameVanderbilt
MaterialHinged metal housing (1.2 mm mild steel)
Metadatan/a
Microwaven/a
ModelSPCP333.300
Model NumberV54545-C101-A100
Model ReferenceSPCP333.300
MountingWall
NBS DescriptionPower supply products
NBS Noten/a
NBS Object NameVanderbilt - Power supply products
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth114 mm
Nominal Height415 mm
Nominal Length326 mm
Number Of On Board Relays2 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
Number Of On Board Zones8
Operating CurrentMax. 117 mA at 12 VDC (all relays activated
Operating Temperature0 ~ +40 °C
Outputsn/a
Pet Immunityn/a
Production Year2022
Rangen/a
Referenced StandardCE (EU), EN (EU), IMQ (IT), INCERT (BE / NR), RCM (Aus), F&P (DK), (FI), VSO (AT), EAR (Ru)
RegionsWorldwide
Relay OutputsYes
Replacement Costn/a
Sensitivity Evaluation Moden/a
ShapeRectangle
Size326mm(W) x 415mm(H) x 114mm(D)
Spare Partssupport.uk@vanderbiltindustries.com
Supply Voltage230 VAC, + 10%/ -15%, 50 Hz
Tamper ProtectionYes
TitleSPCP333.300 Smart PSU (17AH) w. I/O-Exp
Type CommentsV54545-C101-A100
Type NameV54545-C101-A100
URLvanderbiltindustries.com/
Verificationn/a
Videon/a
Walking Speedn/a
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborsupport.uk@vanderbiltindustries.com
Warranty Guarantor Partssupport.uk@vanderbiltindustries.com
Weight6.300 kg
