SPCP433.300 Smart PSU(17AH),2-door Exp.

Object metadata

• _AuthorBS
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/vanderbilt-spcp433-300/document/object-user-guide
• Accessibility Performancen/a
• Accessoriesn/a
• Additionaln/a
• Air Humidityn/a
• Anti Maskn/a
• Assembly CodeD5030800
• Asset TypeFixed
• Audion/a
• BIM Object NameVanderbilt_IntrusionPowerSupply_SPCP433300
• Card Capacityn/a
• Card Compatibilityn/a
• Card Read Distancen/a
• Card Technologyn/a
• Case MaterialMetal, Paint Finish, White, Matte
• CategoryIntrusion Power Supply
• Classification NameUniclass2015
• Classification ValuePr_60_70
• Code Performancen/a
• Collision Spacen/a
• ColorRAL 9003 (signal white)
• Constituentsn/a
• Created Bysupport.uk@vanderbiltindustries.com
• Created On2022-07-28T09:00:00
• Default Elevation0 mm
• DescriptionThe SPCP433.300 smart power supply expander (PSU) extends the SPC system via X-BUS with a monitored 12 VDC local power source for battery management and connected security devices (e.g. expanders) and advanced door control functionality for 2 entry doors or 1 entry/exit door. The PSU comes in a tamper protected hinged metal housing with space for an optional 17 Ah battery and 3 expanders.
• Detection Characteristics Rangen/a
• DisplayNo
• Documentation Certificateswww.bimstore.co/products/vanderbilt-spcp433-300/document/product-certificates

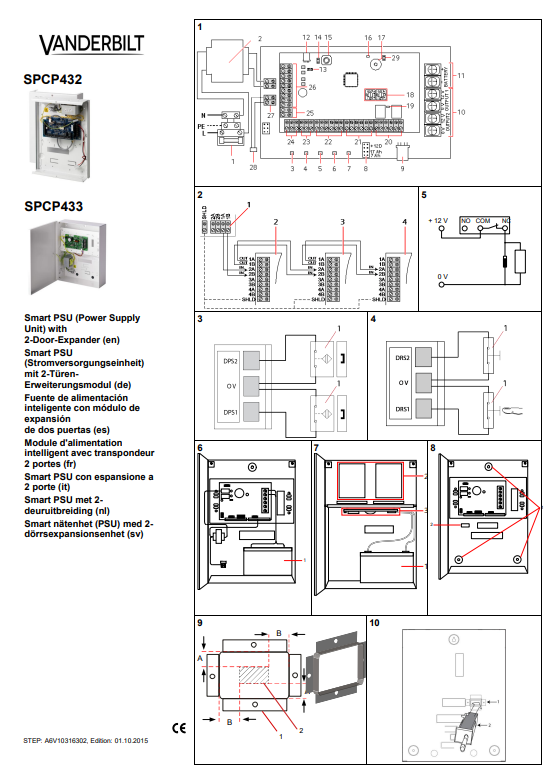

• Documentation Installation Guidewww.bimstore.co/products/vanderbilt-spcp433-300/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/vanderbilt-spcp433-300/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/vanderbilt-spcp433-300/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/vanderbilt-spcp433-300/document/technical-data-sheet
• Door Capacityn/a
• Duration UnitYears
• Ean Upc Code4025515471042
• Ecology CertificatesRoHS, REACH http://intranet.vanderbiltindustries.com/publish/Environmental_Compliance_Statement/Vanderbilt%20International%20-%20Environmental%20Compliance%20Statement%20-%2024-07-20.pdf
• EnvironmentIndoor
• EOL Resistorn/a
• Expected Life0
• Features- Extends the SPC system via X-BUS with a monitored 12 VDC local power source for battery management and connected security devices - Advanced door control functionality for 2 entry doors or 1 entry/exit door - The PSU comes in a tamper protected hinged metal housing with space for an optional 17 Ah battery and 3 expanders.
• Finishn/a
• Graden/a
• Housing Protectionn/a
• Ifc Export AsIfcAlarm
• Ifc Export TypeIfcAlarmType
• IndicatorsN/A
• InterfaceX-BUS (in, out, branch), Reader 1, Reader 2
• KeynoteW
• LanguagesEnglish German French Spanish Swedish Italian Dutch
• ManufacturerVanderbilt
• Manufacturer NameVanderbilt
• MaterialHinged metal housing (1.2 mm mild steel)
• Metadatan/a
• Microwaven/a
• ModelSPCP433.300
• Model NumberV54545-C104-A100
• Model ReferenceSPCP433.300
• MountingWall
• NBS DescriptionPower supply products
• NBS Noten/a
• NBS Object NameVanderbilt - Power supply products
• NBS Office Master Tagn/a
• NBS Referencen/a
• Nominal Depth114 mm
• Nominal Height415 mm
• Nominal Length326 mm
• Number Of On Board Relays4, for door release switch (DRS) and door position switch (DPS), or freely programmable
• Number Of On Board Zones4
• Operating CurrentMax. 124 mA at 12 VDC (all relays activated)
• Operating Temperature0 ~ +40 °C
• Outputsn/a
• Pet Immunityn/a
• Production Year2022
• Rangen/a
• Referenced StandardCE (EU), EN (EU), INCERT (BE / NR), RCM (Aus), EAR (Ru)
• RegionsWorldwide
• Relay OutputsYes
• Replacement Costn/a
• Sensitivity Evaluation Moden/a
• ShapeRectangle
• Size326mm(W) x 415mm(H) x 114mm(D)
• Spare Partssupport.uk@vanderbiltindustries.com
• Supply Voltage230 VAC, + 10%/ -15%, 50 Hz
• Tamper ProtectionYes
• TitleSPCP433.300 Smart PSU(17AH),2-door Exp.
• Type CommentsV54545-C104-A100
• Type NameV54545-C104-A100
• URLvanderbiltindustries.com/
• Verificationn/a
• Videon/a
• Walking Speedn/a
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts10
• Warranty Duration UnitYears
• Warranty Guarantor Laborsupport.uk@vanderbiltindustries.com
• Warranty Guarantor Partssupport.uk@vanderbiltindustries.com
• Weight6.300 kg
