Vita Column Concept Radiator

by Stelrad Radiators Ltd

Download Add to collection

Description

Perfectly designed for all interiors whether it’s contemporary or traditional. The Vita Column Concept is available in a range of sizes that will see these radiators matching virtually any space in the home. Add a little colour to your home with the new Anthracite Grey radiator, it’s the ideal choice if you want to be ‘IN’ fashion this season! Available in a range of sizes to complement every room.

Available in 3 & 4 Column variations with heights of 600mm and lengths from 628mm up to 1272mm.

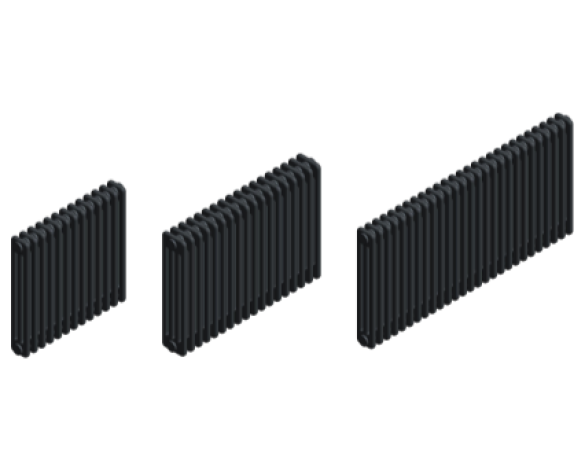

This download includes all available variations for the Vita Column Concept radiator.

Click here to view our interactive brochure

Object Data

1 Revision

Last Updated

20/02/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

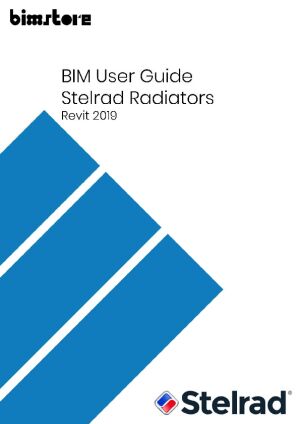

Object User Guide

Product Literature

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorKris Atkinson
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
2 ColNo
3 ColYes
4 ColNo
6 MonthlyNo
Access Clearance Zone Back0.000000000000 mm
Access Clearance Zone Bottom0.000000000000 mm
Access Clearance Zone Front0.000000000000 mm
Access Clearance Zone Left0.000000000000 mm
Access Clearance Zone Right0.000000000000 mm
Access Clearance Zone Top0.000000000000 mm
Accessibility Performancen/a
Air VentYes
AnnuallyAnnual Service
Assembly CodeD3020
Asset TypeFixed
Bespoke TimeframeNo
BIM Object NameMechanical_Equipment-Radiators-Stelrad-Vita_Column_Horizontal_600x1042_3Col
Casing Materialn/a
CE Approvaln/a
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
Code Performancen/a
ColourA7016 Anthracite Grey
Columns3
Constituentsn/a
Created Byinfo@stelrad.com
Created On2018-01-31 T09:00:00
D73.000000000000 mm
D2123.000000000000 mm
DailyNo
DescriptionAdd a little colour to your home with the new Anthracite Grey radiator, it's the ideal choice if you want to be 'IN' fashion this season!
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2407
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2407
Drain TapNo
Duration Unityear
Elements22
Embodied Carbonn/a
Energy Technology Listn/a
Environmental Product Declarationn/a
Expected Life0
Featuresn/a
FinishPainted
FinnedNo
Graden/a
Green Guide For Specificationn/a
Gross Weight0.000000000000 kg
Heat Emitter MaterialSteel
Heat ReflectorNo
Heat Transfer Mediumn/a
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
Inlet GrilleNo
Integral Locksheild ValveNo
Integral Regulating ValveNo
Integral TRVNo
KeynoteT32
Life Cycle Analysisn/a
Location Of ManufacturerRotherham, United Kingdom
Maintenance Required 0-300hrsNo
Maintenance Required 1001-2000hrsNo
Maintenance Required 2001-4000hrsNo
Maintenance Required 301-600hrsNo
Maintenance Required 4001-8000hrsNo
Maintenance Required 601-1000hrsNo
Maintenance Required 8001-12000hrsNo
ManufacturerStelrad Ltd
Manufacturer NameStelrad Ltd
Manufacturer Websitewww.stelrad.com/
MaterialSteel
Material Ingredient Reportingn/a
Maximum Operating Pressure8000.000000000000 kPa
Maximum Operating Temperature0.000000000000 °C
Maximum Test Pressure10500.000000000000 kPa
ModelVita Column Concept
Model Number463135
Model ReferenceVita Column Concept
MonthlyNo
Mounting TypeWall Mounted
NBS DescriptionRadiators
NBS Noten/a
NBS Object NameStelrad Ltd - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth123.000000000000 mm
Nominal Height600.000000000000 mm
Nominal Length1042.000000000000 mm
Number Of Panels0
Number Of Sections22
O&M Manualn/a
Outlet GrilleNo
Overall Height600.000000000000 mm
Overall Length1042.000000000000 mm
Overall Width123.000000000000 mm
Pipe Connection Size26.000000000000 mm
Possible Connections PositionsTBOE Top, Bottom Opposite End
Pressure Drop0.000000000000 kPa
Production Year2018
Product Literaturespecifi.bimstore.co.uk/document/share/2407
Product Model Number463135
Product RangeVita
QuaterlyNo
Reference StandardEN 442 Certification - CETIAT tested in accordance with BS EN 442
Replacement Costn/a
Responsible Extraction Of Materialsn/a
Responsible Sourcing Of Materialsn/a
Seam Typen/a
ShapeRectangle
Shipping Weight0.000000000000 kg
Size600 x 1042mm
Spare Partsn/a
Tag Numbern/a
Temperature Classificationn/a
Thermal Output1340.000000000000 W
Thermal Output-Btu/hr4573
TypeColumn

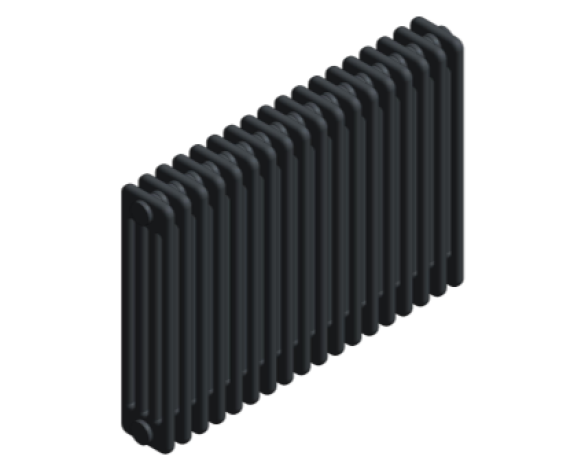

Type Comments600mm High x 1042mm Wide - 3 Col
Type Name600mm High x 1042mm Wide - 3 Col
URLwww.stelrad.com/
WA23.000000000000 mm
Wall Bracket Height Offset100.000000000000 mm
Wall Bracket Offset71.100000000000 mm
Wall BracketsYes
Warranty Description5 year parts
Warranty Duration Laborn/a
Warranty Duration Parts5
Warranty Duration Unityear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@stelrad.com
Warranty IDSerial number and end user registration
Water Content0.050000000000 L
Water Flow Raten/a
WeeklyNo
