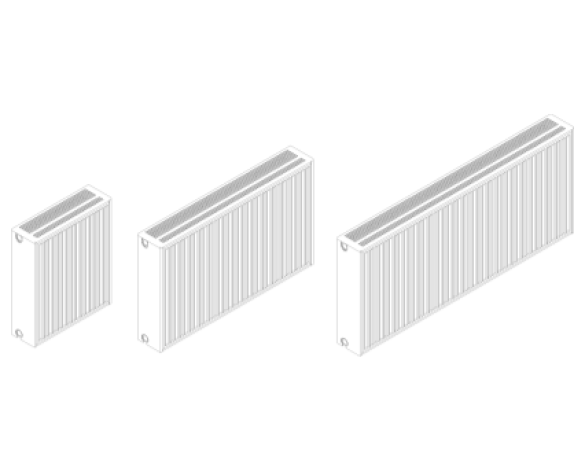

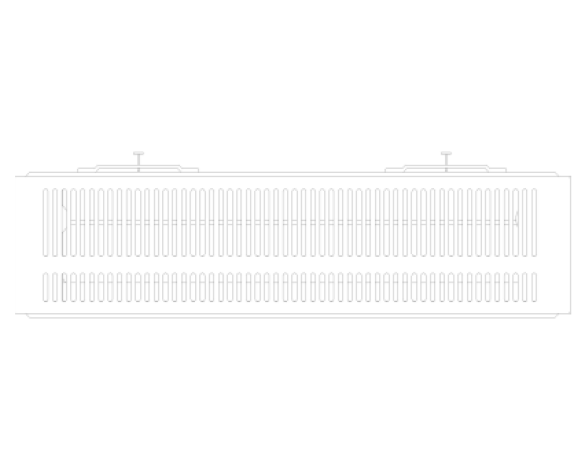

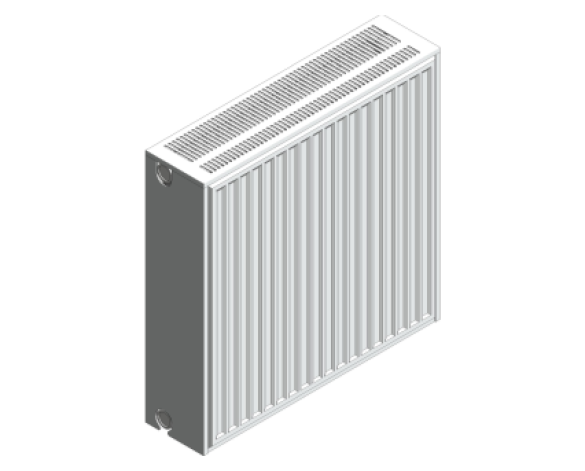

Vita Compact K3 Radiator

by Stelrad Radiators Ltd

Download Add to collection

Description

The new Vita Compact K3 adds a model that is ideal for low energy heating systems, providing outstanding heat output from a smaller radiator footprint to the popular Vita Series. With three panels and three fins, the Vita Compact K3 provides a solution to homes needing additional heat from a lower temperature renewable system, where wall space is at a premium. It’s a stylish Compact K3 with a compact price to match.

Available in heights of 600mm and lengths up to 12400mm.

Click here to view our interactive brochure

Object Data

1 Revision

Last Updated

20/02/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

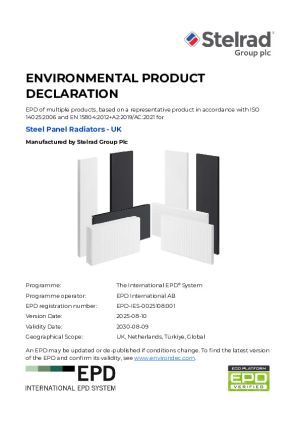

EPD

Not Available

Accompanying literature

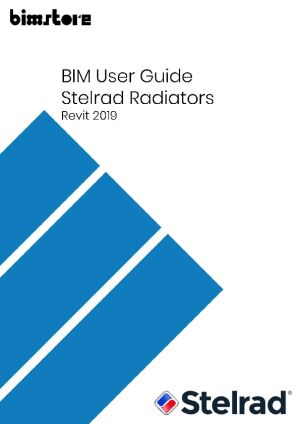

Object User Guide

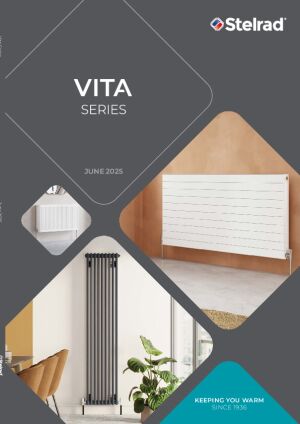

Product Literature

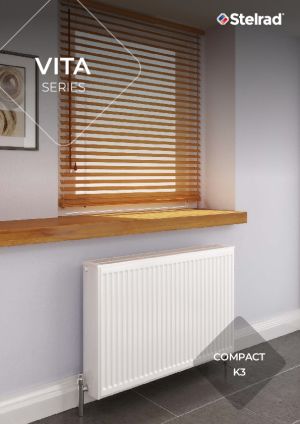

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorJY
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co/
_Current Revision2
_Distributed Bywww.bimstore.co/
Access Clearance Zone Back0 mm
Access Clearance Zone Bottom0 mm
Access Clearance Zone Front0 mm
Access Clearance Zone Left0 mm
Access Clearance Zone Right0 mm
Access Clearance Zone Top0 mm
Accessibility Performancen/a
Air VentYes
Assembly CodeD3020
Asset TypeFixed
BIM Object NameMechanical_Equipment-Radiators-Stelrad-Vita_Compact_K3
Bracket A133 mm
Bracket B60 mm
Bracket C17 mm
Casing Materialn/a
CE Approvaln/a
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
Code Performancen/a
ColorWhite - RAL 9016
ColourRAL 9016
Constituentsn/a
Created Byinfo@stelrad.com
Created OnFeb 2017
DescriptionThe new Vita Compact K3 adds a model that is ideal for low energy heating systems, providing outstanding heat output from a smaller radiator footprint to the popular Vita Series. With three panels and three fins, the Vita Compact K3 provides a solution to homes needing additional heat from a lower temperature renewable system, where wall space is at a premium. It’s a stylish Compact K3 with a compact price to match.
Documentation Literature2jomhg1cupfs2jxnrb3gelkt-wpengine.netdna-ssl.com/wp-content/uploads/2016/12/Vita-Compact-K3.pdf
Drain TapNo
Duration Unityear
Expected Life0
Featuresn/a
FinishPainted
FinnedNo

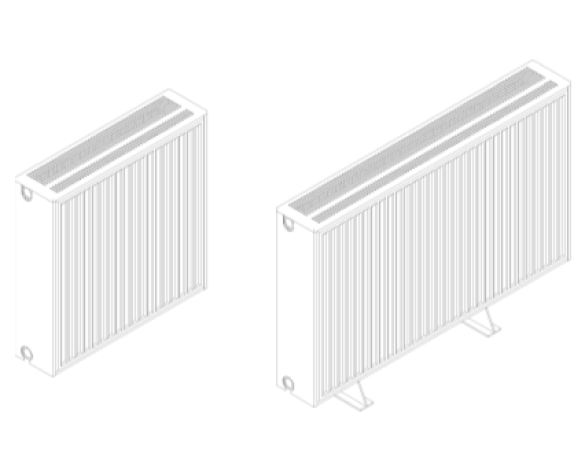

Floor Stand Offset250 mm
Graden/a
Gross Weight52.50 kg
Heat Emitter MaterialSteel
Heat ReflectorNo
Heat Transfer Mediumn/a
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
Inlet GrilleNo
Integral Locksheild ValveNo
Integral Regulating ValveNo
Integral TRVNo
KeynoteT32
ManufacturerStelrad Ltd
Manufacturer NameStelrad Ltd
MaterialSteel
Maximum Operating Pressure10.0 Pa
Maximum Operating Temperature0 °C
Maximum Test Pressure13.0 Pa
ModelVita Compact K3
Model Number76603310
Model ReferenceVita Compact K3
NBS DescriptionRadiators
NBS Object NameStelrad - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth158 mm
Nominal Height600 mm
Nominal Length1000 mm
Number Of Panels0
Number Of Sections30
Outlet GrilleNo
Overall Height600 mm
Overall Length1000 mm
Overall Width158 mm
Pipe Connection Size15 mm
Possible Connections PositionsTBOE (Top Bottom Opposite End)
Pressure Drop0.0 Pa
Production Year2017
Product Literature2jomhg1cupfs2jxnrb3gelkt-wpengine.netdna-ssl.com/wp-content/uploads/2016/12/Vita-Compact-K3.pdf
Product Model Number76603310
Product RangeVita
Referenced Standardn/a
Reference StandardEN 442 Certiciation - CETIAT tested in accordance with BS EN 442
Replacement Costn/a
Seam TypeCompact
ShapeRectangle
Shipping Weight0.00 kg
Size600 x 1000mm
Spare Partsn/a
Temperature Classificationn/a
Thermal Output2389 W
Thermal Output-Btu/hr8151
TypeFinned Triple Panel Radiator
Type Comments600mm High x 1000mm Wide
Type Name600mm High x 1000mm Wide
URLwww.stelrad.com/
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Parts10
Warranty Duration Unityear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@stelrad.com
Water Content9.800 L
Water Flow Raten/a
