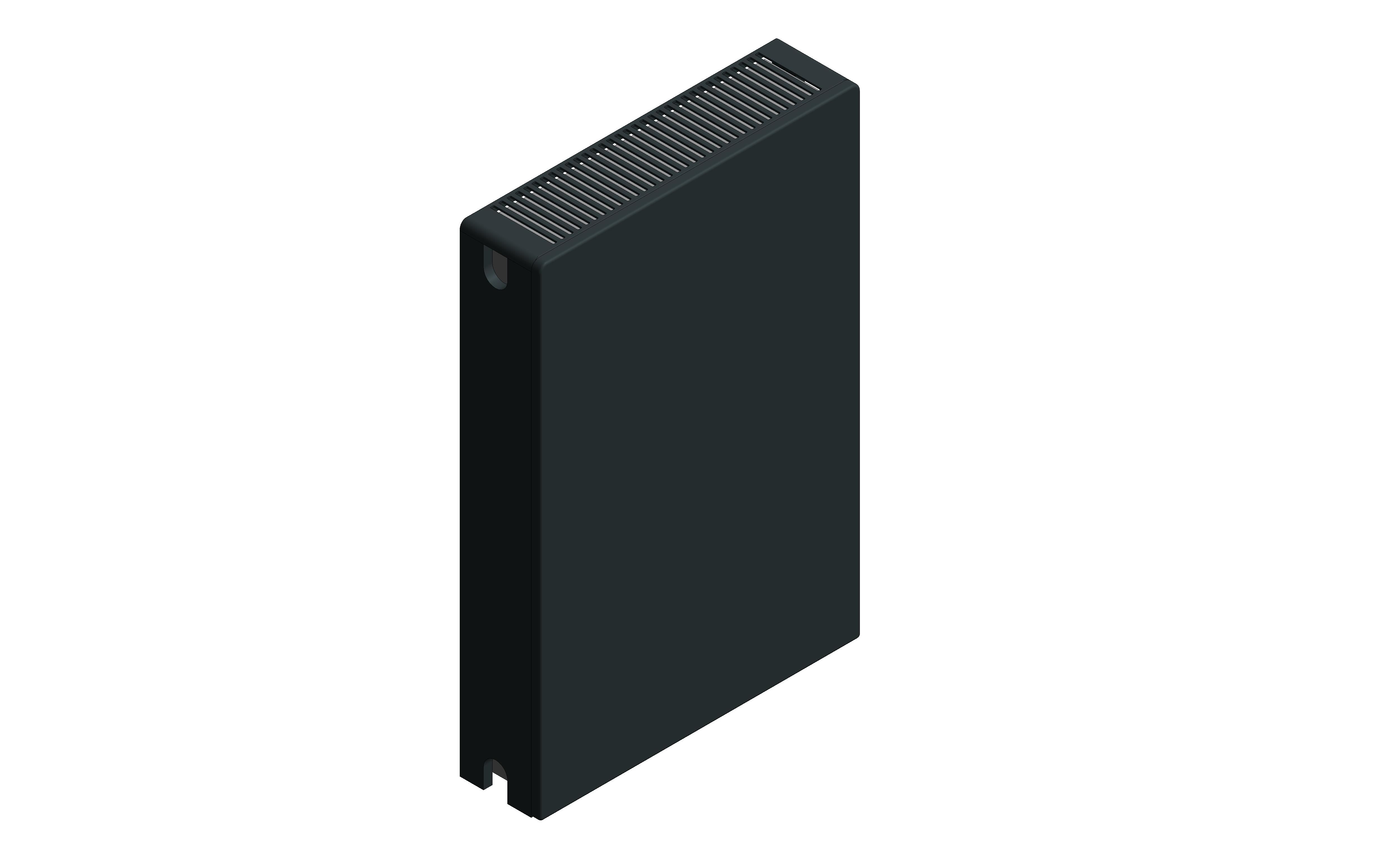

Vita Plan Concept Radiator

by Stelrad Radiators Ltd

Download Add to collection

Description

The Stelrad Vita Plan Concept is an Anthracite Grey version of this popular flat fronted radiator. With a range of heights and widths to perfectly match any space, the Stelrad Vita Plan Concept offers an impressive coloured radiator available from stock.

Click here to view our interactive brochure

Object Data

1 Revision

Last Updated

21/02/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

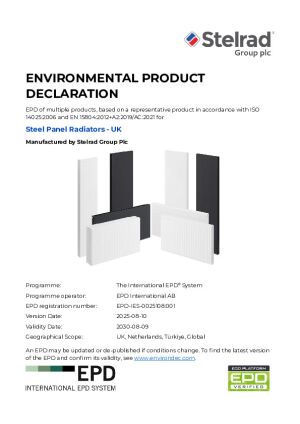

EPD

Not Available

Accompanying literature

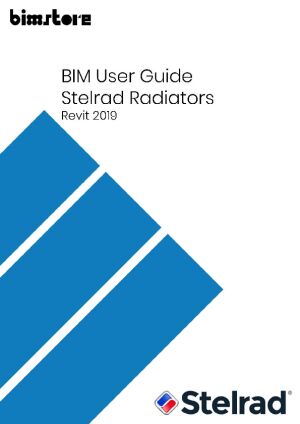

Object User Guide

Product Literature

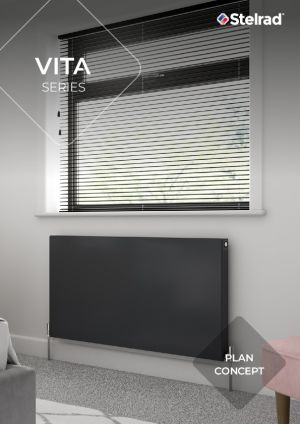

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorJY
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co/
_Current Revision2
_Distributed Bywww.bimstore.co/
Access Clearance Zone Back0 mm
Access Clearance Zone Bottom0 mm
Access Clearance Zone Front0 mm
Access Clearance Zone Left0 mm
Access Clearance Zone Right0 mm
Access Clearance Zone Top0 mm
Accessibility Performancen/a
Air VentNo
Assembly CodeD3020
Asset TypeFixed
BIM Object NameStelrad_MechanicalEquipment_Radiators_VitaPlanConcept_K2
Bracket A133 mm
Bracket B60 mm
Bracket C500 mm
Btu/hr1601
Case Height600 mm
Case Width1000 mm
Casing Thickness1 mm
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
Code Performancen/a
ColorWhite RAL 9010
ColourWhite RAL 9010
Connection Diameter15 mm
Connection Radius8 mm
Conn LHS25 mm
Conn RHS25 mm
Constituentsn/a
Created Byinfo@stelrad.com
Created On2017-02-01T00:00:00
DescriptionLow Surface Temperature Softline Plan Concept - K2 Element
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Drain TapNo
Duration Unityear
Element Offset75 mm
Element Offset Btm83 mm
Expected Life0
FeaturesLow Surface Temperature
FinnedNo
Floor StandsNo
Graden/a
Gross Weight40.61 kg
Heat ReflectorNo
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
Inlet GrilleNo
Integral Locksheild ValveNo
Integral Regulating ValveNo
Integral TRVNo
KeynoteT32
Maintenance Required 0-300hrsPlease record on commissioning
Maintenance Required 1001-2000hrsPlease record on commissioning
Maintenance Required 2001-4000hrsPlease record on commissioning
Maintenance Required 301-600hrsPlease record on commissioning
Maintenance Required 4001-8000hrsPlease record on commissioning
Maintenance Required 601-1000hrsPlease record on commissioning
Maintenance Required 8001-12000hrsPlease record on commissioning
ManufacturerStelrad
Manufacturer NameStelrad
MaterialSteel
Maximum Operating Pressure800.0 kPa
Maximum Operating Temperature95 °C
Maximum Test Pressure1050.0 kPa
Middle BracketNo
ModelVita Plan Concept
Model Number21602210
Model ReferenceVita Plan Concept
NBS DescriptionRadiators
NBS Object NameStelrad - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth100 mm
Nominal Height600 mm
Nominal Length1000 mm
Number Of Panels0
Number Of Sections0
Offset From Floor0 mm
Offset From Wall0 mm
Outlet GrilleNo
Output_DT50_EN44293 W
Overall Height600 mm
Overall Length1000 mm
Overall Width100 mm
Panel Height99 mm
Panel No4
Pipe Connection Size15 mm
Production Year2019
Product Literaturen/a
Product RangeVita Plan Concept
Referenced Standardn/a
Replacement Costn/a
ShapeRectangle
Shipping Weight40.61 kg
Size600mm (h) x 1000mm (l) x 100mm (d)
Spare Partsn/a
Temperature ClassificationEN 442
Thermal Output93 W
Thk11 mm
Top Grille Depth89 mm
TypeK2
Type CommentsLow Surface Temperature Softline Plan Concept - K2 Element
Type NameLow Surface Temperature Softline Plan Concept - K2 Element
UIN21602210
URLwww.stelrad.com
Wall BracketsNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration Unityear
Warranty Guarantor Laborinfo@stelrad.com
Warranty Guarantor Partsinfo@stelrad.com
Warranty IDn/a
Water Content3.3 L
Watts1601
Working Pressure10 bar

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
