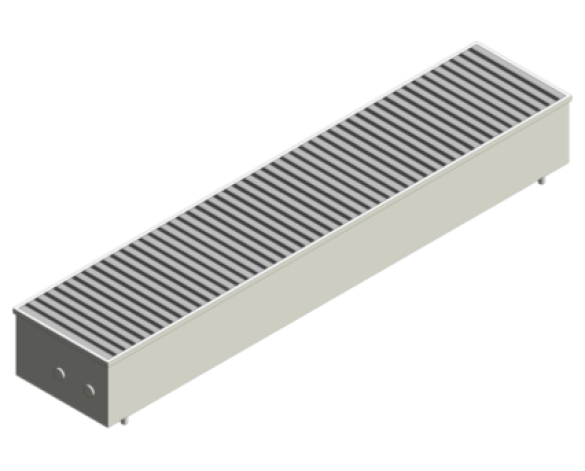

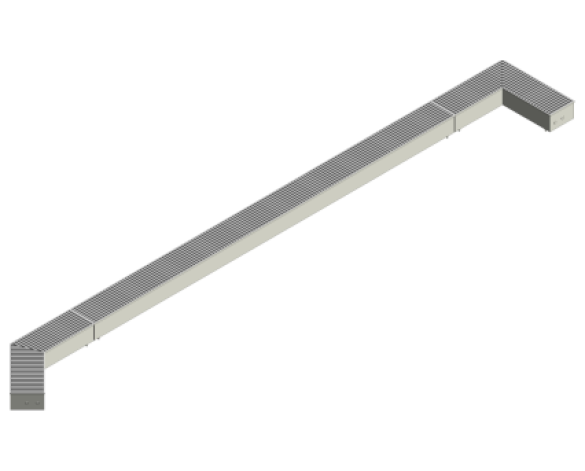

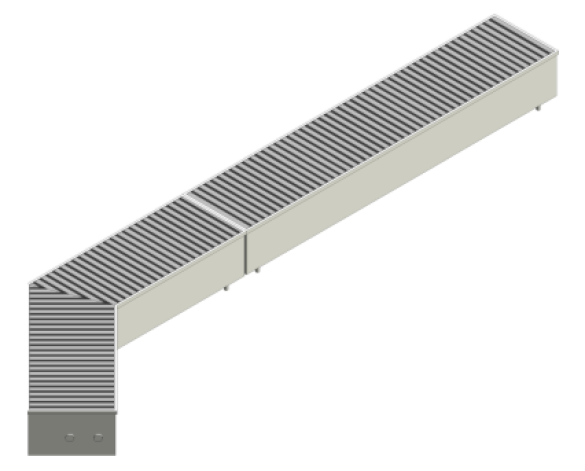

Warmline Trench Heater

by Sill Line

Download Add to collection

Description

A rapid increase in the number of raised floor installations and the desire to maximise let table floor area has driven an increase in the demand for perimeter heating systems.

Sill-Line recognises that trench heating is a product which, more than most, must be purpose designed to meet the parameters of the project.

Unapproved

This content has not yet been through the Bimstore QA process and as such may not meet our minimum standards for content hosting.

Object Data

1 Revision

Last Updated

06/06/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Literature

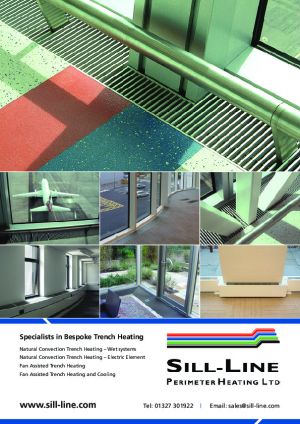

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized ByRyan Lashley
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
2 Port Water ValvesNo
3 Port Water ValvesNo
6 Monthlyn/a
Access Clearance Zone Bottom0 mm
Access Clearance Zone Front0 mm
Access Clearance Zone Left0 mm
Access Clearance Zone Rear0 mm
Access Clearance Zone Right0 mm
Access Clearance Zone Top0 mm
Accessibility Performancen/a
Airflow Typen/a
Air Inlet Height0 mm
Air Inlet Width0 mm
Air Outlet Height0 mm
Air Outlet Width0 mm
Annuallyn/a
Assembly CodeD30
Asset TypeFixed
Bespoke Timeframen/a
BIM Object NameSillLine_MechanicalEquipment_Radiators_WarmlineTrenchHeater
BMS LinksNo
Case Mounted SwitchesNo
CE Approvaln/a
Classification NameUniclass2015
Classification ValuePr_70_60_36_90
Code Performancen/a
ColorSilver
Configurationn/a
Connector Offset50 mm
Connector Offset 198 mm
Connector Offset 264 mm
Connector Offset 30 mm
Connector Offset 40 mm
Constituentsn/a
Created Bysales@sill-line.com
Created On2018-05-19:T09:00:00
Dailyn/a
Dash1
Default Elevation0 mm
Depth125 mm
DescriptionA rapid increase in the number of raised floor installations and the desire to maximise let table floor area has driven an increase in the demand for perimeter heating systems.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2600
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2600
Duration UnitYears
Embodied Carbonn/a
Energy Technology Listn/a
Environmental Product Declarationn/a
Expected Life35
Fan Typen/a
Featuresn/a
Final Locationn/a
FinishCasing: Zintec Steel, Grille Aluminium Anodised to AA15
Flexible ConnectorsNo
Fluid Connection Typen/a
Fluid Maximum Working Pressure0.0 Pa
Fluid Side Pressure Drop0.0 Pa
Fluid Volume0.0 L
Gille Offset7 mm
Graden/a
Green Guide For Specificationn/a
Grille MaterialSill-Line Grille
Gross Weight0.00 kg
Heating Mediumn/a
Heating Medium Pressure0.0 Pa
Heating Medium Temperature0 °C
Heating Output0 W
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
In Built Temperature ControlNo
Incoming Supply Frequency0 Hz
Incoming Supply Phases0
Incoming Supply Voltage0 V
Inlet FilterNo
Inlet Positionn/a
Internal SwitchesNo
Isolating ValvesNo
KeynoteT90/460
Life Cycle Analysisn/a
Location Of ManufacturerDaventry, Northants, UK
Lockable Access PanelNo
Loose GrillesYes
Low Water Temperature ThermostatNo
Maintenance Required 0-300hrs0
Maintenance Required 1001-2000hrs0
Maintenance Required 2001-4000hrs0
Maintenance Required 301-600hrs0
Maintenance Required 4001-8000hrs0
Maintenance Required 601-1000hrs0
Maintenance Required 8001-12000hrsLift grille and vacuum debris from elements
ManufacturerSill-Line
Manufacturer NameSill-Line
Manufacturer Websitesill-line.com/
MaterialCasing: Steel. Grille: Aluminium.
Material Ingredient Reportingn/a
Maximum Power Consumption0 VA
Maximum Supply Current0 A
ModelWarmline Trench Heating
Model NumberWarmline Trench Heating
Model ReferenceDash - 01
Monthly0
Motor Typen/a
Mountingn/a
NBS DescriptionTrench heating
NBS Object NameSill Line - Trench heating
NBS Office Master Tagn/a
NBS Reference90-40-35/475
Nominal Air Volume Flowrate0.0 L/s
Nominal Depth205 mm
Nominal Fluid Volume Flowrate0
Nominal Height125 mm
Nominal Length0 mm
Nominal Specific Fan Power0
O&M Manualn/a
Outlet Positionn/a
Output Per Meter690 W
Overall Height125 mm
Overall Length0 mm
Overall Width205 mm
Pipe Connection Diameter22 mm
PlinthNo
Production Year2018
Product Literaturespecifi.bimstore.co.uk/document/share/2600
Product MaterialSteel, Paint Finish, Ivory, Glossy
Product Model NumberDash - 01
Product RangeWarmline Trench Heating
Quaterly0
Referenced Standardn/a
Reference Space Temperature0 °C
Reference Standardn/a
Remote SwitchesNo
Remote Temperature ControlNo
Replacement Costn/a
Responsible Extraction Of Materialsn/a
Responsible Sourcing Of Materialsn/a
Rounded End PanelsNo
ShapeRectangular
Shipping Weight0.00 kg
Size205 W x 125 D
Spare Partsn/a
Special Heat ExchangerNo
Tamper Proof Access PanelNo
Test Pressure0.0 Pa
Type CommentsDash - 01
Type NameDash - 01
URLsill-line.com/
Wall Mounting StiffenersNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@sill-line.com
Warranty IDn/a
Weekly0
Width205 mm
Wireless ControllersNo

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
