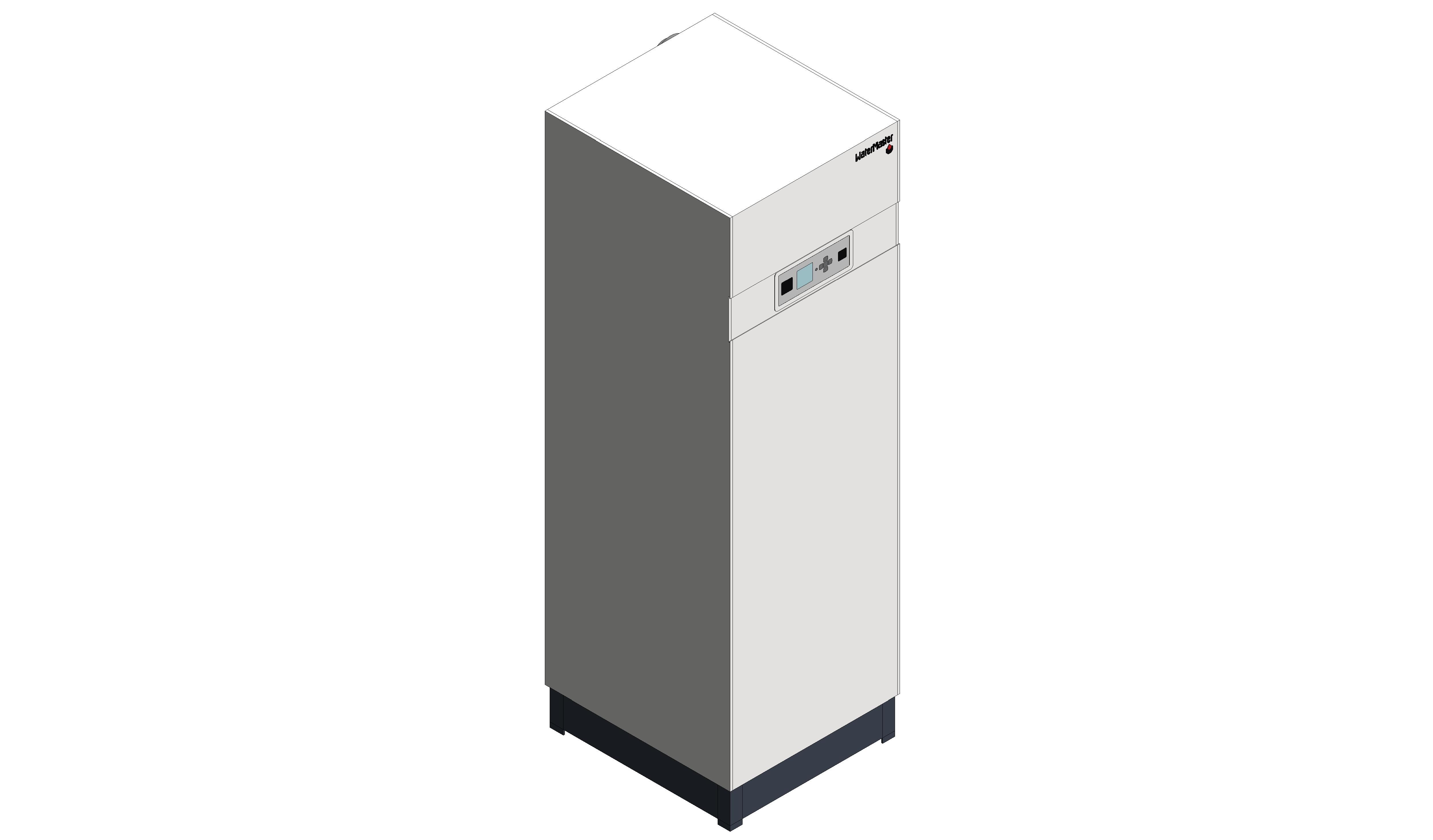

WaterMaster

by ACV

Download Add to collection

Description

Can deliver large peak and continuous volumes of hot water

Operates in most efficient mode (condensing)

Reduces legionella risk due to temperature stored at > 60°C

Small footprint allows installation in tight plantrooms

Low maintenance with no anode protection required

Long life – 25-year guarantee on the corrosion-resistant stainless steel cylinder

Compliant with latest Ecodesign regulations for DHW

Corrosion-resistant stainless steel heat exchanger backed by a 10-year warranty reduces maintenance and increases system lifespan

Suitable for vented or unvented systems (optional unvented kit required)

Easy to use standardised controls using ACVMax control system

Object Data

1 Revision

Last Updated

09/01/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Object metadata

_AuthorJY
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
6 Monthlyn/a
A2170 mm
Access Clearance Bottom0 mm
Access Clearance Front0 mm
Access Clearance Left0 mm
Access Clearance Rear0 mm
Access Clearance Right0 mm
Access Clearance Top0 mm
Accessibility Performancen/a
Air Inlet Connection Size0 mm
Annuallyn/a
Assembly CodeD3040400
Asset TypeFixed
B690 mm
Base MaterialACV - Base - Grey
Base Height286 mm
Base Offset150 mm
Bespoke Timeframen/a
BIM Object NameACV_MechanicalEquipment_WaterMaster
BMS LinksNo
C753 mm
Casing_MainACV - Casing - White
CE Approvaln/a
Central Heating_Cold Water Return_Diameter38 mm
Central Heating_Cold Water Return_Radius19 mm
Central Heating_Hot Water Outlet_Diameter38 mm
Central Heating_Hot Water Outlet_Radius19 mm
Classification NameUniclass2015
Classification ValuePr_60_60_96_34
Clean Out Cover And Inspection Opening Size0 mm
Clean Out Cover And Inspection Opening Typen/a
Code Performancen/a
Cold Water Supply_Diameter19 mm
Cold Water Supply_Radius10 mm
ColorWhite
ColourWhite
Condensate Diameter35 mm
Condensate Radius18 mm
Condensate Drain Size0 mm
Condensate Drain Typen/a
Constituentsn/a
Continuous Output At 44 Degree Differentialn/a
Continuous Output At 50 Degree Differentialn/a
Control Optionsn/a
Control Thermostat Rangen/a
Control Typen/a
Created Byuk.info@acv.com
Created On2019-03-12T09:00:00
D100 mm
Dailyn/a
Depth753 mm
DescriptionIndirectly heated storage water tanks, to be installed on the floor, equipped with a large surface heat exchanger and intended for medium and high power installations.
Documentation Certificatesn/a

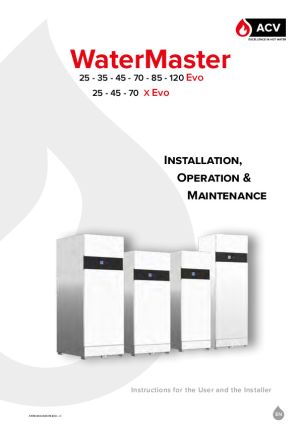

Documentation Installation Guidewww.bimstore.co/products/water-ank-hrs-indirect/document/installation-guide
Documentation Literaturen/a
Documentation Maintenancewww.bimstore.co/products/water-ank-hrs-indirect/document/maintenance-information
Documentation Technicaln/a
Domestic_Hot Water Outlet_Diameter25 mm
Domestic_Hot Water Outlet_Radius13 mm
Drain Connection Size0 mm
Drain Connection Typen/a
Duration UnitYears
Embodied Carbonn/a
Energy Technology Listn/a
Environmental Product Declarationn/a
ErP Energy Labeln/a
Expected Life0
External MaterialDuplex Stainless Steel
F155 mm
FeaturesIndirectly heated storage water tanks, to be installed on the floor, equipped with a large surface heat exchanger and intended for medium and high power installations.
Finishn/a
Flow And Return Connection Size0 mm
Flow And Return Connection Typen/a
Flue Connection Size0 mm
Flue Or Air Intake Classificationn/a
Frequency50.00 Hz
Fuel Connection Size0 mm
Fuel Connection Typen/a
Fuel Typen/a
Full Load Currentn/a
Fuse Ratingn/a
G2080 mm
Gas Supply_Radius10 mm
Gas Consumption Raten/a
Graden/a
Green Guide For Specificationn/a
Gross Inputn/a
Gross Weight308.00 kg
H125 mm
Heater Operationn/a
Heat Exchanger Materialn/a
Heat Generator Efficiencyn/a
Heat Generator Load Profilen/a
Heat Generator Thermal Efficiencyn/a
Heating Flow0.0 L/s
Heating Flow DHW0.0 L/s
Heating Return0.0 L/s
Heat Up Timen/a
Height2170 mm
H Rs MaterialACV_Steel_PaintFinish_Glossy
Ifc Export AsIfcEnergyConversionDeviceType
Ifc Export TypeIfcCoilTypeEnum.WATERHEATINGCOIL
IK Ratingn/a
Insulation Thickness0 mm
Insulation Typen/a
InterlocksNo
IP Ratingn/a
J2126 mm
K2030 mm
KeynoteS10/150
L1750 mm
Life Cycle Analysisn/a
Location Of Manufacturern/a
M740 mm
Maintenance Required 0-300hrsn/a
Maintenance Required 1001-2000hrsn/a
Maintenance Required 2001-4000hrsn/a
Maintenance Required 301-600hrsn/a
Maintenance Required 4001-8000hrsn/a
Maintenance Required 601-1000hrsn/a
Maintenance Required 8001-12000hrsn/a
ManufacturerThermaQ Ltd
Manufacturer NameThermaQ Ltd
Manufacturer Websitewww.acv.com/
MaterialDuplex Stainless Steel
Material Ingredient Reportingn/a
Maximum Gas Inlet Pressuren/a
Maximum Oil Inlet Pressuren/a
Maximum Operating Pressure When Open Ventedn/a
Maximum Operating Pressure When Unventedn/a
Maximum Power Consumptionn/a
Maximum Water Temperaturen/a
Minimum Gas Inlet Pressuren/a
Minimum Oil Inlet Pressuren/a
Minimum Operating Pressuren/a
Minimum Power Consumptionn/a
ModelWaterMaster
Model Number1000
Model ReferenceWaterMaster
Monthlyn/a
MountingFloor Standing
N540 mm
NBS DescriptionGas-fired storage water heaters
NBS Object NameACV - Gas-fired water heaters
NBS Office Master Tagn/a
NBS Reference90-15-35/450
Nominal Gas Inlet Pressuren/a
Nominal Oil Inlet Pressuren/a
NOx Emissionsn/a
O311 mm
O&M Manualn/a
Oil Consumption Raten/a
Output120
Pressure Drop0.0 Pa
Pressure Drop DHW0.0 Pa
Production Year2019
Product Literaturen/s
Product Model Number1000
Product RangeWaterMaster
Quaterlyn/a
Recovery Raten/a
Replacement Costn/a
Responsible Extraction Of Materialsn/a
Responsible Sourcing Of Materialsn/a
Safety Valve Connection Size0 mm
Safety Valve Connection Typen/a
Secondary Return Connection Size0 mm
Secondary Return Connection Typen/a
ShapeCylinder
Shipping Weight0.00 kg
Size2355mm(h) x 780mm(ø)
Size 2Yes
Sound Pressure Leveln/a
Spare Partsn/a
Standing Lossn/a
Starting Currentn/a
Supply Phasen/a
Type1000
Type Comments1000
Type Name1000
URLwww.acv.com/
Voltage230.00 V
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsuk.info@acv.com
Warranty IDn/a
Water Content0
Water Treatment Requiredn/a
Weeklyn/a
Width690 mm
WRAS ApprovalYes
