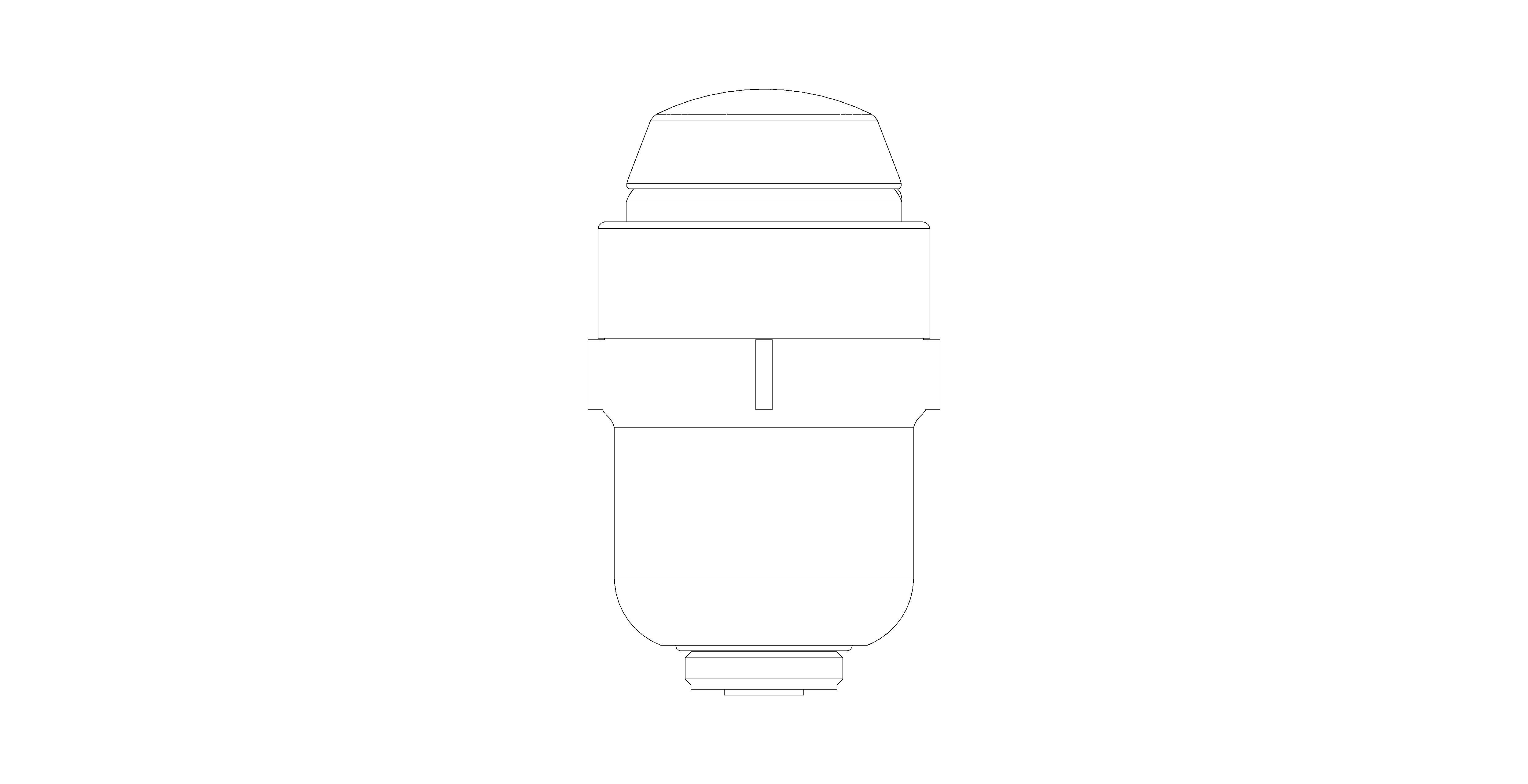

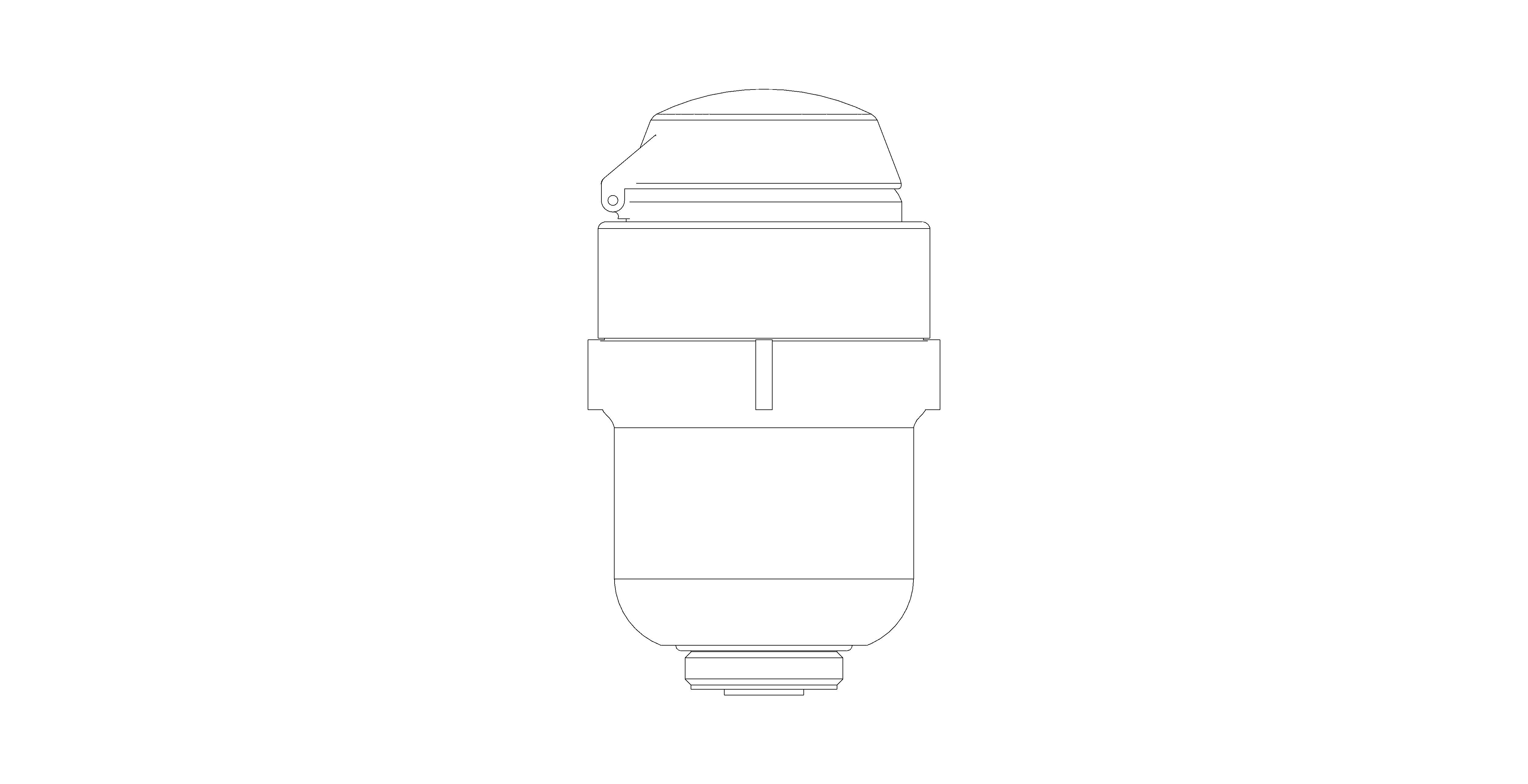

Tenant Valve - Advance Water Meter
A primary charging water meter that can be used in conjunction with a tenant valve to monitor water usage.

Reliance Valves Tenant Valve Advance Water Meter for primary charging of a cold water supply. The valve is a coaxial type and suited for direct connection to the Tenant Valve Advance. Acting as a sensitive positive displacement water meter, the valve features a rotating type impellor to reliably and accurately monitor the water supply usage.

_AuthorPeter Graham
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.rwc.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD2090900
Asset TypeFixed
BIM Object NameRWC_FlowControl_WaterMeters_WATM250050
Classification NameUniclass2015
Classification ValuePr_80_51_51_97
Code Performancen/a
ColorBlack
Connector Description1½" BSP Tenant Valve Water Meter
Connector Diameter48 mm
Connector Height 10 mm
Connector Left Right0 mm
Constituentsn/a
Created Bytechnical@rwc.co.uk
Created On23-05-24
Default Elevation0 mm
Description1½" BSP Tenant Valve Water Meter for precise and accurate measurment of water usage
Documentation Certificateswww.bimstore.co/products/watm250050-water-meter-tenant-valves/document/product-certificates www.bimstore.co/products/watm250050-water-meter-tenant-valves/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/watm250050-water-meter-tenant-valves/document/installation-guide
Documentation Literaturewww.bimstore.co/products/watm250050-water-meter-tenant-valves/document/product-literature
Documentation Maintenancewww.bimstore.co/products/watm250050-water-meter-tenant-valves/document/maintenance-information

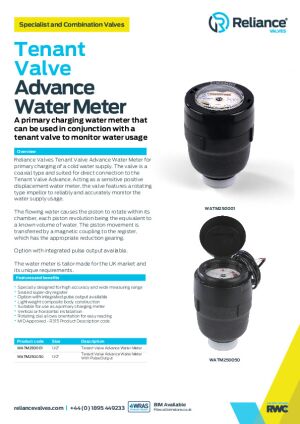

Documentation Technicalwww.bimstore.co/products/watm250050-water-meter-tenant-valves/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Flow0.0 L/s
Graden/a
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingTypeEnum.Connector
KeynoteS
ManufacturerReliance Worldwide Corporation (UK) Ltd.
Manufacturer NameReliance Worldwide Corporation (UK) Ltd.
Materialn/a
Model1½" BSP Tenant Valve Water Meter WATM250050
Model NumberWATM250050
Model ReferenceWATM250050
NBS DescriptionWater Meters
NBS Object NameRWC - Water Meters
NBS Office Master Tagn/a
NBS Reference90-65-55/470
Nominal Depth103 mm
Nominal Height103 mm
Nominal Length183 mm
Pressure Drop0.0 Pa
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size183x103x103
Spare Partsn/a
Type CommentsWATM250050
Type Name1½" BSP Tenant Valve Water Meter
URLwww.rwc.co.uk
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partswww.reliancevalves.com/gb/en/support
