Wessex ModuMax mk3 condensing boiler

27.9k
0
5 / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

01/12/2017

Download BIM

Add to collection

Available for:

The Wessex ModuMax mk3 is a compact and lightweight floor standing modular boiler range. This next generation of Wessex ModuMax condensing boilers features improvements such as a 40⁰C differential temperature and enhanced built in Siemens controls for multiple boiler sequencing.

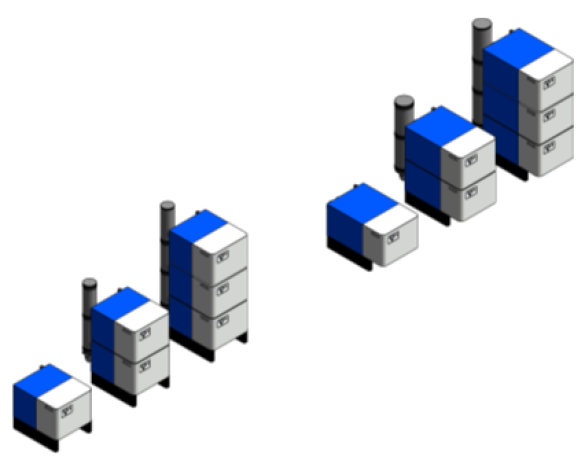

Available in 15 models with outputs from 97kW to 762kW, the fully modulating condensing boilers are able to respond rapidly to changes in demand making them extremely versatile. The heat exchanger is manufactured in high grade stainless steel to provide protection against condensate.

The space saving, vertically stacking design makes the Wessex ModuMax mk3 boiler range ideal for use in city centre developments and district heating networks where space is at a premium.

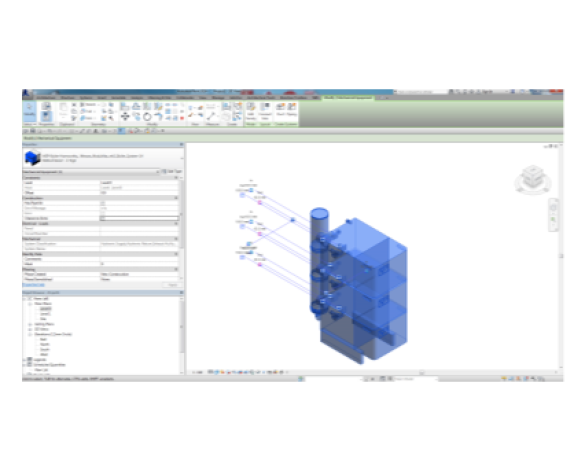

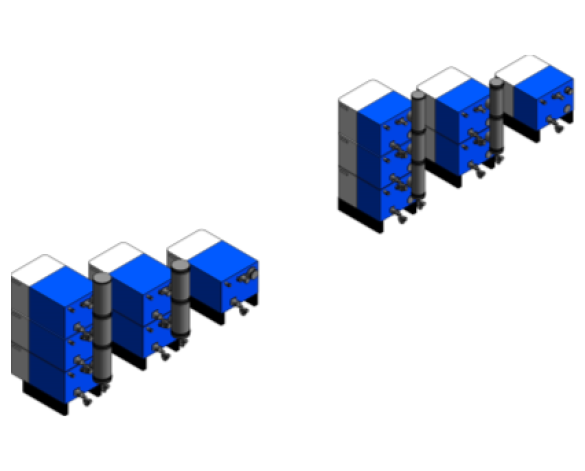

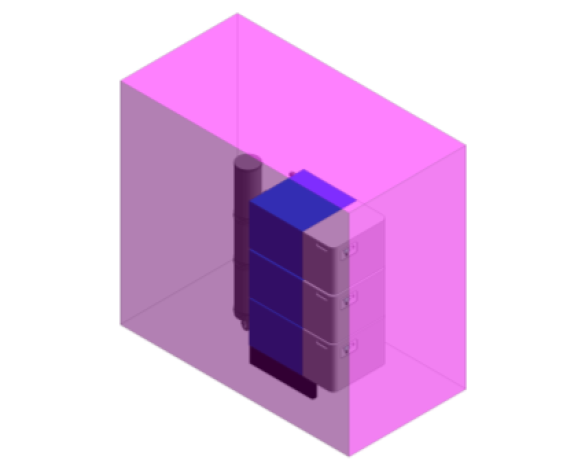

This download includes all 15 configurations of the Wessex ModuMax mk3 boiler range and has user selectable options for available pipe kits and clearance zones.

_BIMspec_GUID0
_created byIan Holmes
_current revision0
_distributed bywww.bimstore.co.uk
Accessibility Performancen/a
Approx. Flue Gas Volume @ 15 Degree C 9.3-9.8% CO2 NTP (m3/h)1062
Approx. Shipping Weight (kg)678
Assembly CodeD3020100
Asset TypeFixed
Boiler Input Gross Maximum Natural Gas (Btu/h x 1000)2815
Boiler Input Gross Maximum Natural Gas (kW)825
Boiler Input Nett Maximum (Btu/h x 1000)2535
Boiler Input Nett Maximum (kW)742.9
Boiler ModelHamworthy_Wessex_Boiler_Unit : Single Unit - For WM150c WM200c & WM250c
Boiler Output 50-30 Degree C (Btu/h x 1000)2604
Boiler Output 50-30 Degree C (kW)763.1
Boiler Output 80-60 Degree C (Btu/h x 1000)2446
Boiler Output 80-60 Degree C (kW)719.4
Boiler Output Minimum 80/60 Degree C (Btu/h x 1000)165
Boiler Output Minimum 80/60 Degree C (kW)48.4

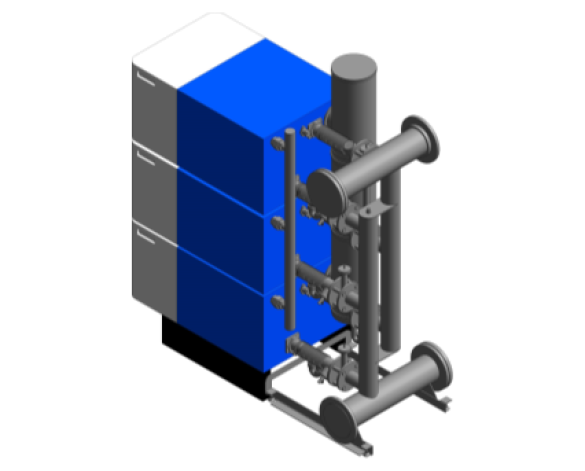

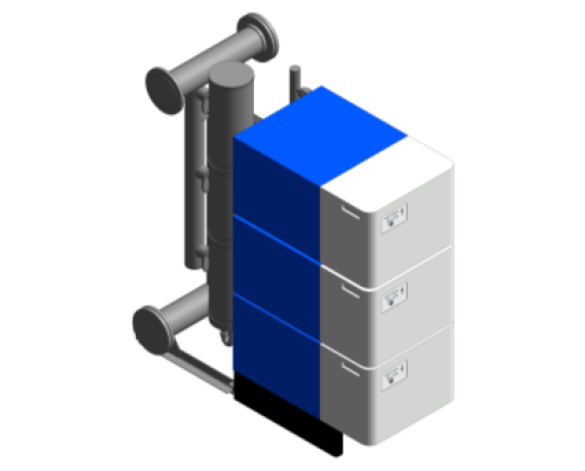

Boiler Pipe Kit TypeVertical_Boiler_Pipe_Kit : Triple Unit for WM150-450 WM200-600 & WM250-750
Boiler Width700 mm
Building Regulations Seasonal Efficiency Gross %93.19%
Classification NameL75211
Classification ValueUniclass1.4
Code Performancen/a
ColorBlue
Condensate Trap Connection (O/D) mm32
Constituentsn/a
Created Bywww.hamworthy-heating.com/contact-hamworthy-heating
Created OnMay 2015
DescriptionAvailable in 15 models, with outputs from 97kW to 762kW, Wessex ModuMax mk3 floor standing boilers have modules arranged either one, two or three high, with 40°C ΔT optimisation.
Documentation Certificatesn/a
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/1492
Documentation Literaturespecifi.bimstore.co.uk/document/share/1489
Documentation Maintenancespecifi.bimstore.co.uk/document/share/1491
Documentation Technicalspecifi.bimstore.co.uk/document/share/1490
Duration UnitYears
Expected Life0
Extidentifiern/a
Featuresn/a
FinishThe boilers are finished externally using a smart steel casing and includes adjustable feet.
Flow & Return Header Diameter150 mm
Flow & Return Header Radius75 mm
Flow & Return Valve Diameter64 mm
Flow & Return Valve Radius32 mm
Flue Centre Line215 mm
Flue Exit Diameter150 mm
Flue Exit Radius75 mm
Flue PipeVeritcal Flue Pipe : 3 Boiler Flue Pipe for WM150c WM200c & WM250c
Front Clearance Zone600 mm
Gas Flow Rate Natural Gas (G20) - Maximum m3/h83.7
Gas Inlet Connection Pipe Thread SizeR1 1/4" M
Graden/a
Has 2nd BoilerYes
Has 3rd BoilerYes
Height Clearance Zone2700 mm
KeynoteT32
LHS Clearance Zone400 mm
Lid Height1800 mm
ManufacturerHamworthy Heating Limited
MaterialStainless Steel
Maximum Flue Gas Temperature @ 80/60 (Degree C)82
Maximum Gas Inlet Pressure Natural Gas (G20) mbar25
Maximum Water Pressure barg10
ModelWM254/762V
Model NumberWM254/762V
Module Current (Run Amps)0.9
Module Current (Start Amps)1.3
Noise Emission @ 1m Max dB (A)65
Noise Emission @ 1m Min dB (A)47
Nominal Flue Diameter mm250
Nominal Gas Inlet Pressure Natural Gas (G20) mbar20
Norminal Supply Voltage230V 1Ph 50Hz
NOx Emission (DAF) European Class 5 (mg/kWh)38.8
Power Consumption Maximum720 W
Pressure at Flue Outlet (mbar)1.5
Pressure at Flue Outlet (Pa)150
Production Year2015
Rear Clearance Zone1250 mm
Referenced StandardISO 9001, ISO 14001, OHSAS 18001
Replacement Costn/a
RHS Clearance Zone400 mm
ShapeRectangle
Single UnitNo
SizeWM254/762V
Spare Partsn/a
System Design Flow Rate @ 11 Degree C Delta-T Rise mbar16 L/s
System Design Flow Rate @ 20 Degree C Delta-T Rise mbar9 L/s
System Design Flow Rate @ 30 Degree C Delta-T Rise mbar6 L/s
System Design Flow Rate @ 40 Degree C Delta-T Rise mbar5 L/s
Tag Numbern/a
Type CommentsWessex ModuMax mk 3 WM254/762V Fully Modulating Condensing Pre-mix, Gas Fired Boilers (three modules)
Type NameWM254/762V - 3 High
Uniclass 2Pr_60_60_08
Unit Length1080 mm
URLwww.hamworthy-heating.com
Warranty Description2 Years Parts and Labour Warranty
Warranty Duration Labor2 Years
Warranty Duration Parts2 Years
Warranty Duration UnitYears
Warranty Guarantor Laborservice@hamworthy-heating.com
Warranty Guarantor Partsservice@hamworthy-heating.com
Water Content - Not Including Headers66 L
Water Flow/Return ConnectionsG2 1/2"M
Water Side Pressure Loss @ 11 Degree C Delta-T Rise mbar1300
Water Side Pressure Loss @ 20 Degree C Delta-T Rise mbar395
Water Side Pressure Loss @ 30 Degree C Delta T Rise mbar180
Water Side Pressure Loss @ 40 Degree C Delta T Rise mbar100
