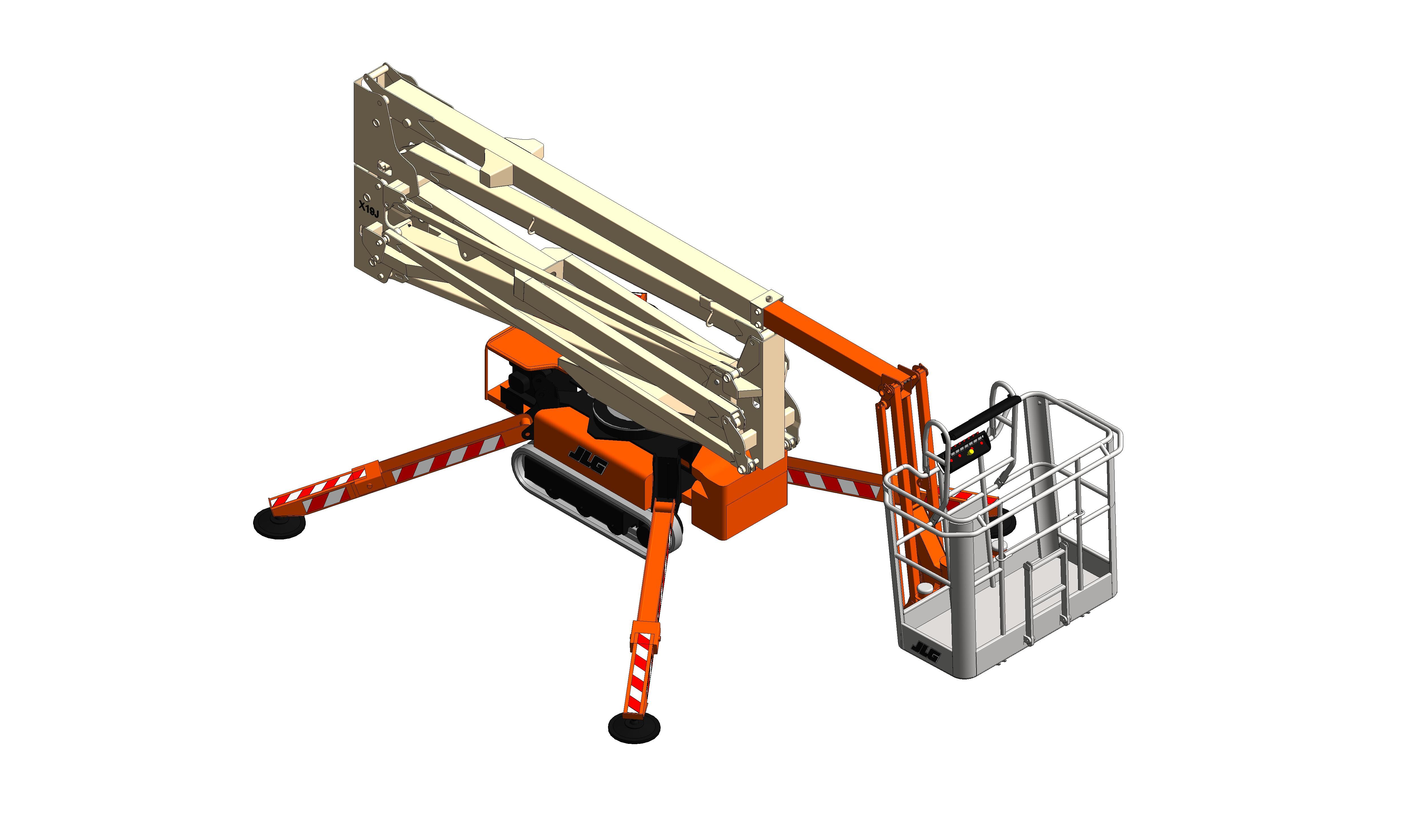

bimstore - JLG - X19J / X550AJ / Light Lift 19.65

3.6k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

11/02/2021

Download BIM

Add to collection

Available for:

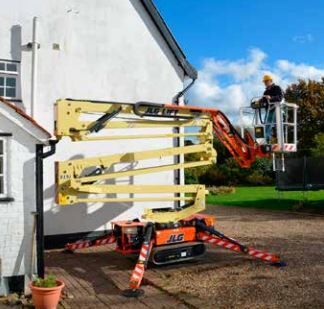

Now you can go more places around the job site thanks to the low weight and rubber tracks on the new Compact Crawler Boom. These machines are environmentally friendly with standard AC power, gas or diesel engine or an optional Lithium-ion electrical system that doesn’t produce emissions. A tracked wheel carriage climbs slopes, and a narrow chassis allows for access through gates, yards, standard doorways and public buildings.

This machine may also be known as: Cherry Pickers, Platforms, Spider Lifts, Toucans, Cranes, Lifts, AWP, MEWP, IPAF 3a, 3b

_AuthorJLG
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.jlg.com/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/x19j-x550aj-light-lift-19-65-compact-crawler-boom/document/object-user-guide
A1a8.00 °
A1a 1172.00 °
A2a3.00 °
A2a 1177.00 °
A3a2.95 °
A3a 1177.05 °
Accessibility Performancen/a
AE940 mm
A Ea0.00 °
A Ea 1180.00 °
AE Ha2.95 °
AE Ha 1177.05 °
Articulating Jib82.7° (+0° / ‐82.7°)
Assembly CodeE1030100
Asset TypeMovable
Base Height176 mm
Batteries240A, 35Ah
BIM Object NameJLG_Site_CompactCrawlerBoom_X19J
Classification NameUniclass2015
Classification ValueTE_30_30_10_60
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bywww.jlg.com/
Created On2020-12-01T09:30:00
Descriptionn/a
Documentation Certificateswww.bimstore.co/products/x19j-x550aj-light-lift-19-65-compact-crawler-boom/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/x19j-x550aj-light-lift-19-65-compact-crawler-boom/document/installation-guide
Documentation Literaturewww.bimstore.co/products/x19j-x550aj-light-lift-19-65-compact-crawler-boom/document/product-literature
Documentation Maintenancewww.bimstore.co/products/x19j-x550aj-light-lift-19-65-compact-crawler-boom/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/x19j-x550aj-light-lift-19-65-compact-crawler-boom/document/technical-data-sheet
Drive Motors DieselHATZ 1B40 7.5kW
Drive Motors Electric2 kW
Drive Motors Petrol440cc Honda iGX440
Drive Speed3.30 kph (2.05 mph)
Duration UnitYears
Electrical System12v
Expected Life0
Featuresn/a
Finishn/a
Fuel Tank Capacity Diesel5.00 Litres (1.30 gal)
Fuel Tank Capacity Petrol5.90 Litres (1.60 gal)
Graden/a
Gradeability28.7%
Ground Clearance0.30 m (12 in)
H1a8.00 °
H1a 1172.00 °
H2a3.00 °
H2a 1177.00 °
Horizontal Outreach Restricted4.90m (16 ft 1 in )
Horizontal Outreach Unrestricted5.90m (19 ft 4 in )
Hydraulic Platform Rotator124 Degrees +/- 62 Degrees
Hydraulic Reservoir25 Litres (6.6 gal)
Ifc Export AsIfcTransportElement
Ifc Export TypeIfcTransportElementType
Ja82.90 °
Ja 197.10 °
J Ha82.90 °
J Ha 1262.90 °
Jib Overall Length1.43 m ( 4 ft 7 in)
Jib Range Of Articulation82.7° (+0/- 82.7 Degrees)
KeynoteX
Leg Angle18.00 °
Machine Weight ANSI4718 lbs
Machine Weight CE2140 kg
ManufacturerJLG
Manufacturer NameJLG
MaterialSteel
Max Ground Pressure Of Tracks0.63 kg/cm2 (8.96 psi)
Max Ground Pressure Per Stabiliser Leg1.74 kg/cm2 (24.75 psi)
Max Stabilisation Slope11 Degrees
Max Working Gradient1 Degree
ModelCompact Crawler Boom - X19J
Model NumberCompact Crawler Boom - X19J
Model ReferenceCompact Crawler Boom
NBS DescriptionLift platforms
NBS Object NameJLG - Lift platforms
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
P120Yes
P200Yes
P Ha0.00 °
P Ha 1180.00 °
Platform Capacity Restricted ANSI200kg (441 lbs)
Platform Capacity Unrestricted CE120kg (265 lbs)
Platform Height Restricted15.08m (49 ft 6 in )
Platform Height Unrestricted16.67m (54 ft 8 in )
Platform Size1.34 m x 0.69 m (4 ft 4 in x 2 ft 3 in)
Production Year2020
Reach1
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Swing360 Degrees
Track Length1.24m (4 ft 1 in )
Transportation ConditionNo
Turning Radius0m
Type CommentsHeight=0.89m(2'-11")_Reach=3.00m(9'-10")
Type NameHeight=0.89m(2'-11")_Reach=3.00m(9'-10")
Unique Model Reference FAPL1001129432
Up And Over Height Restricted6.23 m (20 ft 4 in)
Up And Over Height Unrestricted7.66 m (25 ft 1 in)
URLwww.jlg.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborwww.jlg.com/
Warranty Guarantor Partswww.jlg.com/
