ART 135GB - PN25 Butterfly Valve

by Albion Valves

Download Add to collection

Description

PN25 Ductile Iron Butterfly Valve Lugged & Tapped Type

Features

Flange Mounting PN25 Only
BS5155 (BS EN 593)
ISO 5211 Direct Mount
Epoxy Coat Finish
Vulcanised Liner

Object Data

1 Revision

Last Updated

20/10/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Available

Accompanying literature

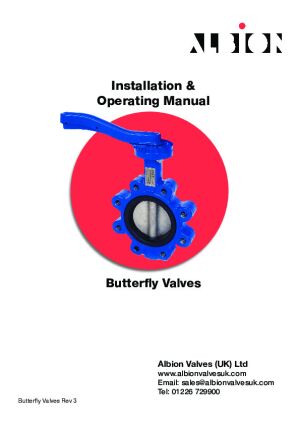

Installation Guide

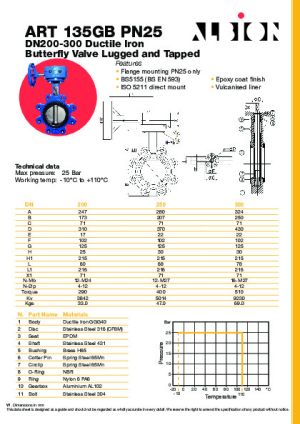

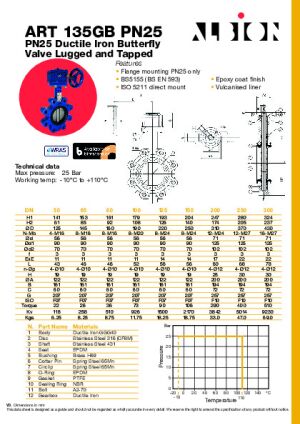

Technical Data Sheet

Product Data Sheet

Installation Guide

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-135gb-pn25-butterfly-valve/document/object-user-guide
12 LugsYes
4 LugsNo
8 LugsNo
a52.1 mm
A247.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b81.8 mm
B173.0 mm
BIM Object NameAlbionValves_PipeAccessories_ButterflyValve_ART135GB_PN25
c52.5 mm
C71.0 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_08
Code Performancen/a
ColorBlue
Connection Size200.0 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2020-08-19T09:00:00
d50.0 mm
D310.0 mm
DescriptionPN25 Ductile Iron Butterfly Valve Lugged and Tapped Type
Disc MaterialStainless Steel
Disc Radius86.8 mm
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-135gb-pn25-butterfly-valve/document/technical-data-sheet
Duration UnitYears
e19.1 mm
E17.0 mm
Expected Life0
f58.3 mm
F102.0 mm
f/229.1 mm
Featuresn/a
FinishDuctile Iron
Flange Outer Dia179.0 mm
g46.4 mm
G125.0 mm
Graden/a
G Radius62.5 mm
H25.0 mm
Handle Height77.0 mm
Handle Mid Length180.0 mm
Handle Radius650.0 mm
Height Calc1.7 mm
Hole Diameter24.0 mm
Hole Radius12.0 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
k13.0 mm
KeynoteS
L60.0 mm
L1216.0 mm
Lever Calc1.4 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDuctile Iron
Max Pressure25 Bar
ModelPN25 Ductile Iron Butterfly Valve Lugged and Tapped Type
Model NumberDN200 - DN8"
Model ReferencePN25 Ductile Iron Butterfly Valve Lugged and Tapped Type
NBS DescriptionButterfly valves
NBS Object NameAlbion Valves - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth215.0 mm
Nominal Height491.0 mm
Nominal Length395.0 mm
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Seat MaterialRubber, EDPM
Shapen/a
SizeDN200 - DN8"
Size DN200
Sleeve Radius Inner114.1 mm
Sleeve Radius Outer133.4 mm
Spare Partsn/a
Symbol Height110.0 mm
Symbol Width20.0 mm
Thread Inch8
Thread Millimetre203.2 mm
Torque290
Type CommentsDN200 - DN8"
Type NamePN25 Ductile Iron Butterfly Valve Lugged and Tapped Type
URLwww.albionvalvesuk.com/
Valve FinishDuctile Iron, Blue
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight33 kg
Width Calc2.5 mm
Working Temperature-10°C to +110°C
