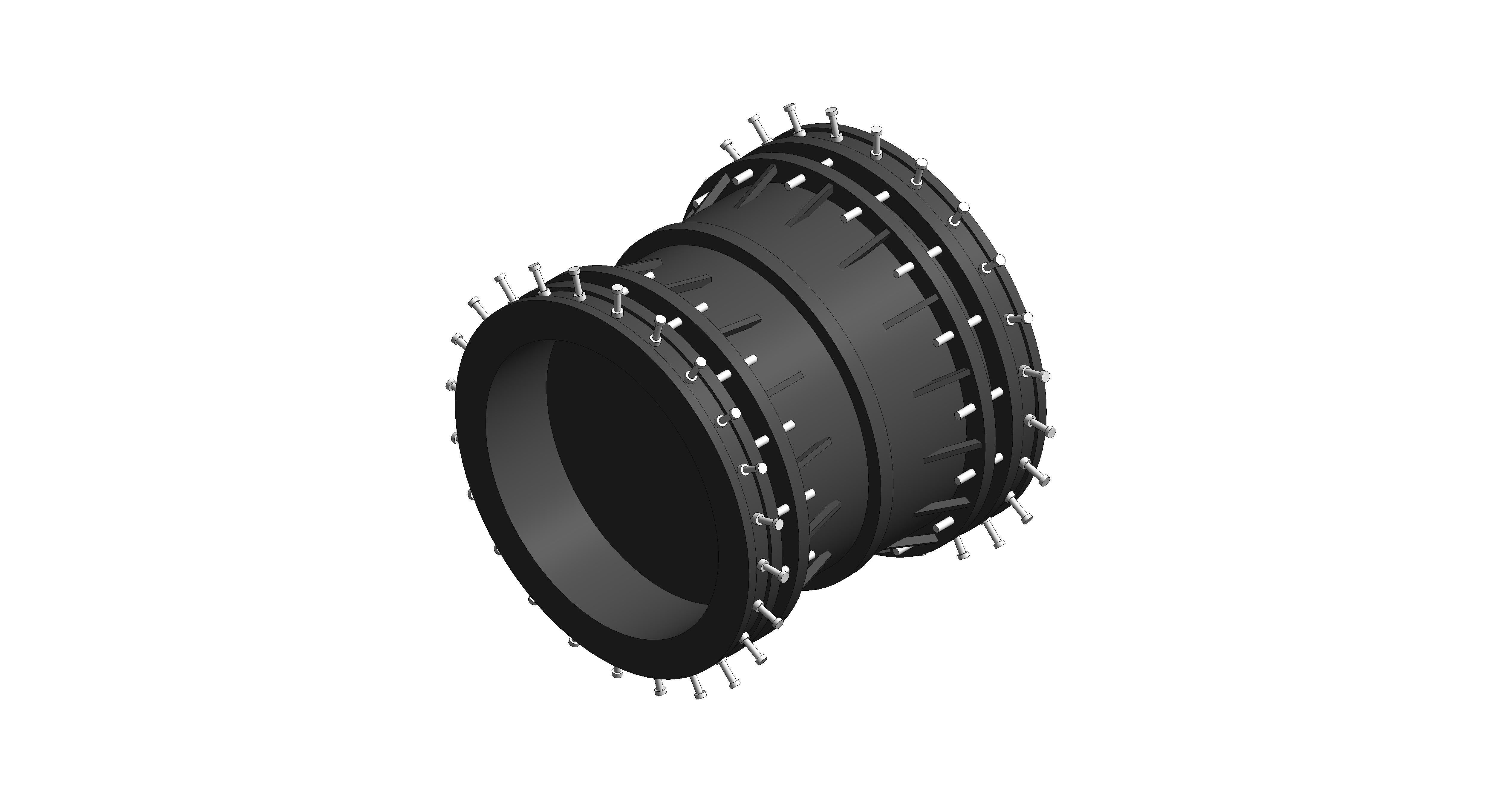

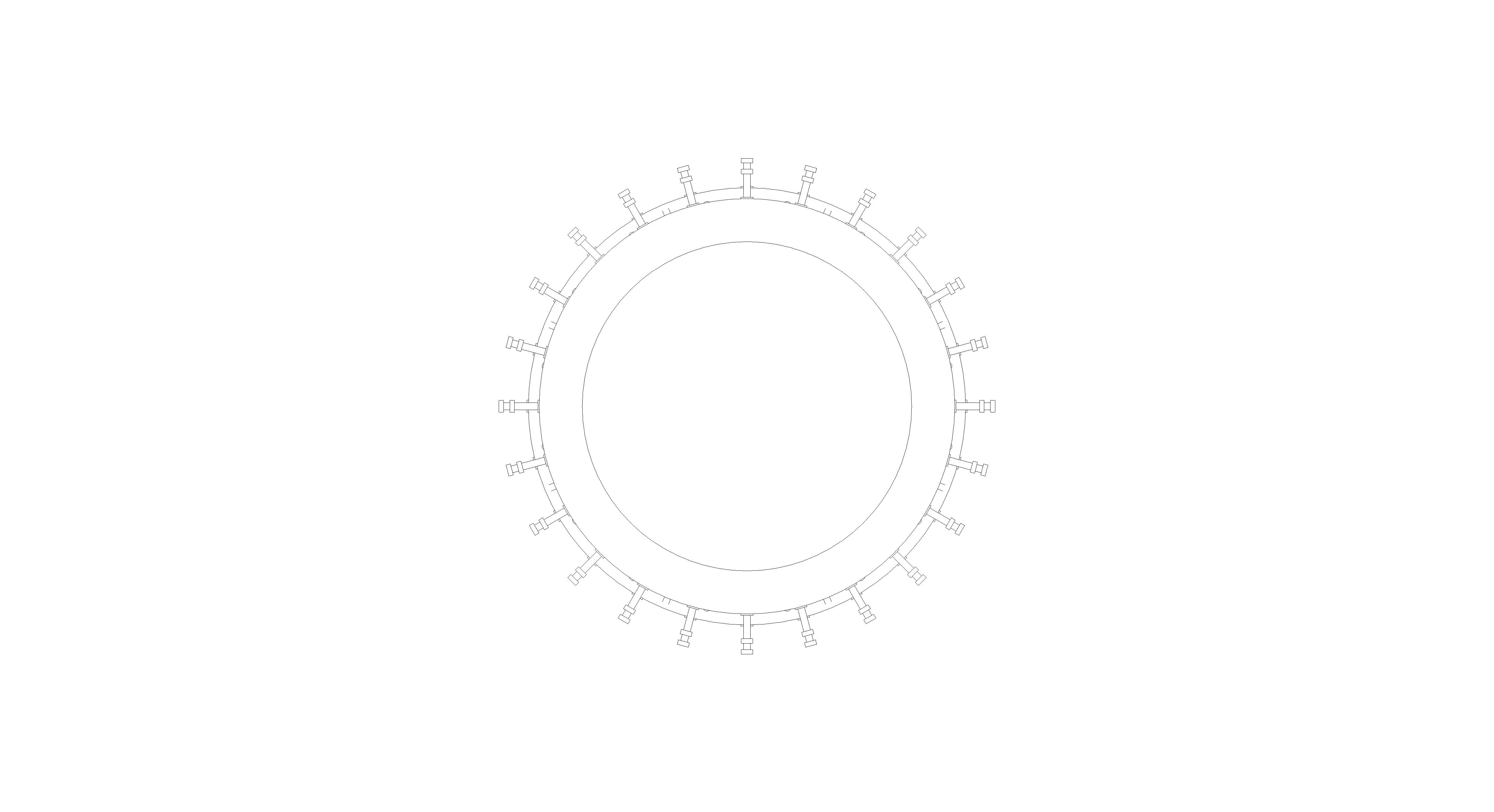

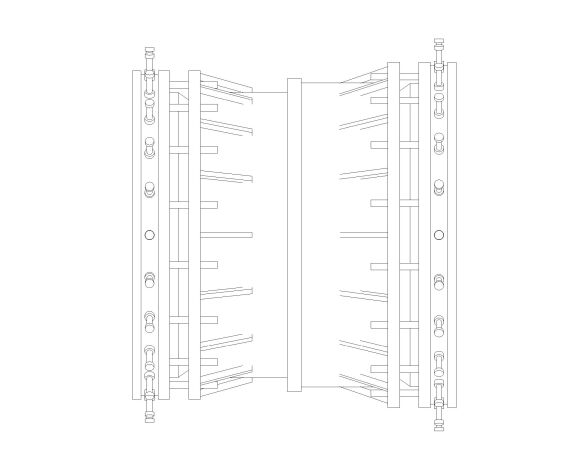

UltraGrip Amplified Reducing Coupling

4.3k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

19/12/2023

Download BIM

Add to collection

Available for:

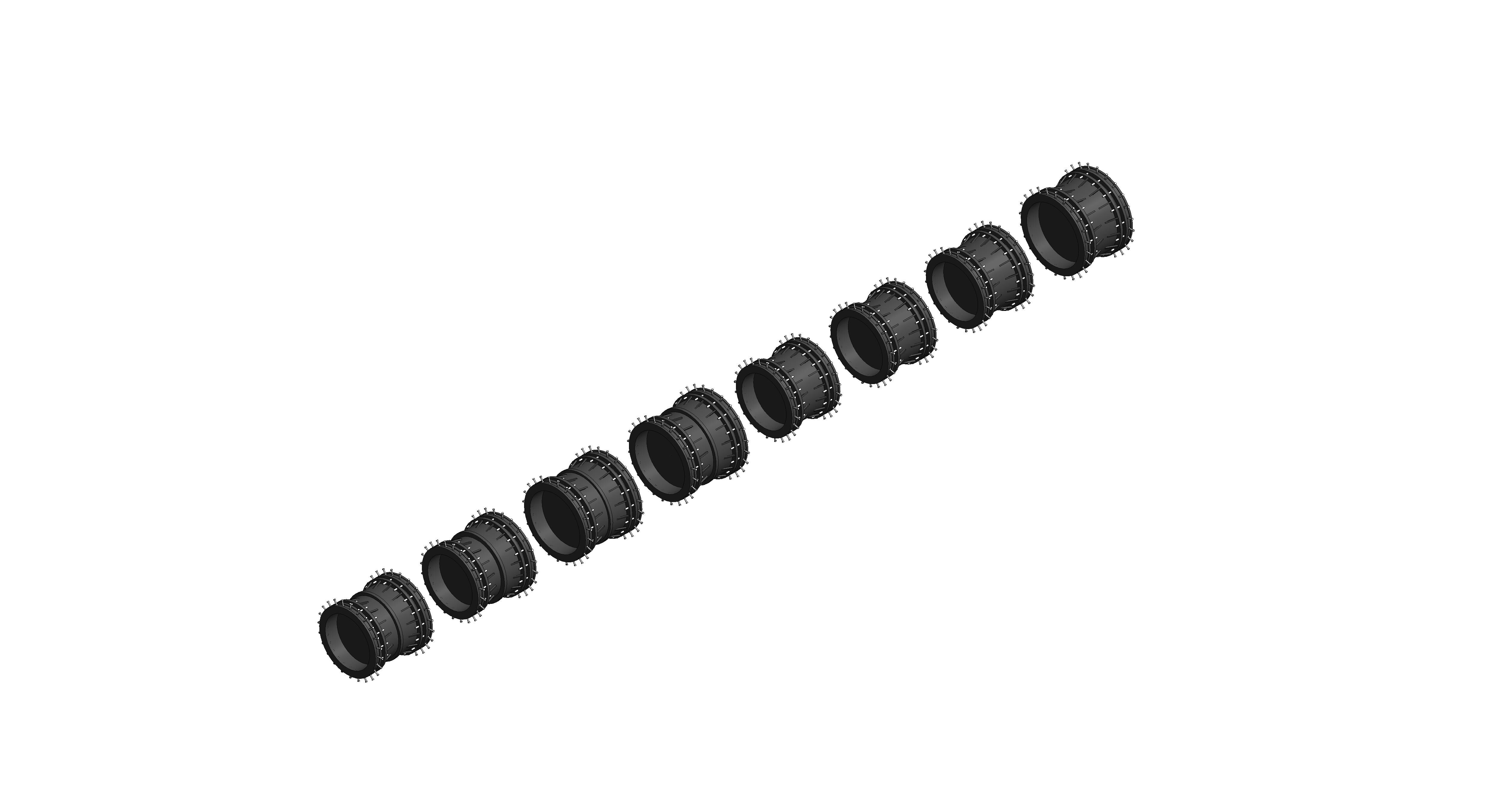

The extension to the proven UltraGrip range of wide tolerance restrained fittings now includes DN700 and DN800 sizes, which are ideal for new lay and large scale infrastructure projects.

The UltraGrip restraint system is equipped with a unique sealing and gripping technology that allows water utilities contractors to repair pipelines faster, without the need for external restraints, like for example thrust blocks.

When pipes are distorted or out of round the UltraGrip’s market leading 35mm tolerance provides more clearance to ensure a simple connection.

4° angularity at each end covering the entire range including top and bottom tolerance. This feature eliminates the need for installers to measure the pipe to calculate the allowable angularity.

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/ultragrip-reducing-coupling/document/object-user-guide
Accessibility Performancen/a
AngularityCouplings 8°, +/- 4° angularity on each side
ApprovalsThe following water contact materials used in UltraGrip are approved for use with potable water: Rilsan Nylon 11: - WRAS, AS/NZS 4020, DVGW, W270, ACS & KIWA Gasket (EPDM): - WRAS, W270
Assembly CodeD2040100
Asset Typen/a
Axial Bolts-Large End16 x M20
Axial Bolts-Small End16 x M20
BIM Object NameVikingJohnson_WideToleranceRestrainedFitting_UltraGrip_ReducingCoupling
Body Width(L)198.0 mm
Body Width(R)198.0 mm
Bolt 2 Offset38.0 mm
Bolt Head Offset(L)78.5 mm
Bolt Head Offset(R)78.5 mm
Bolt MaterialViking Johnson - Metal - Stainless Steel
BoltsStainless steel to BS EN ISO 3506-1, Grade A4-80
Brace Length(L)150.0 mm
Brace Length(R)150.0 mm
Brace Offset(L)147.9 mm
Brace Offset(R)147.9 mm
Brace Offset Base(L)44.0 mm
Brace Offset Base(R)42.0 mm
Centre SleeveMild steel to BS EN10025 Grade S355
Classification NameUniclass2015
Classification ValuePr_20_29_14_15
CoatingsEnd Rings / Centre Sleeve / Flange: - Rilsan Nylon 11 (Black) Bolts: - Dry Film Lubricant GZ – Silver Nuts: - Dry Film Lubricant GZ – Silver Gripper: - None
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bywww.vikingjohnson.com/en/page/contact-us
Created On2023-11-23 T09:00:00
Default Elevation0.0 mm
DescriptionWide tolerance restrained fittings
Documentation Certificateswww.bimstore.co/products/ultragrip-reducing-coupling/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/ultragrip-reducing-coupling/document/installation-guide

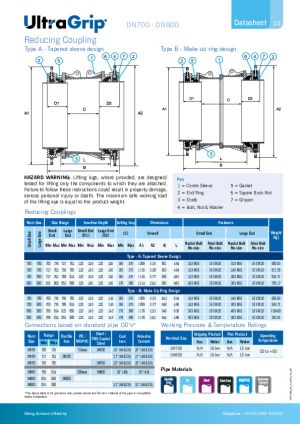

Documentation Literaturewww.bimstore.co/products/ultragrip-reducing-coupling/document/product-literature
Documentation Maintenancewww.bimstore.co/products/ultragrip-reducing-coupling/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/ultragrip-reducing-coupling/document/technical-data-sheet
Duration UnitYear
End RingsMild steel to BS EN10025 Grade S355
Expected Life0
Featuresn/a
Finishn/a
Finished ProductBS8561; WRc certification verifying that the product complies with BS8561 (Specification for mechanical fittings for use in the repair, connection and renovation of pressurized water supply pipelines — Requirements and test methods). Polyethylene Pipe Pull Out Performance; WRc certification confirming on PE a Type 2 end load performance (defined in IGN 4-01-02:2017 [N3]) when tested in accordance with the method given in BS EN ISO 3501.
Fitting MaterialViking Johnson - Metal - Ductile Iron - Black
Flex Product Suitable ForDuctile Iron / PE (PE100, SDR 11, 17, 21, 26); Steel / Cast Iron / MOPVC / Asbestos Cement
GasketEPDM to BS EN 681-1
Graden/a
GripperStainless steel (Cast) PH 17-4 H925 to BS EN 10088-1
Gripping Product Suitable ForDuctile iron / PE (PE100, SDR 11, 17, 21, 26); Steel / Cast iron / MOPVC (SDR 33)
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteS
Length801.0 mm
Make Up Left Radius317.0 mm
Make Up Right Radius397.0 mm
Make Up RingNo
Makeup Ring Radius577.0 mm
Make Up Ring Width94.0 mm
ManufacturerViking Johnson
Manufacturer NameViking Johnson
Materialn/a
Maximum Insertion Depth-Large End245.0 mm
Maximum Insertion Depth-Small End245.0 mm
Maximum Setting Gap375.0 mm
Maximum Size-Large End762.0 mm
Maximum Size-Small End735.0 mm
Minimum Insertion Depth-Large End220.0 mm
Minimum Insertion Depth-Small End220.0 mm
Minimum Setting Gap165.0 mm
Minimum Size-Large End727.0 mm
Minimum Size-Small End700.0 mm
ModelUltraGrip 700-735 - 727-762
Model NumberUltraGrip 700-735 - 727-762
Model ReferenceUltraGrip Reducing Coupling
NBS DescriptionCoupler connections
NBS Noten/a
NBS Object NameViking Johnson - Coupler connections
NBS Office Master Tagn/a
NBS Reference45-50-70/352
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
Nominal Size-Large End700.0 mm
Nominal Size-Small End700.0 mm
NutsStainless steel – BS1449:PT2 ISO 3506-1, Grade A4-80
OD Calc727.0 mm
OD Rad363.5 mm
Offset Vertical(L)416.5 mm
Offset Vertical(R)430.0 mm
Option(L)1
Option(R)2
Production Year2023
Radial Bolts-Large End32 x M16
Radial Bolts-Small End24 x M16
Radius 1(L)550.0 mm
Radius 1(R)559.0 mm
Radius 2(L)450.0 mm
Radius 2(R)459.0 mm
Radius 3(L)466.0 mm
Radius 3(R)470.0 mm
Referenced Standardn/a
Replacement Costn/a
Retention InsertNylon 6
Shapen/a
Site Test Pressure1.5 times working pressure
SizeDN700
Spare Partswww.vikingjohnson.com/en/page/contact-us
Square Bush NutCast stainless steel to ASTM, A487/A487M-21, Grade CA6NM Class A
StudsStainless steel – BS EN ISO 3506-1, Grade A4-80
Support LinersA close fit Viking Johnson support liner is required when used on: All PE pipes; MOPVC pipes
Tapered SleeveYes
Temperature RatingOperating temperature -20°C to +60°C
Type CommentsUltraGrip Reducing Coupling
Type NameUltraGrip Reducing Coupling
URLwww.vikingjohnson.com/en
Use Of Restrained Couplings On Exposed PipeworkAbove ground exposed pipework is subject to both loads from the internal pressure and those from temperature changes/thermal expansion, which can be substantially higher than those from internal pressure and cannot always be safely determined. UltraGrip can be used in above ground applications, where it is not exposed to direct sunlight, and falls within the 40°C operating temperature range (between -20°C and +60°C).
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
WashersStainless steel – BS1449:PT2 ISO 3506-1, Grade A4-50
Weight580.03 kg
Working Pressure RatingWater: DN700 to DN800 = 16 bar; Gas: Not approved
