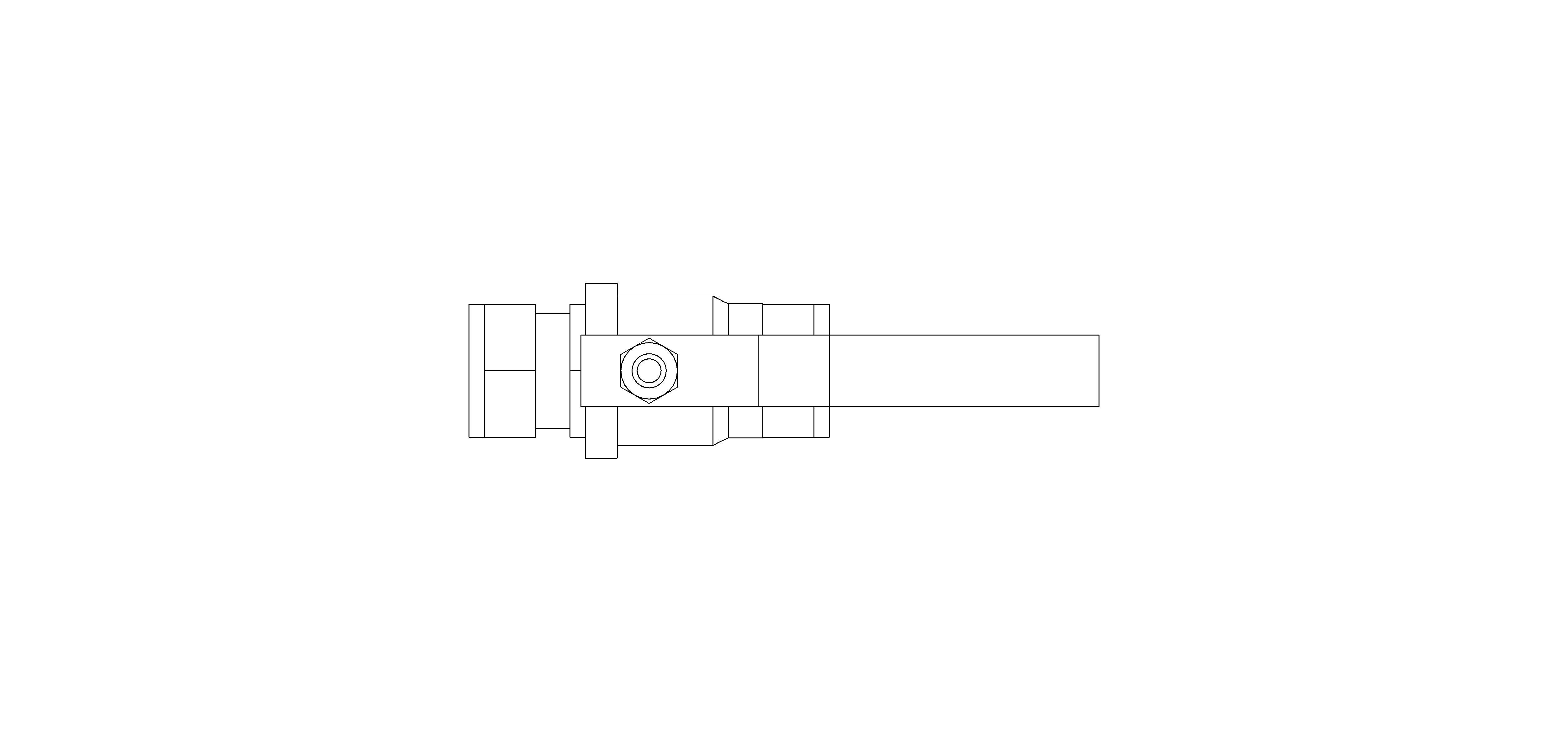

DZR Compression Ball Valve [00/0088]

by Valves Instruments Plus

Download Add to collection

Description

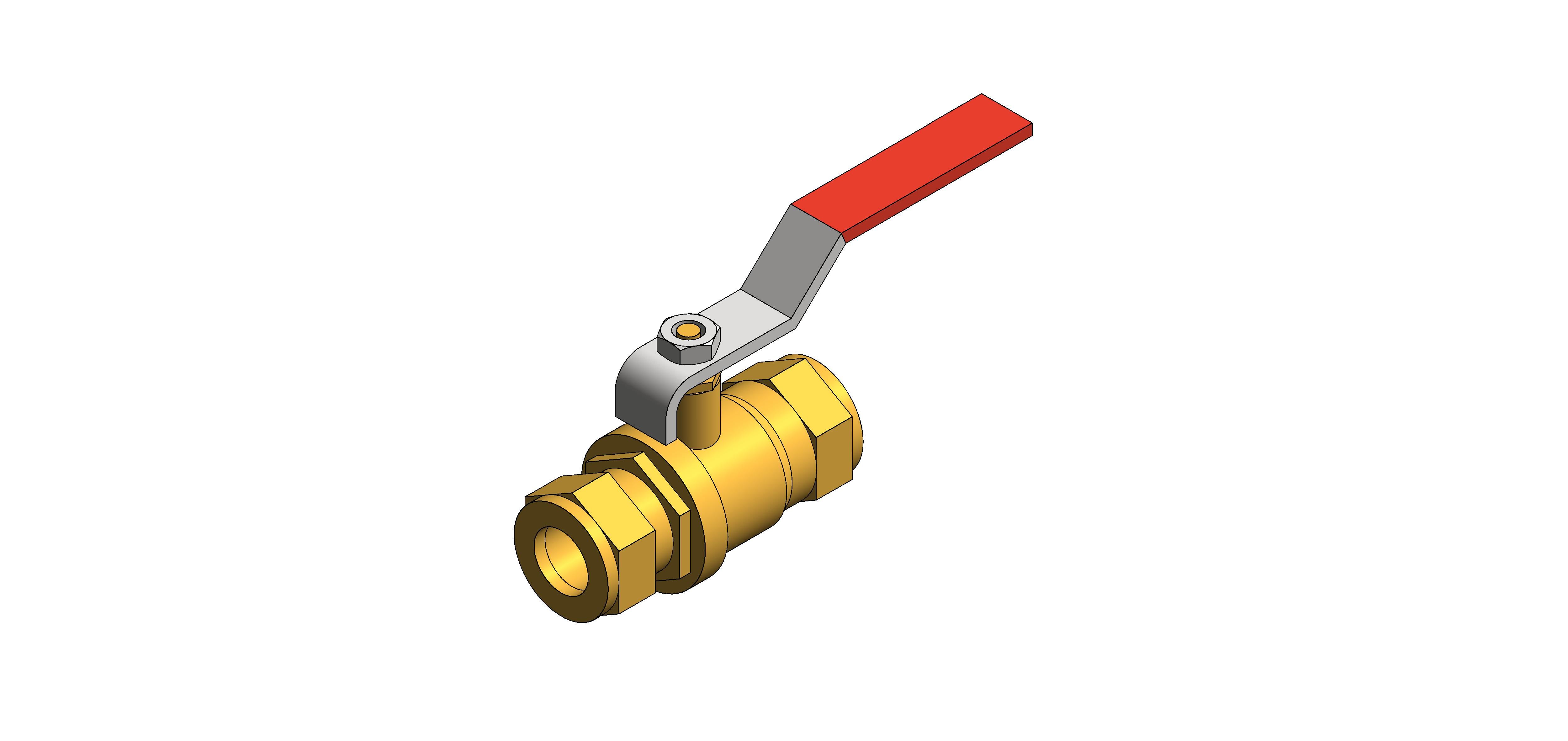

VIP DZR Compression Ball Valve, Lever Operated

VIP Lever Operated DZR Compression Ball Valve available with Red/Blue handle options.

Object Data

1 Revision

Last Updated

27/03/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

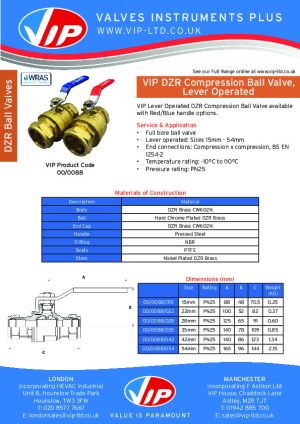

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAG
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version0
_Created Bysales@vip-ltd.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/2d20346c-1bb0-4418-a190-52e33c928bd1/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameVIP_CxC_DZR_BALL_VALVE
Body MaterialBrass
C71 mm
Centre Body Width25 mm
Classification NameUniclass 2024
Classification ValuePR_65_54_95_06
Code Performancen/a
ColorYellow
Compression Nut Width10 mm
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-03-04T09:00:00
D47 mm
Default Elevation0 mm
DescriptionLever Operated Ball Valve
Documentation Certificateswww.bimstore.co/products/2d20346c-1bb0-4418-a190-52e33c928bd1/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/2d20346c-1bb0-4418-a190-52e33c928bd1/document/installation-guide
Documentation Literaturewww.bimstore.co/products/2d20346c-1bb0-4418-a190-52e33c928bd1/document/product-literature
Documentation Maintenancewww.bimstore.co/products/2d20346c-1bb0-4418-a190-52e33c928bd1/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/2d20346c-1bb0-4418-a190-52e33c928bd1/document/technical-data-sheet
Duration UnitYears
E88 mm
End ConnectionsCompression x Compression, BS EN 1254-2
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Handle Thickness3 mm
Handle Width14 mm
Inner Nut Size12 mm
Inner Nut Thickness2 mm
KeynoteS
Lever MaterialPresssed Steel
ManufacturerVIP
Manufacturer NameVIP
Max Working Pressure16 Bar
Max Working Temperature-10°C to 110°C
ModelLever Operated Ball Valve
Model Number00/0088/015
Model ReferenceLever Operated Ball Valve
NBS Descriptionn/a
NBS Noten/a
NBS Object Namen/a
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Diameter15 mm
Nut Center7 mm
Nut End Radius13 mm
Nut Width26 mm
Outer Nut3 mm
Pressure RatingPN25
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Spare Partssales@vip-ltd.co.uk
Type Comments00/0088/015
Type NameDN15
URLwww.vip-ltd.co.uk
Valve Inner Width20 mm
Valve Width30 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
WRAS ApprovedYes

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
