Brass Ball Valve [00/2087]

by Valves Instruments Plus

Download Add to collection

Description

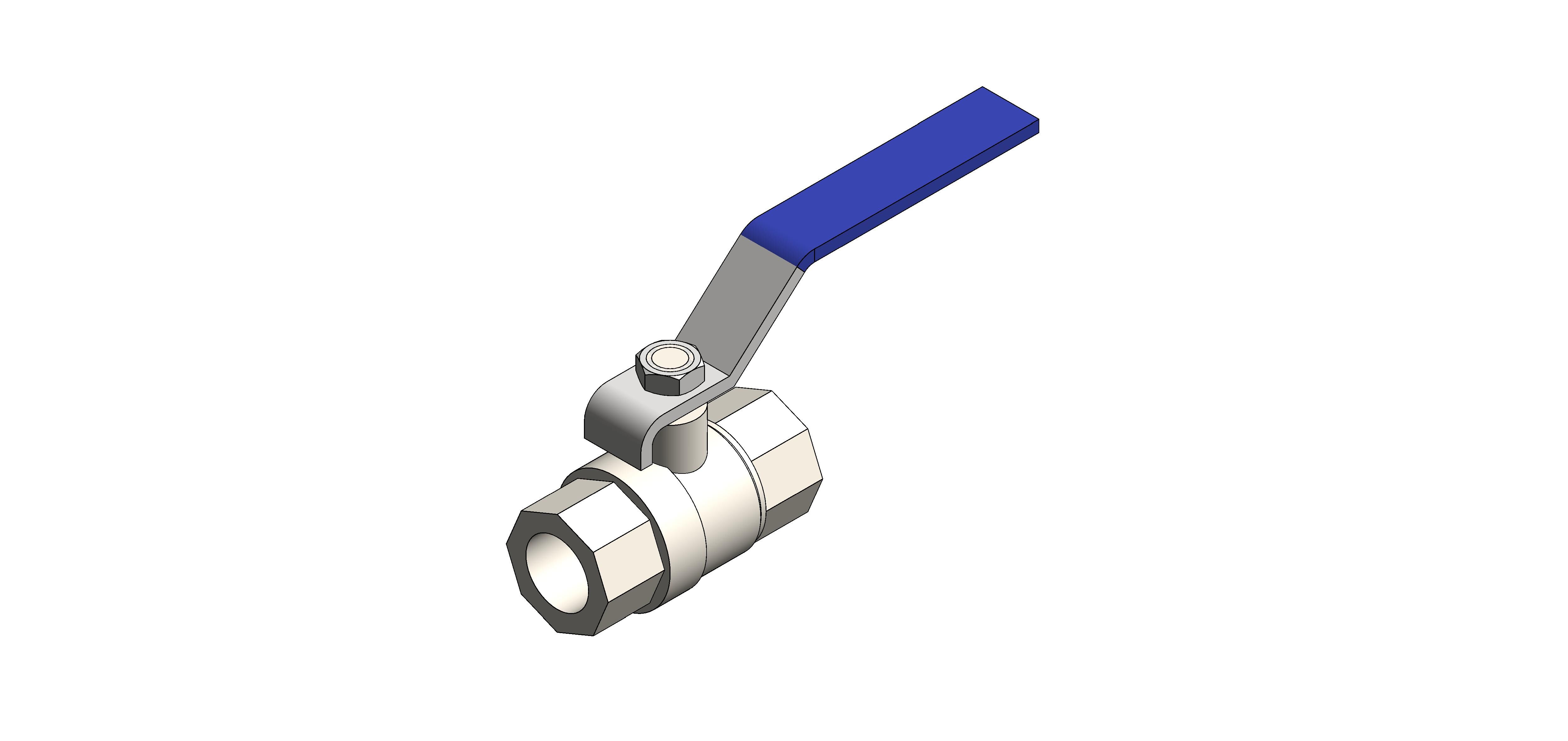

Brass Ball Valve

Specification
Pressure: 1/2” & 2” PN30
Liquid Temperature: 1/4” to 2” -20°C to 110ºC
Material Specification
Body: Nickel Plated CW617N Brass
Body End: Nickel Plated CW617N Brass
Ball: Chrome Plated CW617N Brass
Seats: PTFE
O-Ring: FKM (¼” to 2”)
O-Ring: NBR
Stem: CW614N Brass
Lever: PVC Coated SteelScrew: Zinc Plated Steel

Object Data

1 Revision

Last Updated

02/04/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

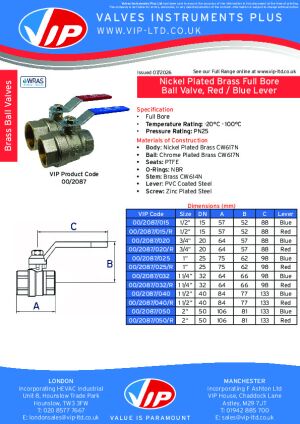

Technical Data Sheet

Product Data Sheet

Technical Data Sheet

Object metadata

_AuthorAG
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version0
_Created Bysales@vip-ltd.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/8fdfede8-0c5f-4053-b334-4cb744bf18a7/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameVIP_BrassBallValve_PN25_(00_2087)
Body MaterialNickel Plated Brass
C15 mm
Centre14 mm
Centre Height24 mm
Centre Offset30 mm
Centre Thin3 mm
Classification NameUniclass 2024
Classification ValuePR_65_54_95_06
Code Performancen/a
ColorSilver & Blue
Connection Size25 mm
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-03-06T09:00:00
Default Elevation0 mm
Description1/2"BSP BRASS BALL VALVE BLUE LEVER WRAS
Documentation Certificateswww.bimstore.co/products/8fdfede8-0c5f-4053-b334-4cb744bf18a7/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/8fdfede8-0c5f-4053-b334-4cb744bf18a7/document/installation-guide
Documentation Literaturewww.bimstore.co/products/8fdfede8-0c5f-4053-b334-4cb744bf18a7/document/product-literature
Documentation Maintenancewww.bimstore.co/products/8fdfede8-0c5f-4053-b334-4cb744bf18a7/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/8fdfede8-0c5f-4053-b334-4cb744bf18a7/document/technical-data-sheet
Duration UnitYears
Expected Life0
Extended Centre11 mm
Featuresn/a
Finishn/a
Graden/a
H48 mm
Handle Thickness3 mm
Handle Width15 mm
Handle MaterialVIP Blue Paint
I92 mm
Inner Centre9 mm
KeynoteS
L57 mm
Lever MaterialSteel
ManufacturerVIP
Manufacturer NameVIP
Max Working Pressure25 Bar
Max Working Temperature0°C to 110°C
ModelBall Valves
Model Number00/2087/015
Model ReferenceBall Valves
NBS Descriptionn/a
NBS Noten/a
NBS Object Namen/a
NBS Office Master Tagn/a
NBS Referencen/a
ND28 mm
Nominal Diameter15 mm
Nut Diameter7 mm
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Spare Partssales@vip-ltd.co.uk
ThreadsISO 228
Type Comments00/2087/015
Type NameDN15
URLwww.vip-ltd.co.uk
Valve Body Thickness30 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
WRAS ApprovedYes
