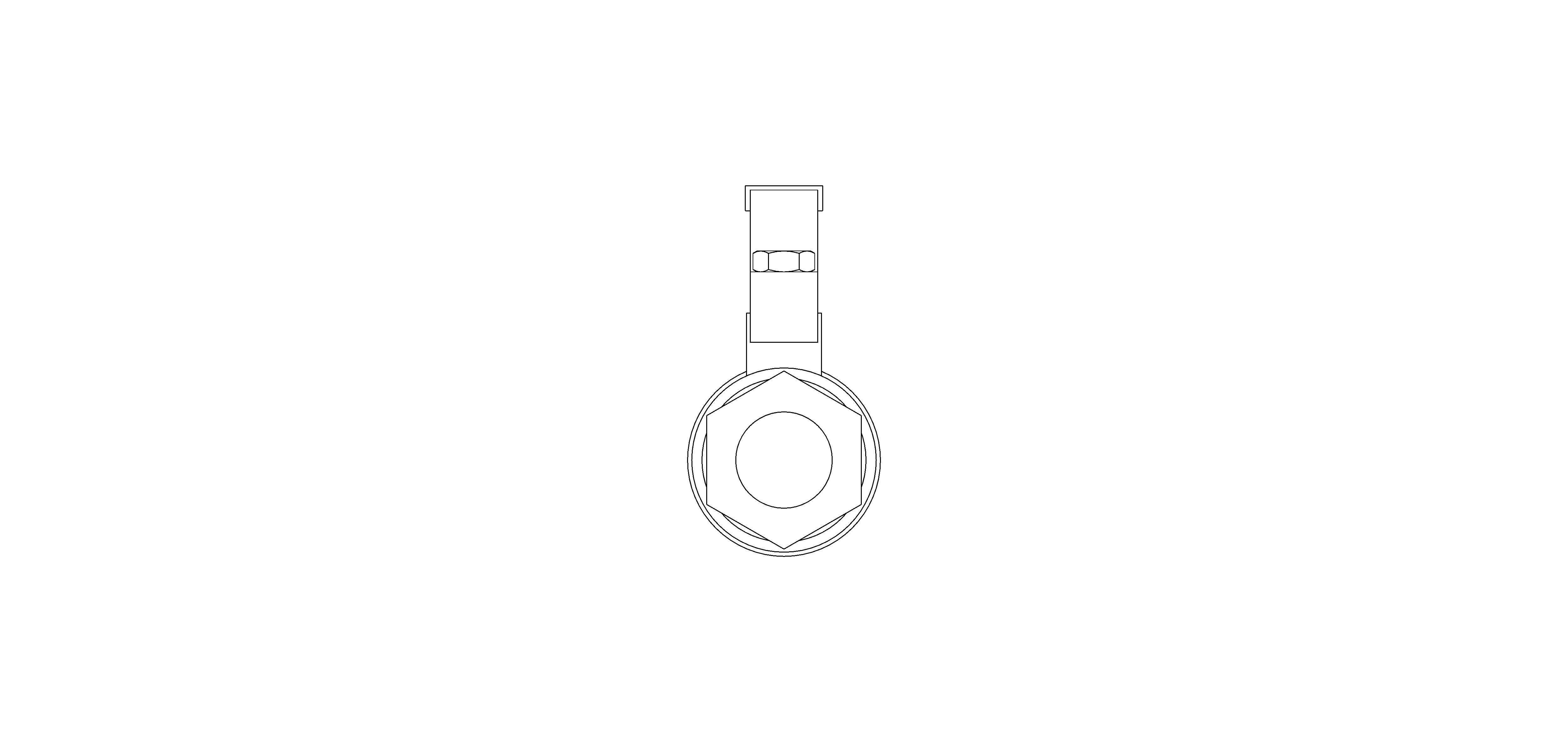

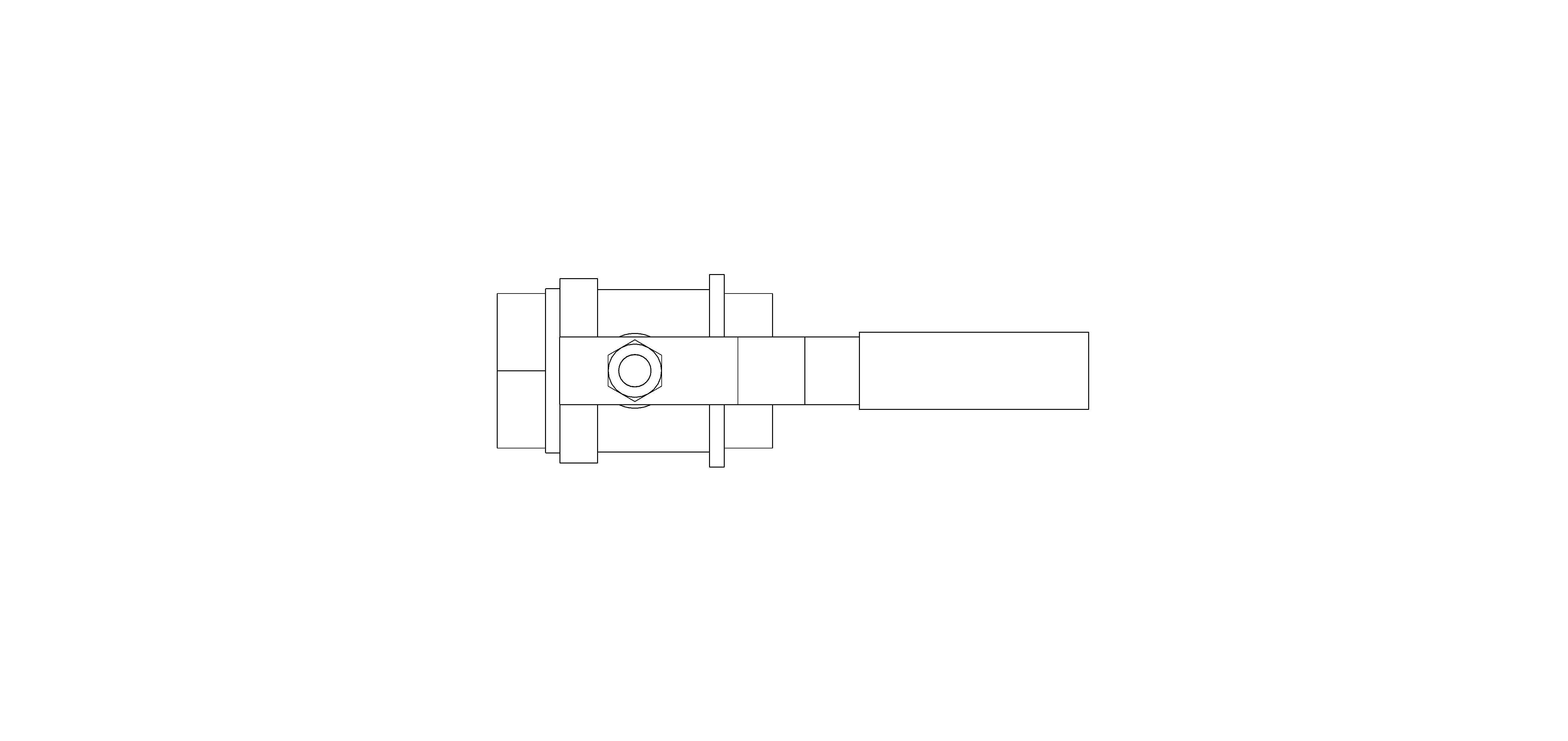

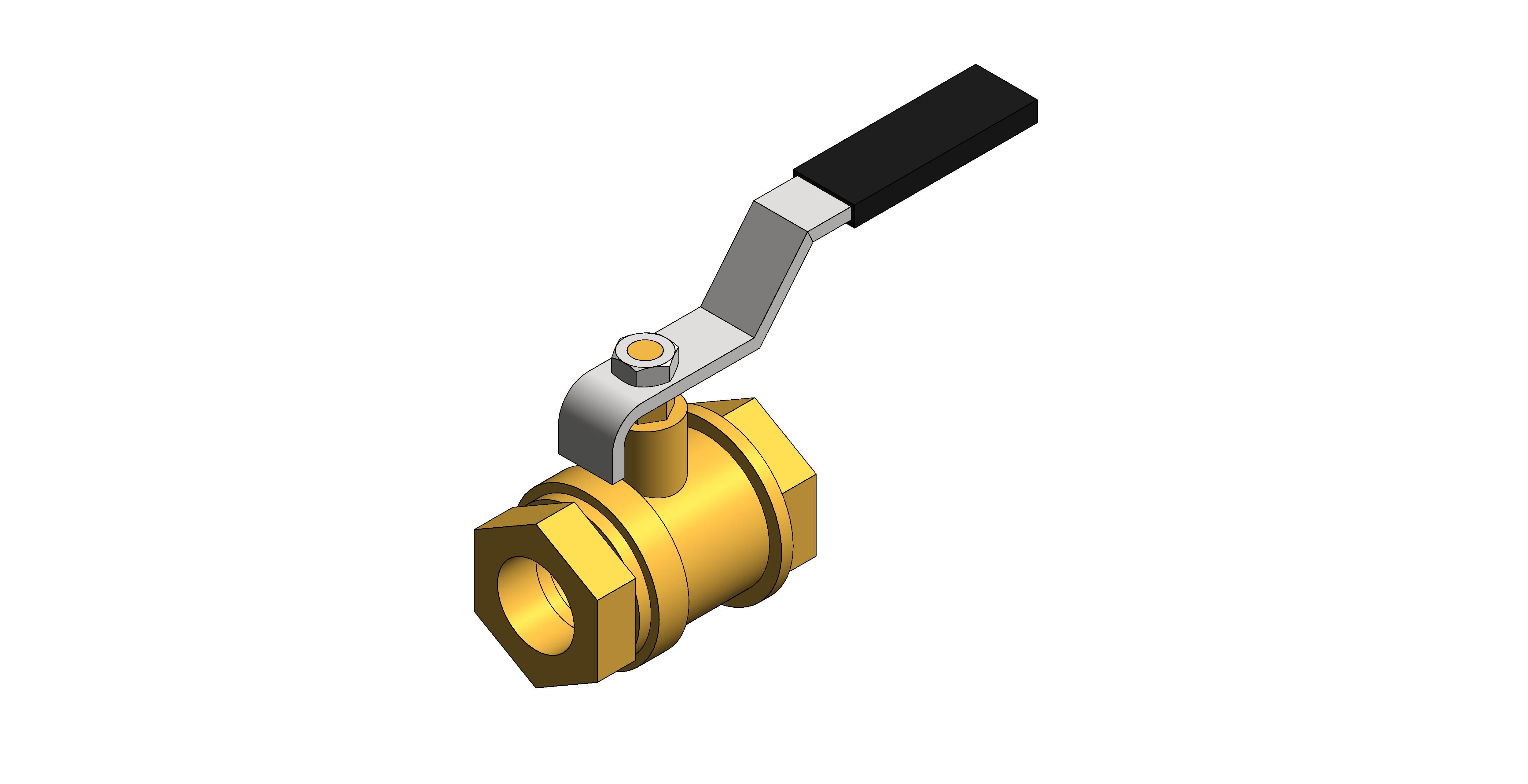

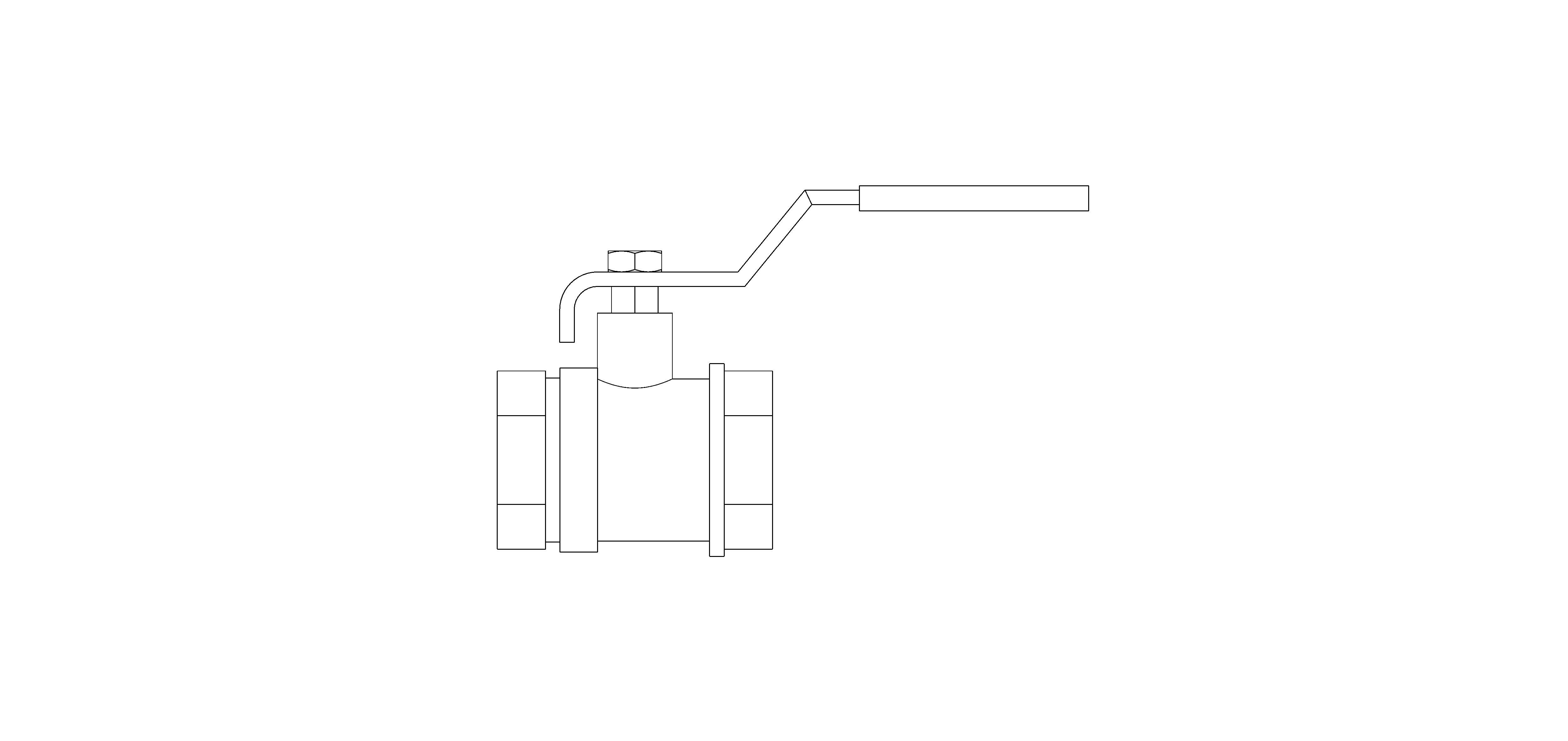

DZR Brass Ball Valve [00/0095]

by Valves Instruments Plus

Download Add to collection

Description

BSP DZR Ball Valve, Lever Operated FxF

Service & Application

DZR Full Bore Ball Valve, Body in Forged Brass
Lever operated: FxF - sizes 1/2” - 2”
Threads: ISO 228
Working Temperature: 0°C - 110°C
Max Working Pressure: 25 Bar

Object Data

1 Revision

Last Updated

27/03/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

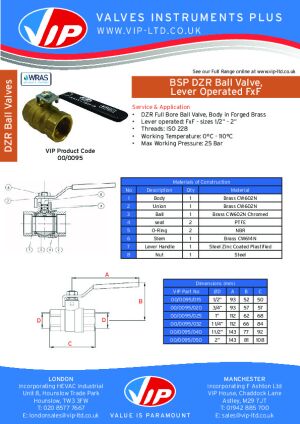

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAA
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version0
_Created Bysales@vip-ltd.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/96e5e711-4599-4506-8c9a-fb3a47153b22/document/object-user-guide
A93 mm
A247 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B52 mm
B249 mm
BIM Object NameVIP_FxF_DZR_BALL_VALVE
Body MaterialBrass
Body Thickness32 mm
C50 mm
Centre Body Width24 mm
Classification NameUniclass 2024
Classification ValuePR_65_54_95_06
Code Performancen/a
ColorYellow
Compression Nut Width10 mm
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-03-04T09:00:00
D15 mm
Default Elevation0 mm
DescriptionLever Operated Ball Valve
Documentation Certificateswww.bimstore.co/products/96e5e711-4599-4506-8c9a-fb3a47153b22/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/96e5e711-4599-4506-8c9a-fb3a47153b22/document/installation-guide
Documentation Literaturewww.bimstore.co/products/96e5e711-4599-4506-8c9a-fb3a47153b22/document/product-literature
Documentation Maintenancewww.bimstore.co/products/96e5e711-4599-4506-8c9a-fb3a47153b22/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/96e5e711-4599-4506-8c9a-fb3a47153b22/document/technical-data-sheet
Duration UnitYears
End ConnectionsCompression x Compression, BS EN 1254-2
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Handle Thickness3 mm
Handle Width14 mm
Inner Nut Size12 mm
Inner Nut Thickness2 mm
KeynoteS
Lever Cover 15 mm
Lever Height51 mm
Lever height22 mm
Lever MaterialPresssed Steel
Lever New coverVIP Red
ManufacturerVIP
Manufacturer NameVIP
Max Working Pressure16 Bar
Max Working Temperature0°C to 110°C
ModelLever Operated Ball Valve
Model Number00/0095/015
Model ReferenceLever Operated Ball Valve
NBS Descriptionn/a
NBS Noten/a
NBS Object Namen/a
NBS Office Master Tagn/a
NBS Referencen/a
Nut Center7 mm
Nut End Radius13 mm
Nut Width26 mm
Open50 mm
Opening8 mm
Outer Nut3 mm
Pressure RatingPN25
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Spare Partssales@vip-ltd.co.uk
Type Comments00/0095/015
Type NameDN15
URLwww.vip-ltd.co.uk
Valve Inner Width20 mm
Valve Width30 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
WRAS ApprovedYes

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
