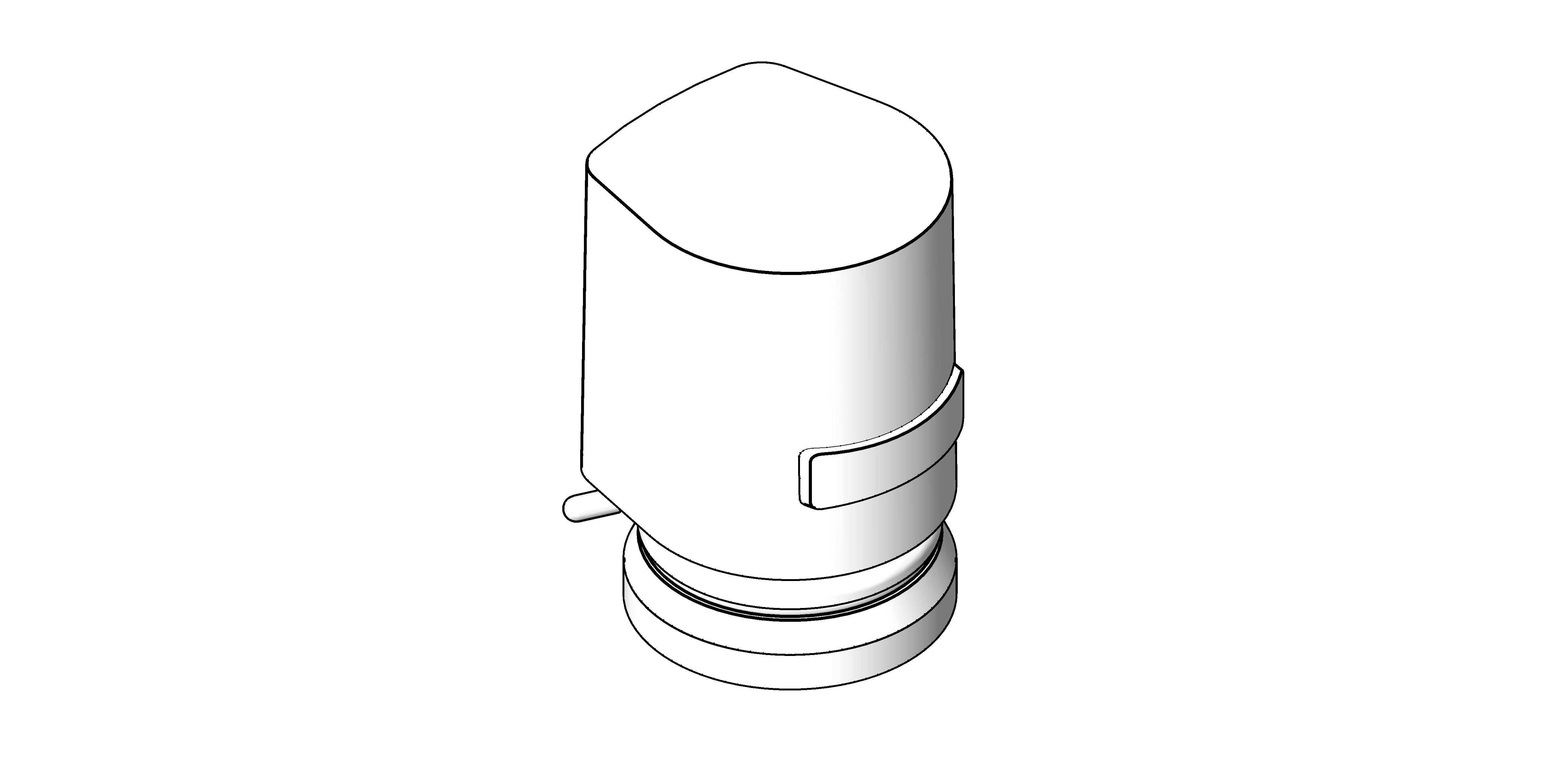

Actuator (MT4)

by Resideo: Smart Home Products and Systems

Download Add to collection

Description

Resideo offers top-of-the-line home automation solutions to set up your best smart home system, including smart thermostats, security cameras and more.

Click here to visit Resideo for more info!

Object Data

1 Revision

Last Updated

01/04/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

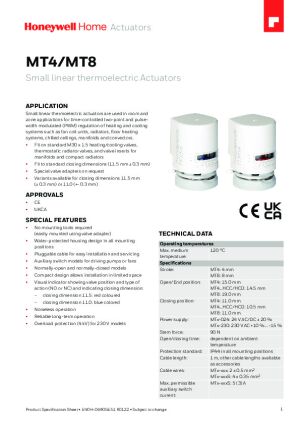

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/actuator-mt4/document/object-user-guide
Accessibility Performancen/a
Actuator SeriesMT, Smart-T
Actuator TypeMT4
Ambient Operating Limits20…50°C
Ambient Storage Limits20…50°C
Assembly CodeD20
Asset TypeFixed
BIM Object NameResideo_Actuator_MT4
Cable Length1 m
Cable Wires2 x 0.5 mm2
Classification NameUniclass2015
Classification ValuePr_75_50_02_94
Code Performancen/a
Colorn/a
Constituentsn/a
Control SignalOn/Off
Created Bywww.resideo.com/gb/en/contact-us/
Created On2022-07-04 T09:00:00
Default Elevation0.0 mm
DescriptionTHERMAL ACTUATOR 4MM 24V NC
Documentation Certificateswww.bimstore.co/products/actuator-mt4/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/actuator-mt4/document/installation-guide
Documentation Literaturewww.bimstore.co/products/actuator-mt4/document/product-literature
Documentation Maintenancewww.bimstore.co/products/actuator-mt4/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/actuator-mt4/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.USERDEFINED
KeynoteS
ManufacturerResideo
Manufacturer NameResideo
Materialn/a
Maximum Media Temperature120°C
ModelMT4-024-NC
Model NumberMT4-024-NC
Model ReferenceTHERMAL ACTUATOR 4MM 24V NC
Mounting Adapter For Velta Compact ManifoldNo
NBS DescriptionValve actuators
NBS Noten/a
NBS Object NameResideo - Valve actuators
NBS Office Master Tagn/a
NBS Reference90-65-50/310
Nominal Depth42.0 mm
Nominal Height65.0 mm
Nominal Length45.0 mm
Offset5.4 mm
Position FeedbackYes
Power Loss ActionNC
Power Supply24 V AC/DC ± 20 %
Primary MaterialResideo - Plastic - White
Production Year2022
Protection StandardIP44
Referenced Standardn/a
Replacement Costn/a
Run Time4 min
Shapen/a
Size45mm (L) x 65mm (H) x 42mm (D)
Spare PartsExtra mounting adapters M30 x 1,5; 10 units [MT-ADAPT-HW]; Plug-in cable (not for models with end switch), 1,5 meter; 10 units [MT-CABLE-1.5M]; Plug-in cable (not for models with end switch), 2,5 meter; 10 units [MT-CABLE-2.5M]; Plug-in cable (not for models with end switch), 5 meter; 10 units [MT-CABLE-5M]; Plug-in cable (not for models with end switch), 10 meter; 10 units [MT-CABLE-10M].
Stem Force90 N
Stroke4 mm
Type CommentsTHERMAL ACTUATOR 4MM 24V NC
Type NameMT4-024-NC
URLwww.resideo.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborwww.resideo.com/gb/en/contact-us/
Warranty Guarantor Partswww.resideo.com/gb/en/contact-us/
Weight0.40 kg
