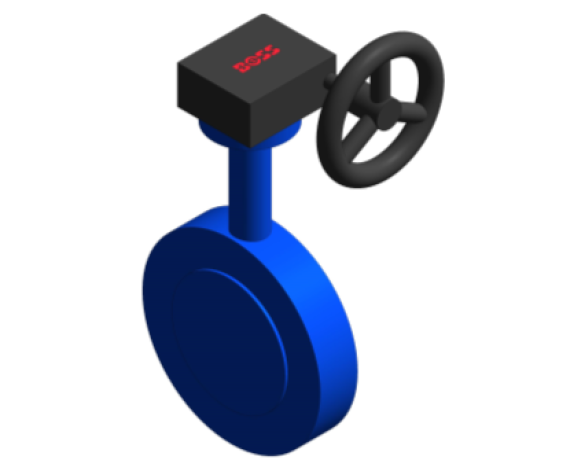

FIG 901XS Butterfly Venturi Commissioning Valve FODRV & DRV 65mm-300mm (PN16) [Balancing Valves]

by BOSS

Download Add to collection

Description

Ballorex Venturi steel double regulating valve (DRV)

This download is for the Butterfly Venturi Commissioning Valve (DRV) - Fig. 901XS from BOSS Valves. A BSS Company.

The download includes 1no Revit Pipe Accessory family (.rfa file), 1no Type Catalogue (.txt file) and 1no Userguide (.pdf file). Ensure the Userguide is read and understood prior to loading the Pipe Accessory family to an MEP System.

Object Data

1 Revision

Last Updated

04/07/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorPegler Yorkshire
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.pegleryorkshire.co.uk/en/home
_Current Revision3
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
ApplicationFlow regulating
ApprovalsUnpublished
Assembly CodeD2090800
Asset TypeFixed
BIM Object NameBOSS_PipeAccessory_CommissioningValve_Fig901XS_ButterflyVenturiCommissioningValve
Body MaterialMetal - Pegler - CI Dark Blue Finish
Bonnet Diameter32 mm
Bonnet Radius16 mm
Centre To Centre223 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_08
Code Performancen/a
ColorDark Blue
Connection TypeFlanged
Constituentsn/a
Created Byenquiries@bssgroup.com
Created On2017-11-13T09:00:00
DescriptionBallorex Venturi steel double regulating valve (DRV)
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2079
Documentation Maintenancen/a
Documentation Technicaln/a
Duration Unityears
Expected Life0
Featuresn/a
FinishCast Iron
Flange Radius93 mm
Gas CombustibleNo
Gas CorrosiveNo
Gas InertNo
Gas OxygenNo
Gear Box Height40 mm
Gear Box Width76 mm
Gear Length100 mm
Gear MaterialMetal - Pegler - CI Black Finish
GradePN16
Hand Wheel Diameter125 mm
Hand Wheel Radius63 mm
Height285 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.COMMISSIONING
K Coefficient3.48
KeynoteS
Kv Cubic Meter Per Hour148
Kvs Cubic Meter Per HourUnpublished
Latchplate Radius50 mm
Length45 mm
Length 114 mm
Length 219 mm
Length 338 mm
Length 46 mm
Length 59 mm
Length 653 mm
Maintenance CheckNo regular aesthetic care is required for this product
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialCast Iron
Material DescriptionDZR brass body with polyamide hand wheel
ModelFig 901XS Butterfly Venturi Commissioning Valve (DRV)
Model Number32014601
Model ReferenceFig 901XS Butterfly Venturi Commissioning Valve (DRV)
NBS DescriptionButterfly valves
NBS Object NameBOSS - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth0 mm
Nominal Diameter65 mm
Nominal Height285 mm
Nominal Length45 mm
Nominal Radius33 mm
Pattern Numbern/a
PED CategorySEP
PN Rating16
Product Code32014601
Production Year2017
Raised Face Radius59 mm
Raised Face Thickness3 mm
Referenced Standardn/a
Replacement Costn/a
ShapeButterfly
SizeDN65
Spare Partsn/a
Symbol Length 113 mm
Symbol Length 226 mm
Type Comments65 mm 901XS steel double regulating valve
Type Name65 mm 901XS steel double regulating valve
URLwww.bssindustrial.co.uk/
Valve Height285 mm
Valve TypeDouble regulating valve
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration Unityears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsenquiries@bssgroup.com
Weight5.60 kg
